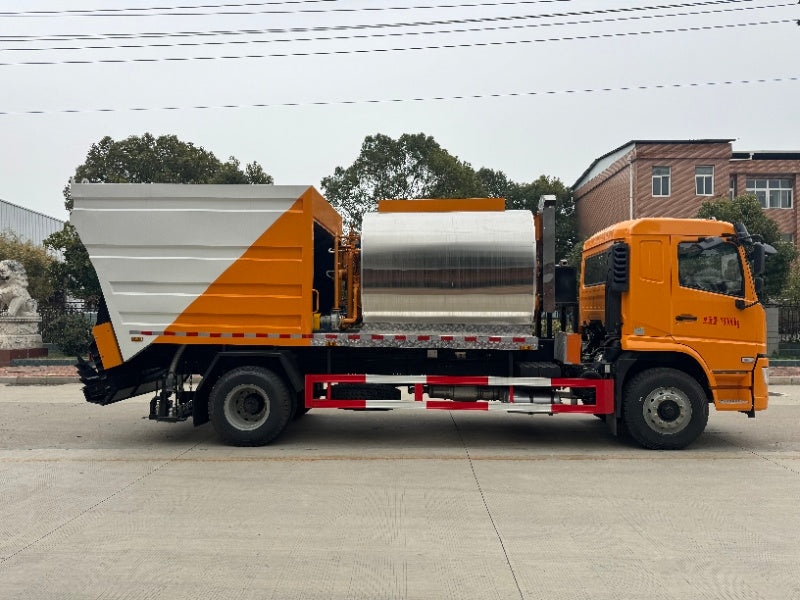

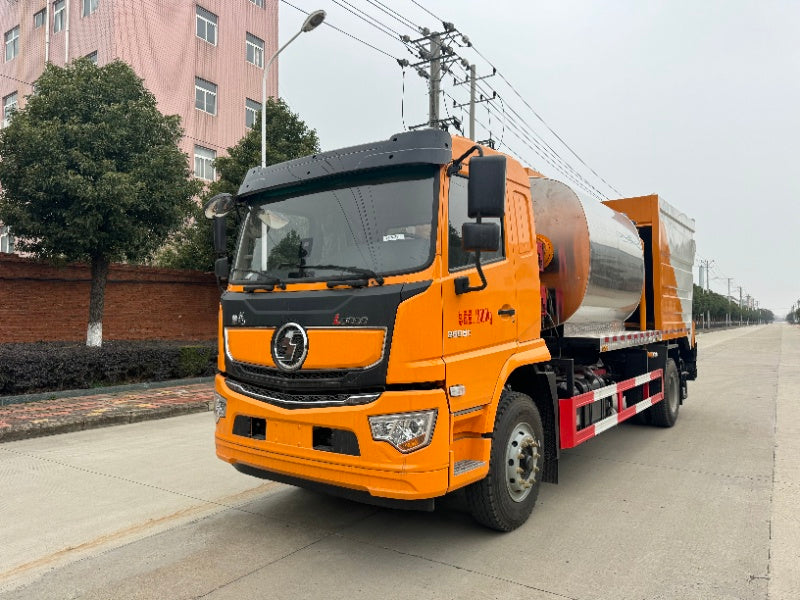

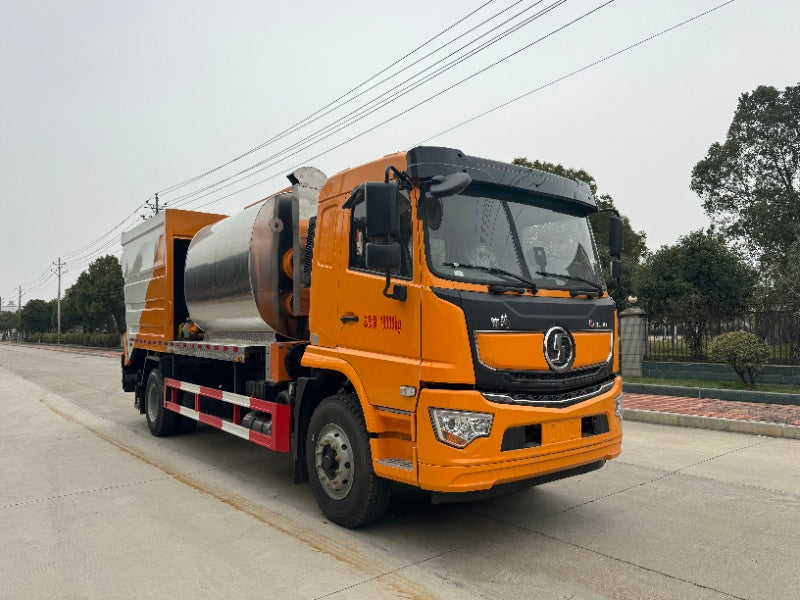

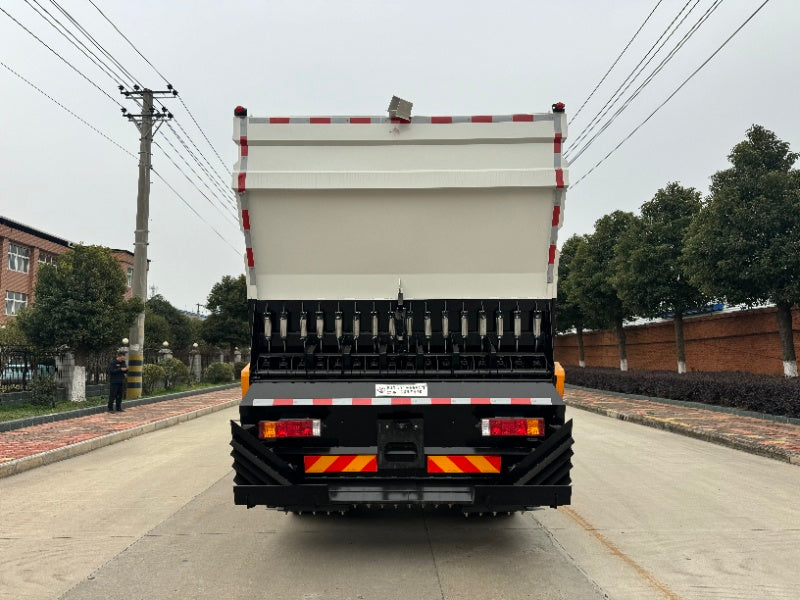

15m³ Synchronous Chip Sealer Truck
Request a Quote Now
1. Overall Machine Performance Parameters
| Product Model | HHZ5180TFCSX6 Synchronous Chip Sealer |
| Curb Weight | 10600 kg |
| Overall Dimension | 9150×2500×3550 mm |
| Asphalt Tank Volume | 7 m³ |
| Stone Hopper Volume | 8 m³ V-shaped gravity hopper |
| Max Spreading Width | 4000 mm |
| Nozzle Spacing | 125 mm |
| Asphalt Application Rate | 0.2~3.5 L/m² |
| Spreading Accuracy Deviation | ±2% |
| Applicable Medium | Hot asphalt, SBS modified asphalt, emulsified asphalt, modified emulsified asphalt |
| Heating System | Riello diesel burner + thermal oil automatic temperature control |
2. Shaanxi Delong L5000 Chassis Parameters
| Chassis Model | SX1189LAF1C, Shaanxi DELONG L5000 Classic Cab, 4×2 sanitation truck, Glacier White |
| Engine | National VI Weichai / Cummins 260HP, Model B6.2NS6B260 |
| Transmission | S08MO iron shell gearbox QD40K |
| Rear Axle | 10T MAN single reduction axle, gear ratio 5.125 (386 axle) |
| Wheelbase | 5300/2150 mm |
| Tire | 10.00R20 steel wire tire |
| Frame Spec | 870×250 mm (7+4 layers) |
| Fuel Tank | 200L steel fuel tank |
| Standard Equipments | ABS, Tianxingzhi intelligent system, electric air conditioner, metal bumper, remote central lock, electric window lifter, manual cab tilting, standard air filter, multi-leaf rear suspension with 2 U-bolts |
3. Superstructure Core Parts Parameters
| Power Take-off | Special PTO for chip sealer |
| Double Gear Pump | Tianjin-made double gear pump |
| Asphalt Pump | QGB680, flow rate 680 L/min |
| Nozzle Configuration | 30 independent nozzles, 1-to-1 separate control |
| Burner | Riello G20, heating power 200,000 kcal/h |
| Tank Insulation | 50mm thick rock wool insulation layer |
| Outer Cladding | 1.2mm stainless steel plate |
| Control System | Modular touch screen controller in cab + backup ground control box, fast response & low failure rate |
