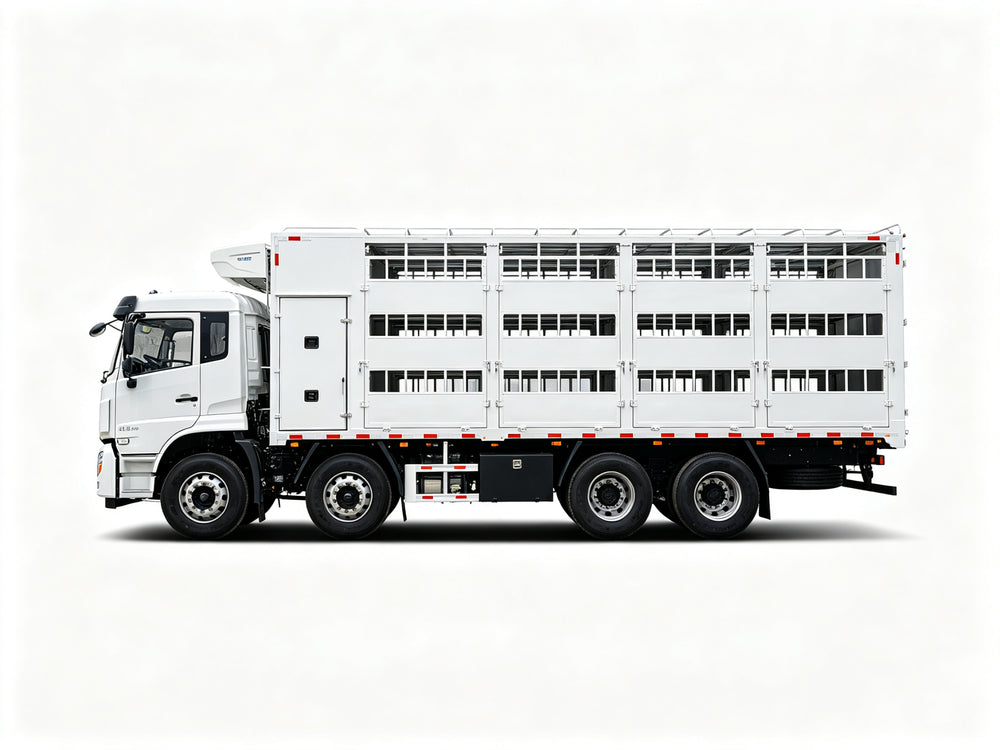

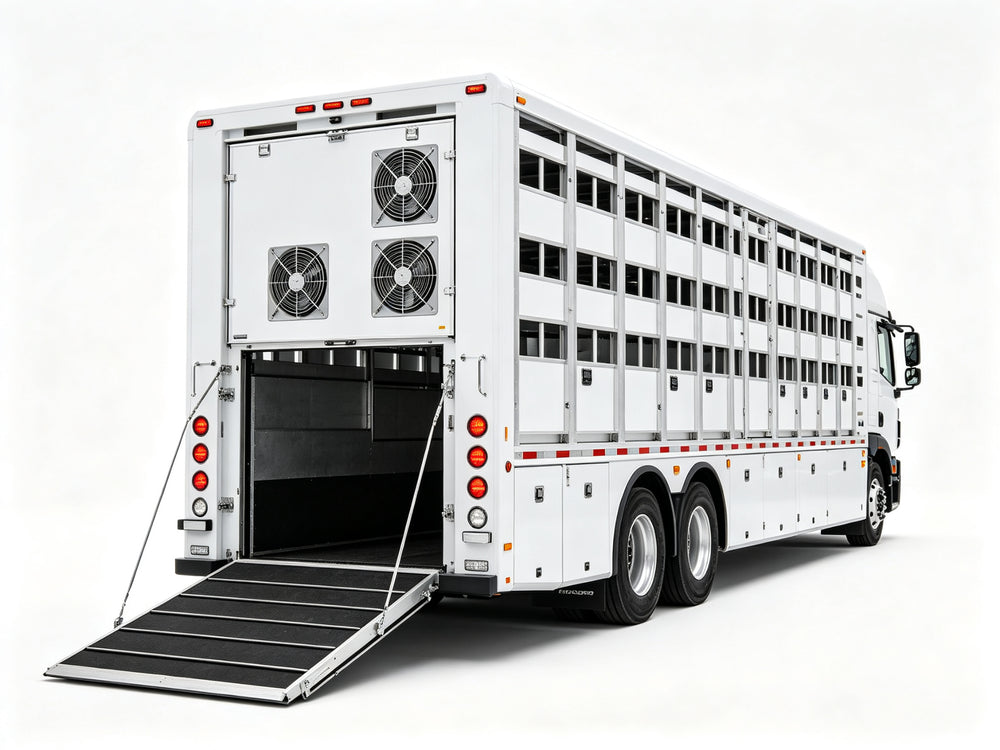

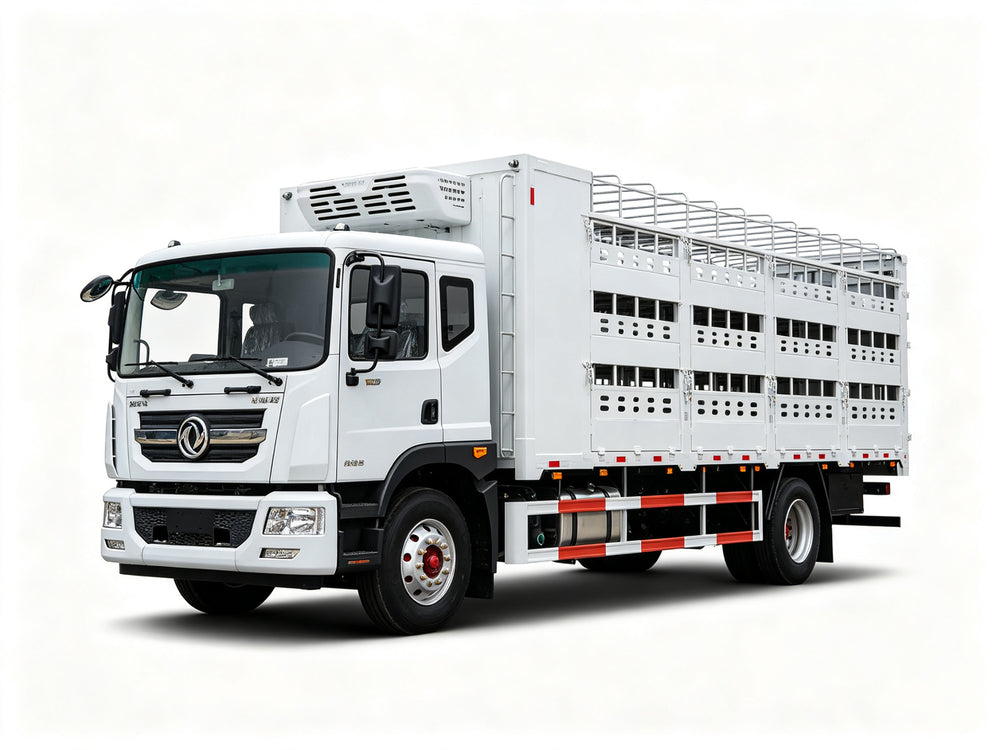

230HP Cummins Power | 3-Deck Climate-Controlled Livestock Transport Truck
Request a Quote Now
1. Complete Vehicle Basic Parameters
| Parameter | Value |
|---|---|
| Vehicle Type | Livestock / Poultry Transport Truck |
| Complete Vehicle Model | CL5180CCQ6HL |
| Gross Vehicle Weight | 18000 kg |
| Rated Load Capacity | 8500 kg |
| Curb Weight | 9300 kg |
| Number of Axles | 2 (4×2) |
| Axle Load Distribution | 6500 kg / 11500 kg |
| Cab Seating Capacity | 3 persons |
| Fuel Type | Diesel |
| Maximum Speed | 95 km/h |
| Emission Standard | Euro VI / National VI |
2. Dimension & Wheel Parameters
| Parameter | Value |
|---|---|
| Overall Dimension (L×W×H) | 9200 × 2500 × 3850 mm |
| Compartment Dimension (L×W×H) | 6800 × 2400 × 2500 mm |
| Number of Decks | 3 layers (adjustable) |
| Wheelbase | 4700 mm |
| Front Overhang / Rear Overhang | 1430 mm / 3070 mm |
| Approach Angle / Departure Angle | 20° / 14° |
| Front Track Width | 1914 mm |
| Rear Track Width | 1840 mm |
| Tire Specification | 10.00R20 18PR Steel Radial |
| Number of Tires | 6 (plus 1 spare) |
| Leaf Spring Configuration | 8 / 10+7 |
3. Powertrain System
| Parameter | Value |
|---|---|
| Engine Model | B6.2NS6B230 |
| Engine Brand | Cummins (Dongfeng) |
| Engine Power | 230 HP (169 kW) |
| Engine Displacement | 6.2 L |
| Maximum Torque | 900 N·m |
| Transmission | Fast 8-Speed Manual Gearbox |
| Final Drive Ratio | 4.875 |
| Fuel Tank Capacity | 250 L Aluminum Alloy |
| Clutch | Single-Dry-Plate Diaphragm Spring Clutch |
4. Livestock Compartment Configuration
| Parameter | Value |
|---|---|
| Compartment Type | Fully Enclosed Multi-Deck Livestock Box |
| Body Material | Aluminum Alloy + Galvanized Steel Frame |
| Side Wall Material | Aluminum alloy panels with ventilation shutters |
| Floor Material | Anti-slip galvanized steel grating per deck |
| Number of Decks | 3 adjustable-height decks |
| Deck Height | 800mm per deck (adjustable) |
| Ventilation Windows | 20 adjustable ventilation shutters per side |
| Side Access Doors | 2 sliding doors per side (800mm width) |
| Rear Loading Door | Full-width hydraulic ramp door |
| Loading Ramp | Hydraulic fold-out loading ramp (1.2m wide) |
| Headboard | 600mm high with observation window |
| Interior Lighting | LED lights on each deck (6 units total) |
| Roof Ventilation | 4 roof-mounted ventilation fans |
| Water Spray System | Misting nozzles on each deck for cooling |
| Feeding Troughs | Removable feeding troughs per deck |
| Watering System | Automatic drinking nipples per compartment |
| Waste Collection | Removable waste collection trays under each floor |
| Temperature Monitoring | Digital temperature sensors per deck |
5. Environmental Control System
| Parameter | Value |
|---|---|
| Ventilation Fans | 6 high-volume axial fans (300mm diameter) |
| Air Exchange Rate | 30-50 air changes per hour |
| Cooling System | High-pressure misting cooling system |
| Heating System | Optional diesel heater for cold weather |
| Temperature Control Range | 15°C – 30°C (adjustable) |
| Control Panel | In-cab digital climate control panel |
| Air Filtration | Dust filter screens on all air intakes |
| Emergency Ventilation | Manual backup ventilation system |
6. Chassis Configuration
| Parameter | Value |
|---|---|
| Chassis Model | DFH1180EX8 |
| Cab Type | Dongfeng Tianjin Row-and-Half Cab |
| Front Axle | 4.5 Ton Rated Load, Disc Brake |
| Rear Axle | 10 Ton Single Reduction Axle |
| Frame Specification | 250×80×(7+4)mm Double-Layer Frame |
| Steering System | Hydraulic Power Steering |
| Brake System | Air Brake with ABS, Drum/Disc Mix |
| Parking Brake | Spring Energy Storage Brake |
| Suspension | Leaf Spring with Shock Absorbers |
| Exhaust Brake | Equipped |
7. Interior & Comfort Features
| Feature | Description |
|---|---|
| Air Conditioner | Manual Air Conditioning |
| Windows | Electric Front Windows |
| Door Lock | Central Door Locking with Remote Key |
| Audio System | AM/FM Radio with USB & Bluetooth |
| Instrument Panel | Digital Multi-Function Display |
| Steering Wheel | 4-Spoke Multifunctional Steering Wheel |
| Seats | Airbag Suspension Driver Seat, Fabric Passenger Seats |
| Storage | Door Pockets, Glove Box, Overhead Storage |
| Power Outlet | 24V Power Outlet |
| Cruise Control | Equipped |
| Livestock Monitoring | Optional in-cab camera monitoring system |
8. Safety & Standard Features
| Feature | Description |
|---|---|
| ABS Anti-Lock Braking | Equipped (4S/4M) |
| Seatbelts | 3-Point Seatbelts for All Seats |
| Reverse Alarm | Audible reverse warning buzzer |
| Side Marker Lights | Front & rear side marker lights |
| Rearview Mirror | Manual dual-arm rearview mirrors |
| Daytime Running Lights | LED Daytime Running Lights |
| Spare Tire | Full-size spare tire with carrier |
| Fire Extinguisher | 4kg dry powder fire extinguisher (mounted) |
| Tool Kit | Standard vehicle tool kit with jack |
| Battery | 2 × 12V / 120Ah Batteries |
| Warning Triangle | 2 reflective warning triangles |
| Emergency Exit | Emergency escape hatch on roof |
| Non-Slip Flooring | Anti-slip grating on all decks |
9. Optional Upgrades
| Option | Description |
|---|---|
| Air Conditioning Unit | Roof-mounted refrigerated AC system |
| Heating System | Diesel-fueled compartment heater |
| Camera System | 4-camera CCTV monitoring with in-cab display |
| GPS Tracking | Built-in GPS fleet tracking with temperature logging |
| Automatic Feeder | Programmable automatic feeding system |
| Water Tank | 500L on-board fresh water tank |
| Generator | On-board auxiliary diesel generator |
| Hydraulic Tail Lift | Hydraulic loading ramp upgrade |
| Side Curtains | Roll-up side curtains for open ventilation |
| Livestock Dividers | Adjustable compartment dividers |
| Poultry Transport Config | Poultry cage rack configuration |
| Pig Transport Config | Pig-specific flooring and pen configuration |
| Cattle Transport Config | Single-deck cattle transport configuration |
