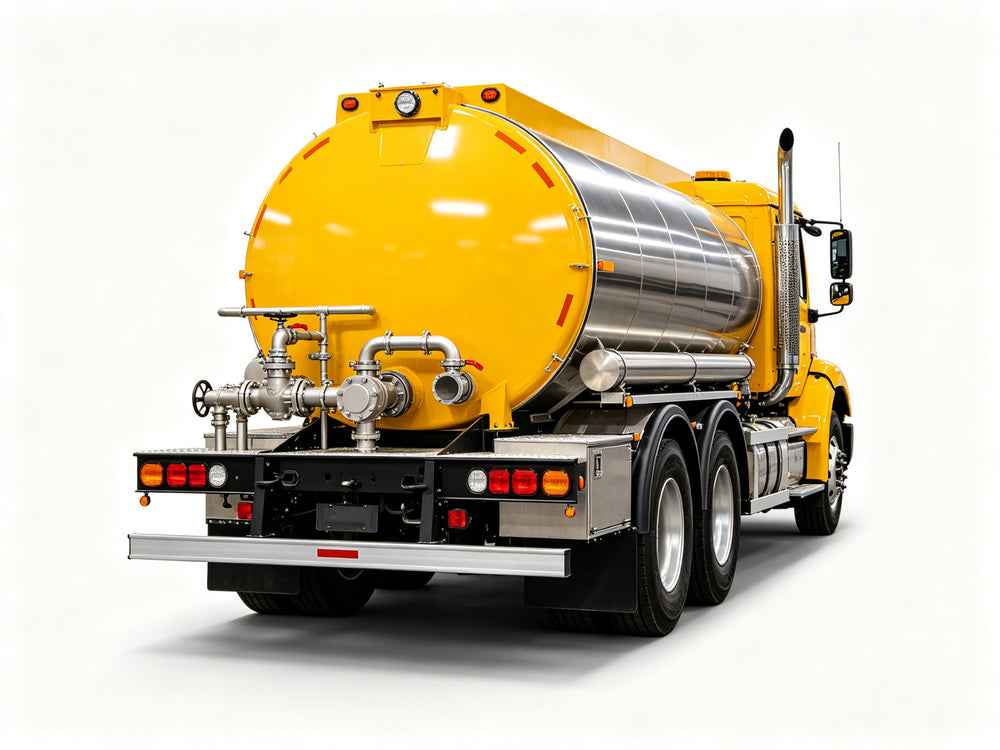

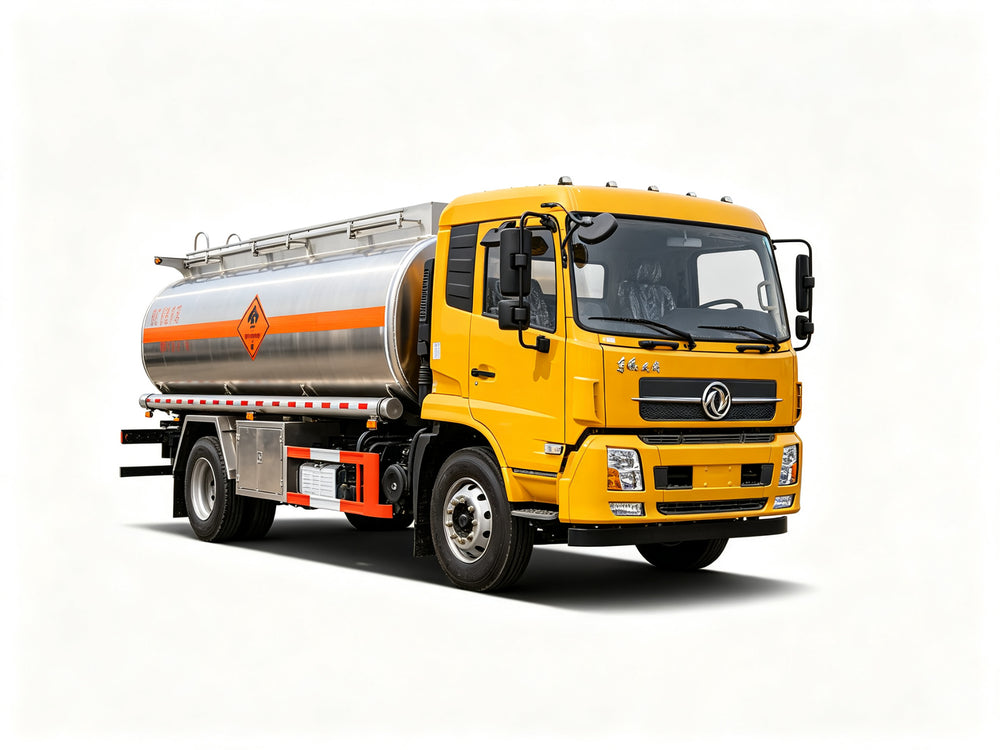

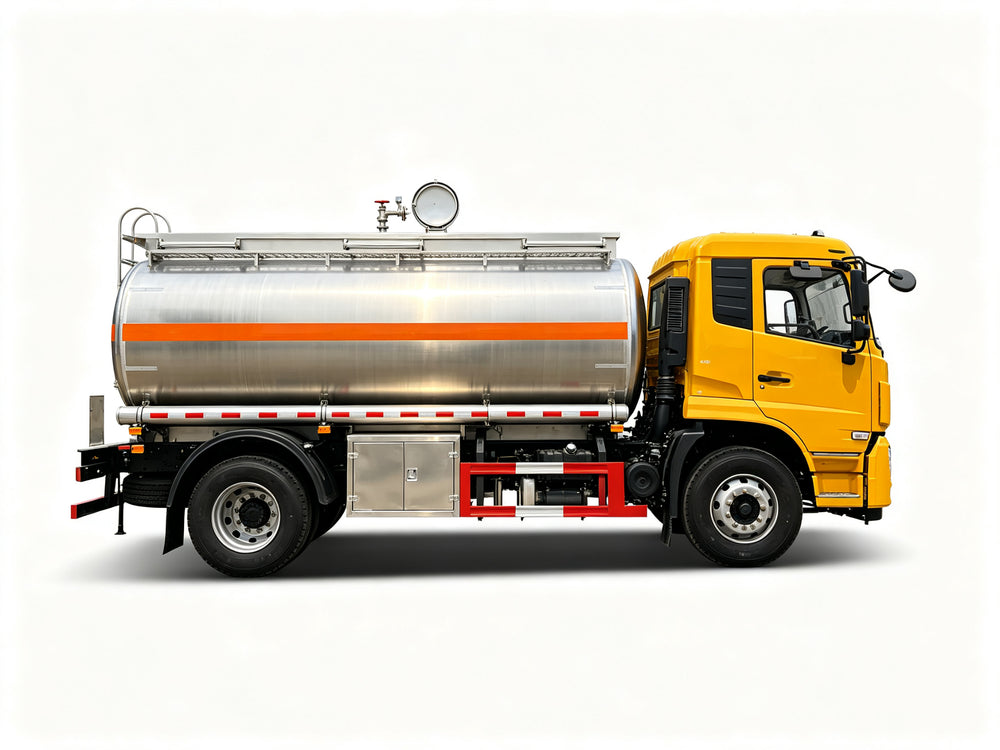

DongFeng 10m³ Chemical Tank Truck
Request a Quote Now
1. Complete Vehicle Basic Parameters
| Parameter | Value |
|---|---|
| Vehicle Type | Chemical Liquid Tank Truck |
| Complete Vehicle Model | CL5180GHY6HL |
| Gross Vehicle Weight | 18000 kg |
| Rated Load Capacity | 10200 kg |
| Curb Weight | 7600 kg |
| Number of Axles | 2 (4×2) |
| Axle Load Distribution | 6500 kg / 11500 kg |
| Cab Seating Capacity | 3 persons |
| Fuel Type | Diesel |
| Maximum Speed | 89 km/h |
| Emission Standard | Euro VI / National VI |
| Hazard Class | Class 3 / 8 (Flammable / Corrosive Liquids) |
2. Dimension & Wheel Parameters
| Parameter | Value |
|---|---|
| Overall Dimension (L×W×H) | 8900 × 2500 × 3250 mm |
| Tank Dimension (L×Diameter) | 6300 × 2000 mm |
| Tank Volume | 12.5 m³ |
| Wheelbase | 4700 mm |
| Front Overhang / Rear Overhang | 1430 mm / 2770 mm |
| Approach Angle / Departure Angle | 20° / 14° |
| Front Track Width | 1914 mm |
| Rear Track Width | 1840 mm |
| Tire Specification | 10.00R20 18PR Steel Radial |
| Number of Tires | 6 (plus 1 spare) |
| Leaf Spring Configuration | 8 / 10+7 |
3. Powertrain System
| Parameter | Value |
|---|---|
| Engine Model | B6.2NS6B230 |
| Engine Brand | Cummins (Dongfeng) |
| Engine Power | 230 HP (169 kW) |
| Engine Displacement | 6.2 L |
| Maximum Torque | 900 N·m |
| Transmission | Fast 8-Speed Manual Gearbox |
| Final Drive Ratio | 4.875 |
| Fuel Tank Capacity | 250 L Aluminum Alloy |
| Clutch | Single-Dry-Plate Diaphragm Spring Clutch |
4. Chemical Tank Configuration
| Parameter | Value |
|---|---|
| Tank Type | Cylindrical Horizontal Tank |
| Tank Material Options | 304/316L Stainless Steel / PE-Lined / Aluminum Alloy |
| Tank Wall Thickness | 5mm (stainless steel) / 16mm (PE-lined) |
| Tank Heads | Dished / Elliptical Heads |
| Number of Compartments | 2 compartments (optional 3) |
| Anti-Wave Baffles | 4 sets of anti-wave baffles per compartment |
| Manhole | 1 manhole per compartment (500mm diameter) |
| Manhole Cover | Pressure-resistant cover with pressure relief valve |
| Bottom Valve | Emergency shut-off bottom valve per compartment |
| Bottom Valve Type | Pneumatic / hydraulic emergency shut-off |
| Top Filling Port | Top loading port with quick coupling |
| Discharge Valve | Stainless steel ball valve / butterfly valve |
| Drain Valve | Bottom drain valve |
| Sample Valve | Stainless steel sampling valve |
| Tank Top Walkway | Non-slip walkway with safety handrails |
| Ladder | Stainless steel rear climbing ladder |
| Internal Coating | Optional epoxy phenolic lining for corrosive liquids |
| Pressure Rating | 0.4 MPa working pressure |
| Hydrostatic Test | 0.6 MPa test pressure |
5. Pump & Piping System
| Parameter | Value |
|---|---|
| Pump Type | Stainless steel chemical centrifugal pump |
| Pump Capacity | 30 – 60 m³/h (depending on model) |
| Pump Drive | PTO-driven / hydraulic motor |
| Pump Material | 304 / 316L Stainless Steel |
| Piping Material | 304 / 316L Stainless Steel |
| Pipe Diameter | DN80 / DN100 |
| Quick Connectors | Camlock / dry-break quick couplings |
| Self-Priming | Self-priming centrifugal pump |
| Flow Meter | Optional stainless steel flow meter with totalizer |
| Pump Inlet/Outlet | Both sides accessible |
| Pressure Relief | Built-in pressure relief valve |
6. Safety & Emergency Systems
| Parameter | Value |
|---|---|
| Emergency Shut-Off Valve | Pneumatic bottom valve with remote control |
| Overflow Protection | Anti-overflow sensor & alarm system |
| Static Grounding | Static grounding reel with monitoring |
| Fire Extinguisher | 2 × 4kg dry powder fire extinguishers |
| Hazard Markings | Full UN hazard class markings & placards |
| Reflective Markings | Reflective strips & reflective tape all around |
| Spill Kit | On-board spill response kit |
| Safety Shower | Optional on-board safety shower / eyewash |
| Vent System | Pressure/vacuum vent valve |
| Flame Arrestor | Flame arrestor on vent |
| Rear Underrun Guard | Rear underrun protection bar |
| Side Underrun Guard | Side underrun protection bars |
| Emergency Shut-Off Switch | Cab-accessible emergency shut-off switch |
| Exhaust System | Front-mounted exhaust with spark arrester |
7. Chassis Configuration
| Parameter | Value |
|---|---|
| Chassis Model | DFH1180EX8 |
| Cab Type | Dongfeng Tianjin Row-and-Half Cab |
| Front Axle | 4.5 Ton Rated Load, Disc Brake |
| Rear Axle | 10 Ton Single Reduction Axle |
| Frame Specification | 250×80×(7+4)mm Double-Layer Frame |
| Steering System | Hydraulic Power Steering |
| Brake System | Air Brake with ABS, Drum/Disc Mix |
| Parking Brake | Spring Energy Storage Brake |
| Suspension | Leaf Spring with Shock Absorbers |
| Exhaust Brake | Equipped |
| Exhaust Spark Arrester | Equipped (hazardous materials spec) |
8. Interior & Comfort Features
| Feature | Description |
|---|---|
| Air Conditioner | Manual Air Conditioning |
| Windows | Electric Front Windows |
| Door Lock | Central Door Locking with Remote Key |
| Audio System | AM/FM Radio with USB & Bluetooth |
| Instrument Panel | Digital Multi-Function Display |
| Steering Wheel | 4-Spoke Multifunctional Steering Wheel |
| Seats | Airbag Suspension Driver Seat, Fabric Passenger Seats |
| Storage | Door Pockets, Glove Box, Overhead Storage |
| Power Outlet | 24V Power Outlet |
| Cruise Control | Equipped |
| Hazard Monitor | In-cab tank pressure & temperature display |
9. Standard Accessories
| Accessory | Description |
|---|---|
| Tool Box | Under-body side tool box |
| Spare Tire | Full-size spare tire with carrier |
| Warning Triangle | 2 reflective warning triangles |
| Wheel Chocks | 2 rubber wheel chocks |
| Battery | 2 × 12V / 120Ah Batteries |
| PTO | PTO for pump drive |
| Tank Top Safety | Safety railing around tank top |
| Non-Skid Surface | Non-slip tank top walkway |
| Fenders | Full fenders over all wheels |
| Mud Flaps | Heavy-duty mud flaps |
10. Optional Upgrades
| Option | Description |
|---|---|
| 316L Stainless Steel | Upgrade to 316L stainless steel tank |
| PE-Lined Tank | Polyethylene lined tank for corrosive liquids |
| Aluminum Alloy Tank | Lightweight aluminum alloy tank |
| Flow Meter | Digital flow meter with totalizer & printer |
| Weighing System | On-board weighing system |
| GPS Tracking | GPS fleet tracking with temperature monitoring |
| Reverse Camera | 7-inch display with rearview camera |
| Air Seat Upgrade | Premium air suspension driver seat |
| Larger Tank | 15m³ / 18m³ tank (3-axle chassis) |
| 3-Compartment Tank | 3-compartment configuration |
| Heating System | Steam / electric heating jacket for viscous liquids |
| Insulation Layer | 50mm insulation layer for temperature-sensitive chemicals |
| Top Loading Arm | Top loading / unloading arm system |
| Bottom Loading | Bottom loading system with API couplers |
| Vapor Recovery | Vapor recovery system |
| Overfill Sensor | Overfill detection sensor with cab alarm |
