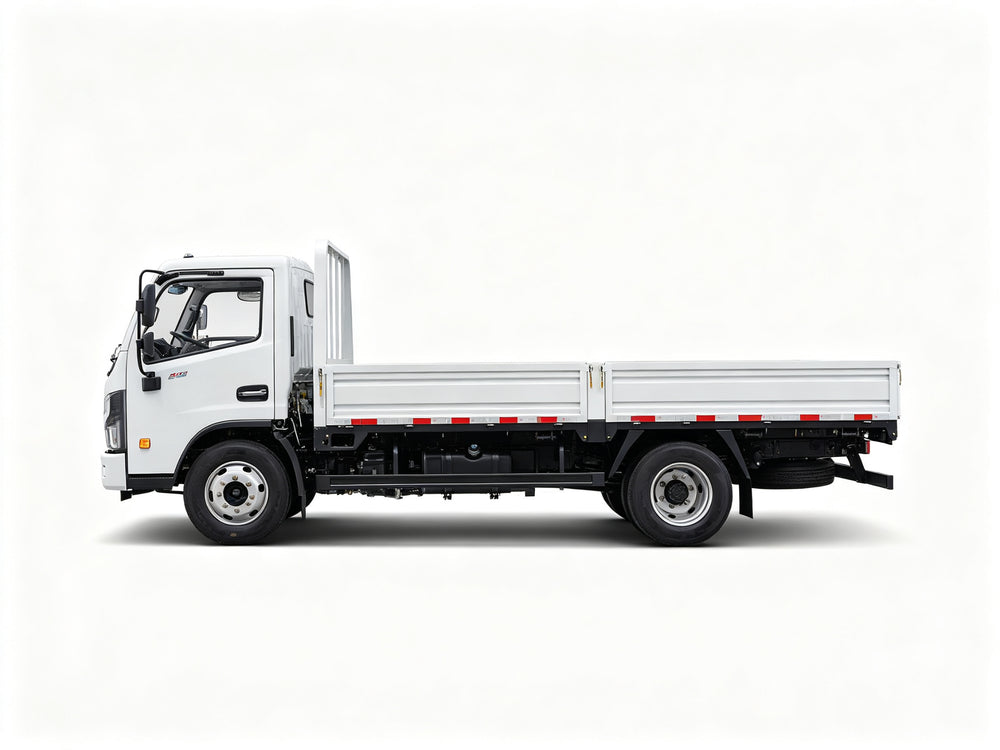

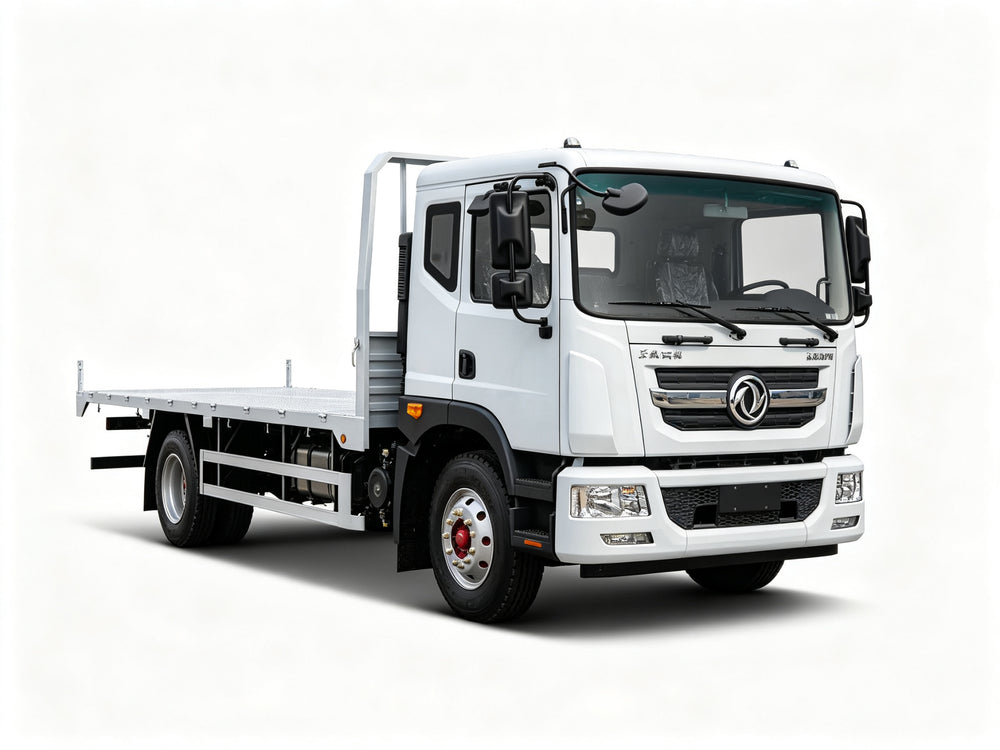

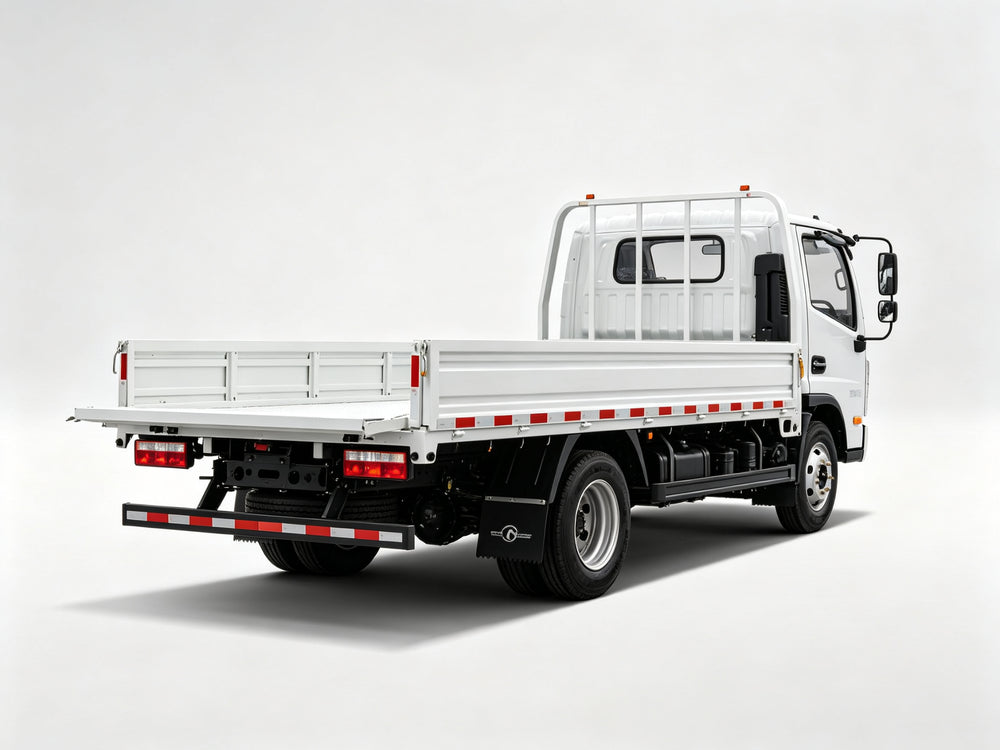

DongFeng 230HP 10T Flatbed Truck
Request a Quote Now
1. Complete Vehicle Basic Parameters
| Parameter | Value |
|---|---|
| Vehicle Type | Flatbed / Platform Truck |
| Complete Vehicle Model | CL5180TPB6HL |
| Gross Vehicle Weight | 18000 kg |
| Rated Load Capacity | 9995 kg |
| Curb Weight | 7800 kg |
| Number of Axles | 2 (4×2) |
| Axle Load Distribution | 6500 kg / 11500 kg |
| Cab Seating Capacity | 3 persons |
| Fuel Type | Diesel |
| Maximum Speed | 105 km/h |
| Emission Standard | Euro VI / National VI |
2. Dimension & Wheel Parameters
| Parameter | Value |
|---|---|
| Overall Dimension (L×W×H) | 9000 × 2500 × 2800 mm |
| Flatbed Dimension (L×W) | 6800 × 2400 mm |
| Flatbed Floor Height | 1200 mm |
| Wheelbase | 4700 mm |
| Front Overhang / Rear Overhang | 1430 mm / 2870 mm |
| Approach Angle / Departure Angle | 20° / 18° |
| Front Track Width | 1914 mm |
| Rear Track Width | 1840 mm |
| Tire Specification | 10.00R20 18PR Steel Radial |
| Number of Tires | 6 (plus 1 spare) |
| Leaf Spring Configuration | 8 / 10+7 |
3. Powertrain System
| Parameter | Value |
|---|---|
| Engine Model | B6.2NS6B230 |
| Engine Brand | Cummins (Dongfeng) |
| Engine Power | 230 HP (169 kW) |
| Engine Displacement | 6.2 L |
| Maximum Torque | 900 N·m |
| Transmission | Fast 8-Speed Manual Gearbox |
| Final Drive Ratio | 4.875 |
| Fuel Tank Capacity | 250 L Aluminum Alloy |
| Clutch | Single-Dry-Plate Diaphragm Spring Clutch |
4. Flatbed Body Configuration
| Parameter | Value |
|---|---|
| Bed Type | Steel Flatbed Platform |
| Floor Material | 5mm Checker Plate Steel (Anti-Slip) |
| Side Panel Height | 550 mm (Drop-Side Design) |
| Side Gate Type | 3-section drop-side gates per side |
| Tailgate Type | Full-width drop-down tailgate |
| Stake Pockets | 12 stake pockets along side rails |
| Headboard | 600mm high steel headboard with window |
| Floor Crossmembers | 12 transverse floor beams |
| Side Rails | 160mm deep rolled steel side rails |
| Rear Bumper | Heavy-duty steel rear bumper |
| Tie-Down Points | 8 heavy-duty D-ring tie-downs |
| Underrun Guard | Rear underrun protection bar (ECE R58) |
| Side Underrun Guard | Side underrun protection bars |
| Reflective Markings | Full perimeter reflective strips |
5. Chassis Configuration
| Parameter | Value |
|---|---|
| Chassis Model | DFH1180EX8 |
| Cab Type | Dongfeng Tianjin Row-and-Half Cab |
| Front Axle | 4.5 Ton Rated Load, Disc Brake |
| Rear Axle | 10 Ton Single Reduction Axle |
| Frame Specification | 250×80×(7+4)mm Double-Layer Frame |
| Steering System | Hydraulic Power Steering |
| Brake System | Air Brake with ABS, Drum/Disc Mix |
| Parking Brake | Spring Energy Storage Brake |
| Suspension | Leaf Spring with Shock Absorbers |
| Exhaust Brake | Equipped |
6. Interior & Comfort Features
| Feature | Description |
|---|---|
| Air Conditioner | Manual Air Conditioning |
| Windows | Electric Front Windows |
| Door Lock | Central Door Locking with Remote Key |
| Audio System | AM/FM Radio with USB & Bluetooth |
| Instrument Panel | Digital Multi-Function Display |
| Steering Wheel | 4-Spoke Multifunctional Steering Wheel |
| Seats | Airbag Suspension Driver Seat, Fabric Passenger Seats |
| Storage | Door Pockets, Glove Box, Overhead Storage |
| Power Outlet | 24V Power Outlet |
| Cruise Control | Equipped |
| Sun Visor | Driver & Passenger Sun Visors |
| Seatbelt Alarm | Voice reminder for driver seatbelt |
7. Safety & Standard Features
| Feature | Description |
|---|---|
| ABS Anti-Lock Braking | Equipped (4S/4M) |
| Seatbelts | 3-Point Seatbelts for All Seats |
| Reverse Alarm | Audible reverse warning buzzer |
| Side Marker Lights | Front & rear side marker lights |
| Rearview Mirror | Manual dual-arm rearview mirrors |
| Daytime Running Lights | LED Daytime Running Lights |
| Spare Tire | Full-size spare tire with carrier |
| Fire Extinguisher | 4kg dry powder fire extinguisher (mounted) |
| Tool Kit | Standard vehicle tool kit with jack |
| Battery | 2 × 12V / 120Ah Batteries |
| Warning Triangle | 2 reflective warning triangles |
| Wheel Chocks | 2 rubber wheel chocks |
8. Optional Upgrades
| Option | Description |
|---|---|
| Stake Sides | Removable 1.2m high stake sides |
| Tarpaulin System | Manual / automatic tarpaulin cover with bows |
| Rear Camera | 7-inch display with rearview camera |
| Air Suspension Seat | Upgraded premium air suspension driver seat |
| Hydraulic Tailgate Lift | 1000kg / 1500kg capacity tailgate lift |
| Side Toolbox | Under-bed side toolboxes (left & right) |
| Crane Mount | Folding / straight boom crane mounting provision |
| Container Locks | 4 sets of ISO container twist locks |
| Winch | Front-mounted or rear-mounted electric winch |
| GPS Tracking | Built-in GPS fleet tracking system |
| Aluminum Wheels | Aluminum alloy wheel upgrade |
| Larger Fuel Tank | 300L / 400L fuel tank upgrade |
