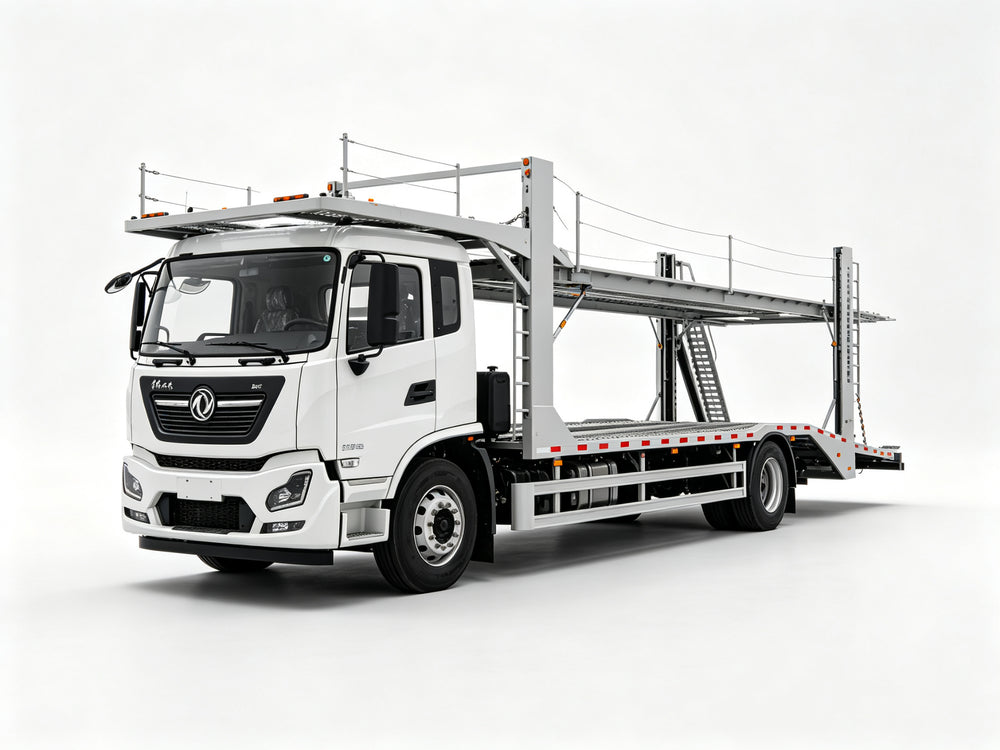

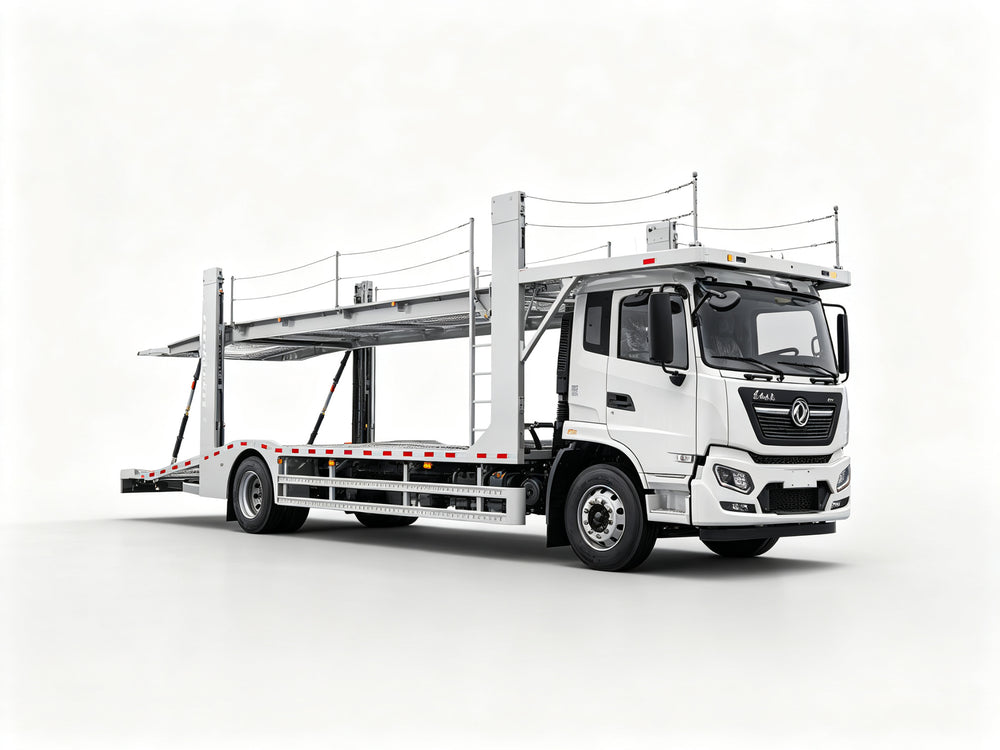

DongFeng 230HP 2-Deck Car Carrier Truck

1 / 3

Request a Quote Now

1. Complete Vehicle Basic Parameters

Parameter	Value
Vehicle Type	Car Carrier / Vehicle Transporter
Complete Vehicle Model	CL5180TCL6HL
Gross Vehicle Weight	18000 kg
Rated Load Capacity	7500 kg
Curb Weight	10300 kg
Number of Axles	2 (4×2)
Axle Load Distribution	6500 kg / 11500 kg
Cab Seating Capacity	3 persons
Fuel Type	Diesel
Maximum Speed	95 km/h
Emission Standard	Euro VI / National VI
Vehicle Capacity	5 – 6 passenger vehicles

Parameter	Value
Overall Dimension (L×W×H)	12000 × 2500 × 3900 mm
Lower Deck Dimension (L×W)	10000 × 2400 mm
Upper Deck Dimension (L×W)	9800 × 2350 mm
Loading Height (Lower)	1100 mm
Loading Height (Upper)	2800 mm
Wheelbase	5000 mm
Front Overhang / Rear Overhang	1430 mm / 5570 mm
Approach Angle / Departure Angle	20° / 9°
Front Track Width	1914 mm
Rear Track Width	1840 mm
Tire Specification	10.00R20 18PR Steel Radial
Number of Tires	6 (plus 1 spare)
Leaf Spring Configuration	8 / 10+7

Parameter	Value
Engine Model	B6.2NS6B230
Engine Brand	Cummins (Dongfeng)
Engine Power	230 HP (169 kW)
Engine Displacement	6.2 L
Maximum Torque	900 N·m
Transmission	Fast 8-Speed Manual Gearbox
Final Drive Ratio	4.875
Fuel Tank Capacity	250 L Aluminum Alloy
Clutch	Single-Dry-Plate Diaphragm Spring Clutch

Parameter	Value
Body Type	Double-Deck Hydraulic Lift Car Carrier
Frame Material	High-Strength Steel Main Frame
Deck Material	Checker Plate Steel / Aluminum Alloy
Deck Thickness	4mm checker plate steel
Number of Decks	2 decks (upper + lower)
Upper Deck Lift	Hydraulic lifting system
Lifting Mechanism	4-post hydraulic lift columns
Hydraulic Cylinders	4 double-acting hydraulic cylinders
Lifting Capacity	5 Tons (upper deck)
Lifting Time	≤ 60 seconds
Lower Deck	Fixed main deck
Side Guard Rails	Removable safety guard rails on both decks
Tie-Down Points	12 heavy-duty tie-down points per deck
Wheel Stops	Adjustable wheel chocks (12 sets)

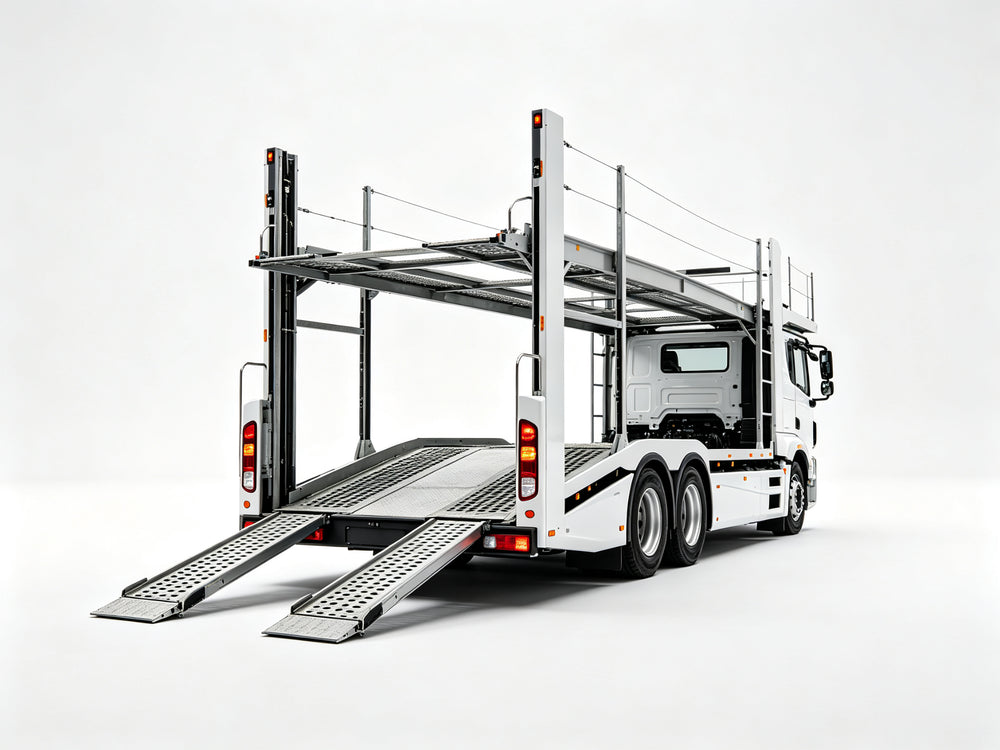

Loading Ramps	Rear hydraulic folding ramps (2 pcs)
Ramp Width	600mm per ramp
Ramp Length	3000 mm
Ramp Angle	Adjustable 8° – 12°
Winch	Optional 5-ton electric winch
Deck Lighting	LED lights on both decks
Side Markers	LED side marker lights
Reflective Markings	Full perimeter reflective strips

Parameter	Value
Hydraulic Pump	Gear pump, PTO-driven
Hydraulic Tank	80 L hydraulic oil tank
Hydraulic Valves	Multi-way directional control valve
Hydraulic Cylinders	4 double-acting lift cylinders
Operating Pressure	16 MPa
Control Mode	Cab-mounted + rear manual control
Safety Features	Overload protection, pressure relief valve
Hydraulic Oil	Anti-wear hydraulic oil (L-HM46)
Filter	Return oil filter with bypass valve
Cooling	Optional hydraulic oil cooler

Parameter	Value
Chassis Model	DFH1180EX8
Cab Type	Dongfeng Tianjin Row-and-Half Cab
Front Axle	4.5 Ton Rated Load, Disc Brake
Rear Axle	10 Ton Single Reduction Axle
Frame Specification	250×80×(7+4)mm Double-Layer Frame
Steering System	Hydraulic Power Steering
Brake System	Air Brake with ABS, Drum/Disc Mix
Parking Brake	Spring Energy Storage Brake
Suspension	Leaf Spring with Shock Absorbers
Exhaust Brake	Equipped

Feature	Description
Air Conditioner	Manual Air Conditioning
Windows	Electric Front Windows
Door Lock	Central Door Locking with Remote Key
Audio System	AM/FM Radio with USB & Bluetooth
Instrument Panel	Digital Multi-Function Display
Steering Wheel	4-Spoke Multifunctional Steering Wheel
Seats	Airbag Suspension Driver Seat, Fabric Passenger Seats
Storage	Door Pockets, Glove Box, Overhead Storage
Power Outlet	24V Power Outlet
Cruise Control	Equipped
Hydraulic Control	In-cab hydraulic lift control panel

Feature	Description
ABS Anti-Lock Braking	Equipped (4S/4M)
Seatbelts	3-Point Seatbelts for All Seats
Reverse Alarm	Audible reverse warning buzzer
Side Marker Lights	Front & rear side marker lights
Rearview Mirror	Manual dual-arm rearview mirrors
Daytime Running Lights	LED Daytime Running Lights
Spare Tire	Full-size spare tire with carrier
Fire Extinguisher	4kg dry powder fire extinguisher (mounted)
Tool Kit	Standard vehicle tool kit with jack
Battery	2 × 12V / 120Ah Batteries
Warning Triangle	2 reflective warning triangles
Wheel Chocks	4 rubber wheel chocks
Tie-Down Straps	8 heavy-duty ratchet tie-down straps
Safety Rails	Removable safety guard rails
Non-Slip Surface	Anti-slip checker plate decking

Option	Description
Electric Winch	5-ton electric winch for loading disabled vehicles
Hydraulic Tail Lift	Hydraulic rear lift platform
Aluminum Decks	Lightweight aluminum alloy deck upgrade
Side Loading	Side loading ramp option
Top Deck Extension	Extendable upper deck for longer vehicles
SUV Configuration	Higher clearance for SUVs/vans
Reverse Camera	7-inch display with rearview camera
Air Seat Upgrade	Premium air suspension driver seat
GPS Tracking	GPS fleet tracking system
Tool Box	Under-body side tool boxes
Spare Tire Carrier	Additional spare tire carrier
LED Work Lights	Additional LED loading lights
3-Axle Version	3-axle chassis for heavier loads (8-10 cars)
Semi-Trailer Version	Full semi-trailer car carrier (10-12 cars)
Canvas Cover	Weather protection canvas cover
Motorcycle Rack	Motorcycle transport rack attachment
