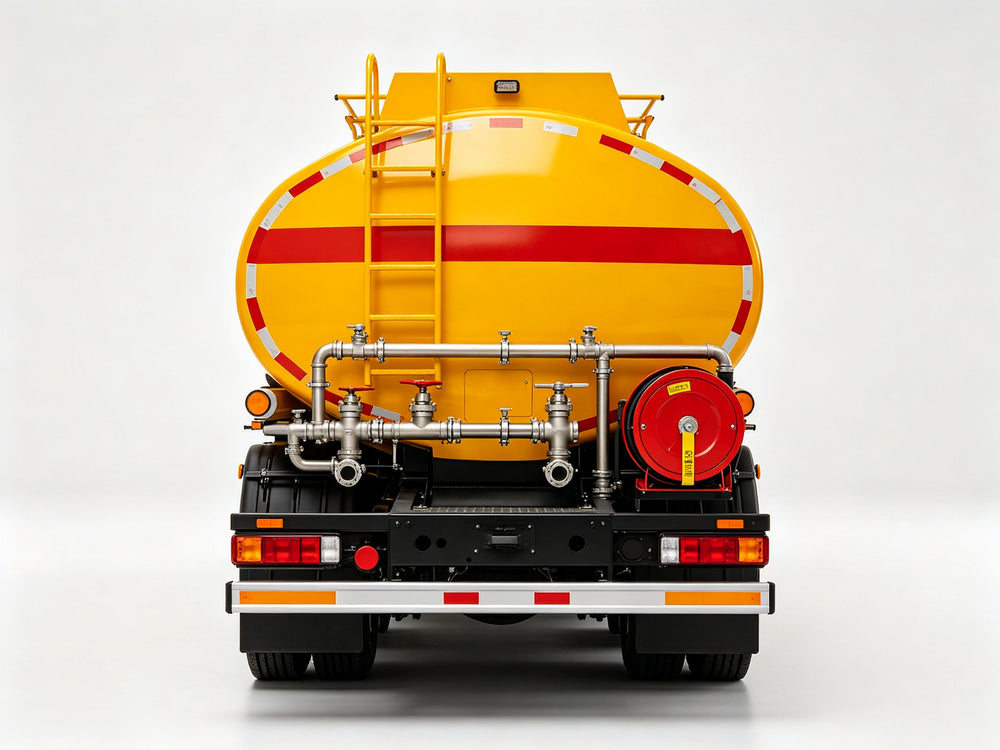

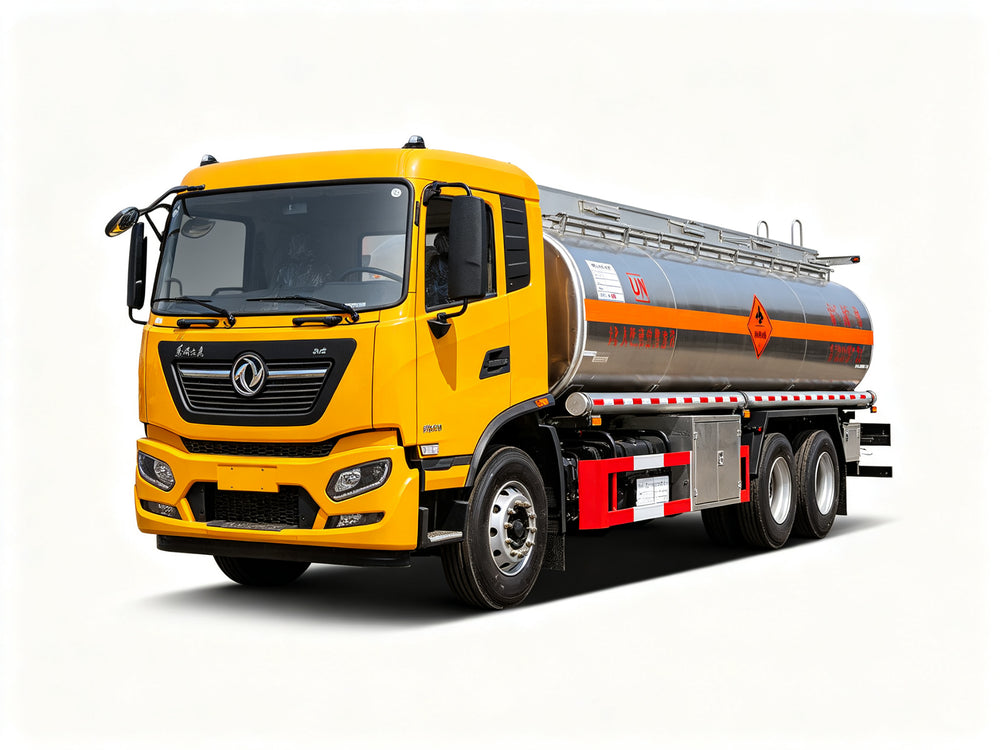

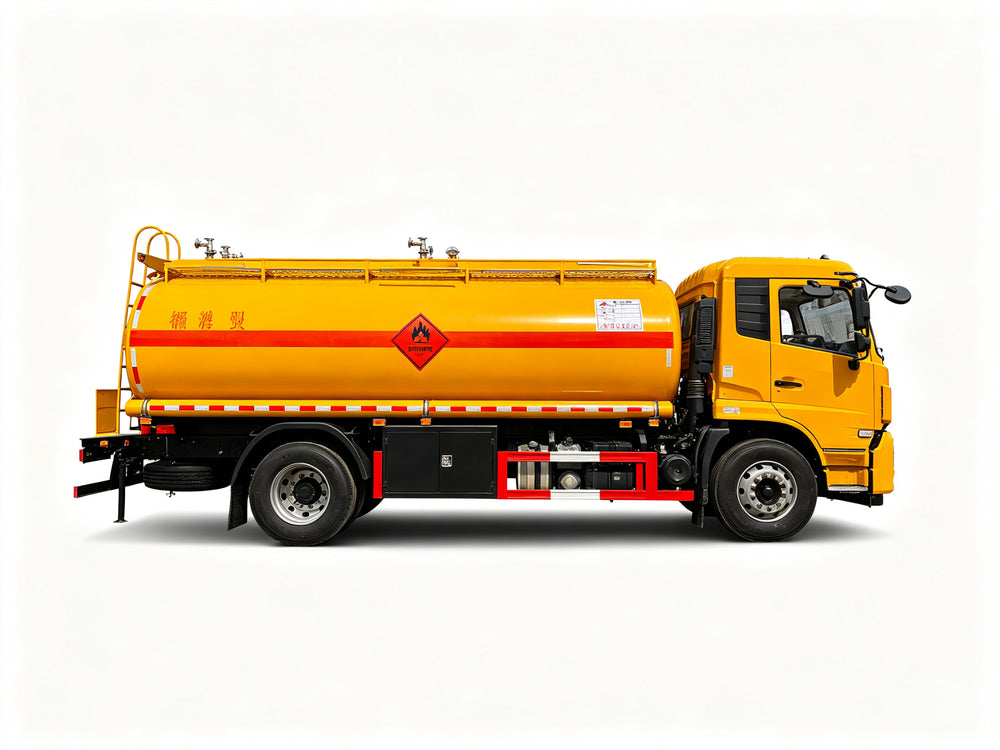

DongFeng 250L Hazardous Materials Tank Truck
Request a Quote Now
1. Complete Vehicle Basic Parameters
| Parameter | Value |
|---|---|
| Vehicle Type | Hazardous Materials Tank Truck (Flammable Liquid) |
| Complete Vehicle Model | CL5180GYY6HL |
| Gross Vehicle Weight | 18000 kg |
| Rated Load Capacity | 10200 kg |
| Curb Weight | 7600 kg |
| Number of Axles | 2 (4×2) |
| Axle Load Distribution | 6500 kg / 11500 kg |
| Cab Seating Capacity | 3 persons |
| Fuel Type | Diesel |
| Maximum Speed | 80 km/h (Speed-Limited) |
| Emission Standard | Euro VI / National VI |
| Hazard Class | Class 3 — Flammable Liquids |
| Transport Medium | Gasoline, Diesel, Kerosene |
2. Dimension & Wheel Parameters
| Parameter | Value |
|---|---|
| Overall Dimension (L×W×H) | 8900 × 2500 × 3200 mm |
| Tank Dimension (L×Diameter) | 6300 × 2000 mm |
| Tank Volume | 12.5 m³ |
| Wheelbase | 4700 mm |
| Front Overhang / Rear Overhang | 1430 mm / 2770 mm |
| Approach Angle / Departure Angle | 20° / 14° |
| Front Track Width | 1914 mm |
| Rear Track Width | 1840 mm |
| Tire Specification | 10.00R20 18PR Steel Radial |
| Number of Tires | 6 (plus 1 spare) |
| Leaf Spring Configuration | 8 / 10+7 |
3. Powertrain System
| Parameter | Value |
|---|---|
| Engine Model | B6.2NS6B230 |
| Engine Brand | Cummins (Dongfeng) |
| Engine Power | 230 HP (169 kW) |
| Engine Displacement | 6.2 L |
| Maximum Torque | 900 N·m |
| Transmission | Fast 8-Speed Manual Gearbox |
| Final Drive Ratio | 4.875 |
| Fuel Tank Capacity | 250 L Aluminum Alloy |
| Clutch | Single-Dry-Plate Diaphragm Spring Clutch |
| Speed Limiter | Equipped (max 80 km/h) |
4. Tank Body Configuration
| Parameter | Value |
|---|---|
| Tank Type | Cylindrical Horizontal Tank |
| Tank Material | Q235B Carbon Steel / Optional 304 Stainless Steel |
| Tank Wall Thickness | 5mm (carbon steel) |
| Tank Heads | Dished / Elliptical Heads |
| Number of Compartments | 2 compartments (optional 3) |
| Anti-Wave Baffles | 4 sets of anti-wave baffles per compartment |
| Manhole | 1 manhole per compartment (500mm diameter) |
| Manhole Cover | Pressure-resistant with built-in pressure/vacuum vent |
| Bottom Valve | Emergency shut-off bottom valve per compartment |
| Bottom Valve Type | Pneumatic-hydraulic emergency shut-off |
| Top Filling Port | Top loading port with quick coupling |
| Discharge Valve | Aluminum alloy ball valve / stainless steel valve |
| Drain Valve | Bottom drain valve |
| Sample Valve | Sampling valve |
| Tank Top Walkway | Non-slip walkway with safety handrails |
| Ladder | Aluminum alloy rear climbing ladder |
| Internal Coating | Optional anti-corrosion epoxy coating |
| Pressure Rating | 0.4 MPa working pressure |
| Hydrostatic Test | 0.6 MPa test pressure |
5. Pump & Piping System
| Parameter | Value |
|---|---|
| Pump Type | Self-priming centrifugal pump |
| Pump Capacity | 60 m³/h |
| Pump Drive | PTO-driven |
| Pump Material | Aluminum Alloy / Stainless Steel |
| Piping Material | Aluminum Alloy / Carbon Steel |
| Pipe Diameter | DN80 / DN100 |
| Quick Connectors | Camlock quick couplings |
| Self-Priming Height | 5 m |
| Flow Meter | Optional digital flow meter with totalizer |
| Pump Inlet/Outlet | Both sides accessible |
| Pressure Relief | Built-in pressure relief valve |
| Bottom Loading | Optional bottom loading API couplers |
6. Safety & Emergency Systems
| Parameter | Value |
|---|---|
| Emergency Shut-Off Valve | Pneumatic bottom valve with cab remote control |
| Overflow Protection | Anti-overflow sensor & cab alarm system |
| Static Grounding | Static grounding reel with monitoring system |
| Fire Extinguisher | 2 × 4kg dry powder fire extinguishers |
| Hazard Markings | Full UN Class 3 hazard placards & markings |
| Reflective Markings | Reflective strips all around tank body |
| Spill Kit | On-board spill response kit |
| Flame Arrestor | Flame arrestor on vent pipe |
| Rear Underrun Guard | Rear underrun protection bar (ECE R58) |
| Side Underrun Guard | Side underrun protection bars |
| Emergency Shut-Off Switch | Cab-accessible emergency cut-off switch |
| Exhaust System | Front-mounted exhaust with spark arrester |
| Speed Limiter | Electronic speed limiting device (80 km/h) |
| ABS System | ABS anti-lock braking system |
| Tachograph | Digital tachograph (speed recorder) |
| Warning Triangle | 3 reflective warning triangles |
| Wheel Chocks | 4 rubber wheel chocks |
| Safety Signage | Hazard class labels, UN numbers, handling instructions |
7. Chassis Configuration
| Parameter | Value |
|---|---|
| Chassis Model | DFH1180EX8 |
| Cab Type | Dongfeng Tianjin Row-and-Half Cab |
| Front Axle | 4.5 Ton Rated Load, Disc Brake |
| Rear Axle | 10 Ton Single Reduction Axle |
| Frame Specification | 250×80×(7+4)mm Double-Layer Frame |
| Steering System | Hydraulic Power Steering |
| Brake System | Air Brake with ABS, Drum/Disc Mix |
| Parking Brake | Spring Energy Storage Brake |
| Suspension | Leaf Spring with Shock Absorbers |
| Exhaust Brake | Equipped |
| Exhaust Spark Arrester | Equipped (hazardous materials spec) |
8. Interior & Comfort Features
| Feature | Description |
|---|---|
| Air Conditioner | Manual Air Conditioning |
| Windows | Electric Front Windows |
| Door Lock | Central Door Locking with Remote Key |
| Audio System | AM/FM Radio with USB & Bluetooth |
| Instrument Panel | Digital Multi-Function Display |
| Steering Wheel | 4-Spoke Multifunctional Steering Wheel |
| Seats | Airbag Suspension Driver Seat, Fabric Passenger Seats |
| Storage | Door Pockets, Glove Box, Overhead Storage |
| Power Outlet | 24V Power Outlet |
| Cruise Control | Equipped |
| Hazard Monitor | In-cab tank pressure & overflow alarm display |
9. Standard Accessories
| Accessory | Description |
|---|---|
| Tool Box | Under-body side tool box |
| Spare Tire | Full-size spare tire with carrier |
| Battery | 2 × 12V / 120Ah Batteries |
| PTO | PTO for pump drive |
| Tank Top Safety | Safety railing around tank top |
| Non-Skid Surface | Non-slip tank top walkway |
| Fenders | Full fenders over all wheels |
| Mud Flaps | Heavy-duty mud flaps |
| Warning Lights | Amber roof beacon lights |
| Side Marker Lights | Front & rear side marker lights |
10. Optional Upgrades
| Option | Description |
|---|---|
| 304 Stainless Steel Tank | Upgrade to stainless steel tank |
| 3-Compartment Tank | 3-compartment configuration |
| Larger Tank | 15m³ / 18m³ tank (3-axle chassis) |
| Flow Meter | Digital flow meter with totalizer & printer |
| Weighing System | On-board weighing system |
| GPS Tracking | GPS fleet tracking with temperature monitoring |
| Reverse Camera | 7-inch display with rearview camera |
| Air Seat Upgrade | Premium air suspension driver seat |
| Vapor Recovery | Vapor recovery system |
| Bottom Loading System | Bottom loading with API couplers |
| Overfill Sensor | Overfill detection sensor with cab alarm |
| Heating System | Steam heating jacket for viscous liquids |
| Insulation Layer | 50mm insulation layer |
| Aluminum Alloy Wheels | Aluminum alloy wheel upgrade |
| Tachograph | Digital tachograph with printer |
| Safety Shower | On-board safety shower / eyewash station |
| Roll-Over Protection | Roll-over protection system |
