1. Chassis Configuration

Parameter Value
Chassis Brand Dongfeng Duolika
Engine Power Quanchai 150 HP
Tire Specification 650 Steel Wire Tires
Wheelbase 2950 mm
Transmission Wanliyang 5-Speed Gearbox
Cab Interior Air Conditioner, Electric Windows
Door Lock Central Locking with Electronic Key
Overall Dimension (L×W×H) 5900 × 2060 × 2330 mm

2. Tank Body & Capacity

Parameter Value
Vehicle Type Blue-Plate Intelligent Asphalt Distributor
Tank Volume 4.3 m³

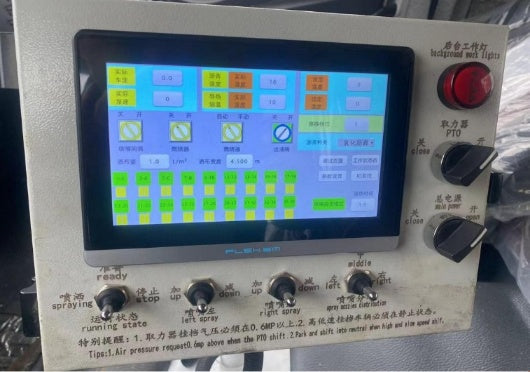

3. Heating & Control System

Parameter Value
Control System Imported German Computer Chip Control System
Burner Riyadh Burner
Heating Method Heat-Conducting Oil with Automatic Temperature Rise
Temperature Display Computer screen displays both asphalt temperature and heat-conducting oil temperature
Temperature Setting Asphalt temperature and heat-conducting oil temperature adjustable on computer

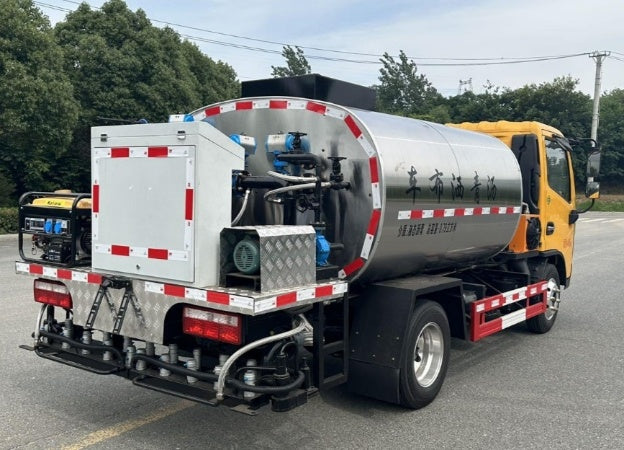

4. Spray Bar & Nozzle System

Parameter Value
Pneumatic Nozzles 20 intelligent pneumatic asphalt nozzles
Nozzle Control One-to-one control (1 nozzle / 1 control)
Spray Volume Setting Adjustable on computer
Spray Width 4 m

5. Applicable Spray Media

Medium Type Description
Emulsified Asphalt Suitable
Hot Asphalt Suitable
Modified Asphalt Suitable
