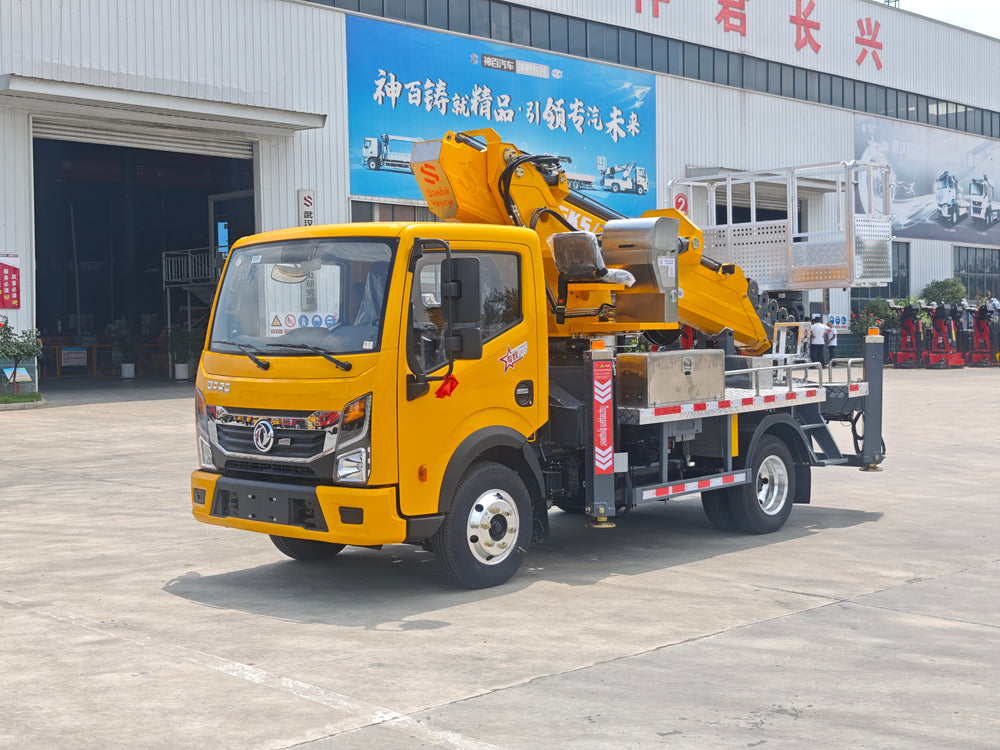

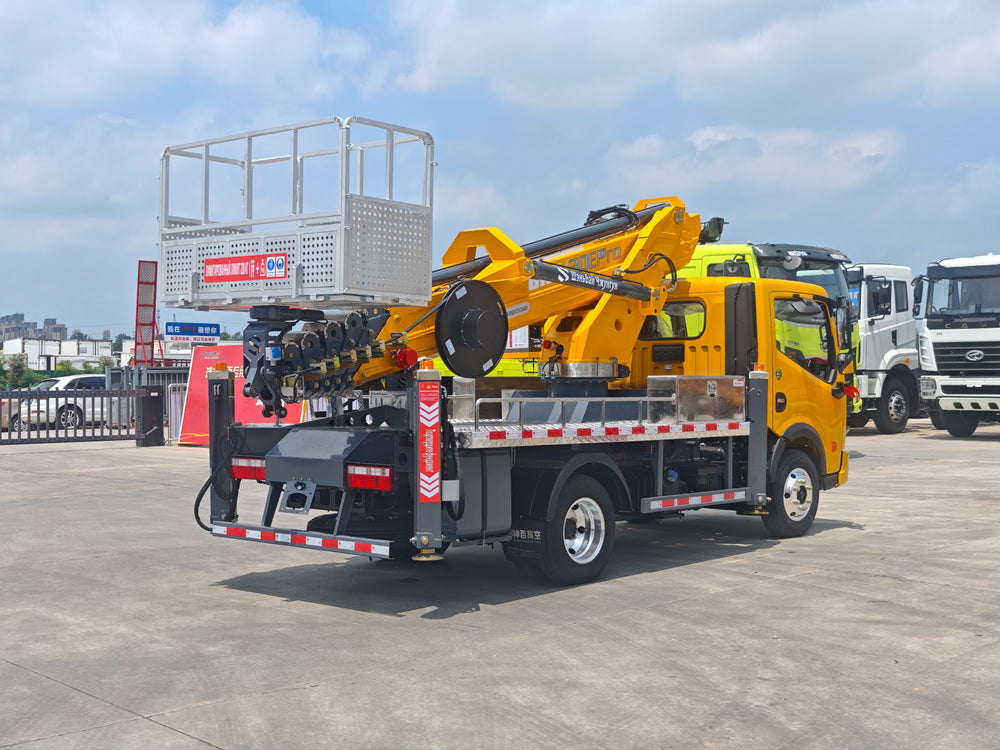

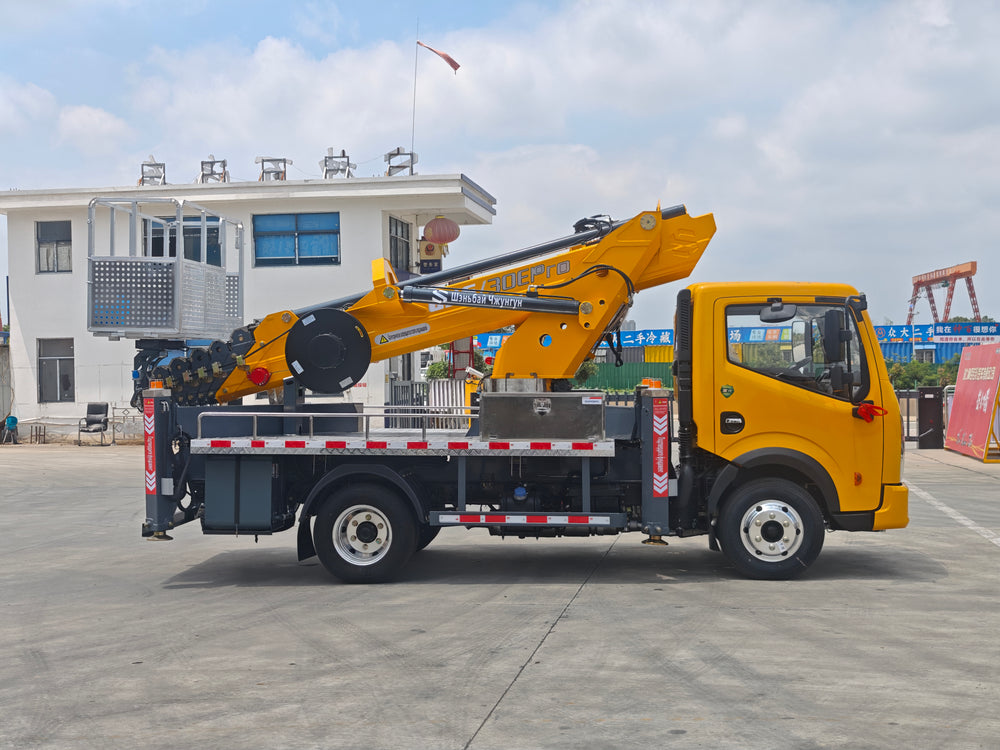

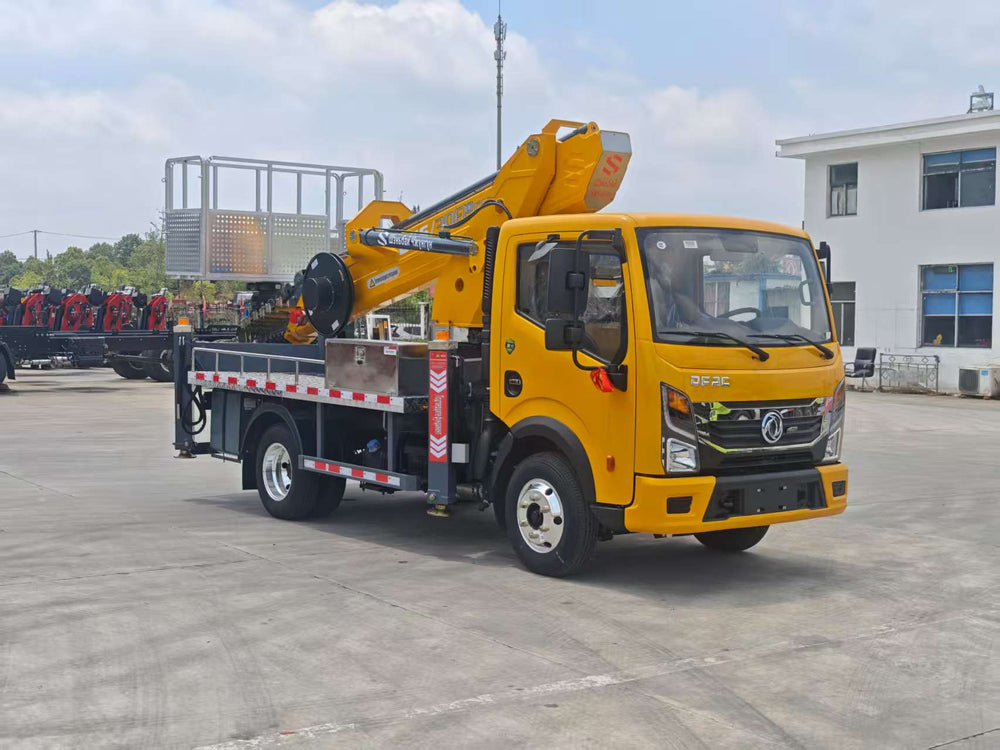

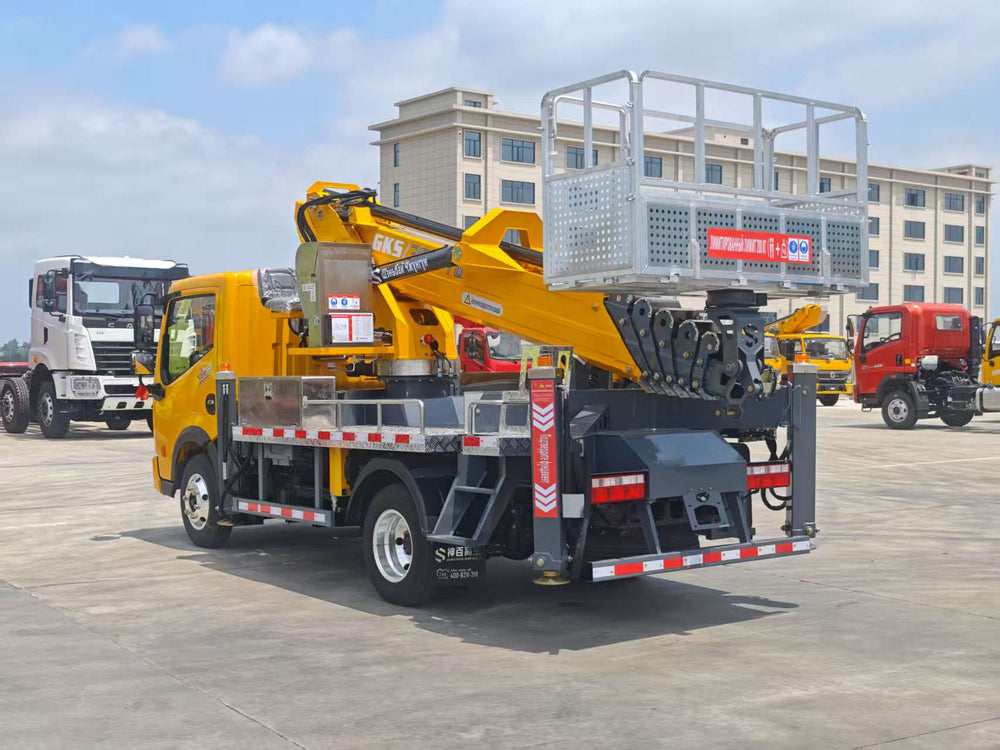

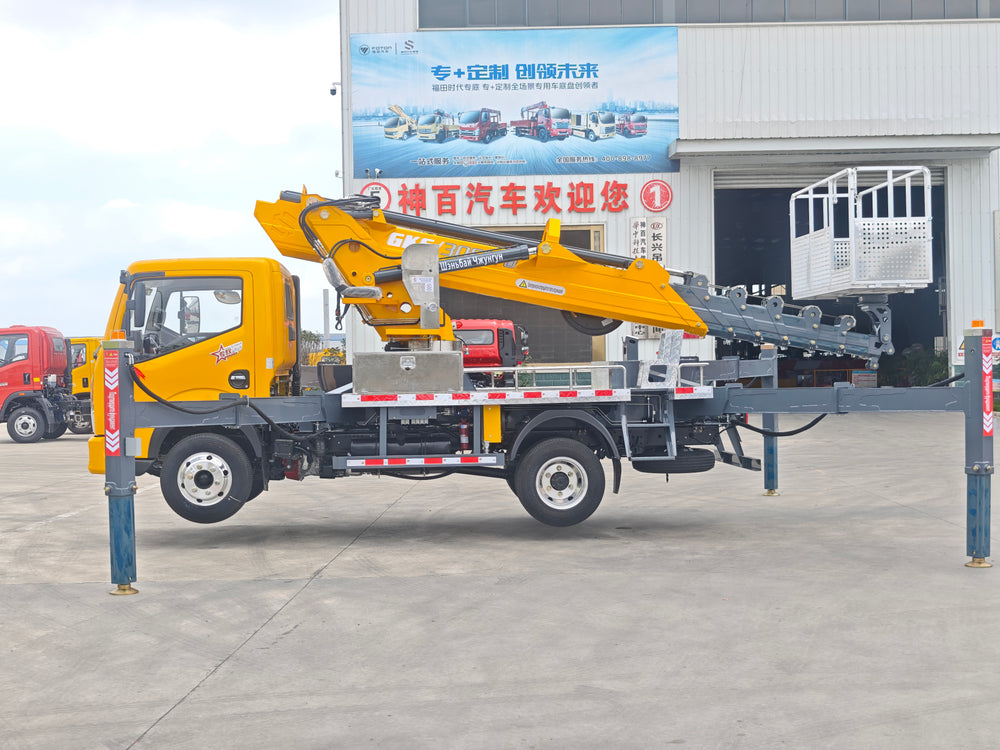

DongFeng GKS30Pro Aerial Work Platform Truck

1 / 13

Item	Parameter
Chassis Model	Dongfeng Dolica K5
Gross Vehicle Weight	4495 kg
Curb Weight	4365 kg
Engine	Quanchai 150 HP Diesel Engine
Transmission	Wanliyang 5-speed Manual Gearbox
Wheelbase	2950 mm
Overall Dimension	5995×2200×2980 mm
Tire Spec	650R16LT
Brake	Air Cut-off Brake

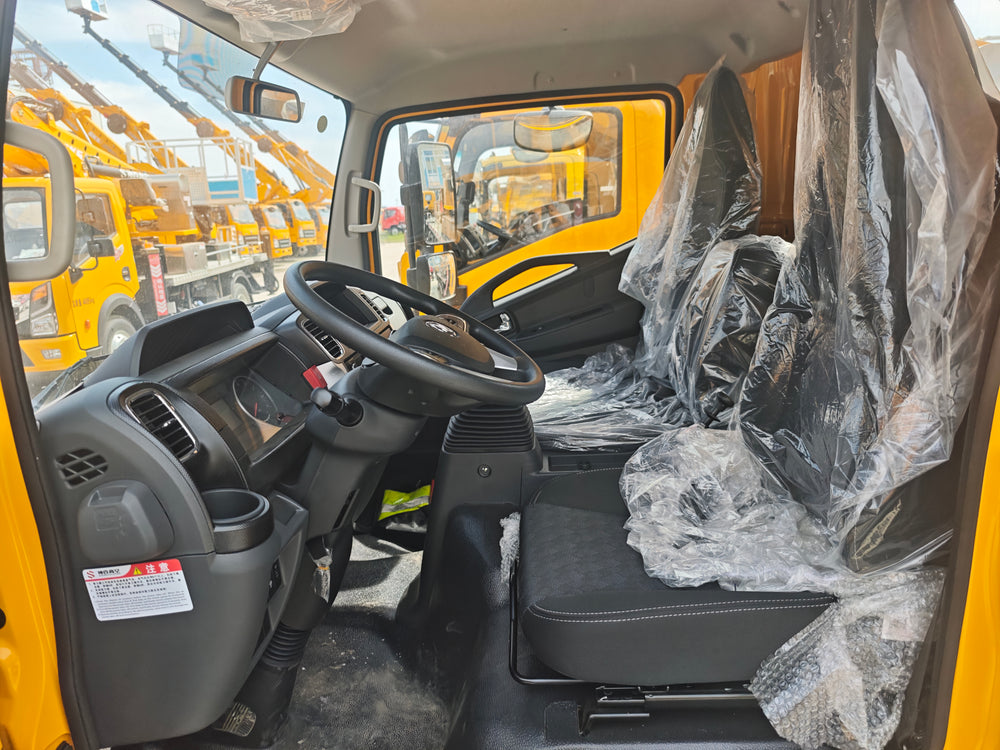

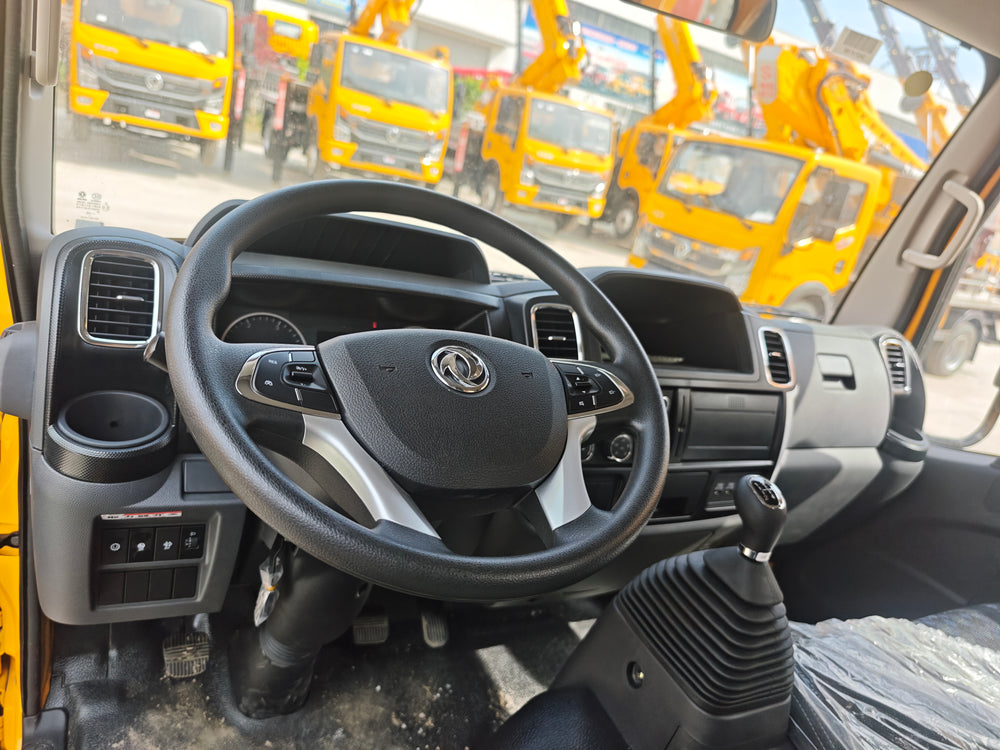

Standard Fittings	Power Window, Air Conditioner, Central Door Lock

2. Superstructure (GKS30)

Item	Parameter
Max Working Height	28.3 m
Max Working Radius	14.5 m
Rated Platform Load	200 kg
Boom Slewing	360° Full Rotation
Platform Dimension	1800×700×1000 mm, max unfolded width:3800mm
Platform Rotation	Unlimited 360° Rotation

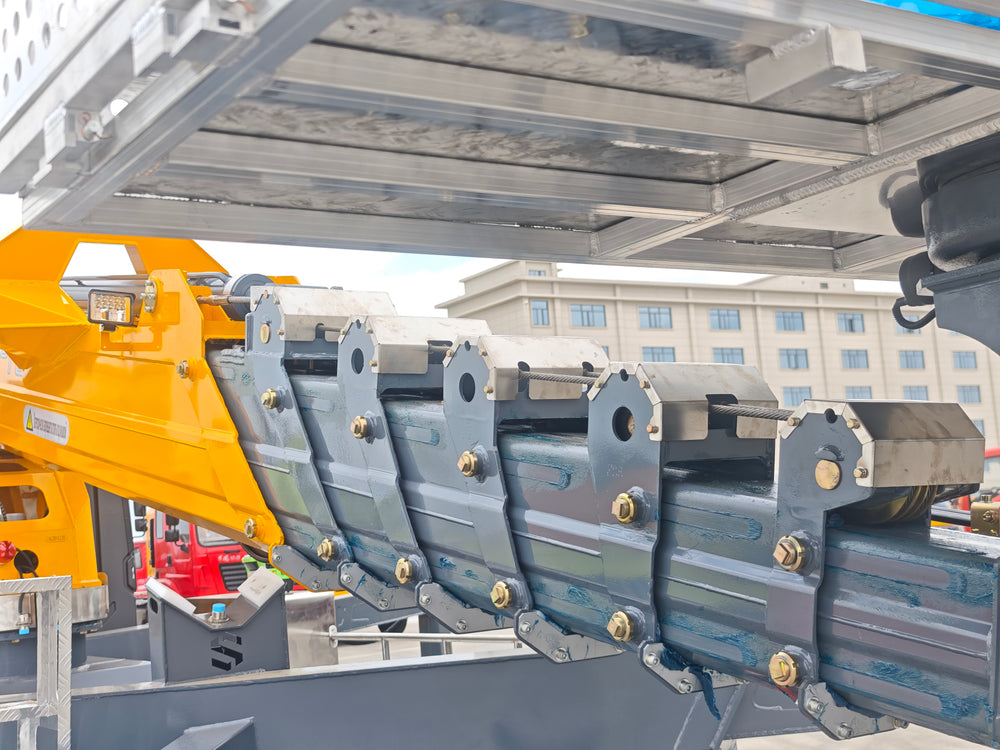

Boom Structure	7-section boom, 6-section synchronous stretch; spare steel cable for emergency lowering
Boom Material	960 High-strength Steel Plate
Cylinder	Dual Thickened Lifting Cylinders
Outrigger	X-type, 4 double-stage independent legs; Span: Trans 6000mm / Long 5800mm
Subframe	Box-type Subframe + 3-layer Trapezoidal Reinforced Slewing Base

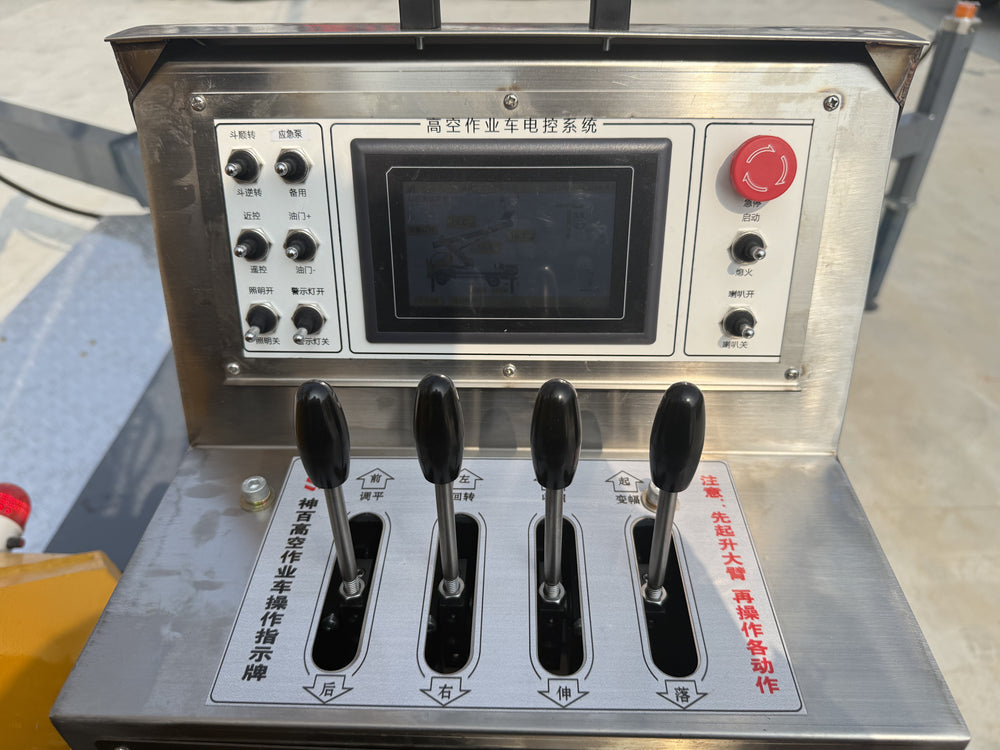

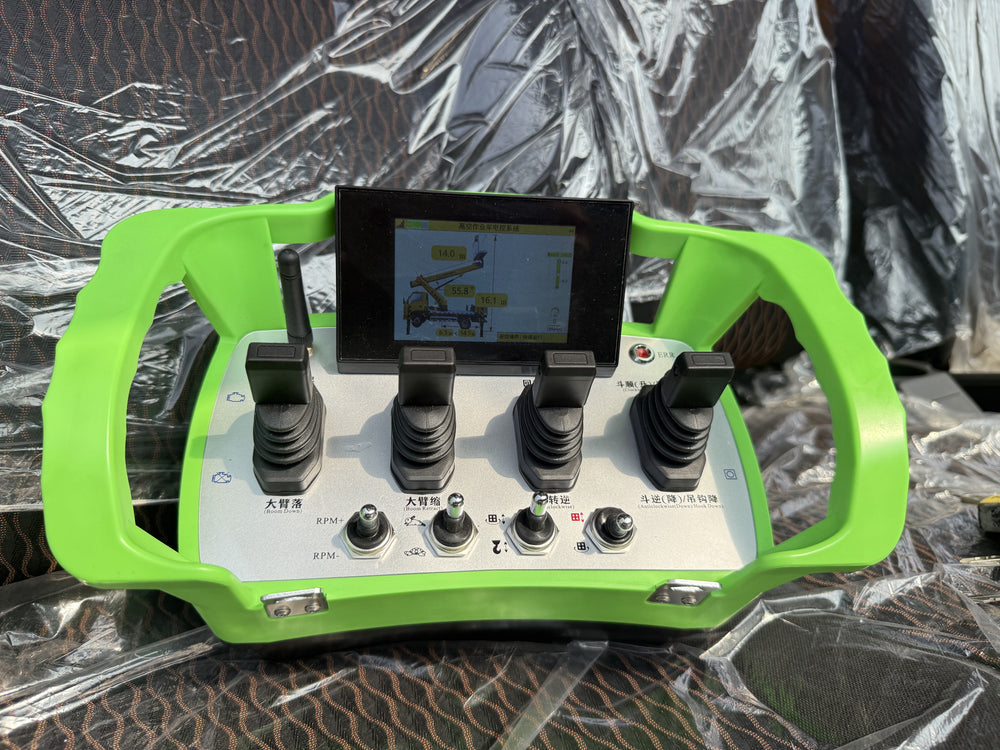

Control System	Domestic Famous ECU, Wireless Remote + Upper Control with Display Screen

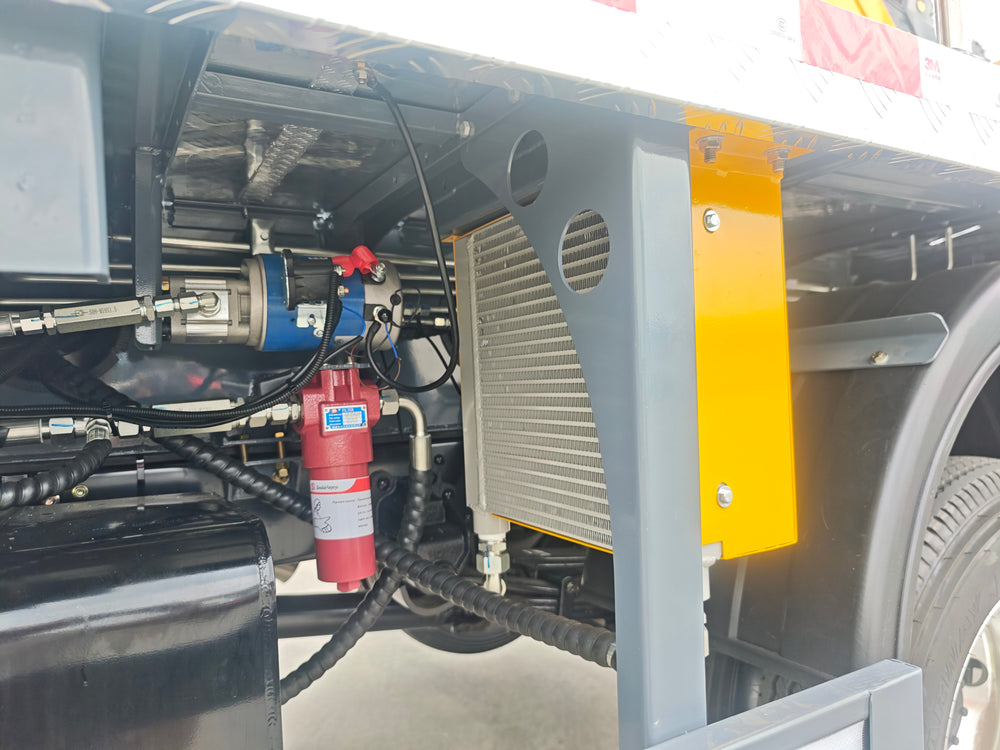

Hydraulic System	Electro-hydraulic Proportional Valve, Stepless Speed + Emergency Power Unit
Walkway	Anti-slip Aluminum Alloy Walkboard

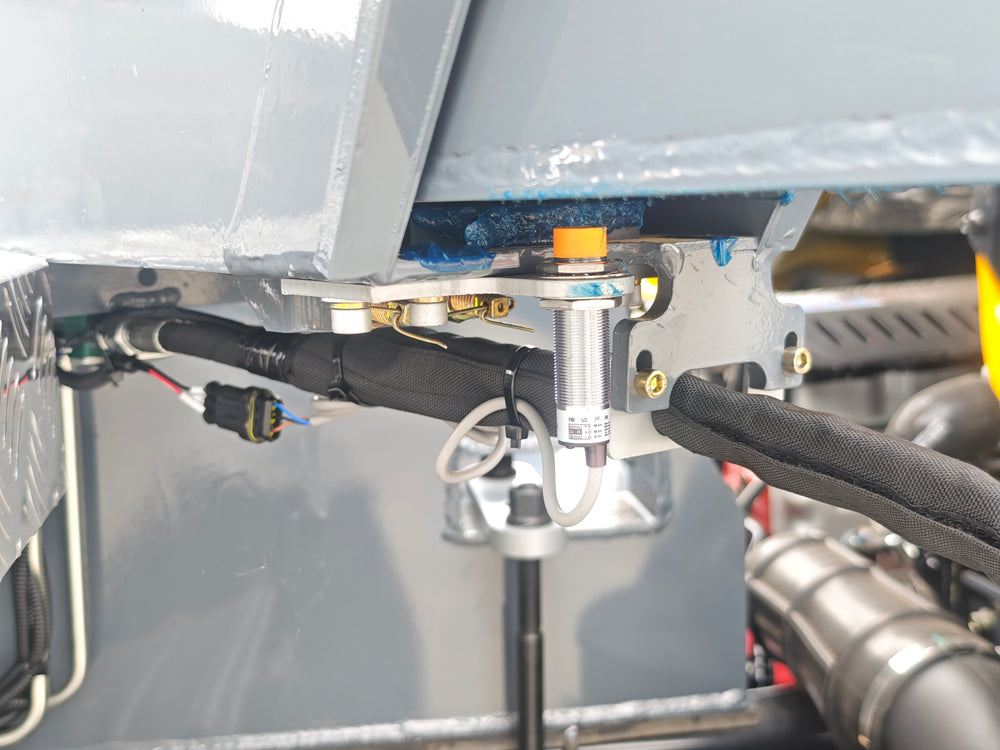

Safety Devices	Upper-lower Interlock, Emergency Power, Bi-directional Hydraulic Balance Valve, Outrigger Protection
Optional Parts	Upper Operation Cabin, 1T Winch
Boom Length	24.5 m
Vehicle Height	2.9 m
