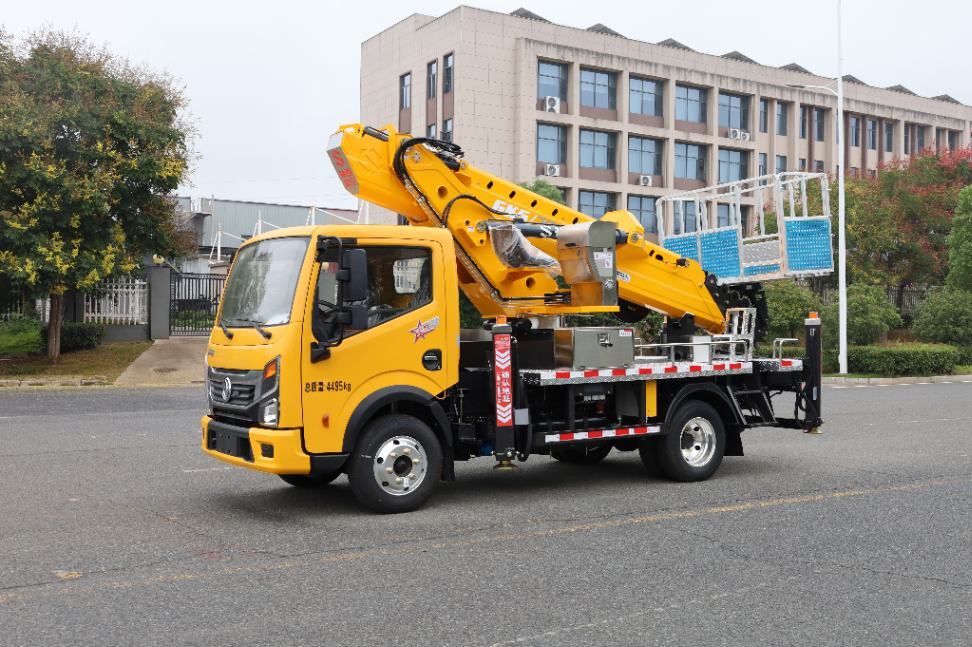

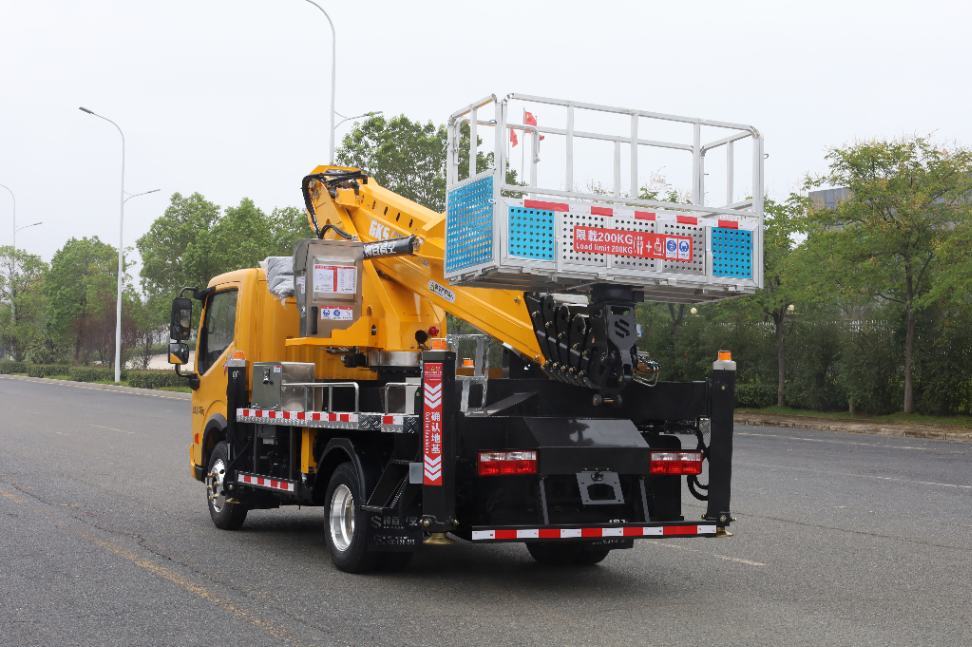

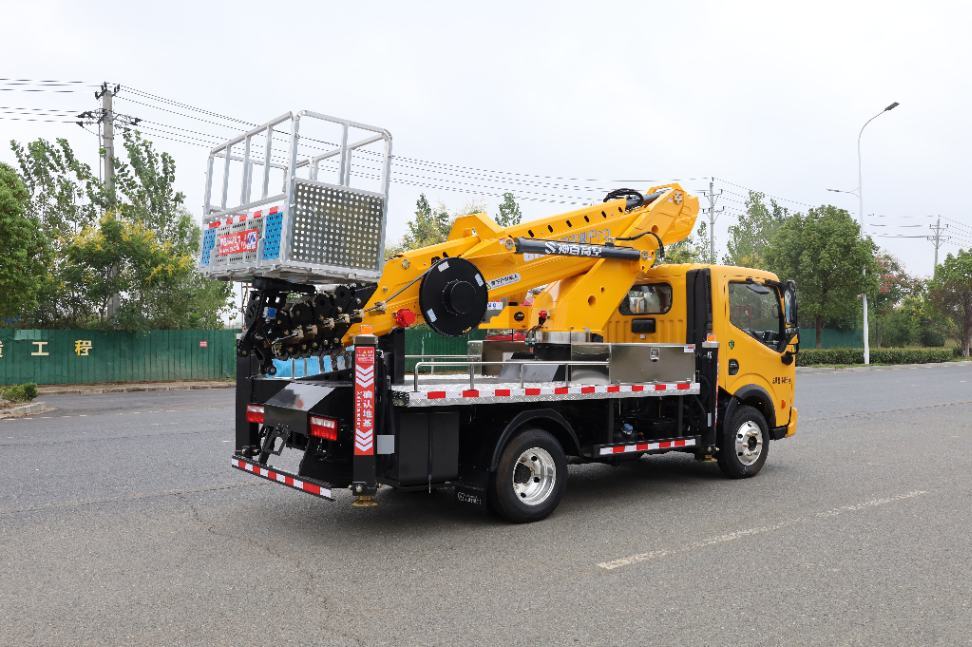

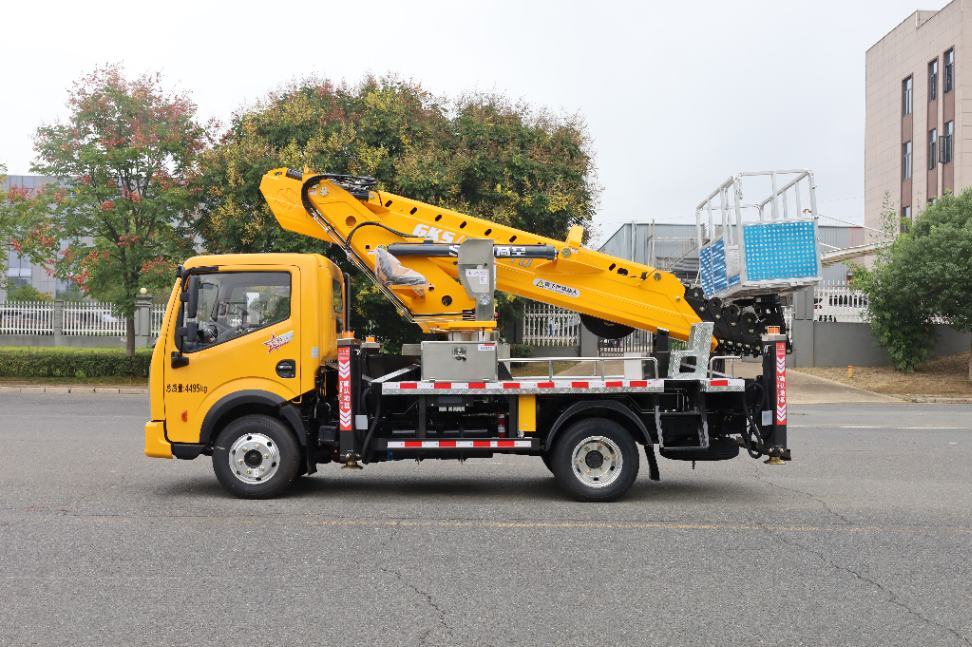

DongFeng GKS32Pro Aerial Work Platform Truck

1 / 10

Item	Parameter
Chassis Model	Dongfeng Dolica K5
Gross Vehicle Weight	4495 kg
Curb Weight	4365 kg
Engine	Quanchai 150 HP Diesel Engine
Transmission	Wanliyang 5-speed Manual Gearbox
Wheelbase	2950 mm
Overall Dimension	5995×2200×3100 mm
Tire Spec	650R16LT
Brake	Air Cut-off Brake

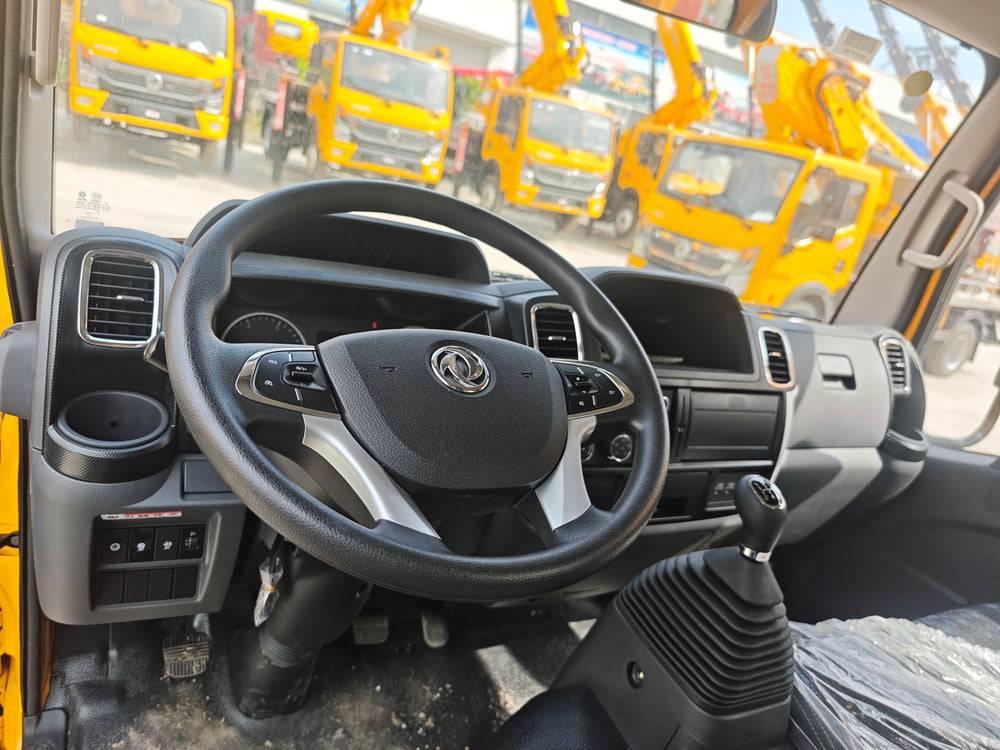

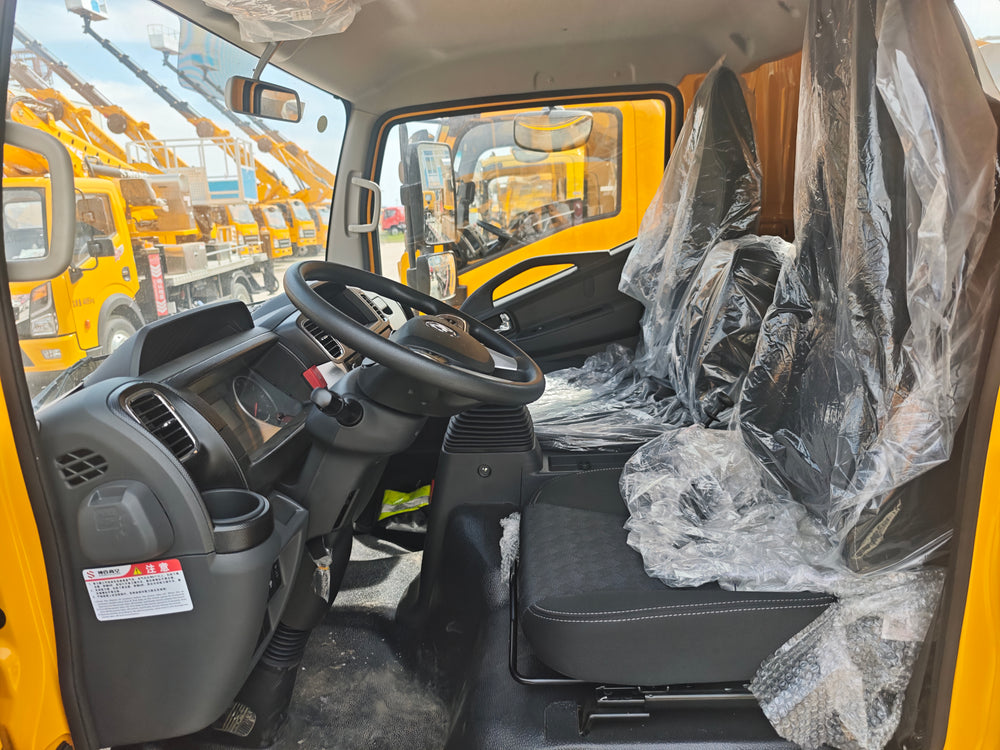

Standard Accessories	Power Window, Air Conditioner, Central Door Lock

2. Superstructure (GKS32 PRO)

Item	Parameter
Max Working Height	30.6 m
Max Working Radius	17 m
Rated Platform Load	200 kg
Boom Slewing Range	360° Full Rotation
Platform Dimension	1800×700×1000 mm, max unfolded width:3800 mm
Platform Rotation	Unlimited 360° Rotation

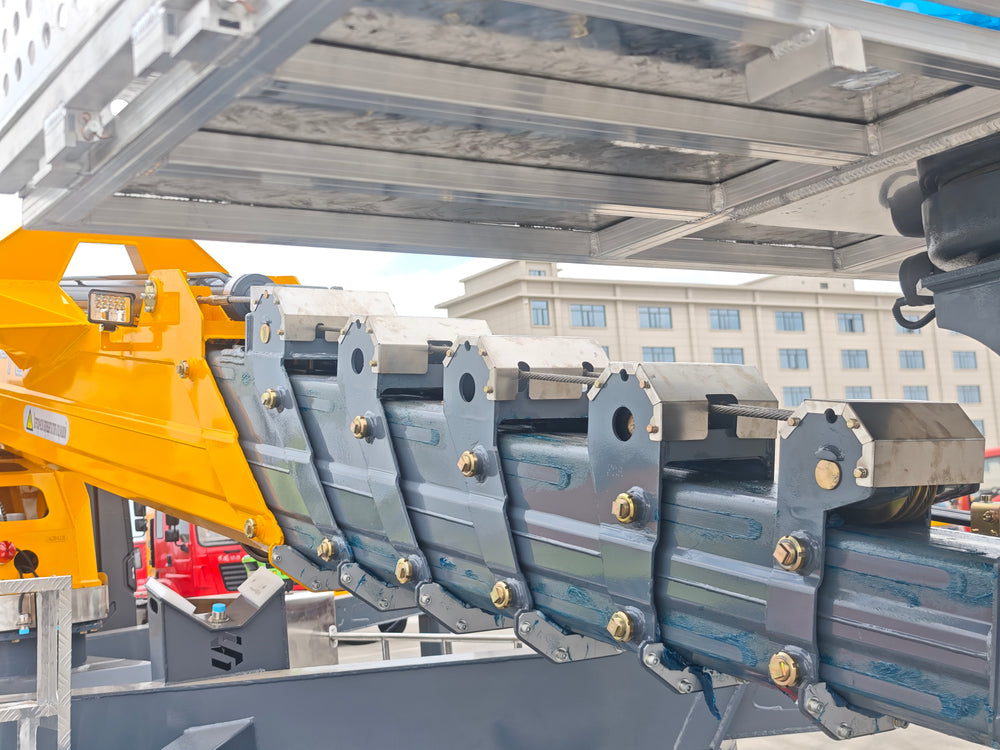

Boom Structure	7-section boom, 6-section synchronous extension; spare steel cable for emergency crew descending
Boom Material	960 High-strength Steel Plate
Lifting Cylinder	Dual Thickened Lifting Cylinders
Outrigger	X-type, 4 independent double-stage legs; Span: Trans 6000mm / Long 5800mm
Subframe	Box-type Subframe + 3-layer Trapezoidal Reinforced Slewing Base

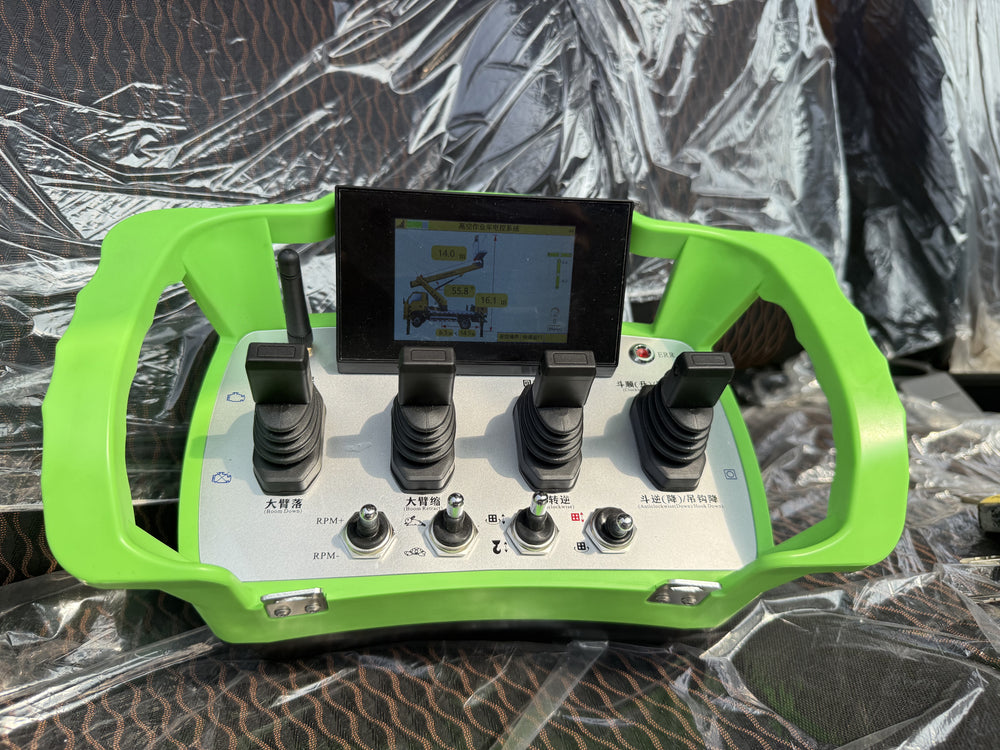

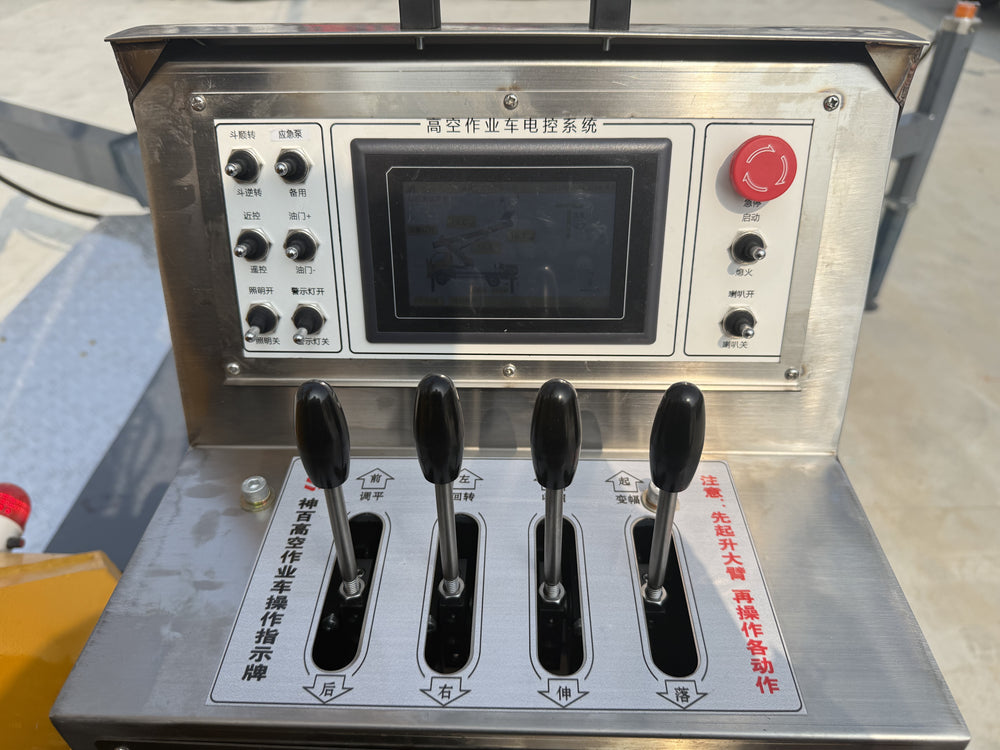

Control System	Famous Domestic ECU, Wireless Remote + Upper Control with Display Screen

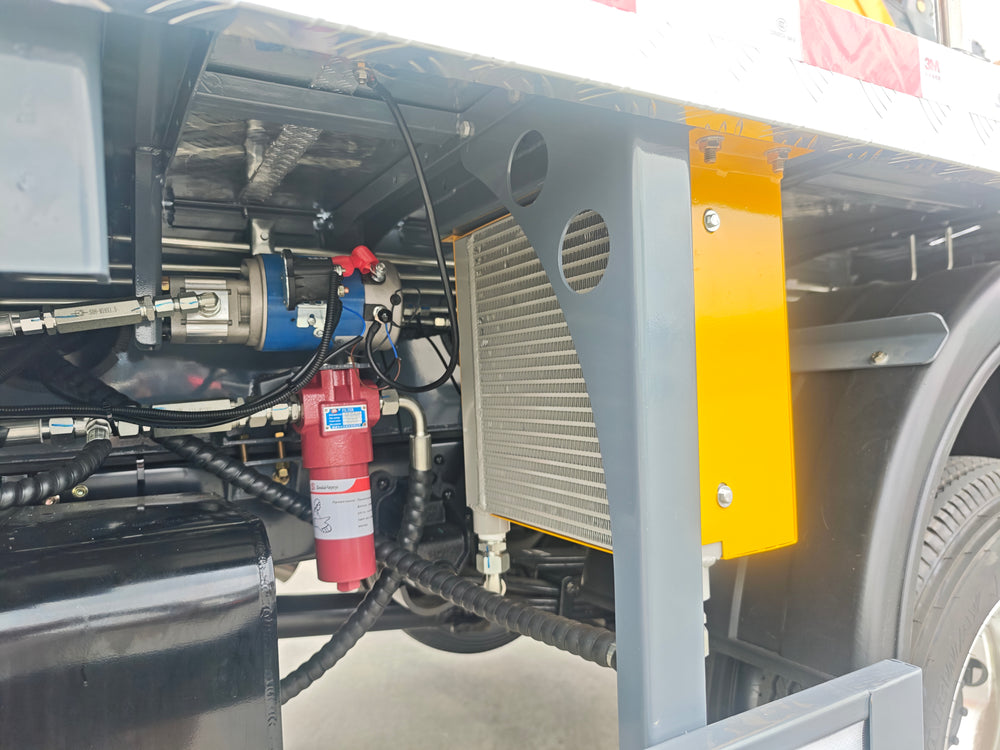

Hydraulic System	Electro-hydraulic Proportional Valve, Stepless Speed + Emergency Power Unit
Walkway	Anti-slip Aluminum Alloy Walkboard
Safety Devices	Upper-lower Cabin Interlock, Emergency Power, Bi-directional Hydraulic Balance Valve, Outrigger Protection
Optional Parts	Upper Operation Cabin, 1T Winch
Total Boom Length	27 m
Overall Vehicle Height	3.1 m
