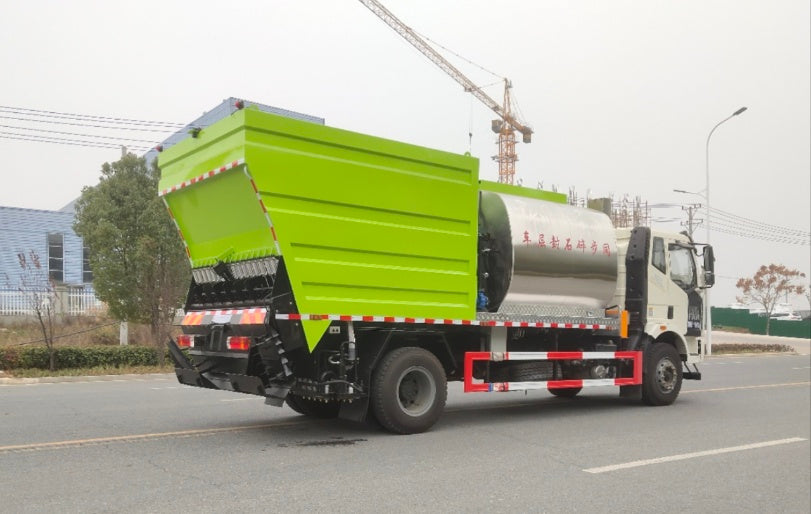

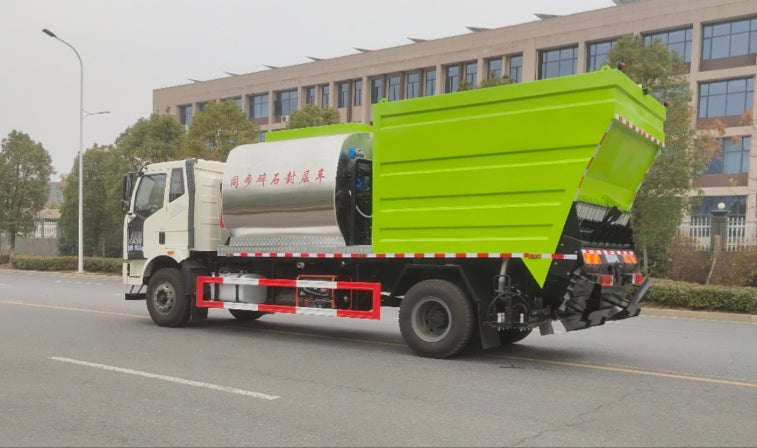

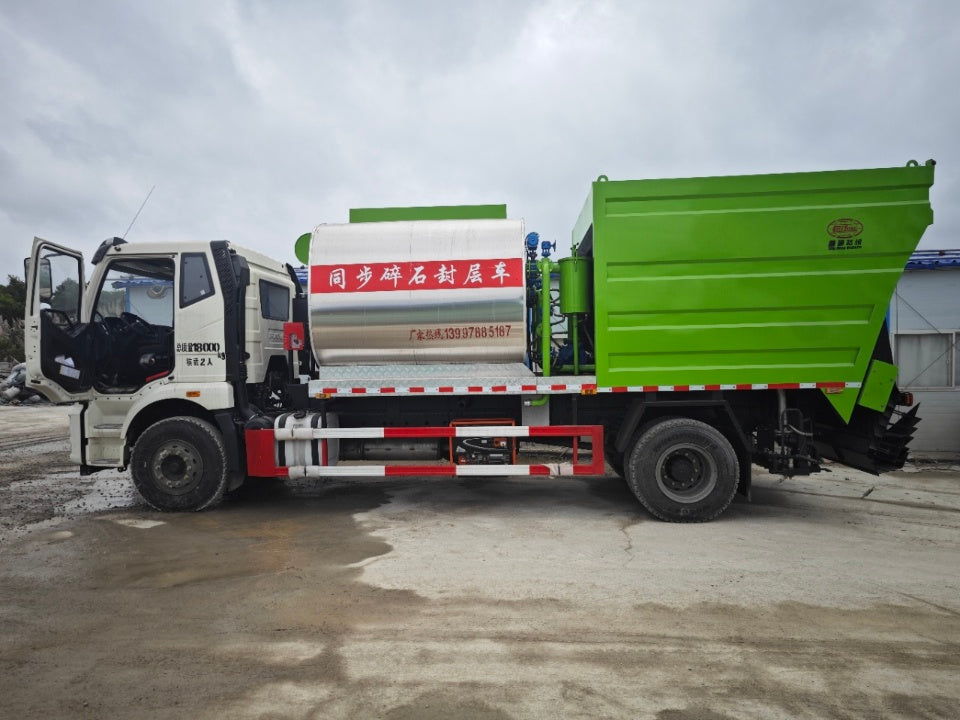

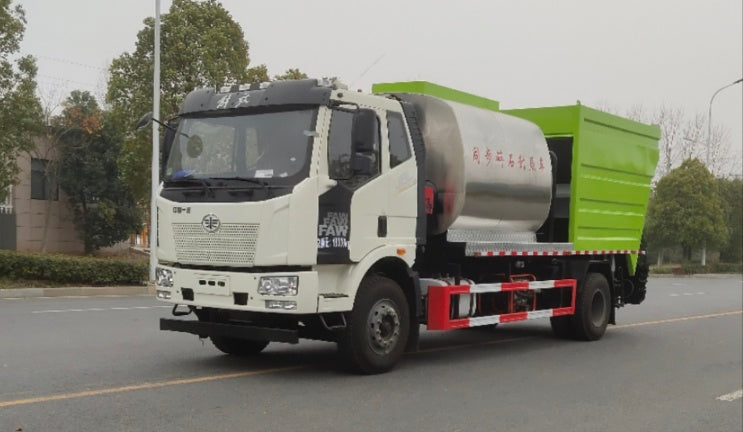

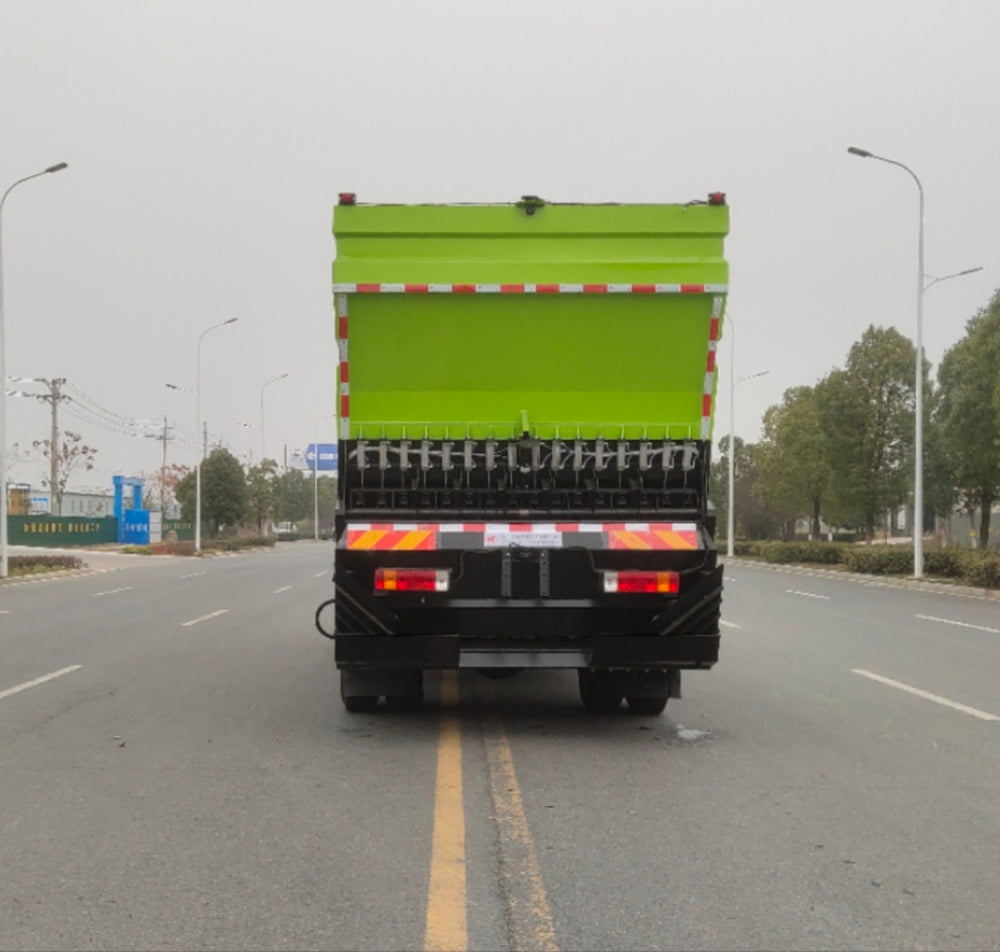

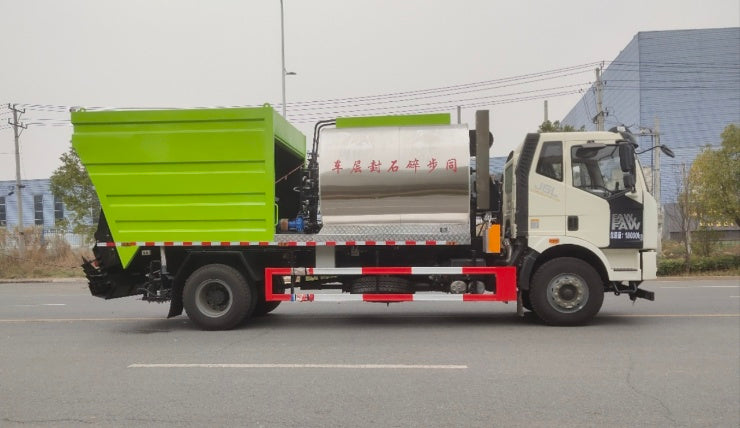

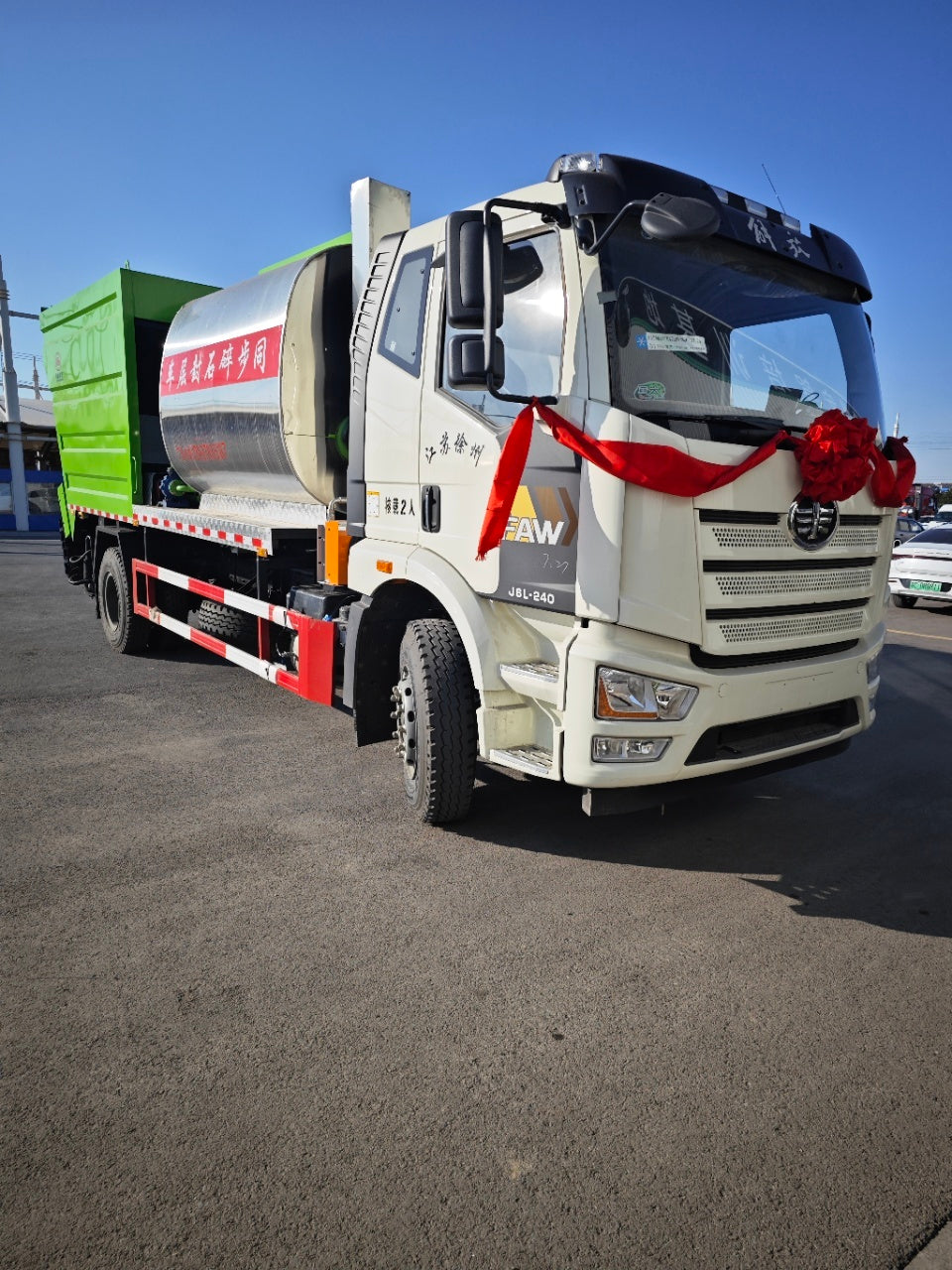

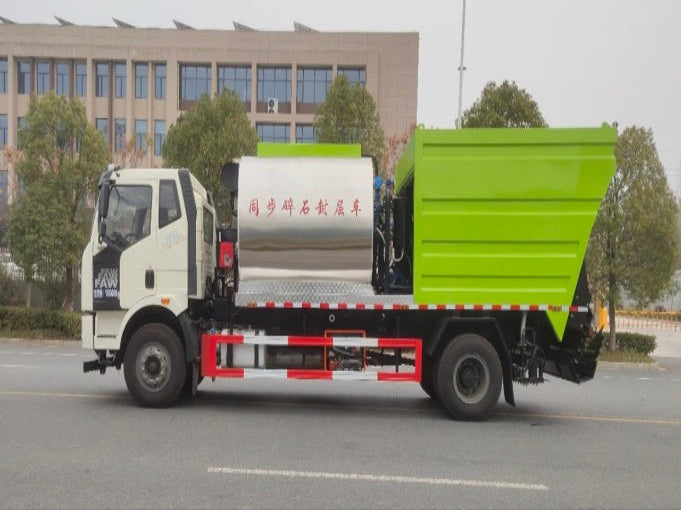

FAW 15m³ Synchronous Chip Sealer Truck
Request a Quote Now
1. Chassis Basic Parameters
| Item | Parameter |
|---|---|
| Vehicle Model | HHX5180TFCCA6 (FAW J6 4×2 single axle) |
| Chassis Model | CA1180P62K1L2A1E6Z |
| Engine Model | CA4DK1-22E6, 245 HP Dachai Engine |
| Wheelbase | 5300 mm |
| Total Upper Body Volume | 15 m³ (Asphalt Tank + Stone Hopper) |
2. Tank & Pump Configuration
| Item | Parameter |
|---|---|
| Asphalt Tank Capacity | 7 m³ |
| Stone Hopper Capacity | 8 m³ |
| Asphalt Pump Model | QGB680 high-viscosity asphalt pump, flow rate 680 L/min |
| Hydraulic Gear Pump | GPC4-50-25 dual gear pump made in Tianjin |
| Hydraulic Accessories | Automatic reversing valve, overflow valve, proportional valve & hydraulic drive motor for asphalt pump |
3. Intelligent Control & Spraying System
| Item | Parameter |
|---|---|
| Control System | Cab touch screen intelligent control, German Infineon chip system (high temperature, dust, shock, water & lightning resistance, far higher reliability than PLC) |
| Asphalt Nozzles | 30 independent intelligent nozzles (1-to-1 separate control) |
| Stone Discharge Gates | 16 adjustable stone material gates |
| Max Spreading Width | 3.75 m |
| Asphalt Application Rate | 0.25–4.0 L/m² |
| Stone Spreading Volume | Stepless adjustable |
4. Heating & Sensing Parts
| Item | Parameter |
|---|---|
| Heating Mode | Automatic thermal oil heating + Italy Riello G20 burner |
| Sensors | Japan Omron temperature & speed sensors |
5. Power Generator & Applicable Medium
| Item | Parameter |
|---|---|
| Generator Options | Honda 5.5kW / Lvtian 7kW / 7kW diesel generator; hydraulic motor drive optional |
| Supported Spraying Media | Emulsified asphalt, hot asphalt, modified asphalt |
