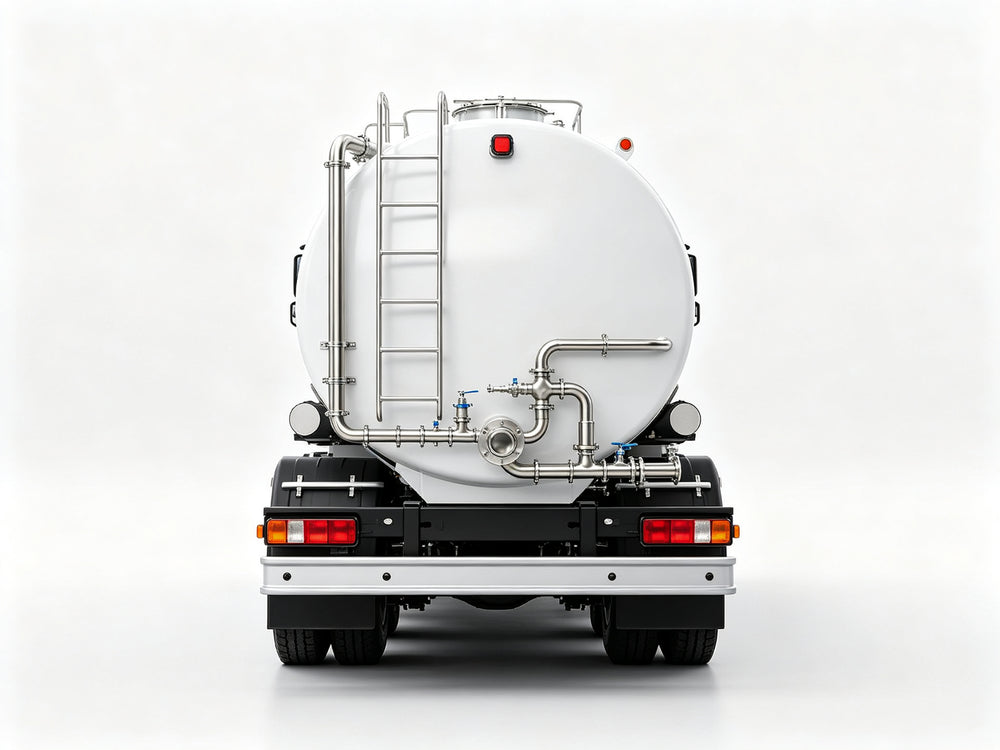

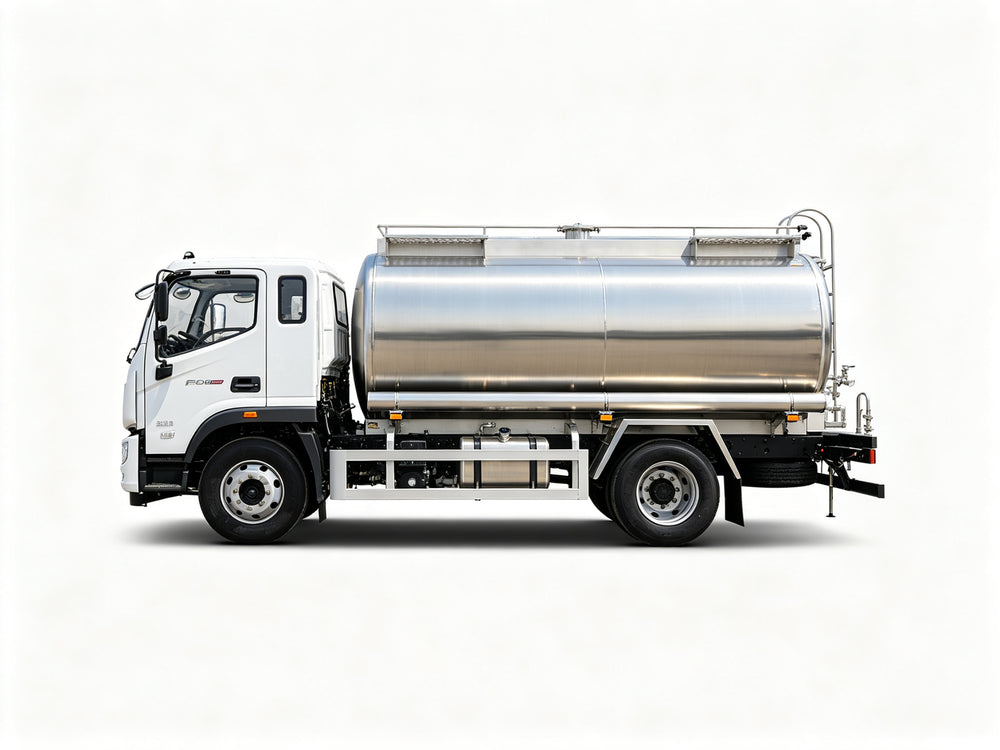

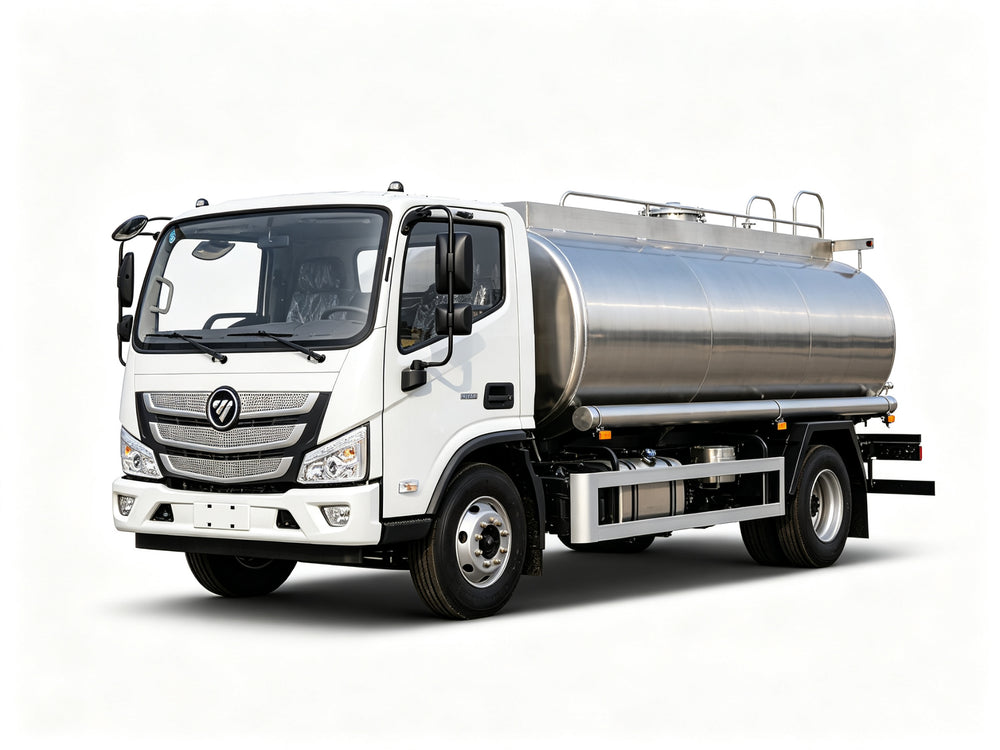

FOTON 10m³ Milk Tanker Truck
Request a Quote Now
1. Complete Vehicle Basic Parameters
| Parameter | Value |
|---|---|
| Vehicle Type | Milk / Dairy Tanker Truck |
| Complete Vehicle Model | CL5120GNY6HL |
| Gross Vehicle Weight | 12000 kg |
| Rated Load Capacity | 6500 kg |
| Curb Weight | 5300 kg |
| Number of Axles | 2 (4×2) |
| Axle Load Distribution | 4500 kg / 7500 kg |
| Cab Seating Capacity | 3 persons |
| Fuel Type | Diesel |
| Maximum Speed | 105 km/h |
| Emission Standard | Euro VI / National VI |
| Food Grade Certification | 304 Stainless Steel Food-Grade Certified |
2. Dimension & Wheel Parameters
| Parameter | Value |
|---|---|
| Overall Dimension (L×W×H) | 7800 × 2250 × 2950 mm |
| Tank Dimension (L×Diameter) | 5200 × 1800 mm |
| Tank Volume | 10 m³ (10,000 Liters) |
| Wheelbase | 3800 mm |
| Front Overhang / Rear Overhang | 1150 mm / 2850 mm |
| Approach Angle / Departure Angle | 21° / 14° |
| Front Track Width | 1730 mm |
| Rear Track Width | 1615 mm |
| Tire Specification | 8.25R20 16PR Steel Radial |
| Number of Tires | 6 (plus 1 spare) |
| Leaf Spring Configuration | 7 / 9+6 |
3. Powertrain System
| Parameter | Value |
|---|---|
| Engine Model | F2.8NS6B156 |
| Engine Brand | Foton Cummins |
| Engine Power | 156 HP (115 kW) |
| Engine Displacement | 2.8 L |
| Maximum Torque | 450 N·m |
| Transmission | 6-Speed Manual Gearbox |
| Final Drive Ratio | 4.875 |
| Fuel Tank Capacity | 150 L Steel |
| Clutch | Single-Dry-Plate Diaphragm Spring Clutch |
4. Milk Tank Configuration
| Parameter | Value |
|---|---|
| Tank Type | Cylindrical Insulated Tank |
| Inner Tank Material | Food-Grade 304 Stainless Steel (2.0mm) |
| Outer Shell Material | 304 Stainless Steel Polished (1.2mm) |
| Insulation Layer | 70mm Polyurethane Foam |
| Insulation Performance | Temperature rise ≤ 1°C per 12 hours (ambient 30°C) |
| Number of Compartments | 2 compartments (5000L each) |
| Tank Heads | Elliptical Dish Heads |
| Internal Polish | Food-grade mechanical polish (Ra ≤ 0.8μm) |
| Manhole | 1 sanitary manhole per compartment (450mm diameter) |
| Manhole Cover | Pressure-resistant sanitary cover with pressure relief valve |
| CIP Cleaning System | Rotating spray balls (2 per compartment) |
| Anti-Wave Baffles | 3 sets of anti-wave baffles per compartment |
| Tank Top Walkway | Non-slip walkway with safety handrails |
| Ladder | Stainless steel rear climbing ladder |
| Filling Port | Top filling port with tri-clamp quick connection |
| Discharge Valve | Sanitary butterfly valve per compartment |
| Sample Valve | Stainless steel sample valve |
| Drain Valve | Bottom drain valve for complete emptying |
| Tank Certification | Food contact material safety certification |
5. Refrigeration & Temperature Control System
| Parameter | Value |
|---|---|
| Refrigeration Unit | Optional vehicle-mounted independent refrigeration |
| Cooling Capacity | 6000 kcal/h |
| Temperature Range | 2°C – 8°C (adjustable) |
| Temperature Sensor | Digital PT100 sensor per compartment |
| Temperature Display | In-cab digital temperature display |
| Temperature Recorder | Optional temperature data logger with USB |
| Alarm System | High/low temperature audible alarm |
| Power Source | Auxiliary engine drive |
6. Pump & Piping System
| Parameter | Value |
|---|---|
| Milk Pump | Sanitary stainless steel centrifugal pump |
| Pump Capacity | 20,000 L/h |
| Pump Drive | PTO-driven / hydraulic motor |
| Pump Material | Food-Grade 304 Stainless Steel |
| Piping Material | Food-Grade 304 Stainless Steel |
| Pipe Diameter | DN65 sanitary piping |
| Quick Connectors | Tri-clamp sanitary connections |
| Flow Meter | Optional stainless steel flow meter |
| Self-Priming | Self-priming design |
| CIP Circulation | Full-loop CIP circulation system |
7. Chassis Configuration
| Parameter | Value |
|---|---|
| Chassis Model | BJ1128VGJFA-AC |
| Chassis Brand | Foton Aumark |
| Cab Type | Single-Row Flat-Top Cab |
| Front Axle | 3.5 Ton Rated Load |
| Rear Axle | 7 Ton Single Reduction Axle |
| Frame Specification | 210×65×6mm Single-Layer Frame |
| Steering System | Hydraulic Power Steering |
| Brake System | Air Brake with ABS |
| Parking Brake | Spring Energy Storage Brake |
| Suspension | Leaf Spring with Shock Absorbers |
| Exhaust Brake | Equipped |
8. Interior & Comfort Features
| Feature | Description |
|---|---|
| Air Conditioner | Manual Air Conditioning |
| Windows | Electric Front Windows |
| Door Lock | Central Door Locking with Remote Key |
| Audio System | AM/FM Radio with USB & Bluetooth |
| Instrument Panel | Digital Multi-Function Display |
| Steering Wheel | 3-Spoke Multifunctional Steering Wheel |
| Seats | Fabric Seats with Adjustable Driver Seat |
| Storage | Door Pockets, Glove Box, Overhead Storage |
| Power Outlet | 24V Power Outlet |
| Cruise Control | Equipped |
| Temperature Monitor | In-cab milk tank temperature display |
9. Safety & Standard Features
| Feature | Description |
|---|---|
| ABS Anti-Lock Braking | Equipped |
| Seatbelts | 3-Point Seatbelts for All Seats |
| Reverse Alarm | Audible reverse warning buzzer |
| Side Marker Lights | Front & rear side marker lights |
| Rearview Mirror | Manual dual-arm rearview mirrors |
| Daytime Running Lights | LED Daytime Running Lights |
| Spare Tire | Full-size spare tire with carrier |
| Fire Extinguisher | 2 × 4kg dry powder fire extinguishers |
| Tool Kit | Standard vehicle tool kit with jack |
| Battery | 2 × 12V / 80Ah Batteries |
| Warning Triangle | 2 reflective warning triangles |
| Tank Top Safety | Safety railing around tank top |
| Non-Skid Surface | Non-slip tank top walkway |
10. Optional Upgrades
| Option | Description |
|---|---|
| Refrigeration Unit | Vehicle-mounted independent refrigeration unit |
| Flow Meter | Digital stainless steel flow meter with totalizer |
| Temperature Logger | Temperature data recorder with printer |
| GPS Tracking | GPS fleet tracking with temperature monitoring |
| 3-Compartment Tank | 3-compartment configuration |
| Larger Tank | 12m³ / 15m³ tank upgrade |
| Reverse Camera | 7-inch display with rearview camera |
| Air Seat Upgrade | Air suspension driver seat |
| CIP Cleaning System | Enhanced CIP with detergent tank |
| On-Board Generator | Auxiliary diesel generator |
| Milk Quality Sensor | Optional milk quality / fat content sensor |
| Stainless Steel Wheels | Stainless steel wheel covers |
