  1. Chassis Parameters
Item Parameter
Gross Vehicle Weight 4495 kg
Curb Weight 4300 kg
Engine Weichai WP2.3NQ160E61, 160 HP
Transmission Wanliyang 6-speed / Small 8-speed (oil change every 120,000km)
Wheelbase 3280 mm
Overall Dimension 5998×2200×2950 mm
Front/Rear Axle 2T / 3.5T
Tire Spec 7.00R16LT 10PR Steel Radial Tire
Brake Air Cut-off Brake
Standard Fittings Air Conditioner, Power Window, Central Door Lock
Outrigger Span Transverse:5150/4500mm; Longitudinal:3400mm

2. Aerial Work Superstructure (GK20)

Item Parameter
Max Working Height 19.2 m
Max Working Reach 12 m
Rated Platform Load 200 kg
Boom Slewing 360° Full Rotation

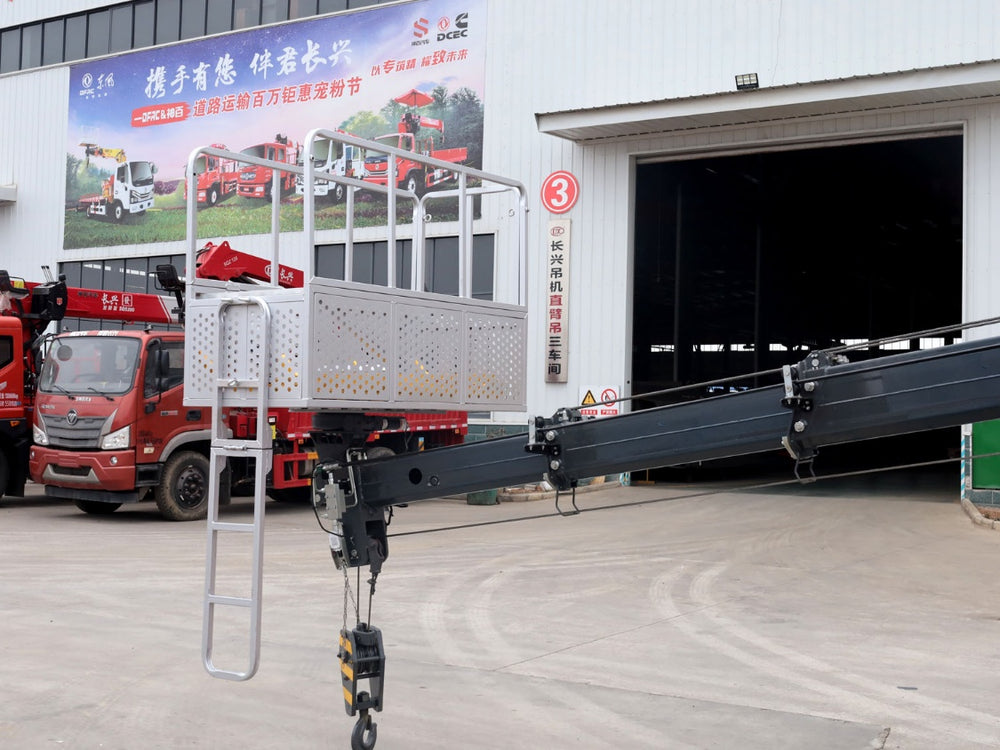

Platform Size 1500×700×1100 mm
Platform Rotation ±180°
Boom Structure 6-section boom, 5-section synchronous extension; spare steel cable for emergency lowering

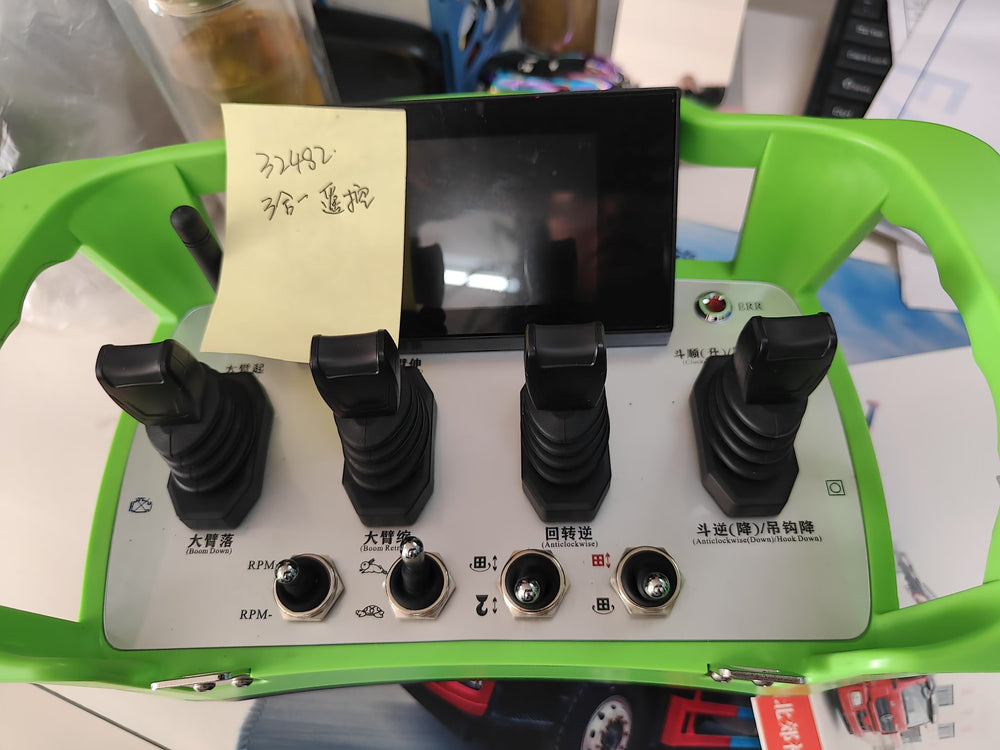

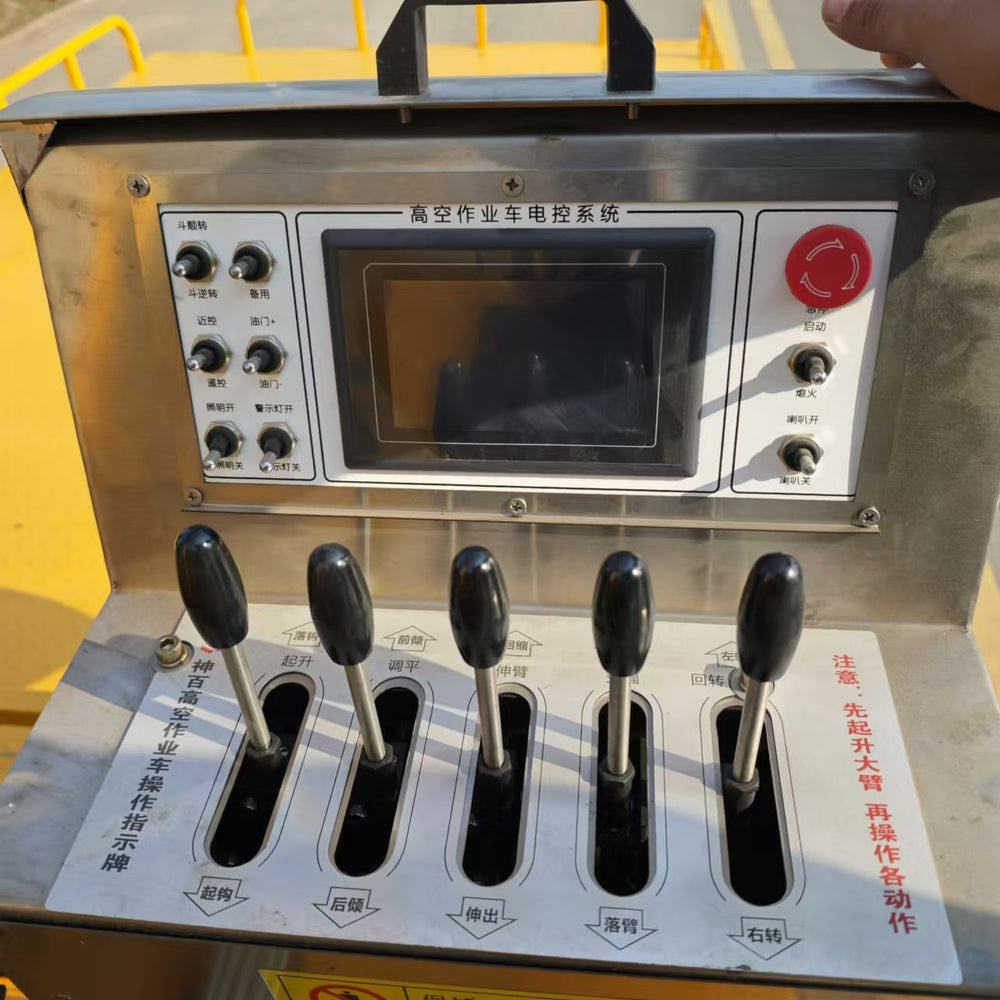

Control System Domestic Famous ECU, Wireless Remote + Central Control with Display
Hydraulic System Electro-hydraulic Proportional Valve, Stepless Speed Regulation
Outrigger H-type, 4 independently adjustable full-surround legs
Safety Devices Upper-lower Interlock, Limit Protection, Bi-directional Hydraulic Balance Valve

3. Truck-mounted Crane Part

Item Parameter
Max Lifting Capacity 5000 kg
Main Winch Rating 5 T
Crane Boom 6-section Internal Routing Boom
Max Lifting Height 17 m
Slewing Range 360° Unlimited Rotation
Hydraulic Pump Single Pump

4. Cargo Transport Section

Item Parameter
Cargo Box Dimension 3300×2200 mm
Operation Mode Central Manual Control
