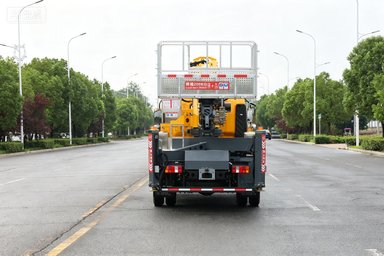

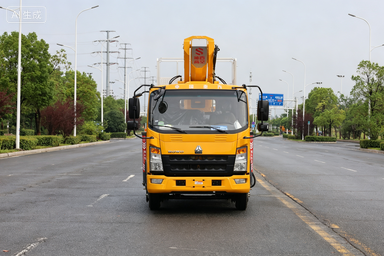

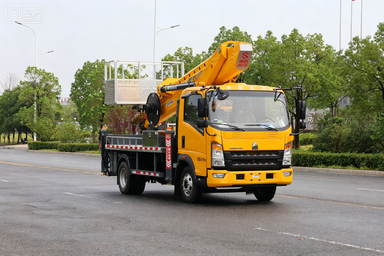

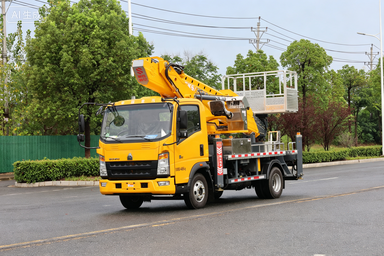

HOWO GKS32 pro Aerial Work Platform Truck

1 / 9

Item	Parameter

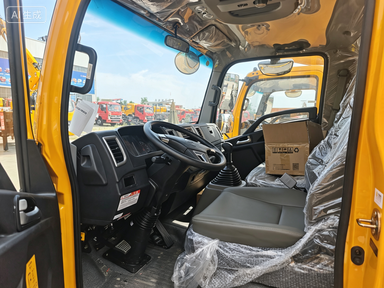

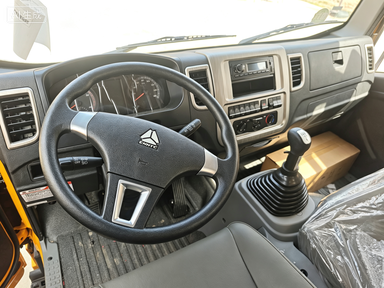

Cab	Howo Rich Edition Cab
Gross Vehicle Weight	4495 kg
Curb Weight	4300 kg
Engine	Weichai WP25Q160E62
Transmission	Wanliyang 6-speed / Small 8-speed (oil change every 120,000km)
Wheelbase	3280 mm
Overall Dimension	5995×2200×3100 mm
Tire Spec	700R16LT 10PR
Brake	Air Cut-off Brake
Standard Fittings	Power Window, Air Conditioner, Central Door Lock

2. Superstructure (GKS32 Pro)

Item	Parameter
Max Working Height	30.6 m
Max Working Radius	17 m
Rated Platform Load	200 kg
Boom Slewing	360° Full Rotation
Platform Size	1800×700×1000 mm (with flip plate)
Platform Rotation	Unlimited 360° Rotation
Boom Structure	7-section boom, 6-section synchronous extension; spare steel cable for emergency lowering
Main Material	960 High-strength Steel Plate
Outrigger	X-type, 4 double-stage independently adjustable legs; Trans/Long span:5770mm/6120mm
Lifting Cylinder	Dual-lifting Cylinder Design
Subframe	Exclusive Box-type Subframe + 3-layer Trapezoidal Slewing Support

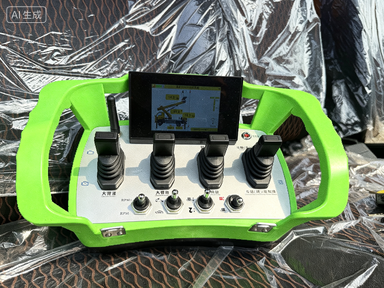

Control System	Famous Domestic ECU, Wireless Remote + Central Control with Display

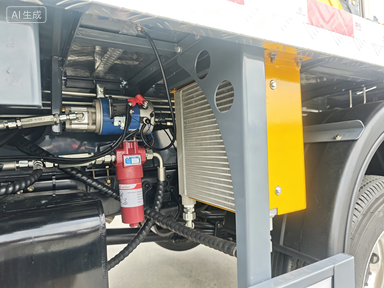

Hydraulic System	Electro-hydraulic Proportional Valve, Stepless Speed + Emergency Power Unit
Walkway	Anti-slip Aluminum Alloy Walkboard
Safety Devices	Upper-lower Interlock, Emergency Power, Bi-directional Hydraulic Balance Valve, Leg Protection, Radiator, 220V External Power Supply
Optional Parts	Upper Control Cabin, 1T Winch
Advantage	7-section boom, stable structure for 30.6m working height under blue-plate certification
