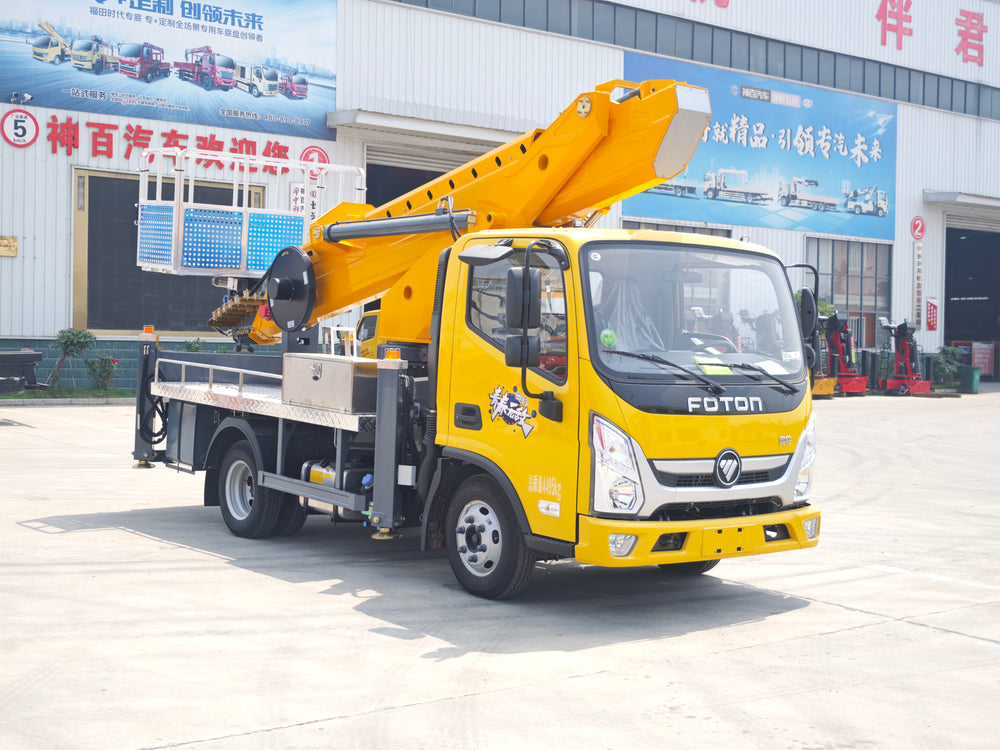

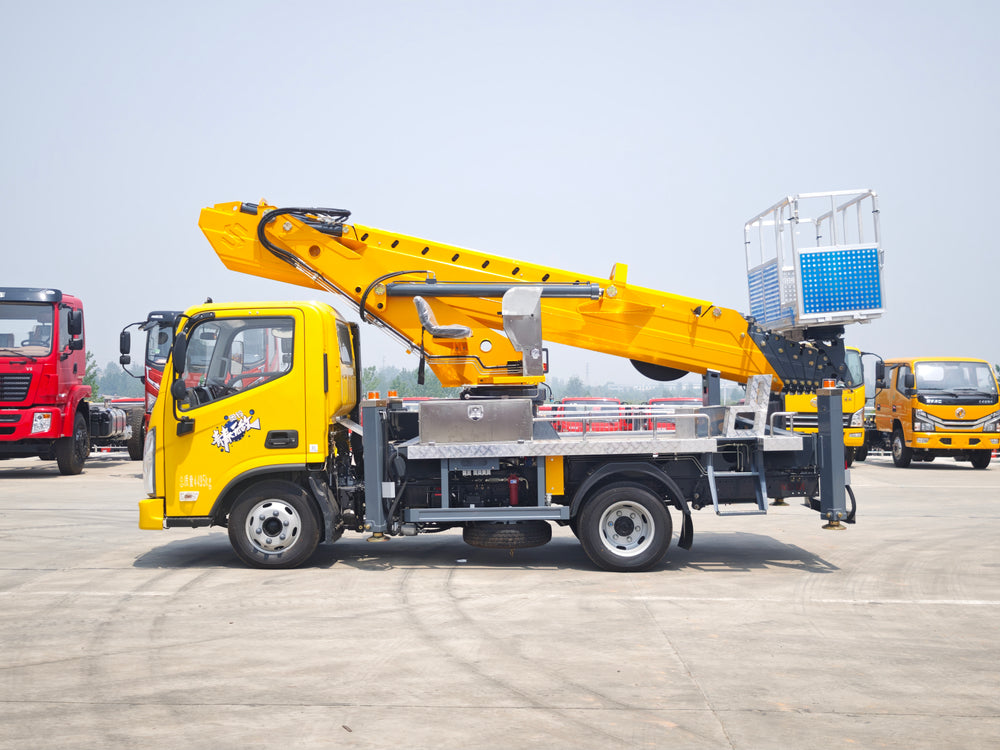

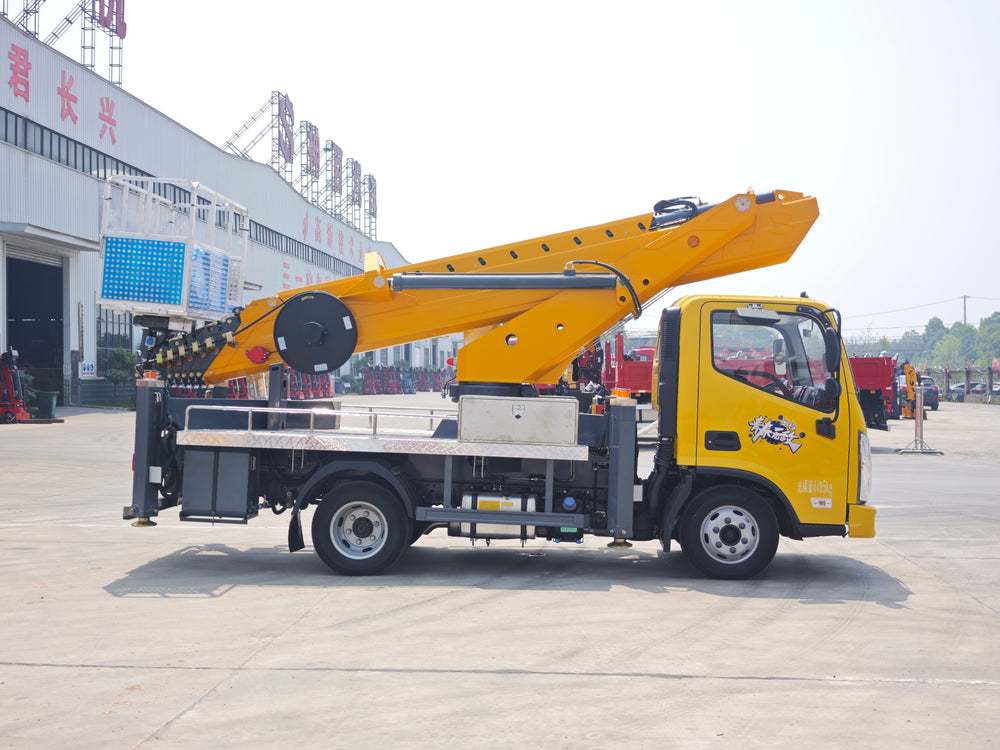

HOWO GKS35 Pro Aerial Work Platform Truck

1 / 11

Item	Parameter
Chassis Brand & Cab	Foton Aoling Youth Edition, Heavy-duty Short Wheelbase
Gross Vehicle Weight	4495 kg
Curb Weight	4300 kg
Engine	Yunnei 151 HP Diesel Engine
Transmission	Wanliyang 8-speed Smooth-shift Gearbox
Wheelbase	2800 mm; 180mm Factory Double-layer Widened Frame, 5T Rear Axle
Overall Dimension	5995×2200×3150 mm
Tire Spec	6.50R16 / 7.00R16
Brake Type	Air Cut-off Brake

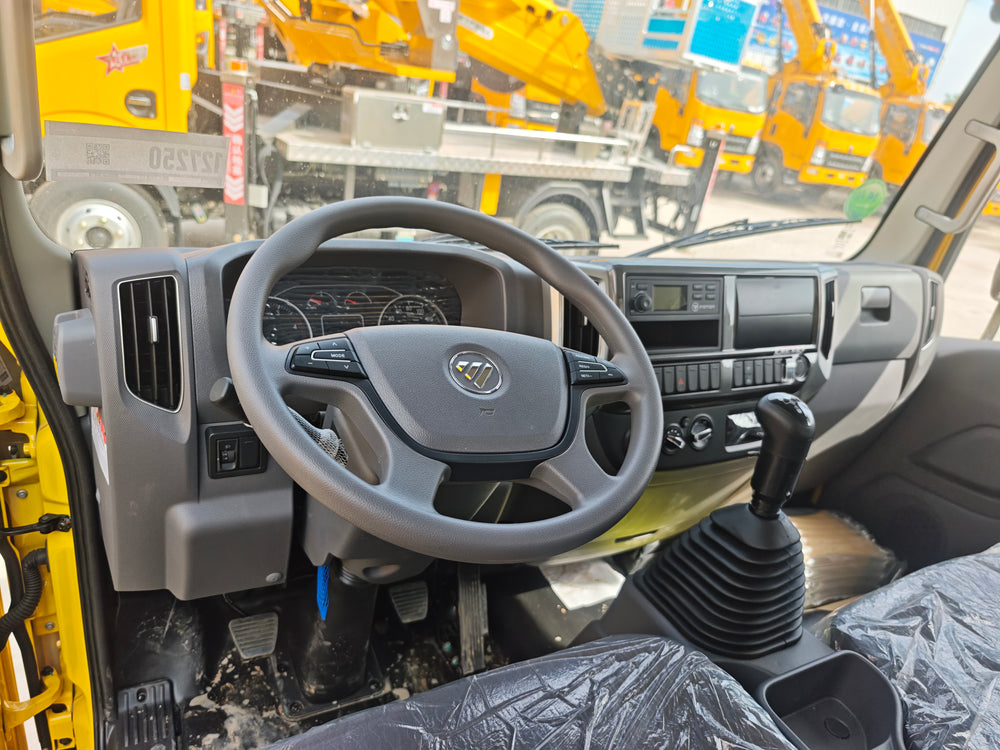

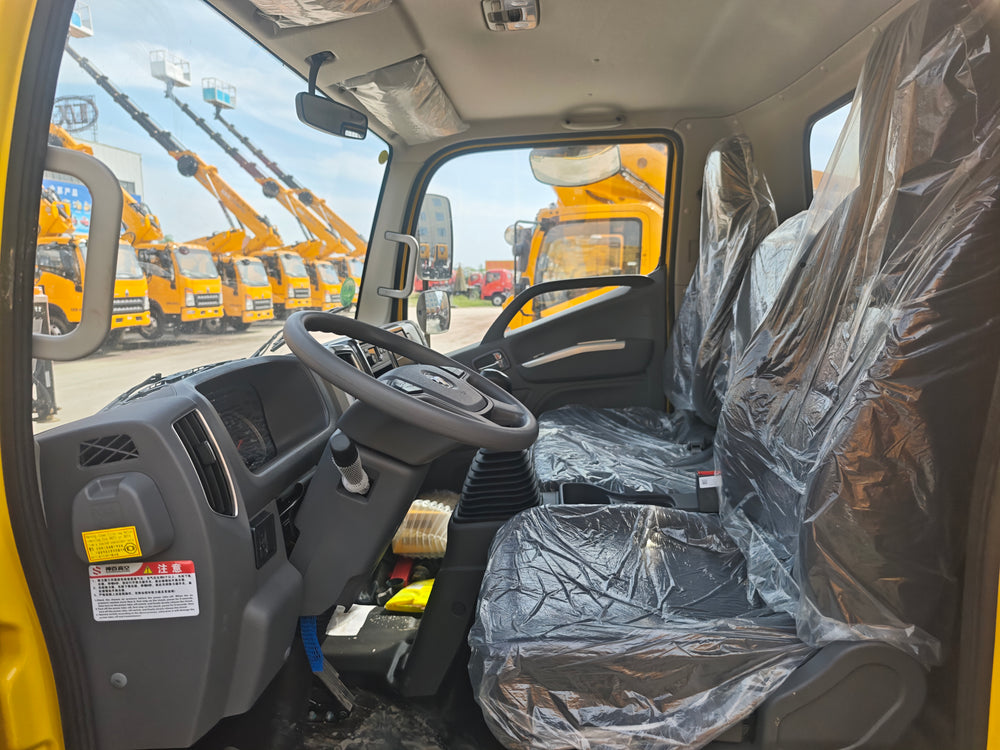

Standard Accessories	Power Window, Air Conditioner, Central Lock, Multifunctional Steering Wheel
Core Advantage	Minimum Turning Radius, Heavy-load Blue-plate, 7-section boom for 33.8m working height

2. Superstructure (GKS35)

Item	Parameter
Max Working Height	33.8 m
Max Working Radius	16.5 m
Rated Platform Load	200 kg
Boom Slewing Range	360° Full Rotation

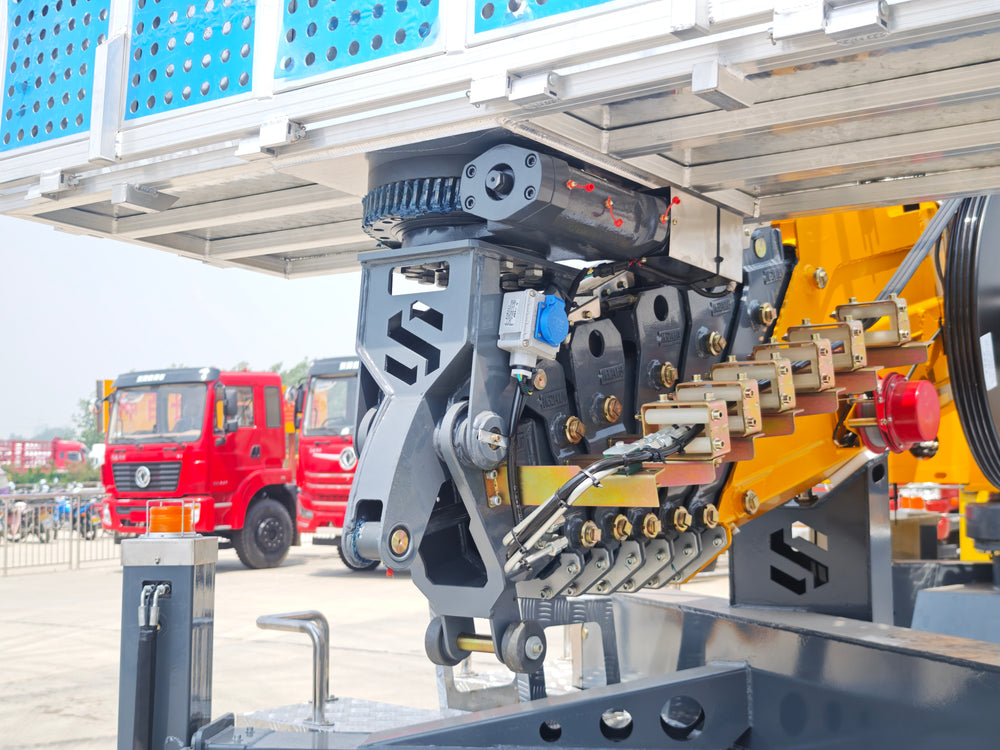

Platform Size	1800×700×1000mm (max unfolded width:3.8m) with 9-inch basket slewing support
Platform Rotation	Unlimited 360° Rotation
Boom Structure	7-section boom, 6-section synchronous extension; spare steel cable for emergency descending
Main Material	Lightweight 960 High-strength Steel Plate

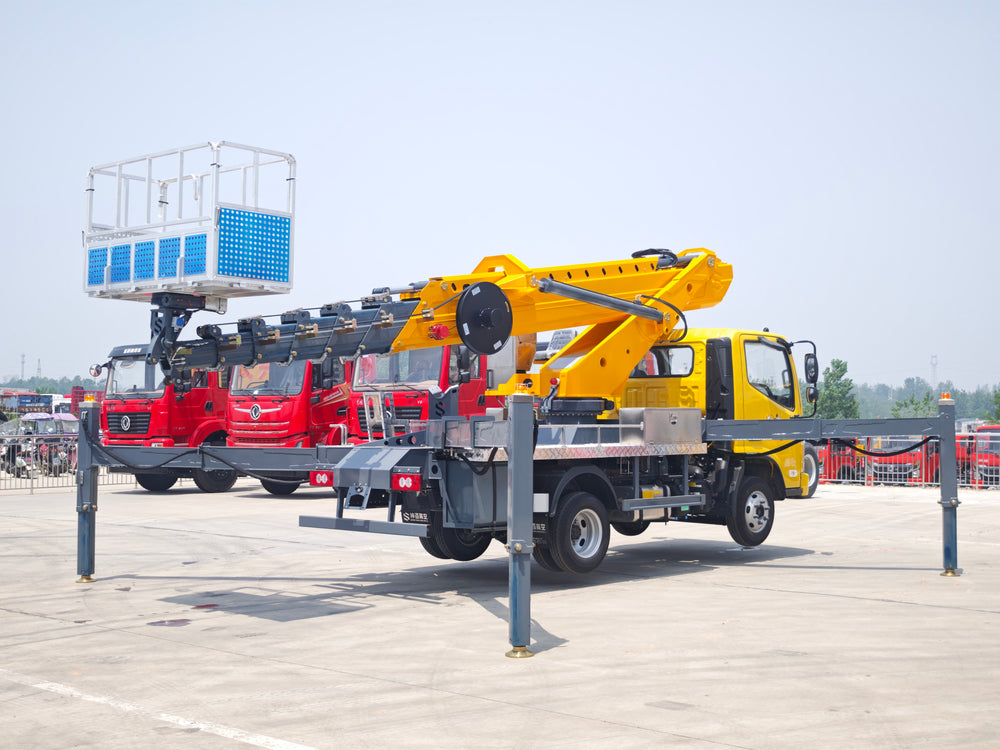

Outrigger	X-type, 4 double-stage independently adjustable legs; Trans/Long span:6m

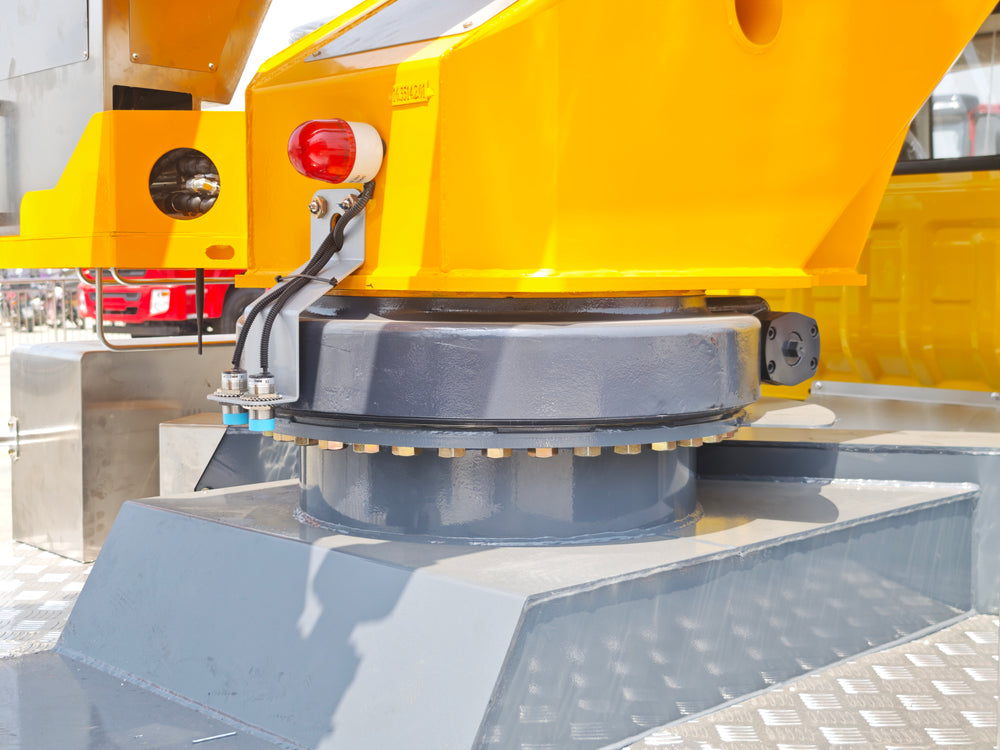

Subframe	Box-type Subframe + 3-layer Reinforced Trapezoidal Slewing Base
Control System	Domestic Famous ECU, Wireless Remote + Upper Control with Display Screen
Hydraulic System	Electro-hydraulic Proportional Valve, Stepless Speed Regulation + Emergency Power Unit
Walkway	Anti-slip Aluminum Alloy Walkboard with Stainless Steel Guardrail

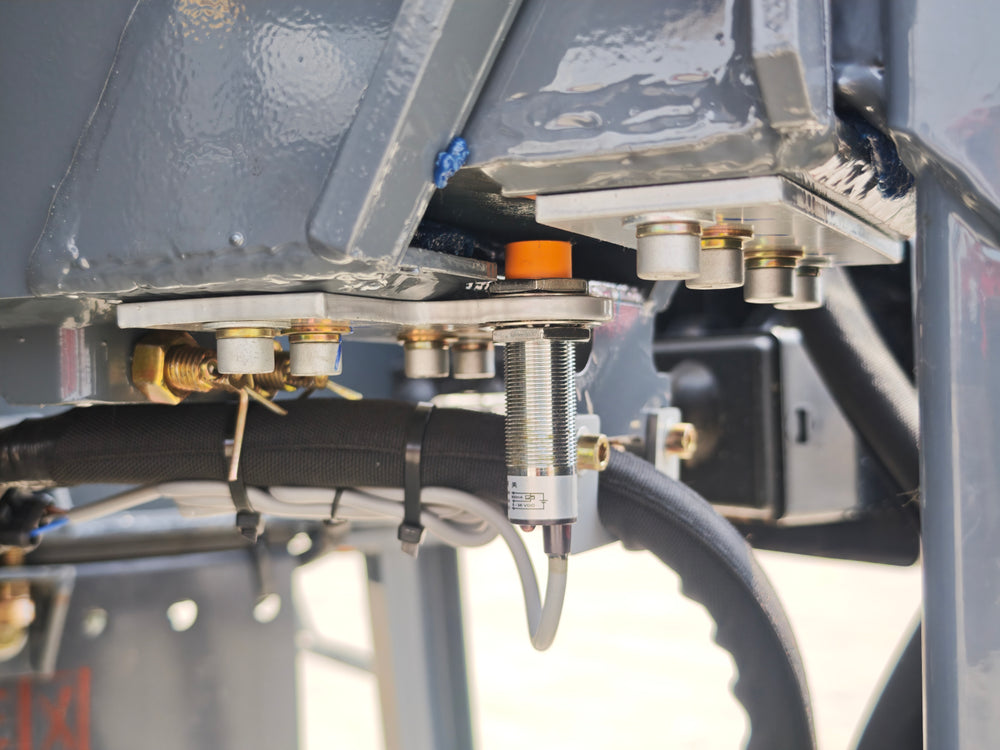

Safety Devices	Upper-lower Interlock, Emergency Power, Bi-directional Hydraulic Balance Valve, Outrigger Protection
Optional Parts	Upper Operation Cabin, 1T Winch
Boom Length	30.3m
