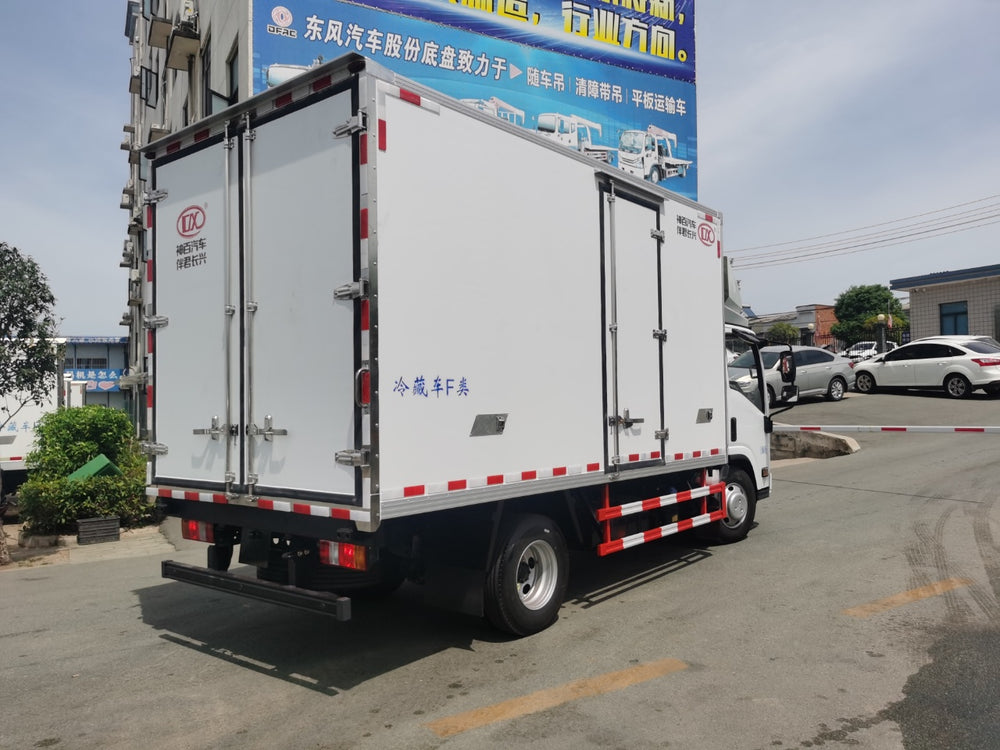

ISUZU EC7 Refrigerated Truck
Chassis
| Item | Specification |
|---|---|
| Vehicle Model | JXW5040XLCCD2 (Non-overload) |
| Overall Dimension | 5995 × (2060~2260) × (3005~3370) mm |
| Cargo Box Dimension | (4020/4050) × (1900~2100) × (1850~2300) mm |
| Engine | ISUZU JE493ZLQ6K, 93KW / 126HP |
| Transmission | Magna 5-speed gearbox |

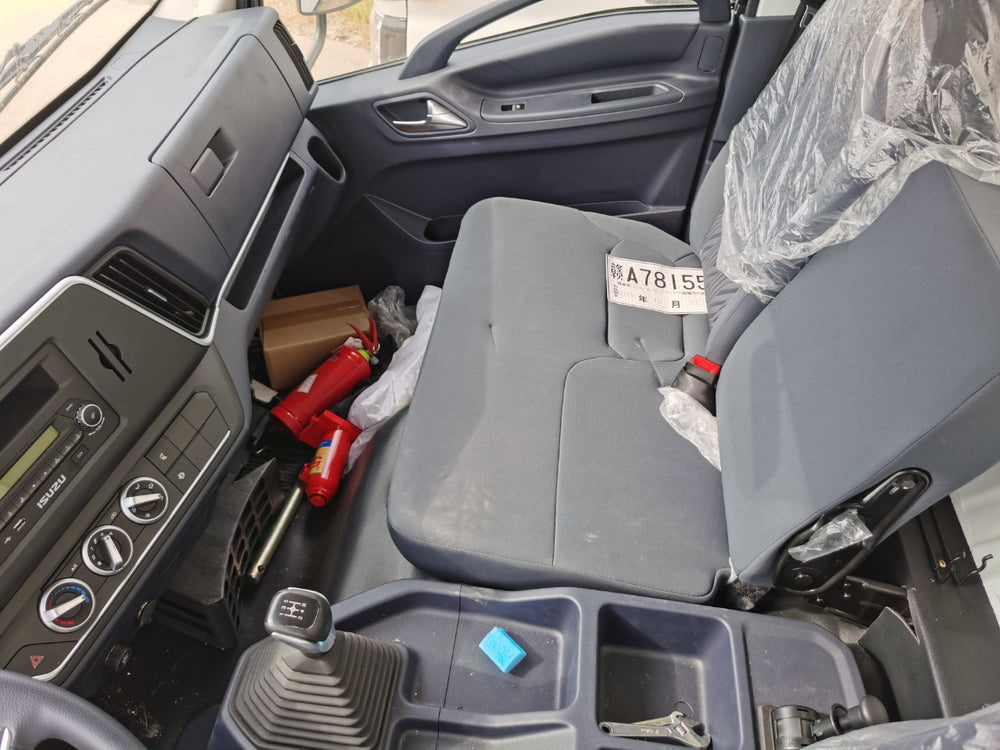

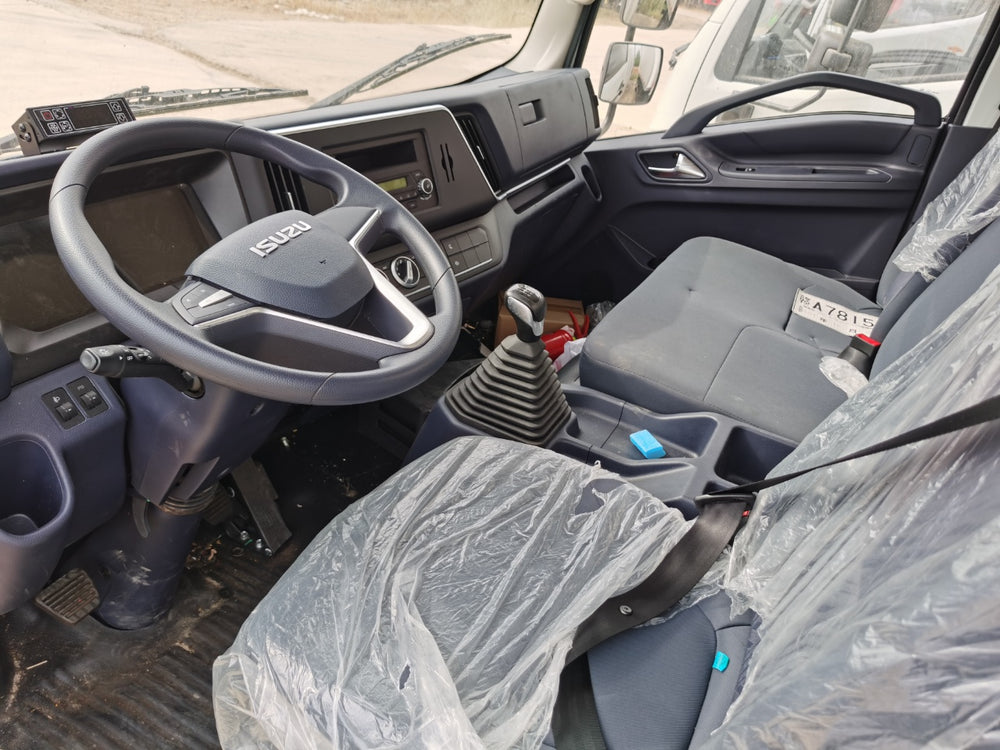

| Cab | 1880 width, 3-seat, 270° no blind spot view |
| Brake & Safety | Front disc & rear drum, ABS, air-break brake, overspeed audible alarm |
| Frame & Axle | 700L high-strength steel frame; 600MPa high-strength steel 5T rear axle |
| Tire | 7.00R16LT 8PR |

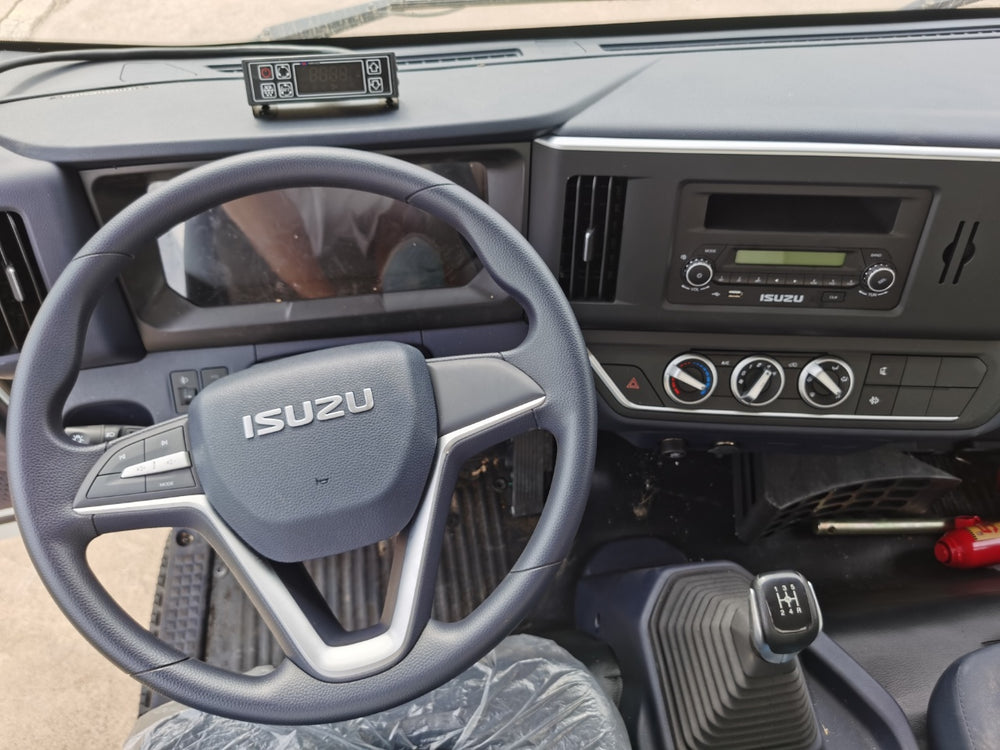

| Standard Cab Fittings | Heated outer rearview mirror, power window, central lock & remote key, AC, multifunctional steering wheel, reverse radar, cruise control |

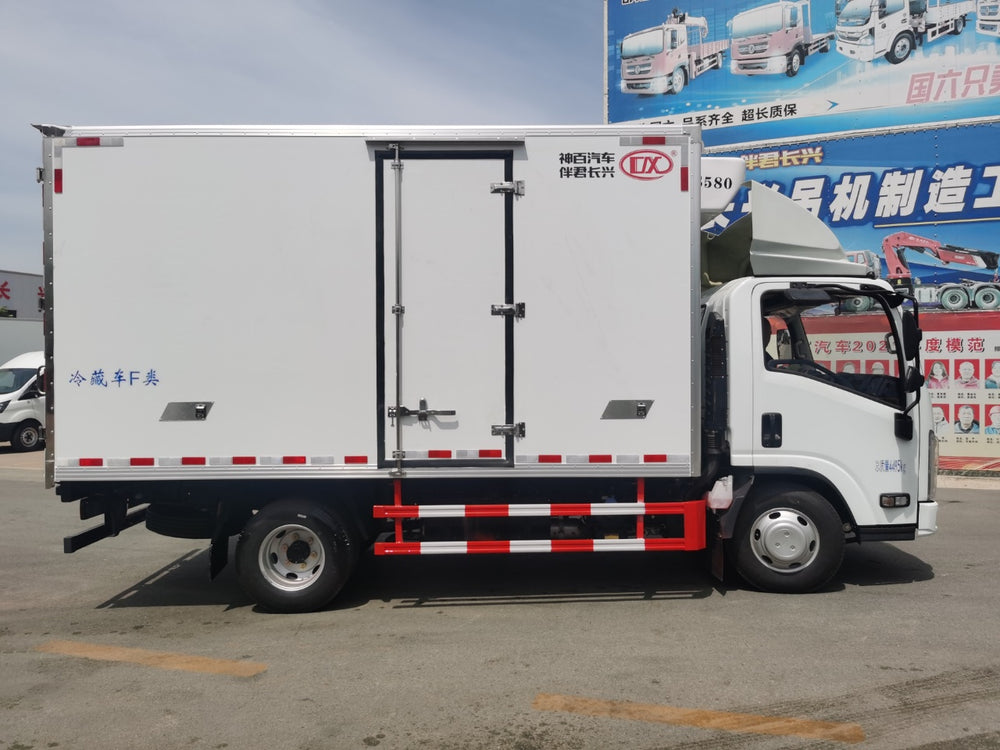

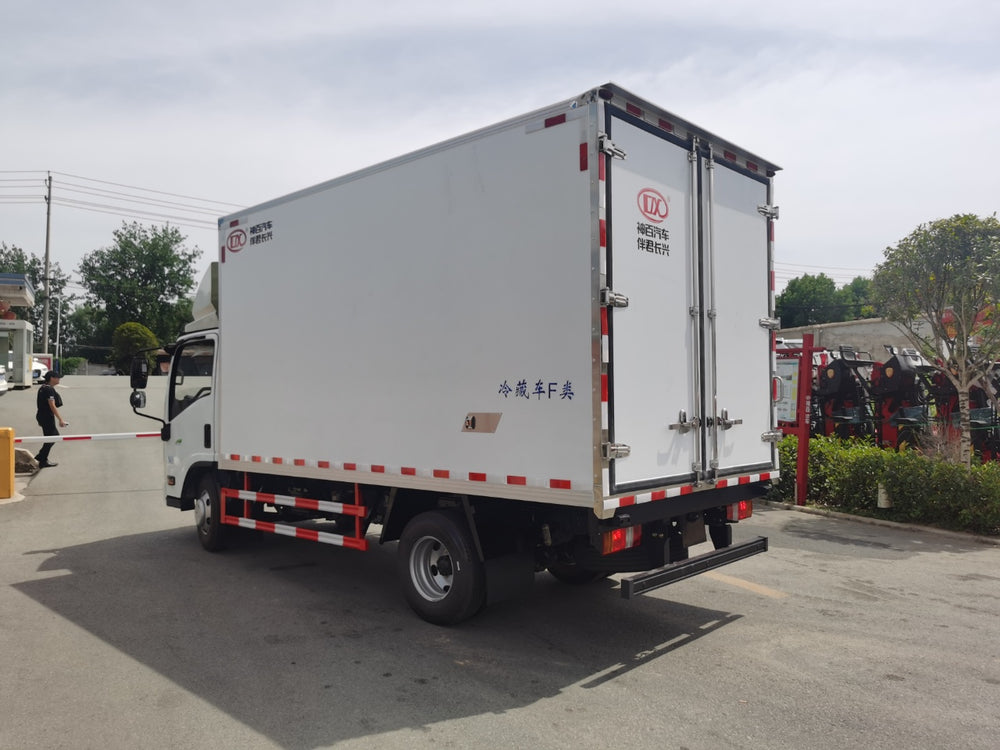

Refrigerated Body & Refrigeration Unit
| Item | Specification |
|---|---|
| Manufacture Tech | Vacuum & hydraulic integral molding, sandwich composite bonding, Class A national thermal insulation grade |
| Panel Structure | Inner & outer FRP shell + 8cm XPS/PUR insulation core; patterned aluminum floor, labyrinth rubber sealing strip |
| Body Fittings | Aluminum alloy edge wrapping, stainless steel corner/hinge/door frame, built-in energy-saving LED lamp |

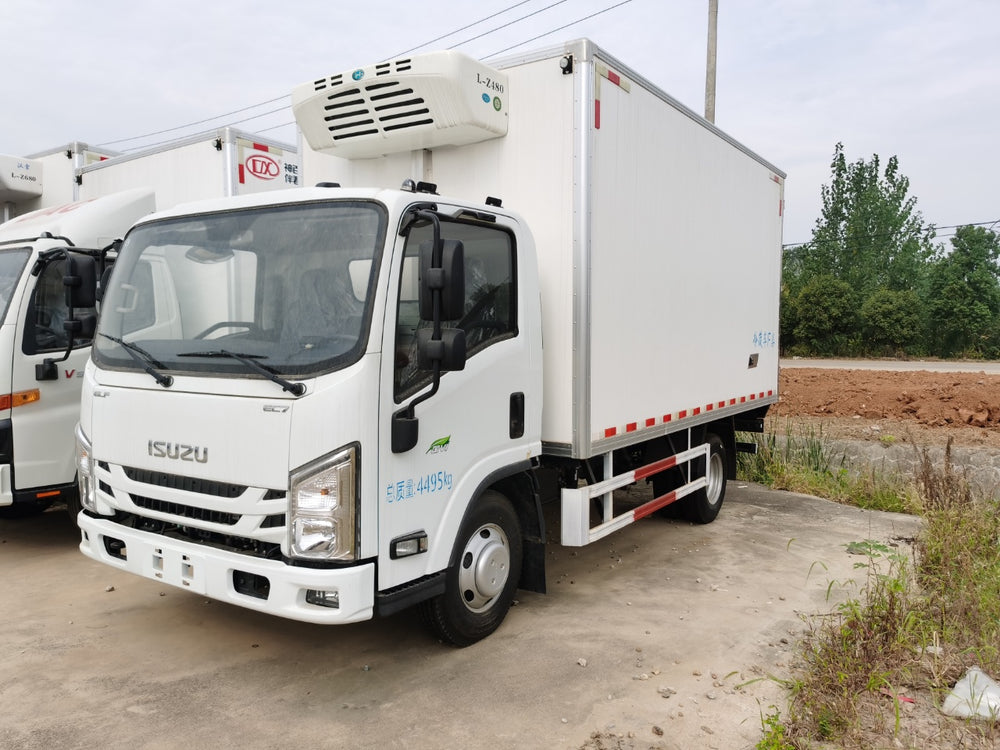

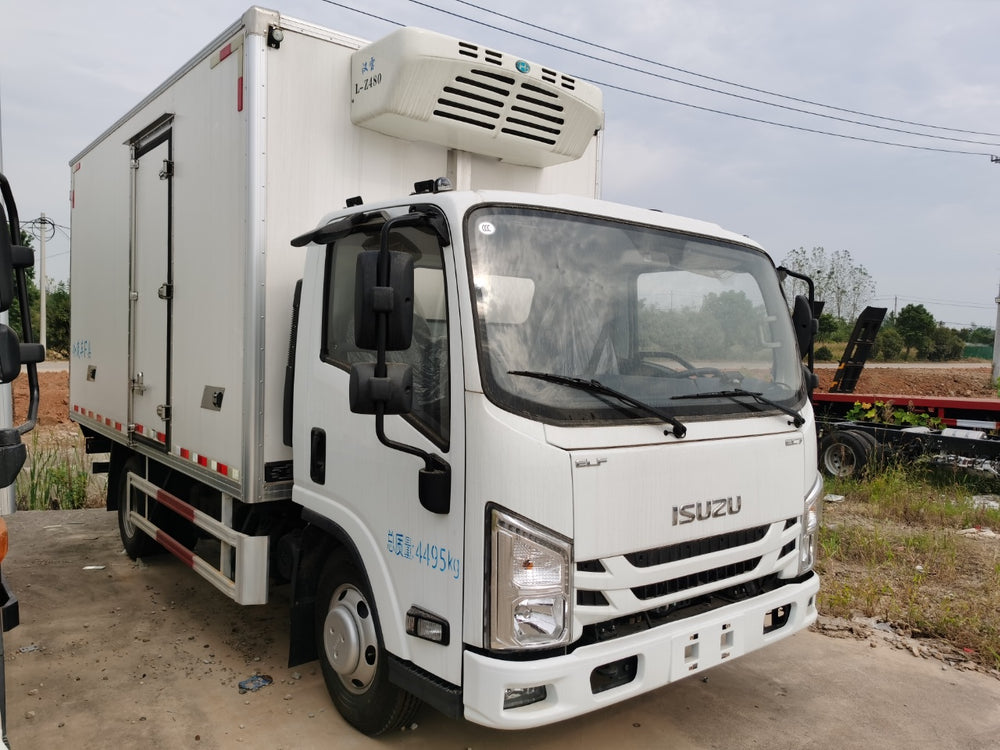

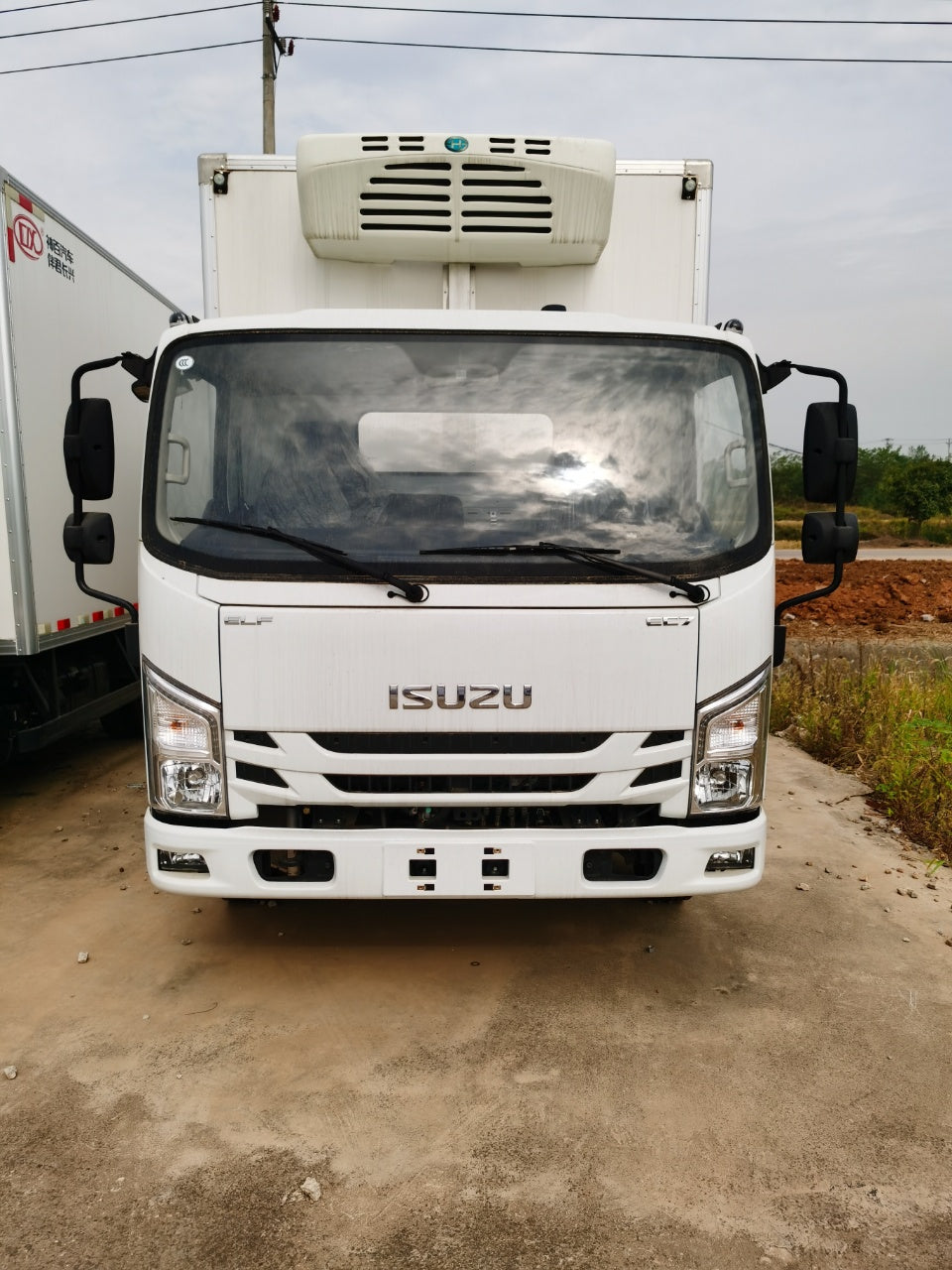

| Refrigeration Unit | Domestic or imported optional, min. cooling down to -18℃ |
