  1. Chassis Configuration
Item Parameter
Chassis Model Isuzu KV100
Gross Vehicle Weight 4495 kg
Engine Isuzu 4KB1-TCG60, 130 HP Diesel Engine
Transmission Isuzu 5-speed Manual Gearbox
Wheelbase 3360 mm
Overall Dimension 5995×2200×3100 mm
Tire Spec 700R16LT 10PR
Brake Air Cut-off Brake

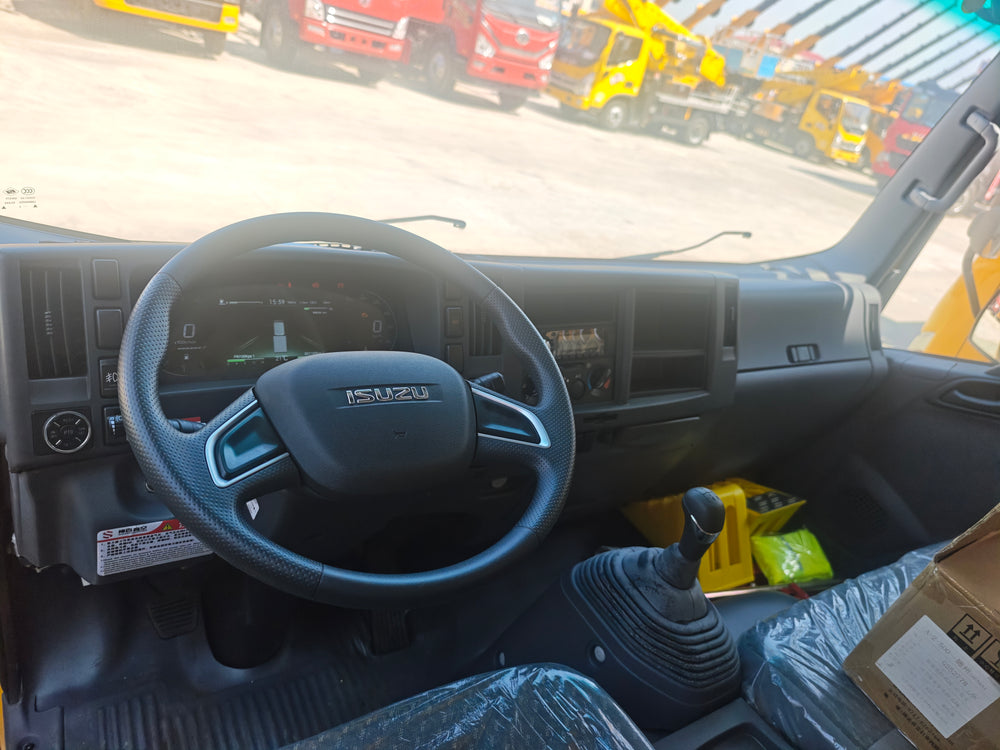

Standard Fittings Power Window, Air Conditioner, Central Door Lock

2. Superstructure (GKS32 Pro)

Item Parameter
Max Working Height 30.6 m
Max Working Radius 17 m
Rated Platform Load 200 kg
Boom Slewing 360° Full Rotation
Platform Dimension 1800×700×1000 mm with flip plate
Platform Rotation Unlimited 360° Rotation
Boom Structure 7-section boom, 6-section synchronous extension; spare steel cable for emergency lowering
Boom Material 960 High-strength Steel Plate
Lifting Cylinder Dual Lifting Cylinders
Outrigger X-type, 4 independent double-stage legs; Span: Trans 5770mm / Long 6120mm
Subframe Exclusive Box-type Subframe + 3-layer Trapezoidal Slewing Support
Control System Domestic Famous ECU, Wireless Remote + Central Control with Display Screen
Hydraulic System Electro-hydraulic Proportional Valve, Stepless Speed + Emergency Power Unit
Walkway Anti-slip Aluminum Alloy Walkboard
Safety Devices Upper-lower Interlock, Emergency Power, Bi-directional Hydraulic Balance Valve, Outrigger Protection, Radiator, 220V External Power

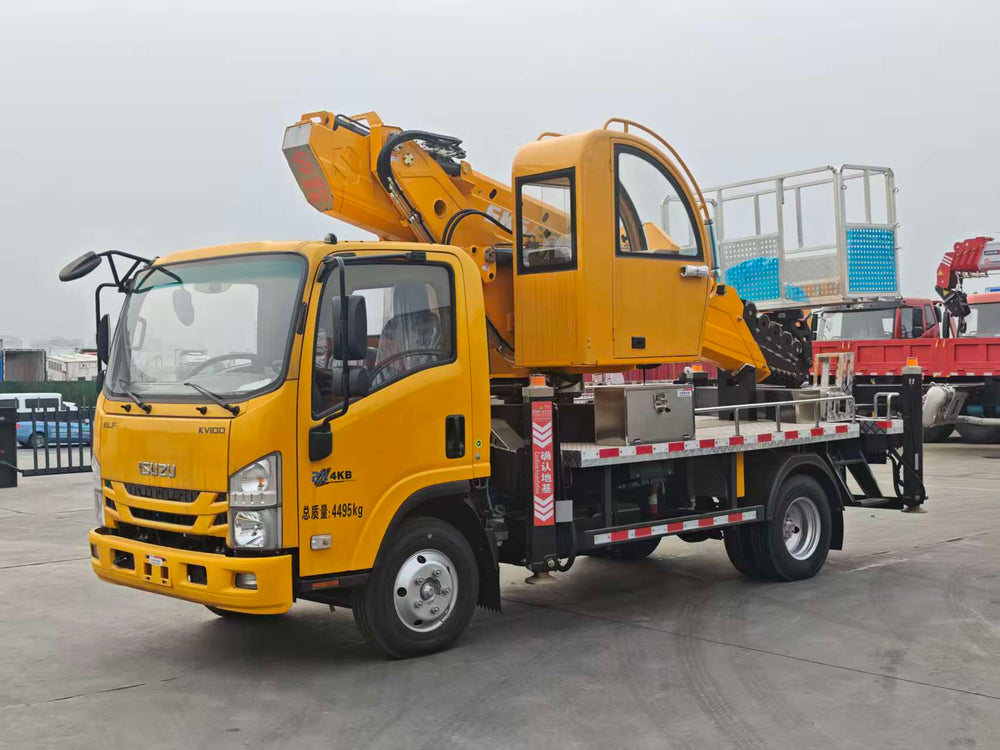

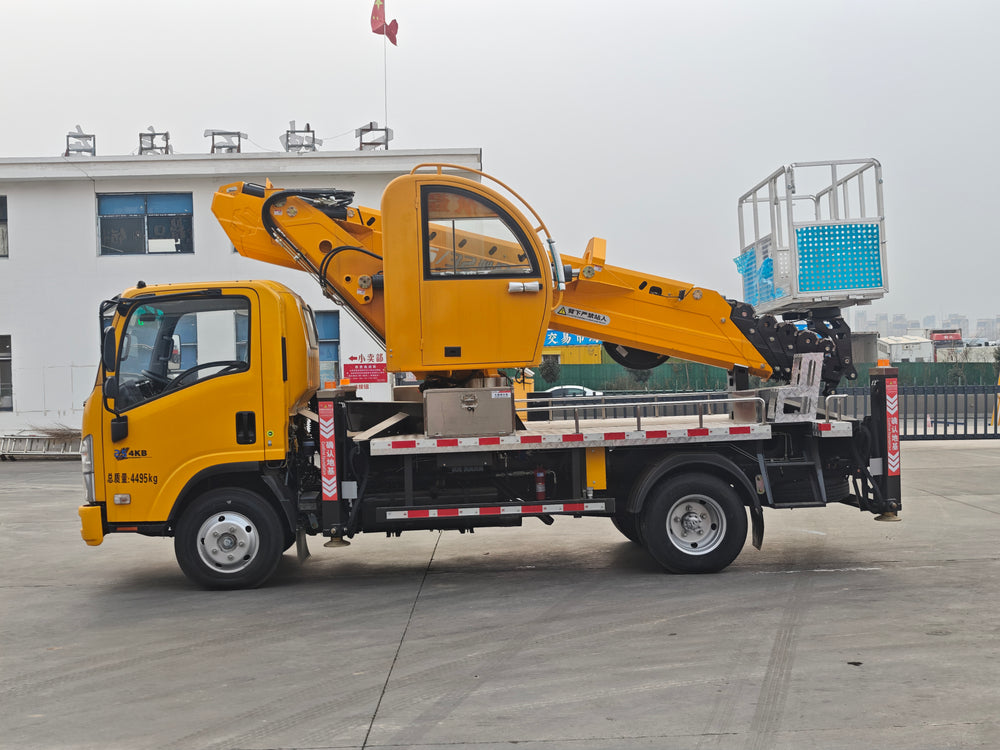

Optional Parts Upper Operation Cabin, 1T Winch
Total Boom Length 27 m
Overall Vehicle Height 3.1 m
Core Advantage 7-section boom for 30.6m blue-plate certification, stable structure with fewer boom sections
