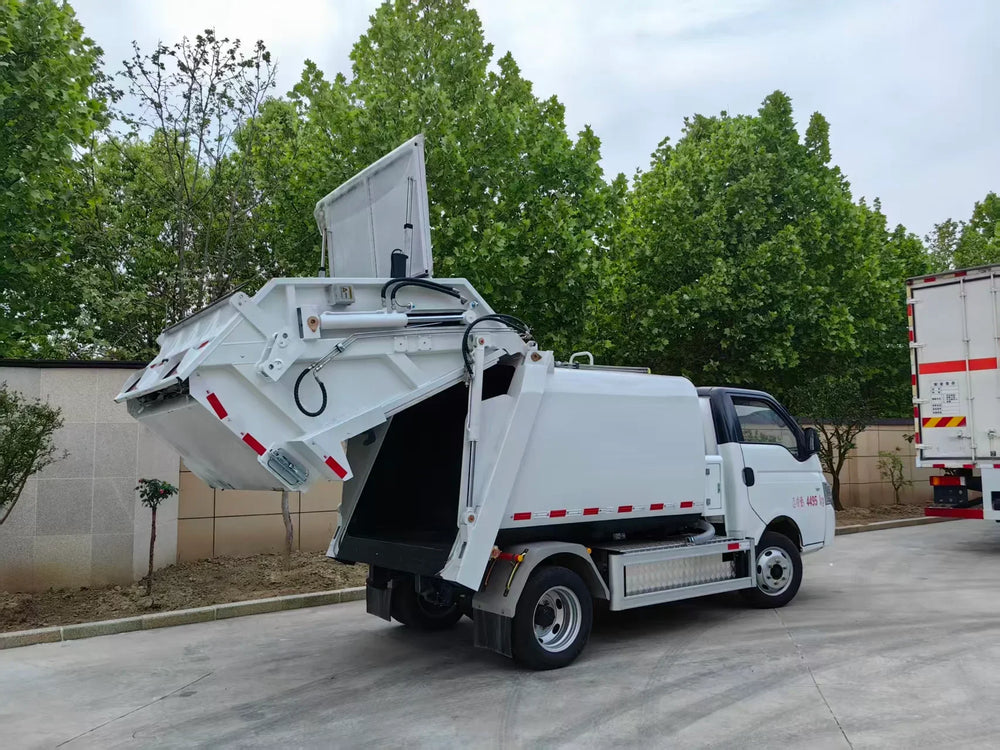

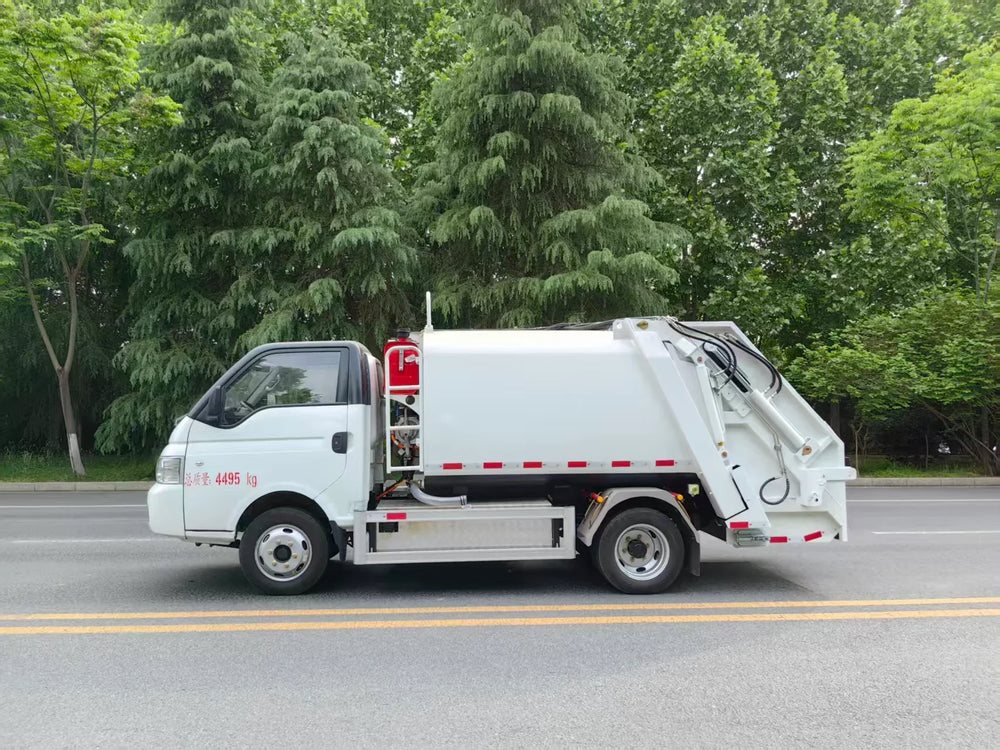

4.5T EV Compression Garbage Truck
| Parameter | Core Specification |
|---|---|
| 1. Whole Vehicle Basic Parameters | |
| Vehicle Model | CL5042ZYSBEV Battery Electric Compression Garbage Truck |
| Gross Vehicle Weight (GVW) | 4495 kg |
| Curb Weight | 3960 kg / 4050 kg |
| Payload Capacity | 405 kg / 315 kg |
| Rated Passenger Capacity | 2 persons |
| Cab Model | Kaima |
| Overall Dimensions (L×W×H) | 5800×2020×2250mm (without armrest) / 5800×2020×2430mm (with armrest) |
| Wheelbase | 2800 mm |
| Front / Rear Overhang | 1210 / 1790 mm |
| Approach / Departure Angle | 21° / 12° |
| Front / Rear Track Width | 1430 / 1500 mm |
| Minimum Ground Clearance | 185 mm |
| Minimum Turning Diameter | 13 m |
| Tire Specification | 195/75R16LT 10PR |
| 2. Chassis & Electric Powertrain Parameters | |
| Chassis Manufacturer | Chengli Automobile Group Co., Ltd. |
| Chassis Model | CL1041JBEV |
| Drive Configuration | 4×2 |
| Battery Type | Lithium Iron Phosphate (LFP) |
| Battery Manufacturer | Gotion High-tech |
| Battery Capacity | 57.6 kWh |
| Nominal Voltage / Capacity | 384V / 150Ah |
| Battery System Energy Density | 140.3 Wh/kg |
| Drive Motor Manufacturer | Chengdu Yiwei New Energy Automobile Co., Ltd. |
| Drive Motor Model | TZ210XSZ03 |
| Rated / Peak Power | 55 / 110 kW |
| Rated / Peak Torque | 150 / 318 Nm |
| Rated / Peak Speed | 3500 / 12000 rpm |
| Maximum Speed | 90 km/h |
| Driving Range | 265 km (40km/h constant speed) |
| Maximum Gradeability (Fully Loaded) | 25% |
| Fast Charging Time (30%-80% SOC) | 0.5h (single-gun fast charge) |
| 3. Specialized Upper Equipment Parameters | |
| Garbage Bin Maximum Volume | 4.5 m³ |
| Bin Lifting Capacity | 300 kg |
| Actual Loading Capacity | 3 t |
| Hydraulic System Maximum Pressure | 18 MPa |
| Compatible Standard Garbage Bins | 120L single bin / 120L double bins / 240L single bin / 240L double bins (660L bin lifting mechanism optional) |
| Compression Cycle Time | 26±3 s |
| Loading Cycle Time | 10±3 s |
| Unloading Cycle Time | 45±2 s |
