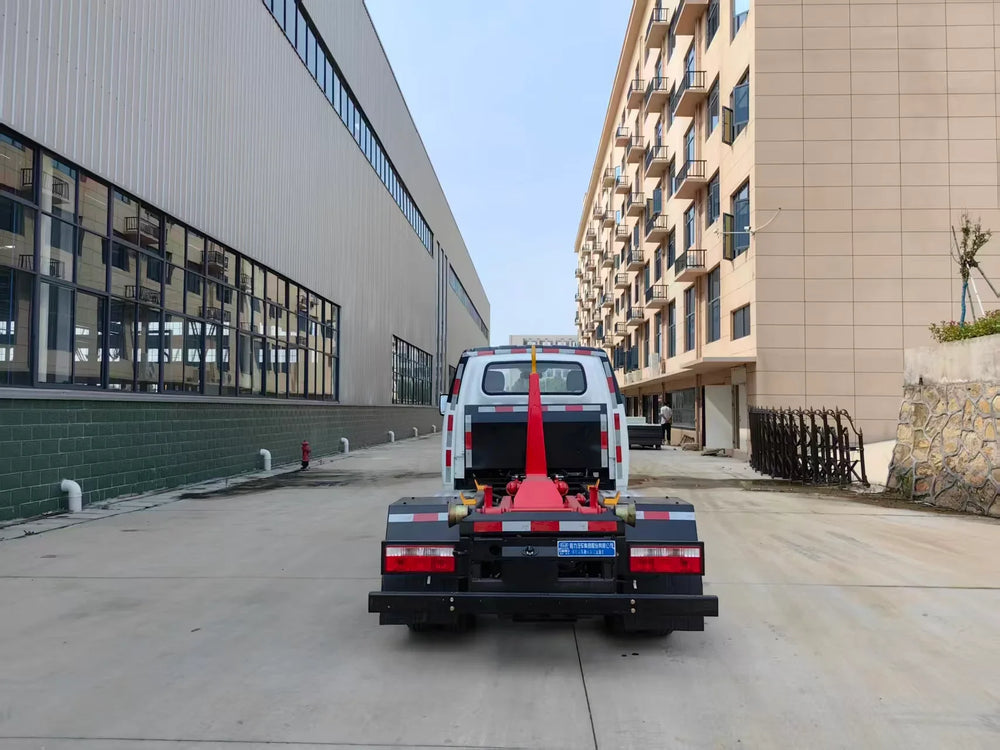

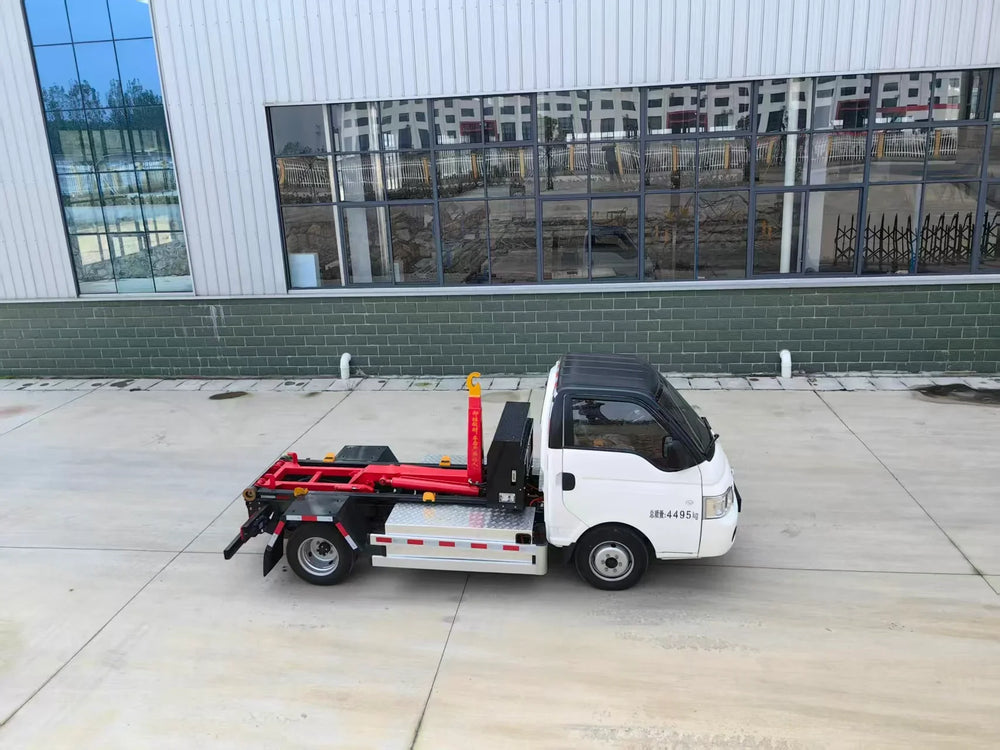

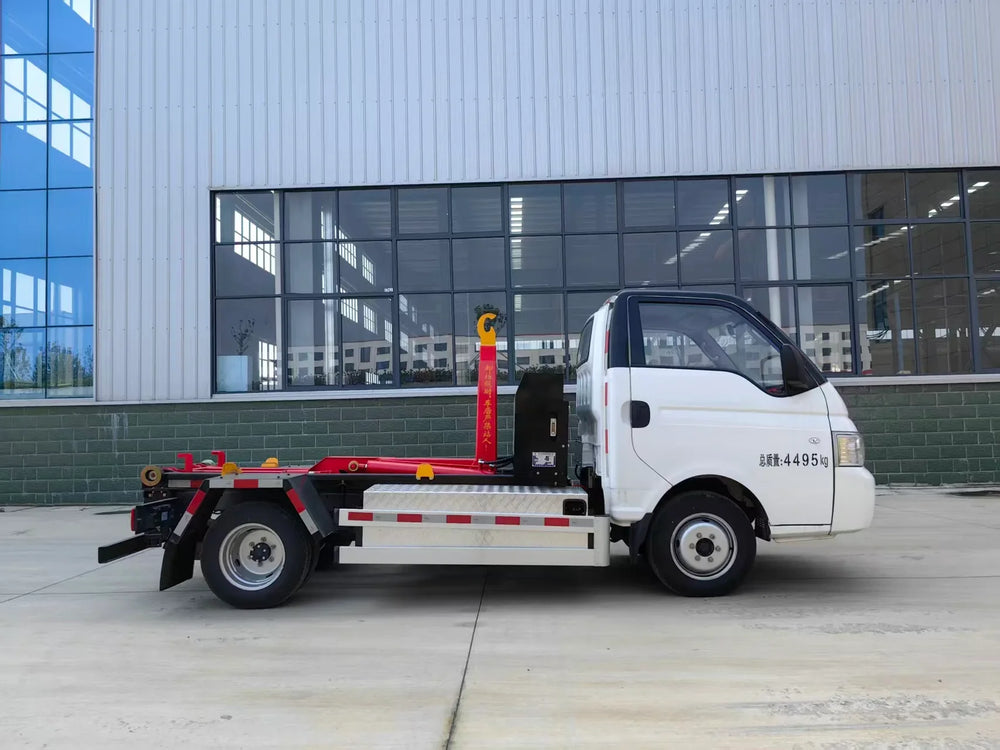

4.5T EV Hooklift GarbageTruck

1 / 3

Zero-emission hook lift garbage truck, one chassis matches multiple bins for flexible waste collection & transportation.

Parameter	Core Specification
1. Whole Vehicle Basic Parameters
Vehicle Model	CL5045ZXXBEV Battery Electric Hook Lift Garbage Truck
Gross Vehicle Weight (GVW)	4495 kg
Curb Weight	2510 kg
Payload Capacity	1855 kg
Rated Passenger Capacity	2 persons
Cab Model	Kaima
Overall Dimensions (L×W×H)	4920×1840×2035 mm
Wheelbase	2800 mm
Front / Rear Overhang	1210 / 910 mm
Approach / Departure Angle	21° / 20°
Front / Rear Track Width	1405 / 1240 mm
Minimum Ground Clearance	185 mm
Minimum Turning Diameter	13 m
Tire Specification	185R15LT 8PR
2. Chassis & Electric Powertrain Parameters
Chassis Manufacturer	Chengli Automobile Group Co., Ltd.
Chassis Model	CL1041JBEV
Drive Configuration	4×2
Battery Type	Lithium Iron Phosphate (LFP)
Battery Manufacturer	Gotion High-tech
Battery Capacity	57.6 kWh
Nominal Voltage / Capacity	384V / 150Ah
Battery System Energy Density	140.3 Wh/kg
Drive Motor Manufacturer	Chengdu Yiwei New Energy Automobile Co., Ltd.
Drive Motor Model	TZ210XSZ03
Rated / Peak Power	55 / 110 kW
Rated / Peak Torque	150 / 318 Nm
Rated / Peak Speed	3500 / 12000 rpm
Maximum Speed	90 km/h
Driving Range	265 km (40km/h constant speed)
Maximum Gradeability (Fully Loaded)	25%
Fast Charging Time (30%-80% SOC)	0.5h (single-gun fast charge)
3. Specialized Upper Equipment Parameters
Maximum Hook Lifting Capacity	3000 kg
Hook Center Height	1000 mm
Distance from Hook Ring Center to Locking Crossbeam	1950 mm
Horizontal Distance from Hook Ring Center to Rear Roller Center	2115 mm
Box Track Clearance Height	64 mm
Track Outer Width	900 mm
Box Hooking Time	≤25 s
Box Unloading Time	≤25 s
Compatible Garbage Box Length	2000~3400 mm
