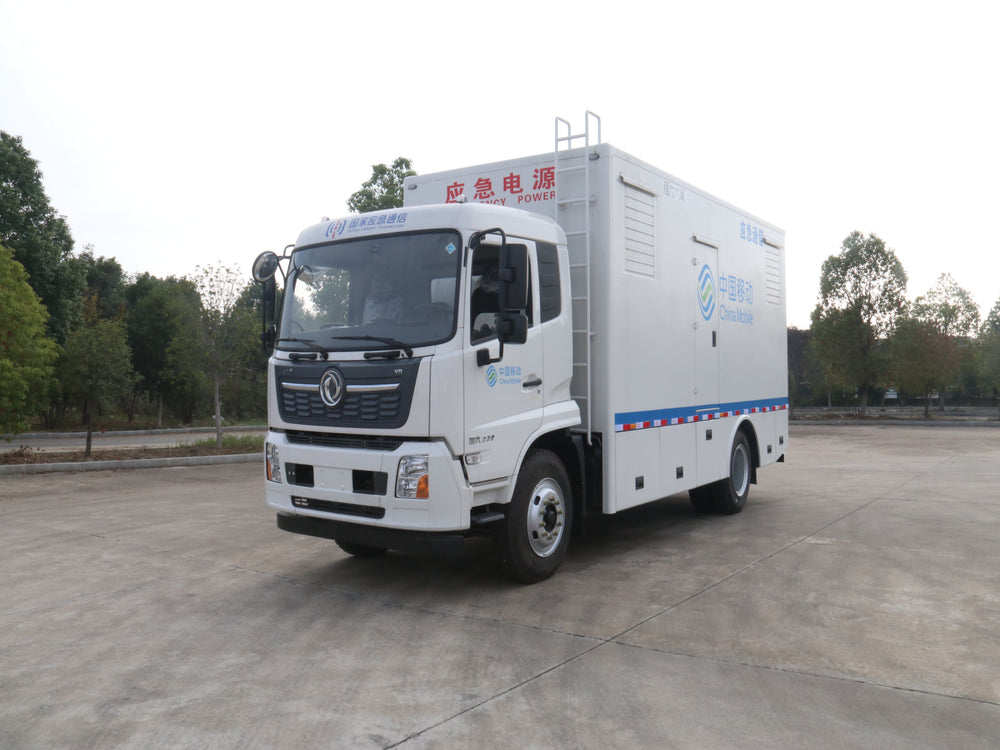

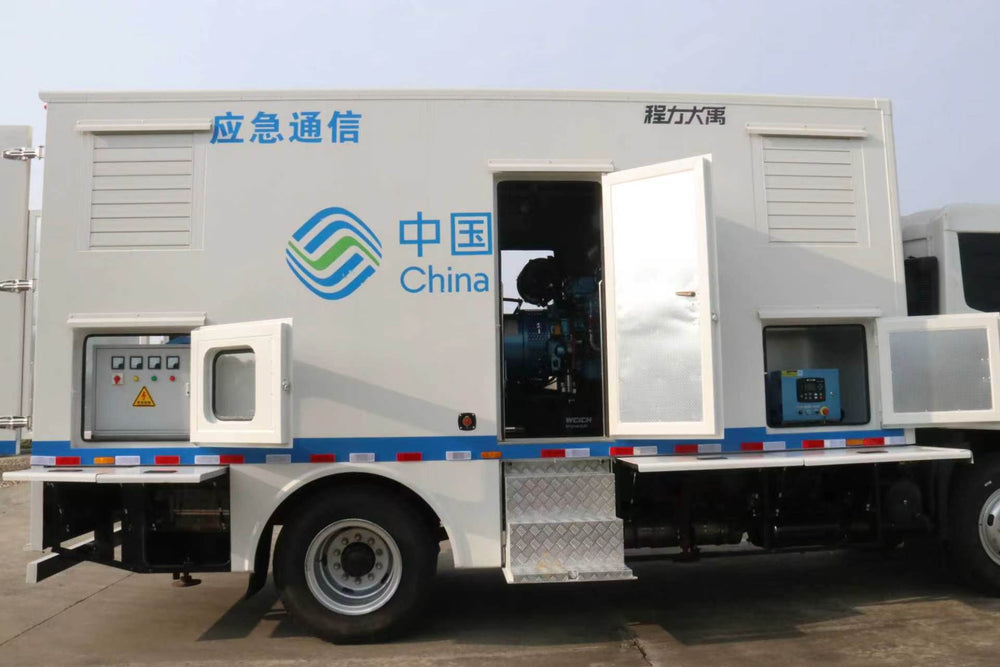

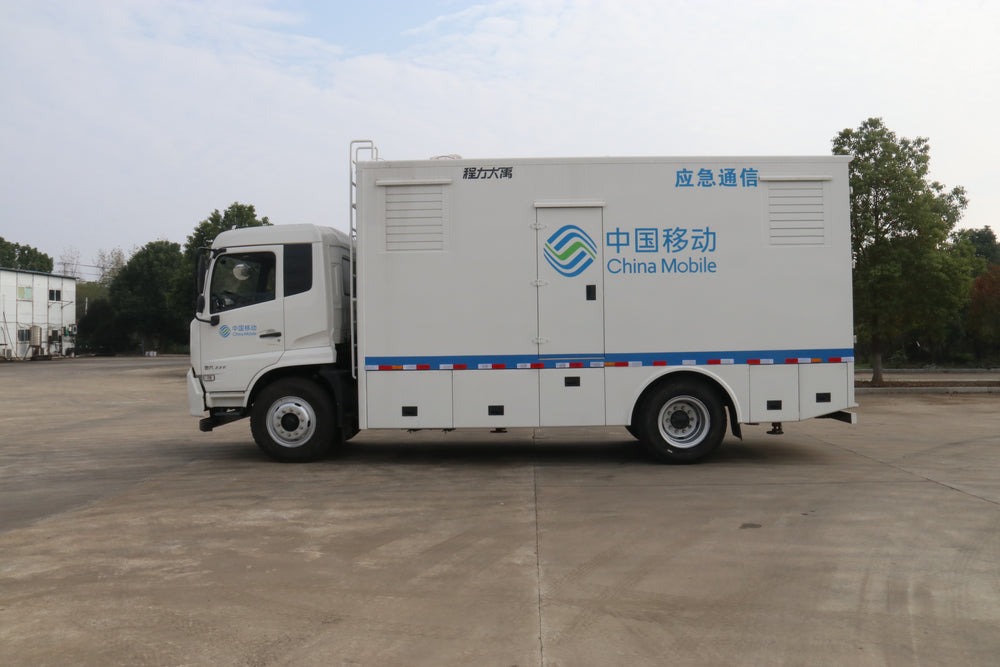

DongFeng 120KW Emergency Power Supply Truck
Request a Quote Now
1. Complete Vehicle Basic Parameters
| Parameter | Value |
|---|---|
| Gross Vehicle Weight | 12000 kg |
| Rated Load Capacity | 11805 kg / 11870 kg |
| Number of Axles | 2 |
| Axle Load Distribution | 4350 kg / 7650 kg |
| Cab Seating Capacity | 2 persons / 3 persons |
| Fuel Type | Diesel |
| Maximum Speed | 105 km/h |
| Emission Standard | GB17691-2018 National VI |
2. Dimension & Wheel Parameters
| Parameter | Value |
|---|---|
| Overall Dimension (L×W×H) | 8180 × 2550 × 3600 mm |
| Wheelbase Options | 3950 / 4500 / 4700 / 5000 / 5300 / 5600 mm |
| Front Overhang / Rear Overhang | 1260 mm / 2420 mm |
| Approach Angle / Departure Angle | 19° / 10° |
| Front Track Width | 1862 / 1933 / 1949 / 1898 / 1904 / 1960 / 1820 mm |
| Rear Track Width | 1806 mm / 1865 mm |
| Tire Specification Options | 9.00R20 16PR; 10.00R20 18PR; 295/80R22.5 18PR; 275/80R22.5 18PR |
| Number of Tires | 6 |
| Leaf Spring Configuration | 8/10+7; 7/7+3; 6/7+3 |
3. Powertrain System
| Parameter | Value |
|---|---|
| Engine Model | B6.2NS6B230 |
| Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. |
| Engine Displacement | 6200 ml |
| Engine Power | 169 kW |

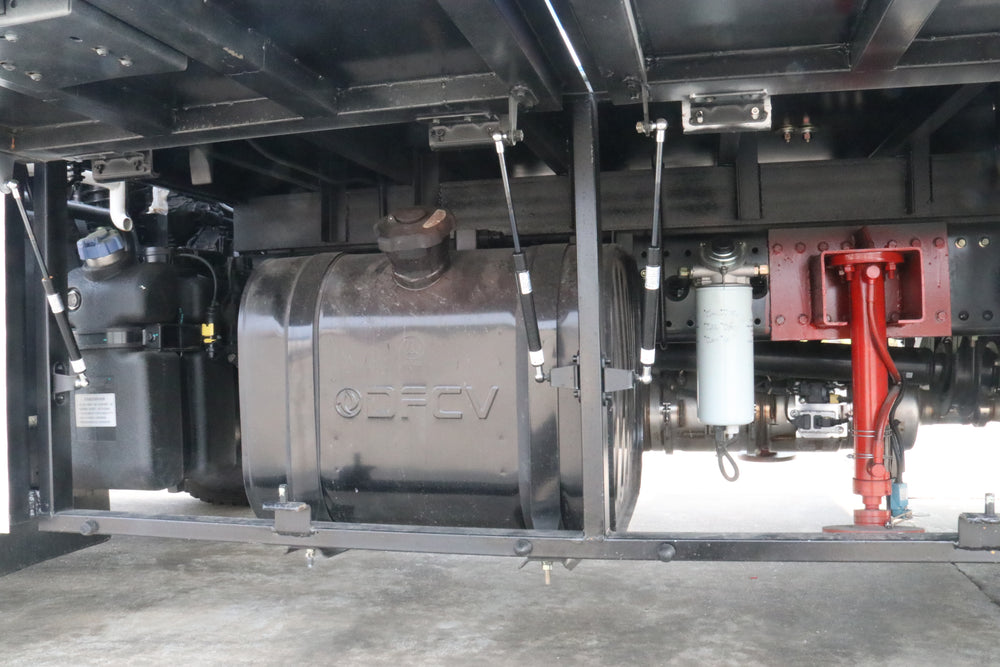

4. Chassis Information
| Parameter | Value |
|---|---|
| Chassis Model | EQ1165LJ9CDE |
| Chassis Type | Cargo Truck Chassis |
| Vehicle Brand | Dongfeng Brand |
| Manufacturer | Dongfeng Motor Co., Ltd. |
5. Special Functional Devices
| Device | Description |
|---|---|

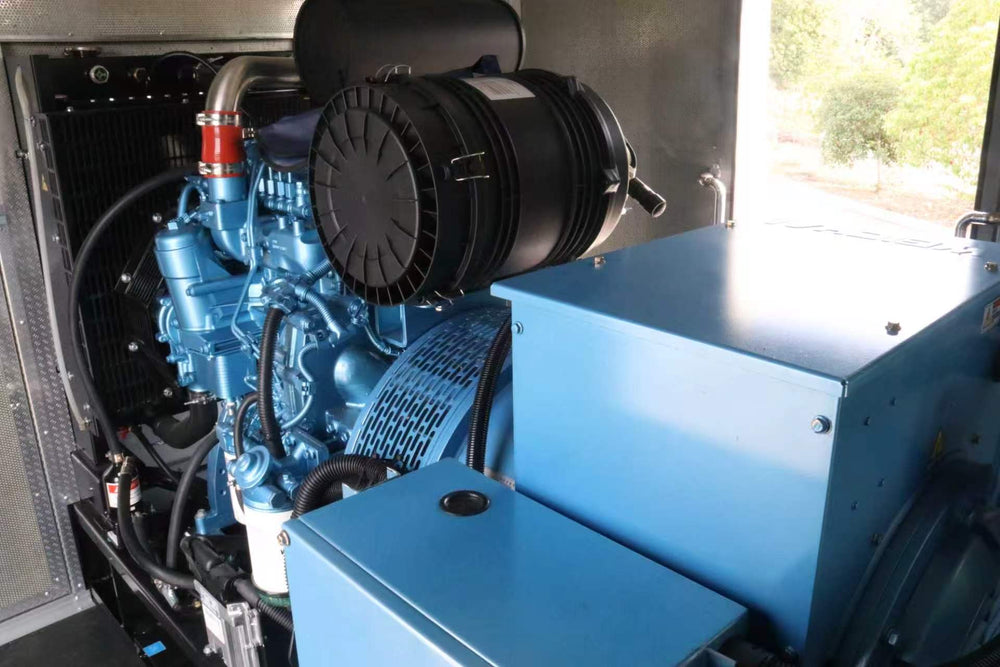

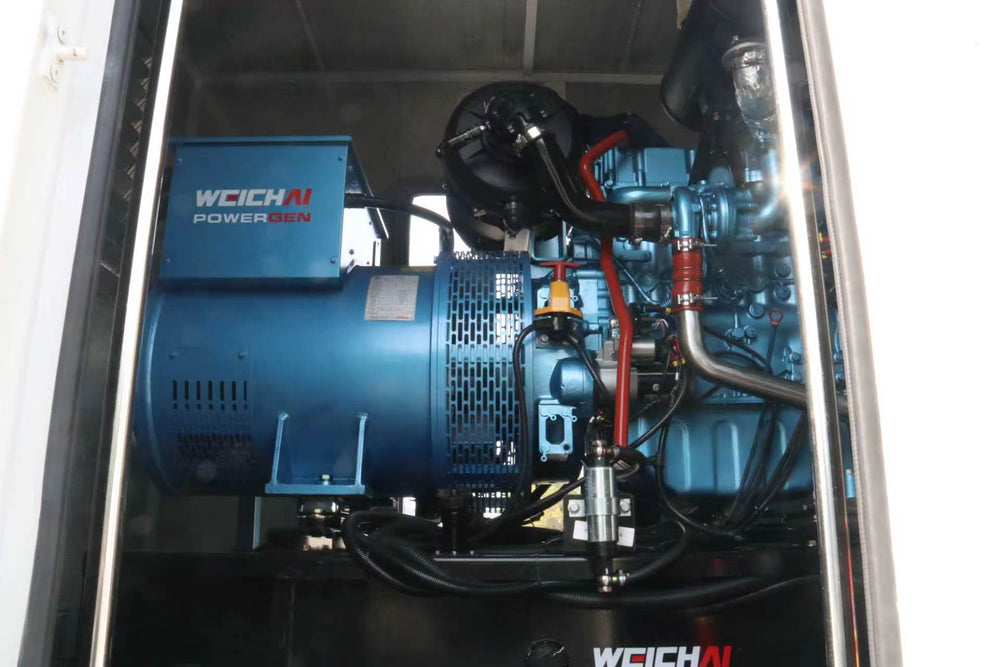

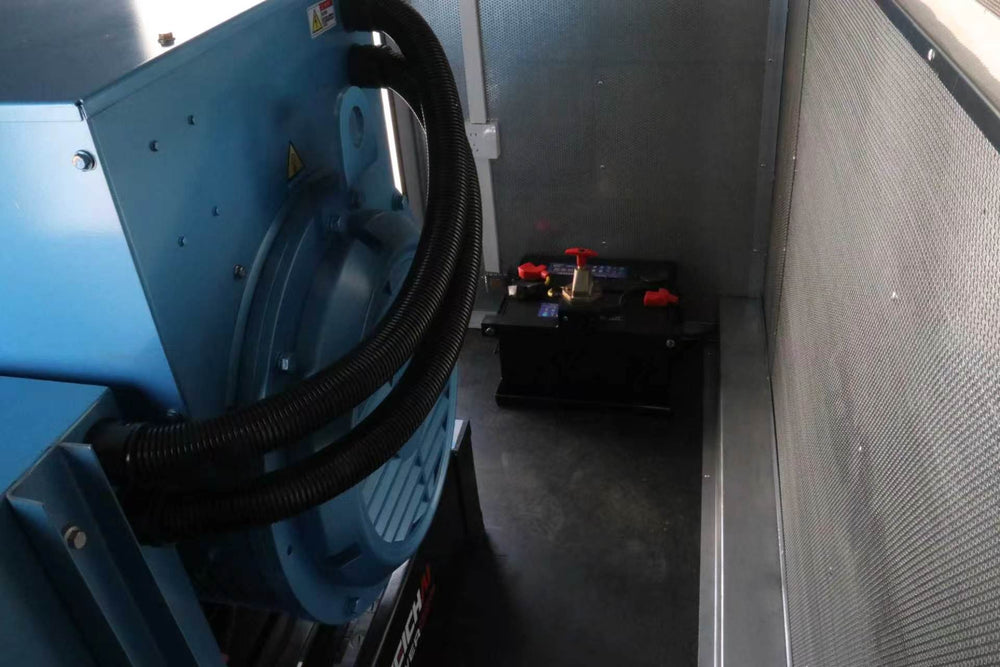

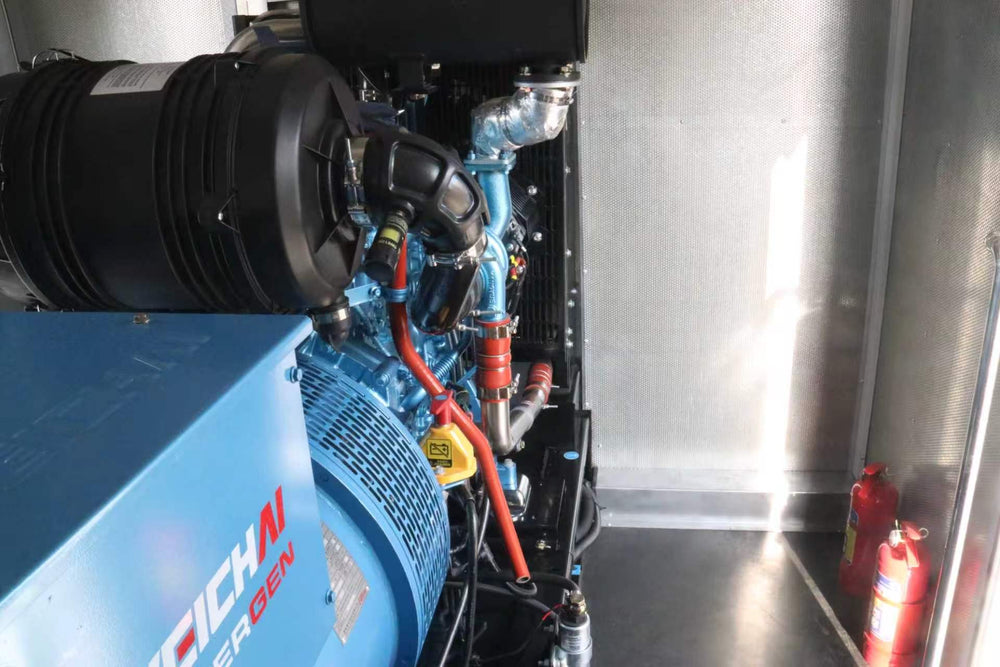

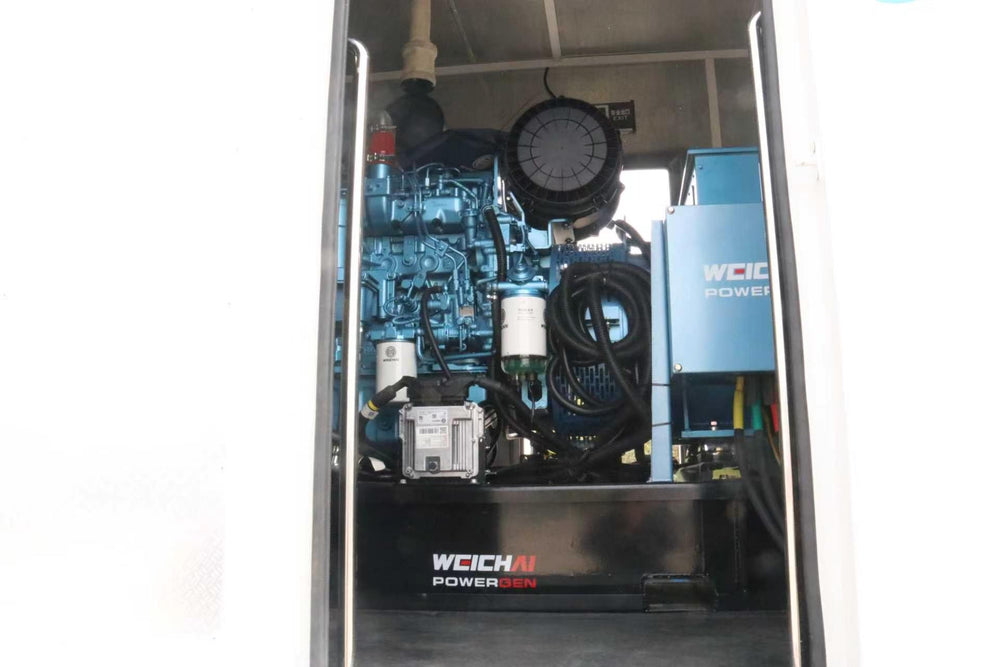

| Generator Set | Equipped |
| Distance Protection Device | Equipped |

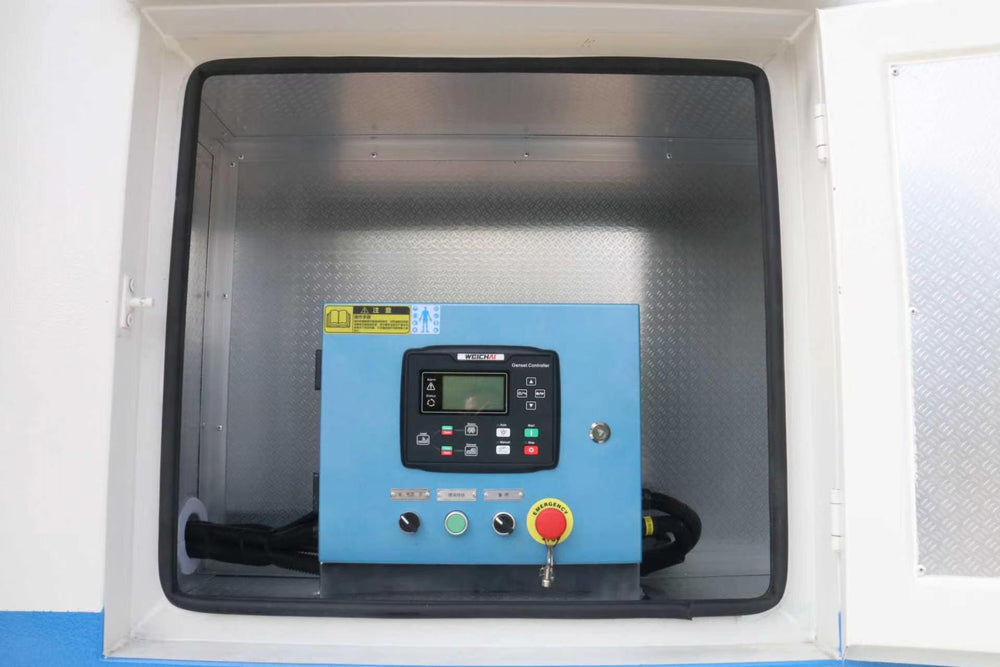

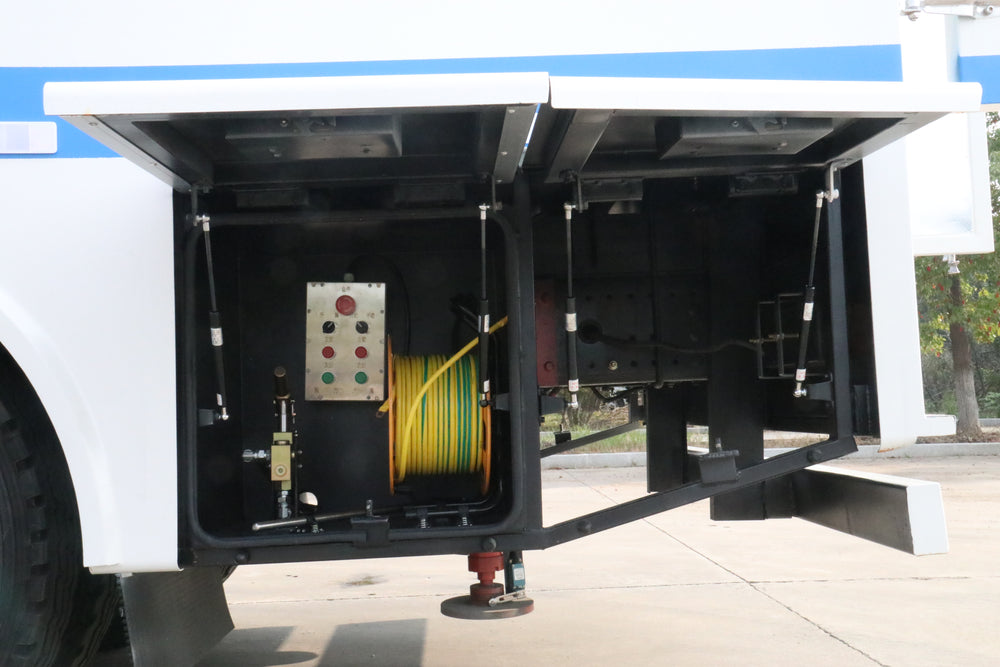

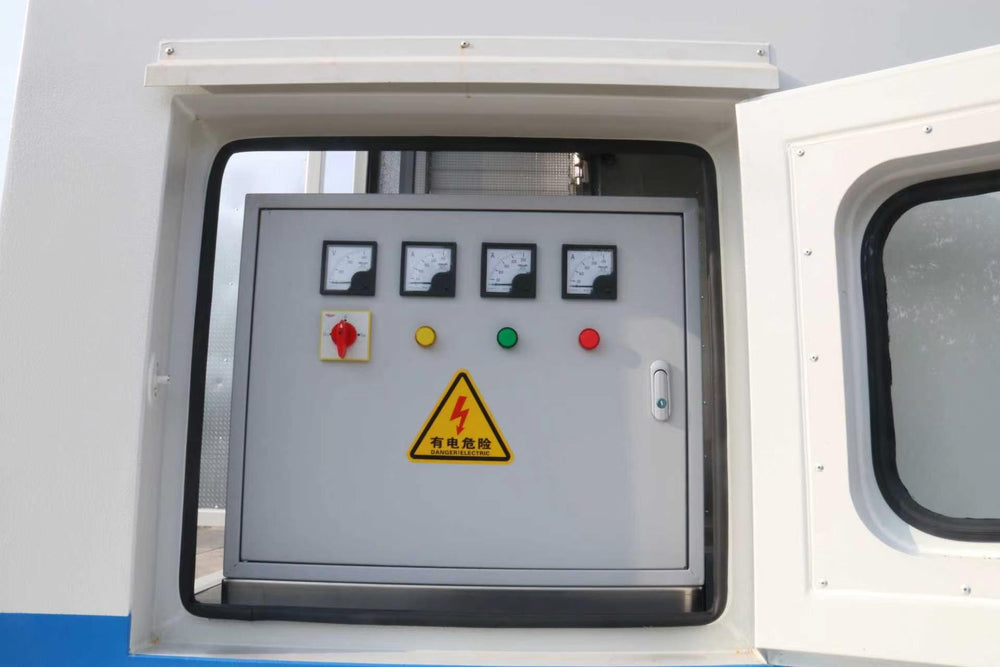

| Power Supply Equipment | Equipped |
6. Protection System
| Parameter | Value |
|---|---|
| Rear Protection Material | Q235 Steel, Welded Connection |
| Rear Protection Cross-Section | 120 mm × 100 mm |
| Rear Protection Ground Clearance | 470 mm |
| Side Protection Type | Skirt Structure |
| Side Protection Ground Height | 470 mm |
| ABS System Manufacturer 1 | Jiaozuo Brake Control Technology Co., Ltd. (Model: J ABS) |
| ABS System Manufacturer 2 | Xiangyang Dongfeng Longcheng Machinery Co., Ltd. (Model: ABS/ASR-24V-4S/4M) |
