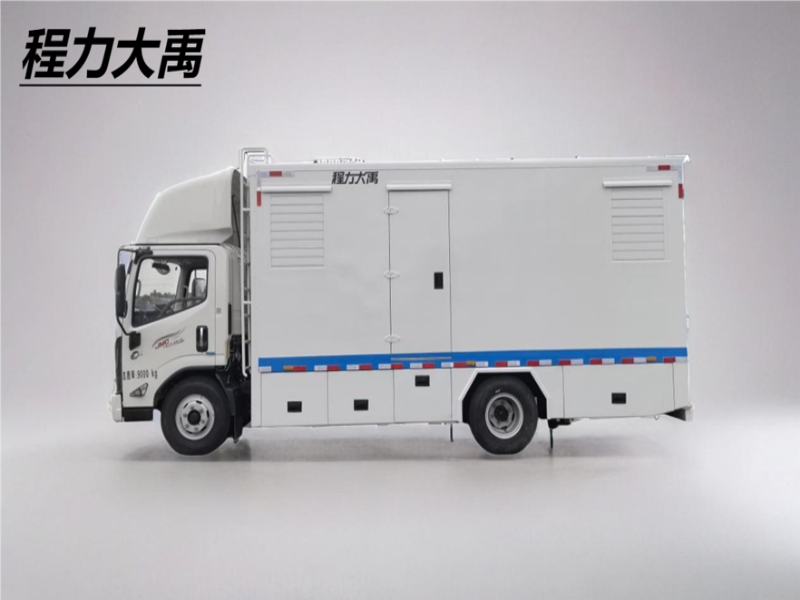

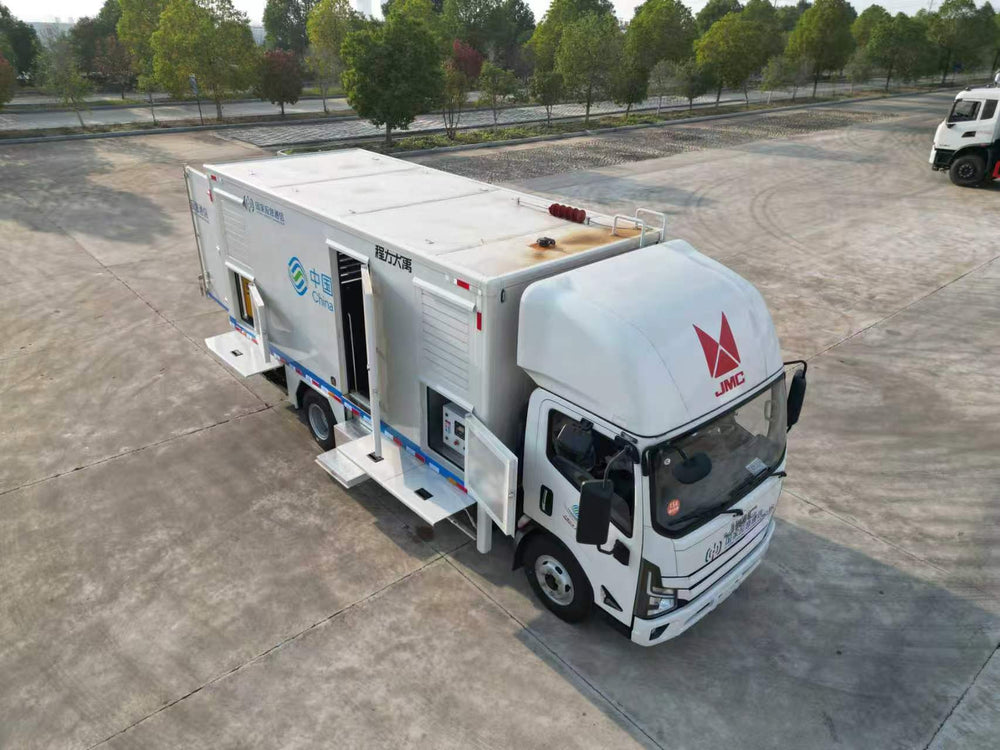

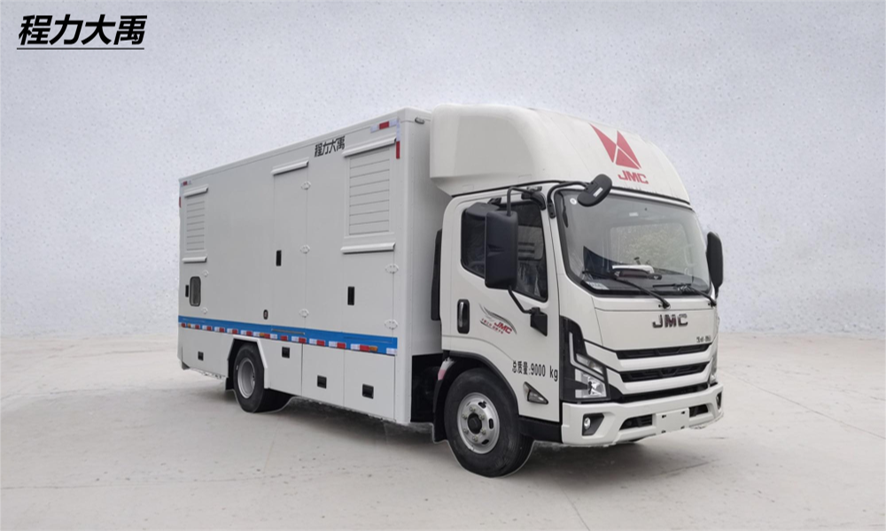

JMC 75KW Emergency Power Supply Truck
Request a Quote Now
1. Complete Vehicle Basic Parameters
| Parameter | Value |
|---|---|
| Vehicle Brand | Chengli Brand |
| Vehicle Type | Power Supply Truck |
| Vehicle Model | CL5090XDY6AZX |
| Announcement Batch | 391 |
| Gross Vehicle Weight | 9000 kg |
| Curb Weight | 8805 kg |
| Number of Axles | 2 |
| Axle Load Distribution | 2840 kg / 6160 kg |
| Cab Seating Capacity | 2 persons / 3 persons |
| Fuel Type | Diesel |
| Maximum Speed | 110 km/h |
| Emission Standard | GB17691-2018 National VI |
| Application | Emergency Power Supply |
2. Dimension & Wheel Parameters
| Parameter | Value |
|---|---|
| Overall Dimension (L×W×H) | 7250 × 2350 × 3250 mm |
| Wheelbase | 3815 mm |
| Front Overhang / Rear Overhang | 1115 mm / 2320 mm |
| Approach Angle / Departure Angle | 19° / 8° |
| Front Track Width | 1770 mm / 1740 mm |
| Rear Track Width | 1800 mm |
| Tire Specification | 8.25R16LT 16PR |
| Number of Tires | 6 |
| Leaf Spring Configuration | 3/3+2; 3/3+3; 3/4+3; 3/5+2; 3/5+3; 3/8+2; 3/8+3; 1/1+1; 2/1+3 |
3. Chassis Powertrain System
| Parameter | Value |
|---|---|
| Chassis Model | JX1099TKH26 |
| Chassis Type | Cargo Truck Chassis |
| Chassis Brand | Jiangling (JMC) Brand |
| Manufacturer | Jiangling Motors Co., Ltd. |
| Engine Model | JX4D30F6H |
| Engine Displacement | 2892 ml |
| Engine Power | 120 kW |
4. Generator Set Basic Parameters
| Parameter | Value |
|---|---|
| Generator Set Model | GS-75 |
| Set Dimension (L×W×H) | 2200 × 850 × 1200 mm |
| Set Weight | 1050 kg |
| Rated Output Power | 75 kW |
| Output Capacity | 93.75 kVA |
| Rated Speed / Frequency | 1500 rpm / 50 Hz |
| Rated Voltage | 400 / 230 V |
| Maximum Current | 135 A |
| Power Factor | 0.8 |
| Starting Method | 24V DC Electric Start |
5. Generator Set Electrical Performance
| Parameter | Value |
|---|---|
| Steady-State Voltage Regulation | ≤ ±0.5% |
| Transient Voltage Regulation | -15% ≤ δu ≤ +20% |
| Voltage Regulation Range | ±5% |
| Voltage Fluctuation | ≤ ±0.5% |
| Voltage Recovery Time | ≤ 1 second |
| Steady-State Frequency Regulation | ≤ ±1% |
| Transient Frequency Regulation | ≤ ±5% |
| Frequency Fluctuation | ≤ ±0.5% |
| Frequency Stabilization Time | ≤ 3 seconds |
6. Generator Technical Parameters
| Parameter | Value |
|---|---|
| Generator Manufacturer | Jiangsu Kaihou |
| Generator Model | TWGII224G |
| Insulation Class | Class H |
| Temperature Rise Class | Class H |
| Protection Class | IP21 |
| Rated Ambient Temperature | 40°C |
| Altitude Rating | ≤ 1000 m |
| Overspeed Rating | 2250 rpm |
| Number of Phases | 3 |
| Excitation Method | Self-Excited |
| Number of Bearings | 1 |
| Number of Poles | 4 |
| Telephone Harmonic Factor (THF) | < 2% |
| Telephone Interference Factor (TIF) | < 50 |
7. Diesel Engine Technical Parameters
| Parameter | Value |
|---|---|
| Engine Manufacturer | Shangchai Co., Ltd. |
| Engine Model | 4HTAA4.3-G34 |
| Common Output Power | 95 kW |
| Maximum Output @ 50Hz | 105 kW |
| Air Intake Method | Turbocharged + Intercooled |
| Cooling Method | Closed Forced Circulation Water Cooling |
| Cylinder Arrangement | 4 Cylinders / In-Line |
| Displacement | 4.3 L |
| Bore | 105 mm |
| Stroke | 124 mm |
| Compression Ratio | 16:1 |
| Lubricating Oil Capacity | 10 L |
| Minimum Oil Pressure | 207 kPa |
| Fuel Consumption Rate | ≤ 221 g/kW·h |
| Maximum Exhaust Temperature | 530°C |
| Smoke (FSN) | ≤ 2.5 |
| Radiator Capacity | 20 L |
| Thermostat Opening Range | 82 – 95°C |
| Water Outlet Temperature | 93°C |
| Maximum Allowable Temperature | 104°C |
8. Standard Equipment & Accessories
| Equipment | Description |
|---|---|
| Generator Set | 75kW diesel generator set (GS-75) |
| Cable Reel | Cable reel system for power output |
| Rear Protection | Q235 Carbon Steel, Welded, 120×60mm cross-section, 330mm ground clearance |
| Side Protection | Skirt structure, 340mm ground height |
| ABS System | VIB ABS-II / Zhejiang Wan'an Technology Co., Ltd. |

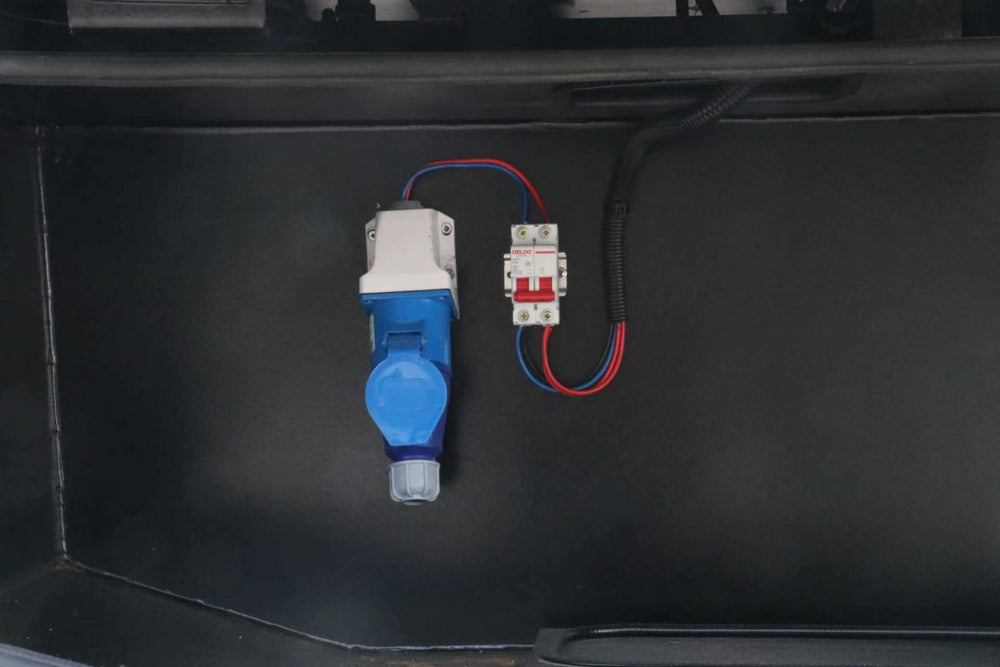

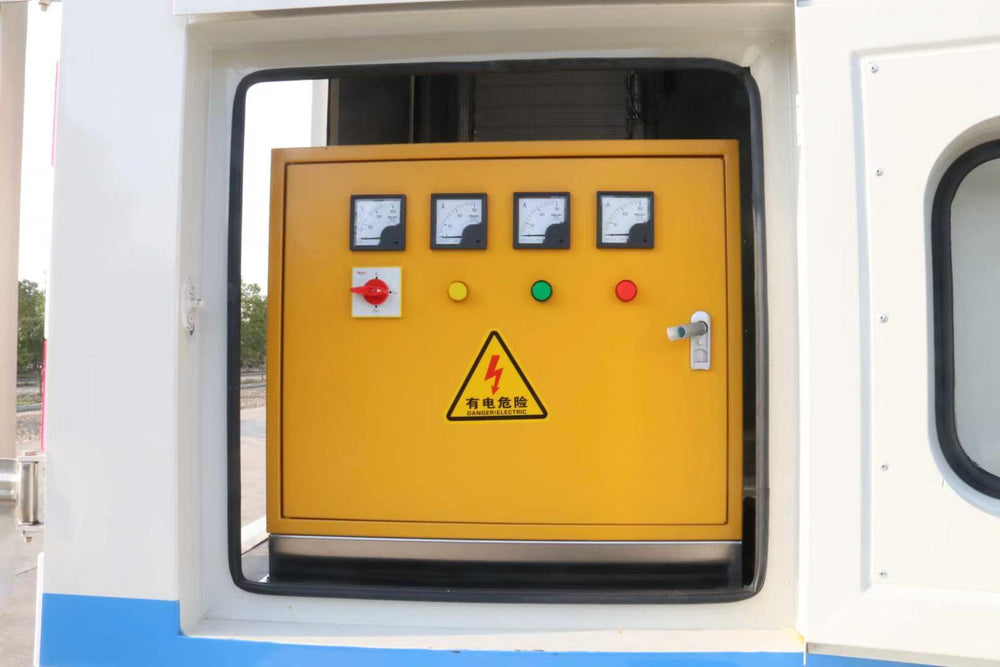

| Power Output | Multi-channel power output distribution |

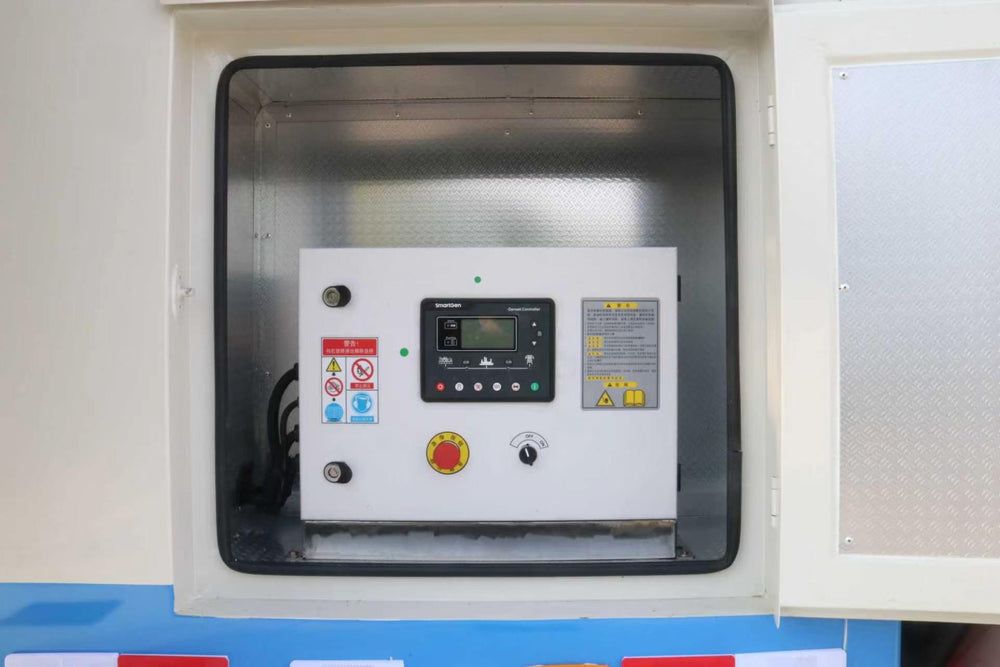

| Control Panel | Integrated generator control panel |
| Sound Insulation | Sound-insulated generator compartment |
| Fire Extinguisher | On-board fire extinguisher |
| Tool Kit | Standard tool kit |
