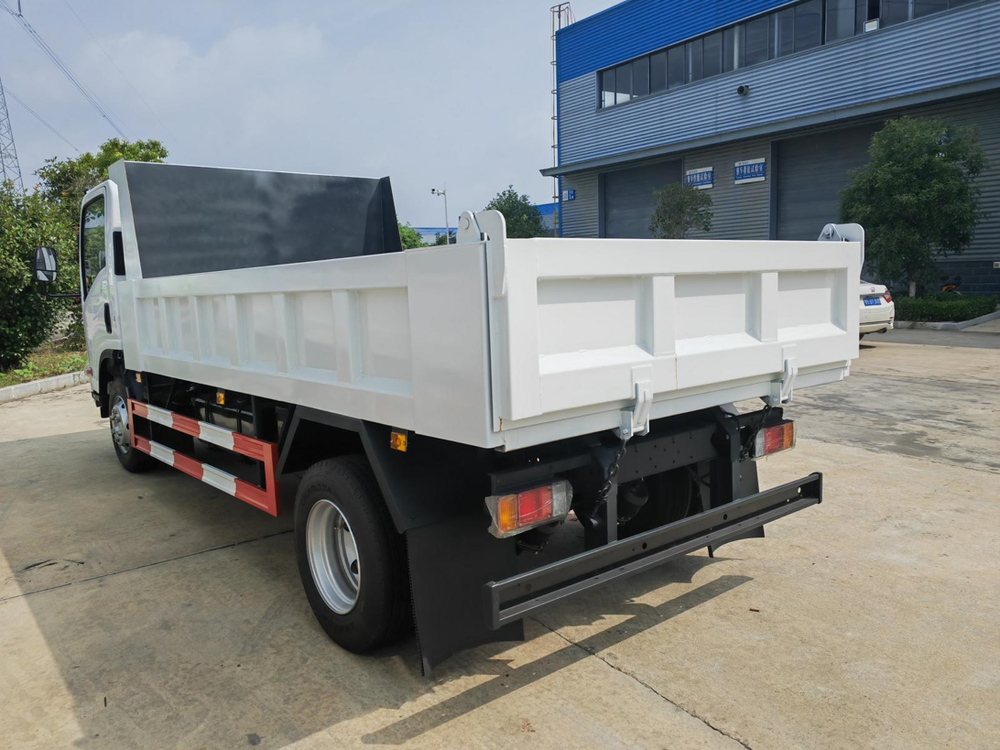

DongFeng 170HP 5m³ Dump Truck
Request a Quote Now
No1.Basic parameters of vehicle：
|
Chassis Brand |
Dongfeng |
|
Drive type |
4×2 LHD |
|
Emission Standard |
Euro 6 |
|
Cab Capacity |
2 |
|
Vehicle Size(L*W*H) |
5900*2030*2317mm |
|
Total mass |
7000kg |
|
Wheelbase(mm) |
3308 |
|
Engine power |
125kw/170HP |
|
Displacement (lit) |
2.977L |
|
Engine Model |
D30TCIF1 |
|
Gearbox |
8-speed gearbox |
|
Fuel type |
Diesel |
|
Tyre Size |
8.25R16 |
|
Front/Rear Axle |
2.4/8T |
|
Frame |
232 Double-layer reinforced beam |
|
Leaf spring specifications |
8/10+7 |
|
Cab configurations |
ABS, central locking, power windows and doors, air conditioning. |
|
Title |
Model,Specification,Value |
|
Maximum lifting capacity |
5m³ |
|
Container of vehicle |
3800×1900×800(mm) |
|
Material of tank and thickness |
High strength steel (3mm) Bottom thickness（4MM） |
|
hydraulic cylinder |
Double-acting hydraulic cylinder |
|
Rust prevention process |
Electrophoretic rust prevention treatment for the entire vehicle cargo box |
