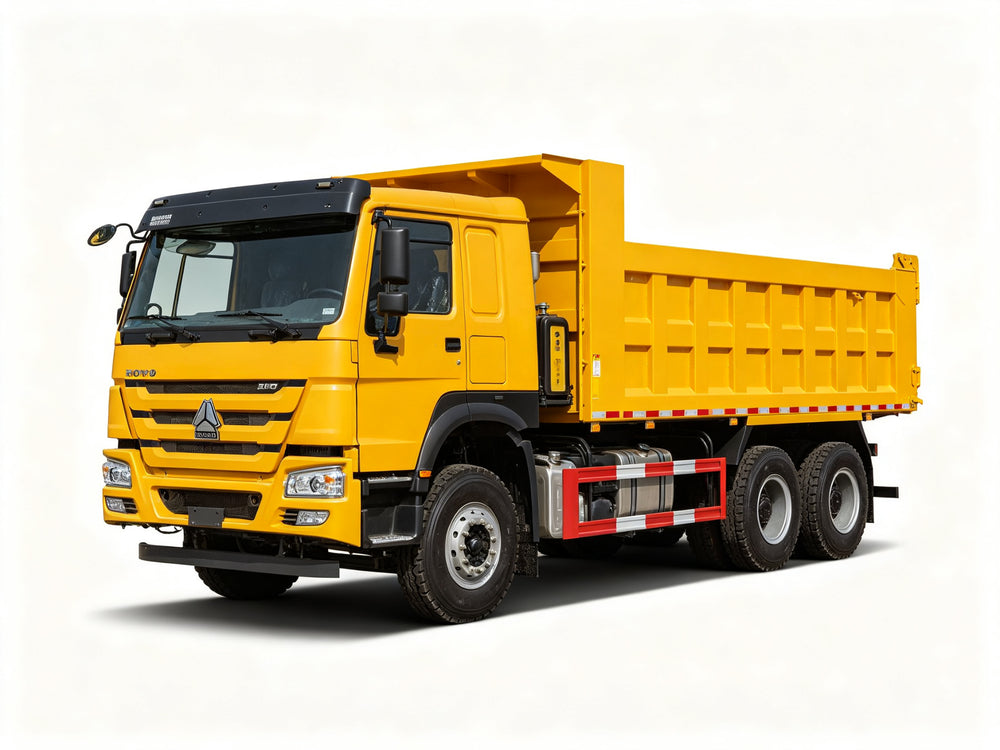

HOWO TX 270HP 30T Dump Truck
Request a Quote Now
1. Complete Vehicle Basic Parameters
| Parameter | Value |
|---|---|
| Vehicle Type | Heavy-Duty Dump Truck (Tipper) |
| Complete Vehicle Model | CL5250ZLJ6HL |
| Gross Vehicle Weight | 25000 kg |
| Rated Load Capacity | 12500 kg |
| Curb Weight | 12300 kg |
| Number of Axles | 3 (6×4) |
| Axle Load Distribution | 7000 kg / 18000 kg |
| Cab Seating Capacity | 2 persons / 3 persons |
| Fuel Type | Diesel |
| Maximum Speed | 85 km/h |
| Emission Standard | Euro VI / National VI |
2. Dimension & Wheel Parameters
| Parameter | Value |
|---|---|
| Overall Dimension (L×W×H) | 8500 × 2500 × 3200 mm |
| Dump Body Dimension (L×W×H) | 5600 × 2300 × 1500 mm |
| Dump Body Volume | 19.3 m³ |
| Wheelbase | 3800 + 1350 mm |
| Front Overhang / Rear Overhang | 1500 mm / 1850 mm |
| Approach Angle / Departure Angle | 22° / 30° |
| Front Track Width | 2050 mm |
| Rear Track Width | 1860 mm |
| Tire Specification | 11.00R20 18PR Steel Radial |
| Number of Tires | 10 (plus 1 spare) |
| Leaf Spring Configuration | 9 / 12 |
3. Powertrain System
| Parameter | Value |
|---|---|
| Engine Model | WP7.270E61 |
| Engine Brand | Weichai |
| Engine Power | 270 HP (199 kW) |
| Engine Displacement | 7.47 L |
| Maximum Torque | 1100 N·m |
| Transmission | Fast 8-Speed Manual Gearbox |
| Final Drive Ratio | 5.286 |
| Fuel Tank Capacity | 300 L Aluminum Alloy |
| Clutch | Single-Dry-Plate Diaphragm Spring Clutch |
4. Dump Body & Hydraulic System
| Parameter | Value |
|---|---|
| Dump Body Type | Rectangular / U-Shaped (Optional) |
| Body Material | High-Strength Wear-Resistant Steel (NM400) |
| Side Plate Thickness | 8 mm |
| Floor Thickness | 10 mm |
| Top Edge Reinforcement | Reinforced channel steel frame |
| Tailgate Type | Side-hinged automatic tailgate |
| Hydraulic Cylinder | Front-mounted single-stage telescopic cylinder |
| Lifting Capacity | 30 Tons |
| Lifting Angle | 45° – 50° |
| Lifting Time | ≤ 20 seconds |
| Lowering Time | ≤ 18 seconds |
| Hydraulic Pump | Gear pump, PTO-driven |
| Hydraulic Oil Tank | 80 L |
| Control Mode | Cab-mounted pneumatic-hydraulic control |
5. Chassis Configuration
| Parameter | Value |
|---|---|
| Chassis Model | ZZ1257N404GE1 |
| Cab Type | Howo TX Row-and-Half Cab, High Roof |
| Front Axle | 7 Ton Rated Load |
| Rear Axle | 18 Ton Double Reduction Axle |
| Frame Specification | 300×80×(8+5)mm Double-Layer Frame |
| Steering System | Hydraulic Power Steering |
| Brake System | Air Brake with ABS, Drum Brakes |
| Parking Brake | Spring Energy Storage Brake |
| Suspension | Leaf Spring with Shock Absorbers |
| Exhaust Brake | Equipped |
6. Interior & Comfort Features
| Feature | Description |
|---|---|
| Air Conditioner | Manual Air Conditioning |
| Windows | Electric Front Windows |
| Door Lock | Central Door Locking |
| Audio System | AM/FM Radio with USB & Bluetooth |
| Instrument Panel | Digital Multi-Function Display |
| Steering Wheel | 4-Spoke Multifunctional Steering Wheel |
| Seats | Airbag Suspension Driver Seat, Fabric Passenger Seat |
| Storage | Door Pockets, Glove Box, Overhead Storage Bins |
| Power Outlet | 24V Power Outlet |
| Cruise Control | Equipped |
| Sun Visor | Driver & Passenger Sun Visors |
7. Safety & Standard Features
| Feature | Description |
|---|---|
| ABS Anti-Lock Braking | Equipped (4S/4M) |
| Seatbelts | 3-Point Seatbelts for All Seats |
| Reverse Alarm | Audible reverse warning buzzer |
| Reflective Markings | Full perimeter reflective strips & markings |
| Side Marker Lights | Front & rear side marker lights |
| Rearview Mirror | Electric-adjustable dual-arm mirrors with heating |
| Daytime Running Lights | LED Daytime Running Lights |
| Spare Tire | Full-size spare tire with carrier |
| Fire Extinguisher | 4kg dry powder fire extinguisher (mounted) |
| Tool Kit | Standard vehicle tool kit with jack |
| Battery | 2 × 12V / 165Ah Batteries |
| Fuel Tank Guard | Steel fuel tank protection guard |
8. Optional Upgrades
| Option | Description |
|---|---|
| U-Shaped Dump Body | U-type body for easier unloading of sticky materials |
| Tarpaulin System | Automatic hydraulic tarpaulin cover system |
| Rear Camera | 7-inch display with rearview camera |
| Air Suspension Seat | Upgraded premium air suspension driver seat |
| Automatic Transmission | Allison automatic transmission upgrade |
| Larger Fuel Tank | 400L / 500L fuel tank upgrade |
| Steel Ring Upgrade | Heavy-duty steel wheel rims |
| Snow Plow | Front-mounted snow plow attachment |
| Water Tank | Water spray system for dust suppression |
| GPS Tracking | Built-in GPS fleet tracking system |
