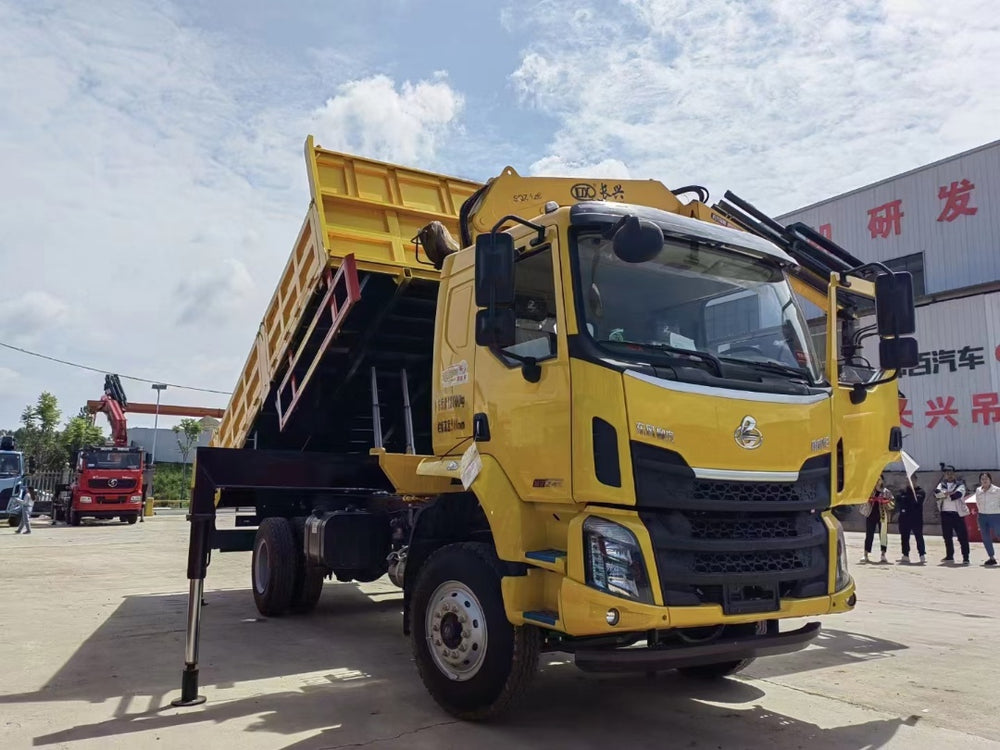

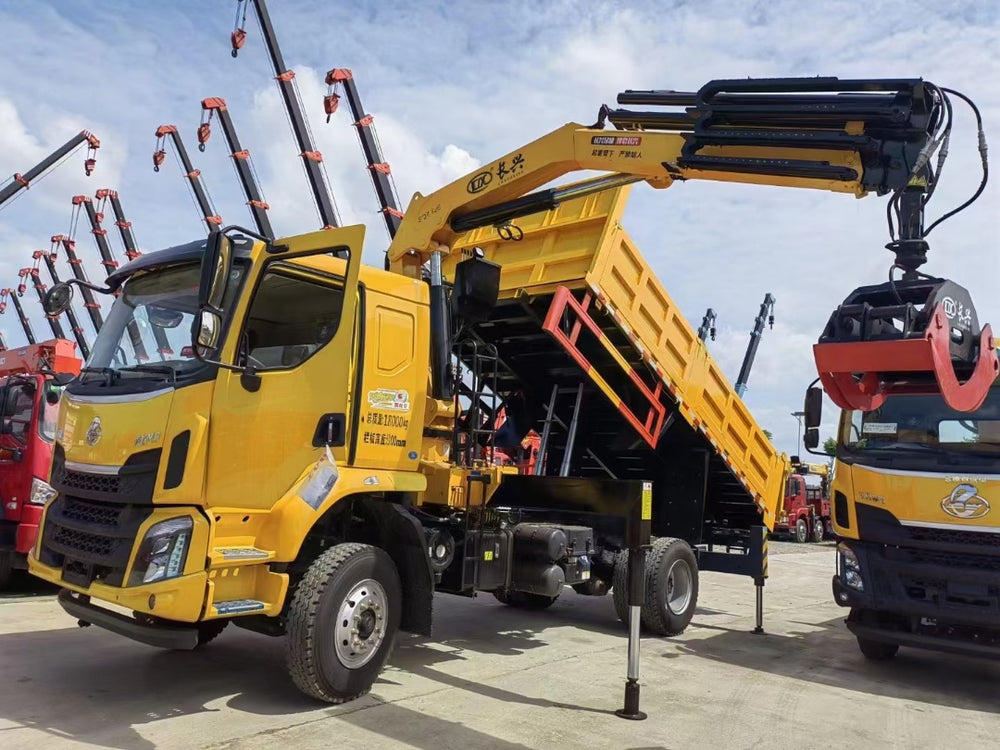

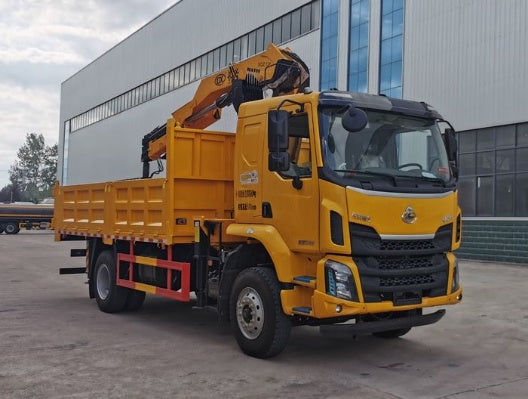

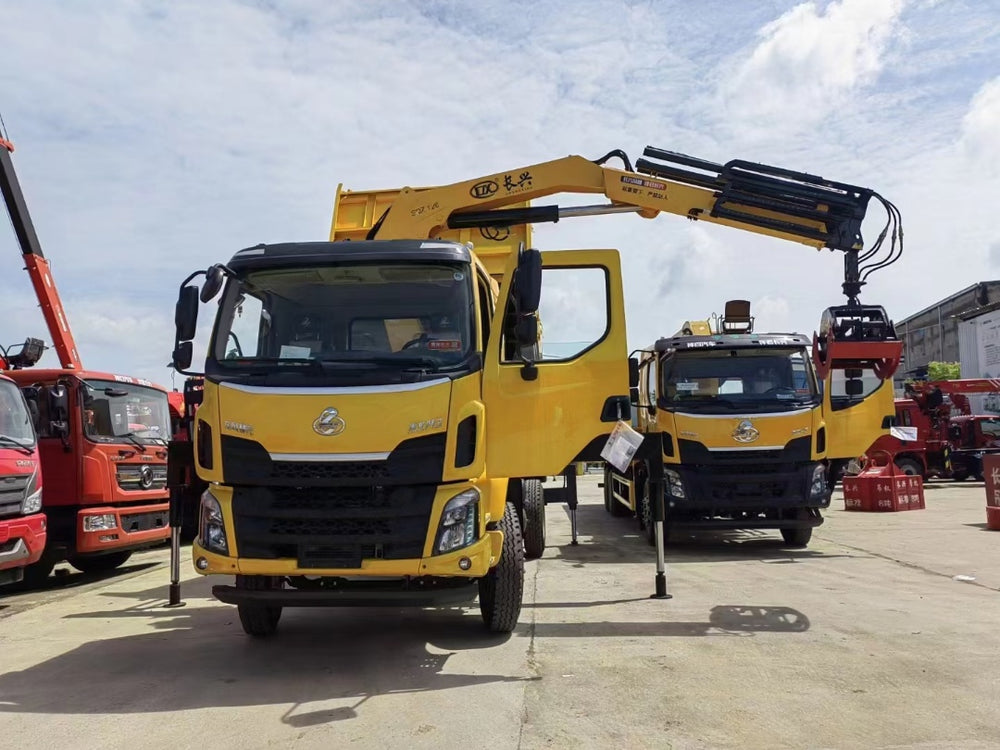

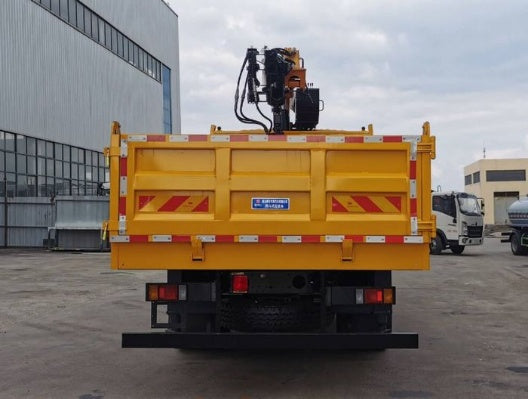

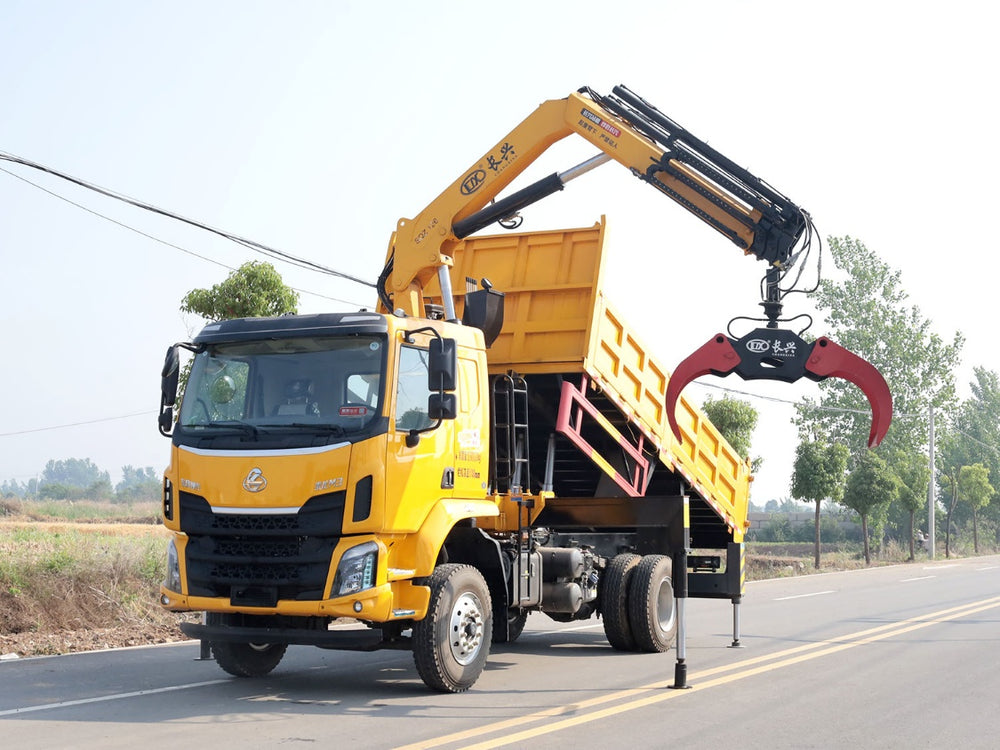

DongFeng 4×2 Knuckle Boom Crane

1 / 8

Item	Parameter
Gross Vehicle Weight (GVW)	18000kg
Kerb Weight	12900/12000/11500/11000kg
Wheelbase	5100/4500/4200mm
Engine	YCS04220-61A
Gearbox	8JS85E-C, with spline power take-off (PTO)
Front Axle	5.5-ton rated load
Rear Axle	10-ton rated load, Fangsheng axle, final drive ratio 4.875/5.143, rear 8-wheel leaf spring
Fuel Tank	200L steel fuel tank
Tire	10.00R20
Cab	M35B cab, imported soft-wrap interior material, odor-free; optional domestic plastic interior (2000 yuan discount)
Clutch	Φ395 push-type clutch
Leaf Spring	11/12+9 leaf spring
Chassis Frame	282(8+4) Baosteel 750 3-layer laminated girder, electrophoretic & plastic sprayed finish, Sea Wolf Gray color; 4-layer frame with small connecting plates
Steering Gear	Domestic steering gear
Cab Suspension	Semi-floating cab suspension
Cab Tilt	Manual hydraulic tilt
Driver Seat	Leather height-adjustable airbag shock-absorbing driver seat
Door & Window System	Electric power window lifter, remote central door lock
Air Conditioning	Standard air conditioning
On-board Terminal	Driving recorder + Beidou GPS compatible, Chenglong V+ connected car 3.0 system
Cab & Chassis Functions	Multi-state switch, right turn reminder; US-made electronic component valves, ABS, automatic brake adjusting arm, maintenance-free battery, under-vehicle start/stop function, same-color bumper + fender, rocker-type self-return remote throttle
Crane Upper Structure	Changxing 5/6.3/8/10/12/16 ton knuckle boom truck-mounted crane, Changxing OEM single-cavity rear outrigger
Optional Accessories	Remote controller, brick clamp, wood grapple, electric suction cup, self-generator, and other auxiliary tools
