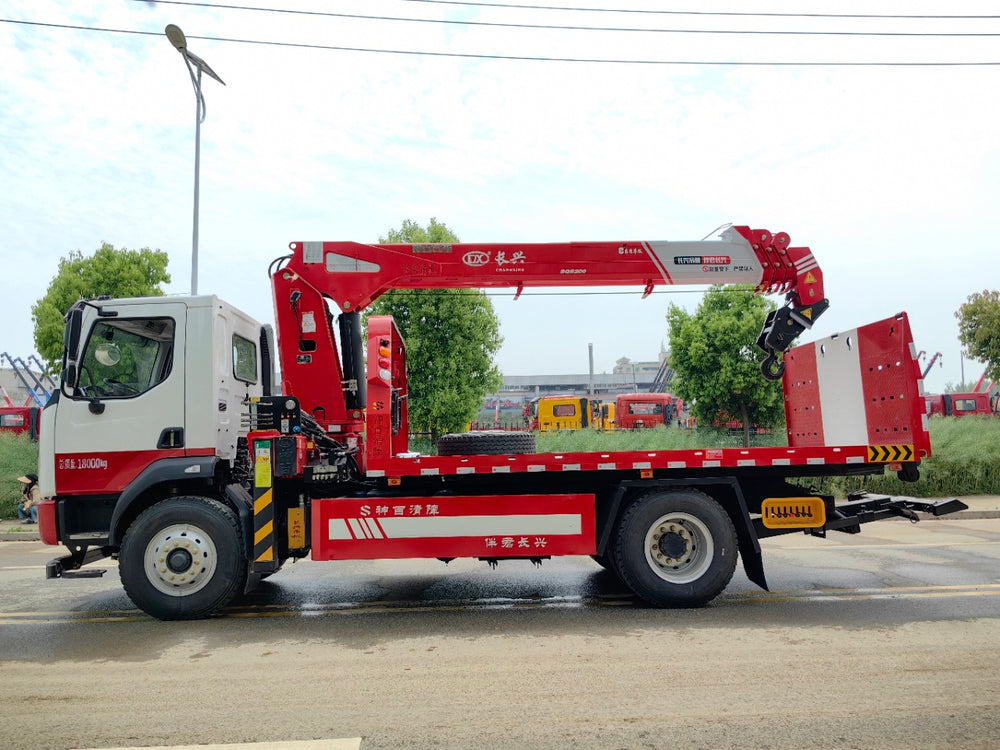

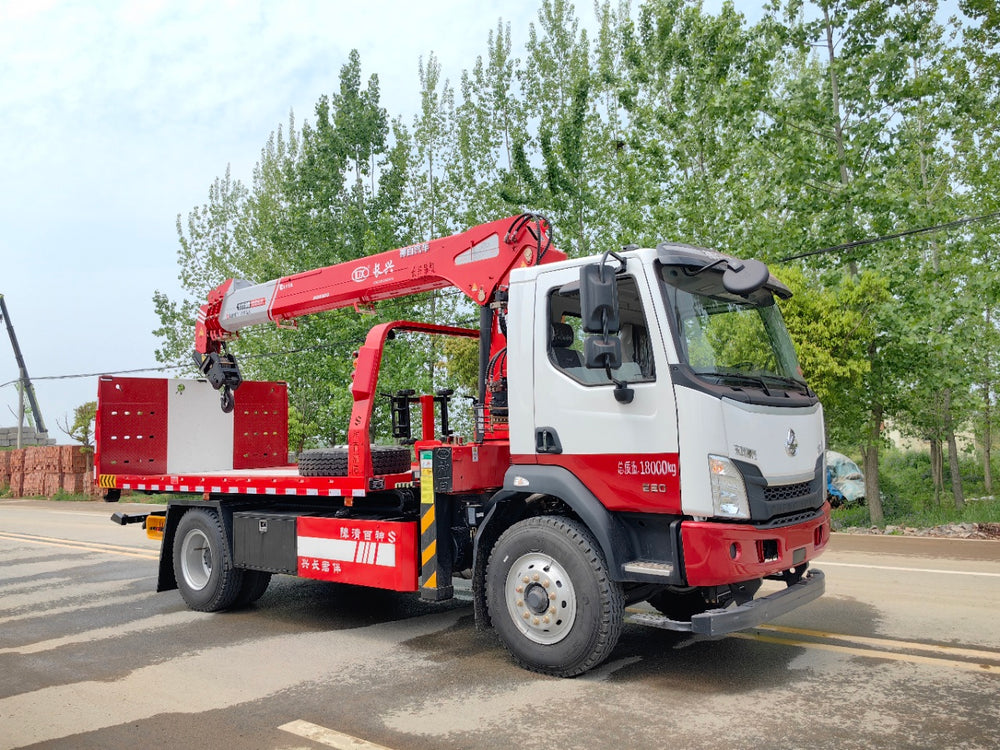

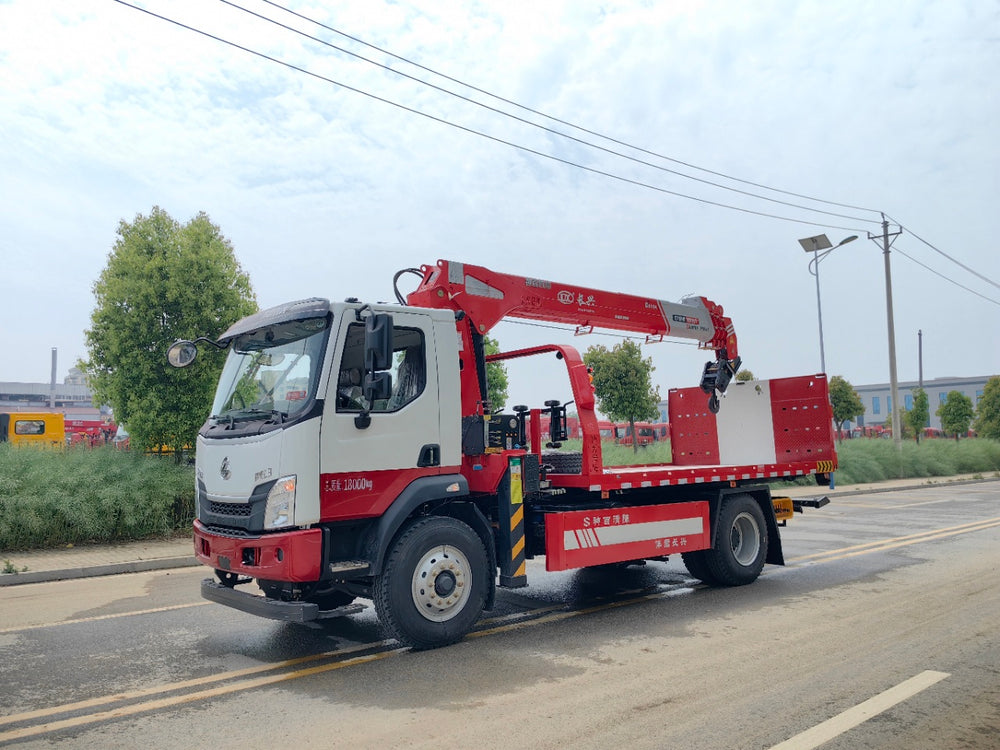

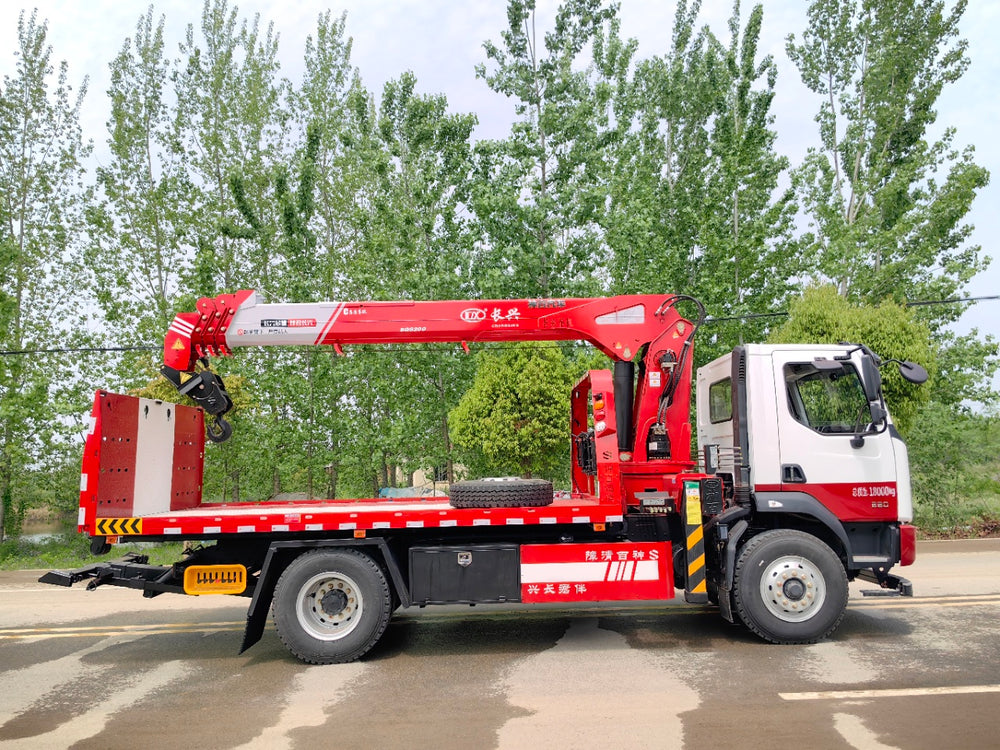

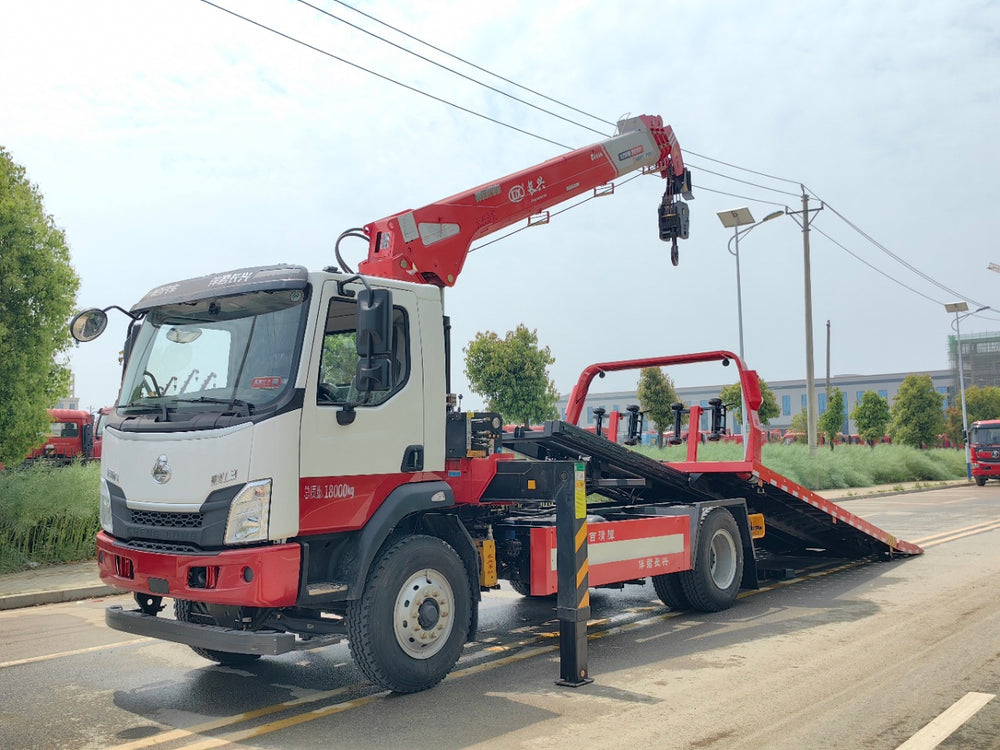

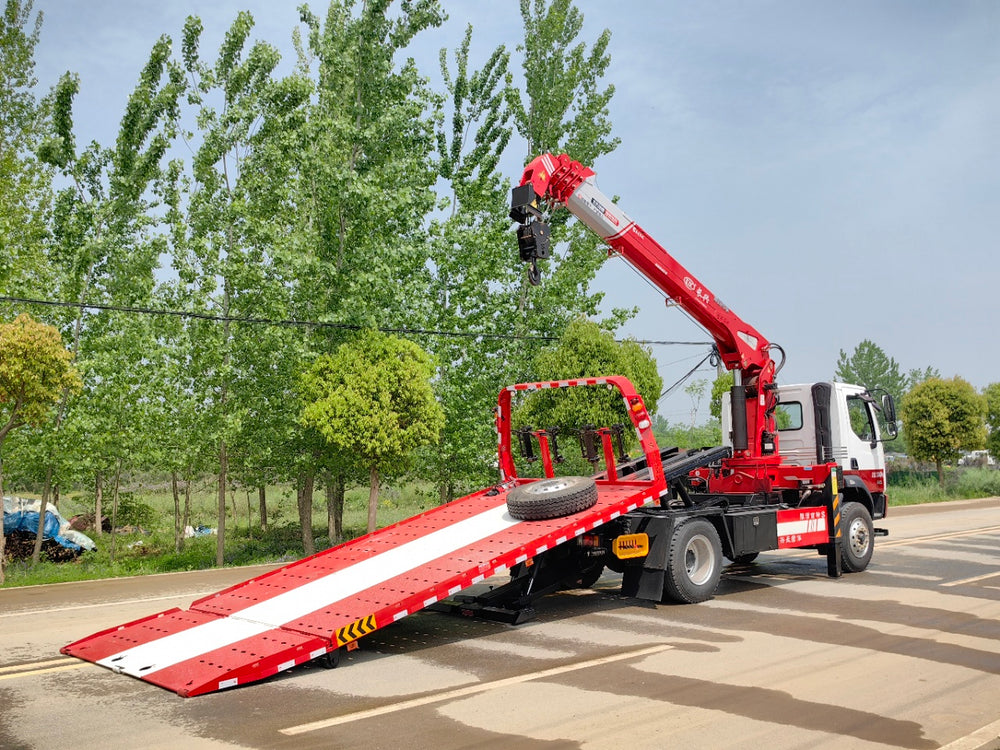

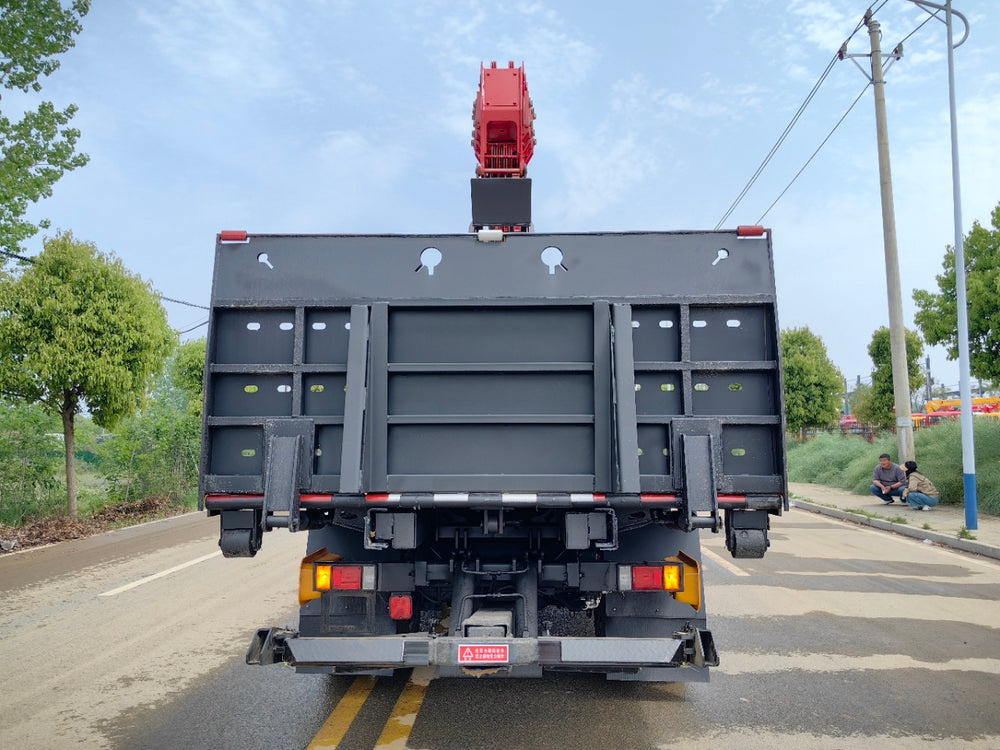

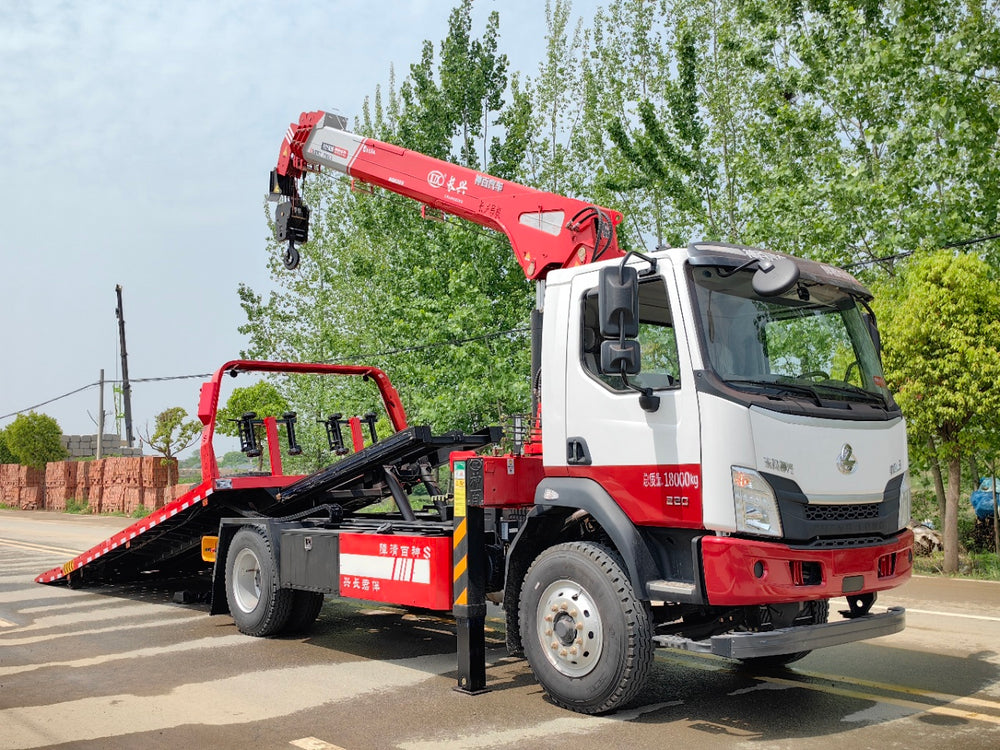

DongFeng 8T Wrecker Truck with 8T CX Crane

1 / 13

Parameter	Value
Core Highlight	The only model in its class equipped with rear axle differential lock
Chassis Configuration

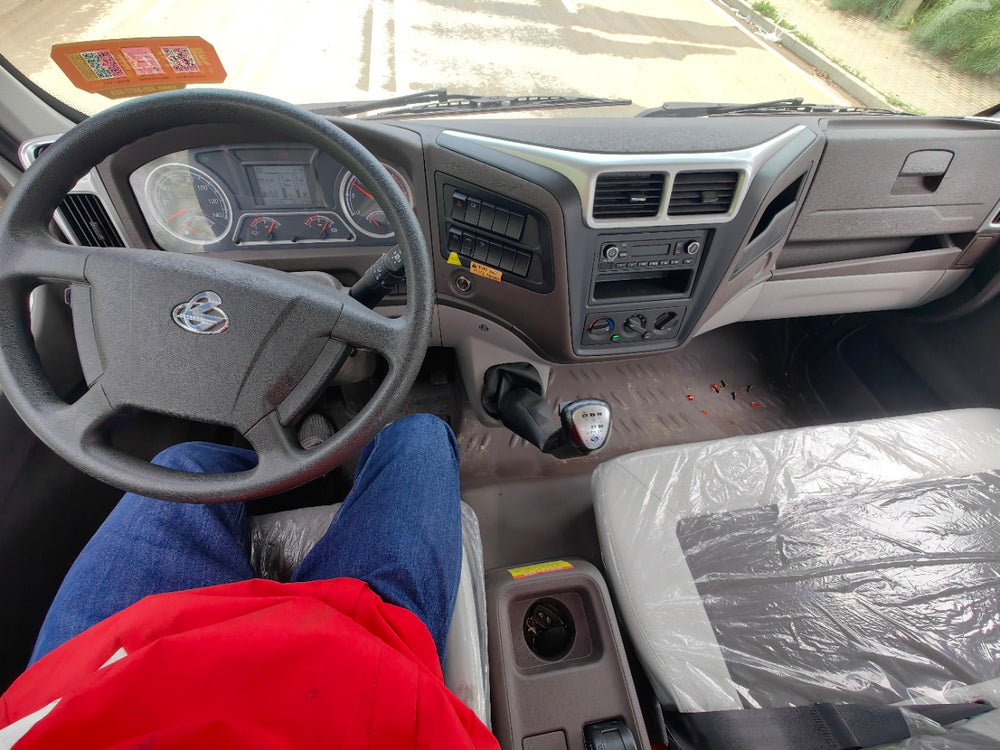

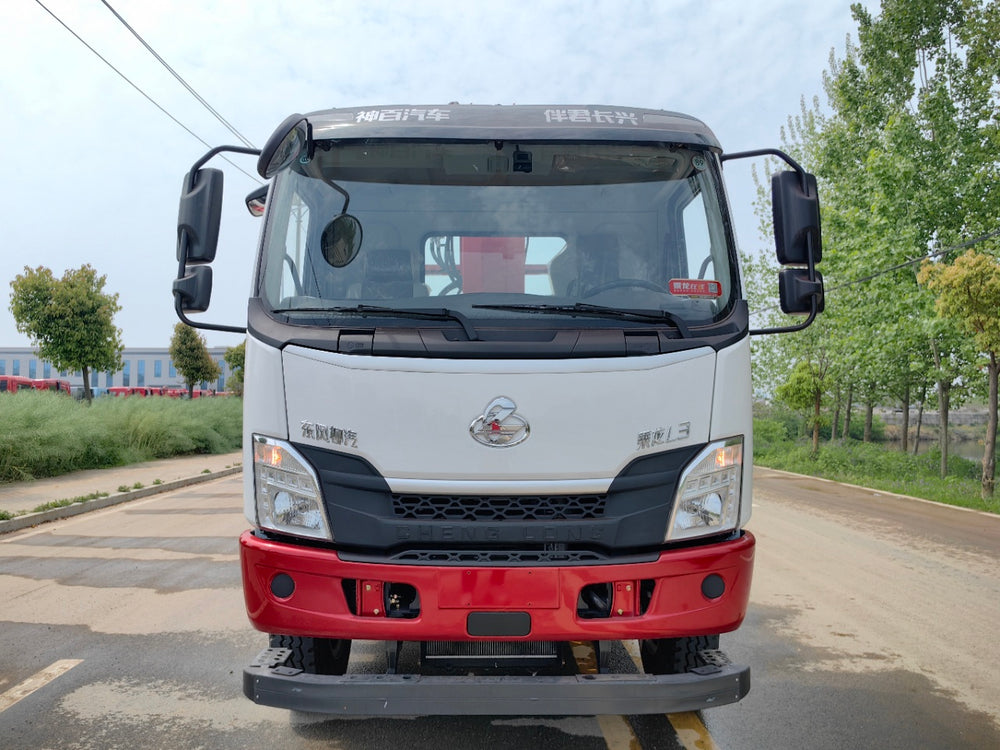

Cab Model	Liuzhou Auto Chenglong L3 Row-and-a-half Cab
Engine	Yuchai YCS04220-61A Engine (with exhaust brake, cylindrical muffler)
Gearbox	Fast 8JS85E-C Gearbox (with flange power take-off)
Clutch	Φ395 Push-type Clutch
Front Axle	5.5t Narrow Front Axle
Rear Axle	11.5t Rear Axle (with differential lock)
Leaf Spring	11/10+8 Leaf Spring
Frame	270 Laminated Girder
Fuel Tank	200L Fuel Tank
Tire Specification	10.00R20 Tires
Upper Body Configuration
Upper Body Type	8-ton One-tow-two Upper Body

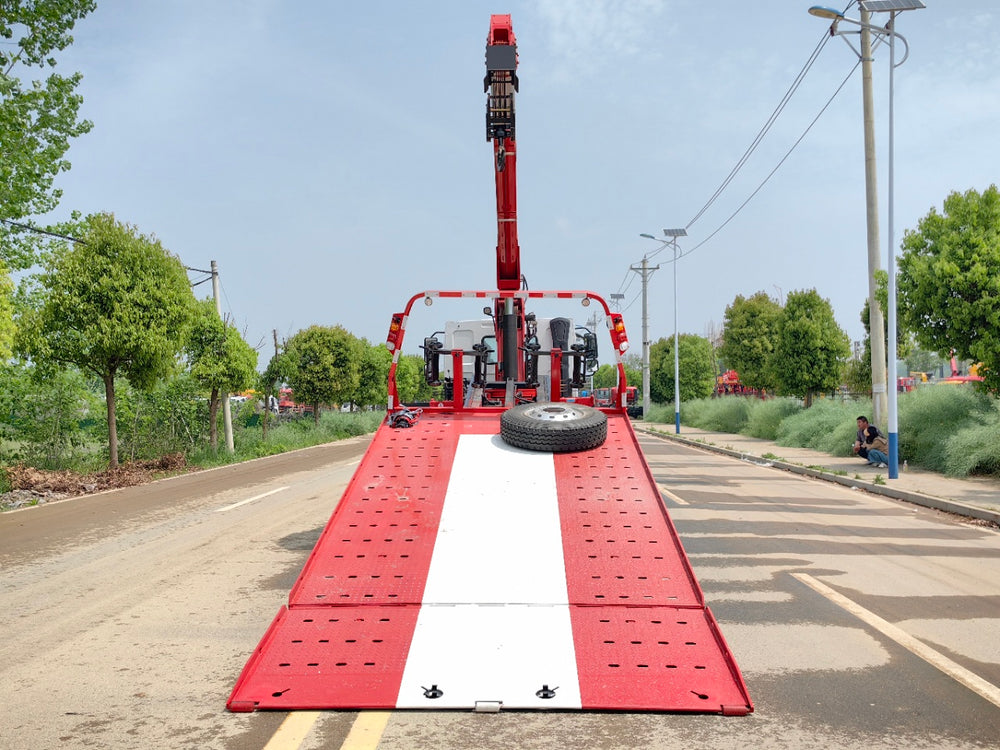

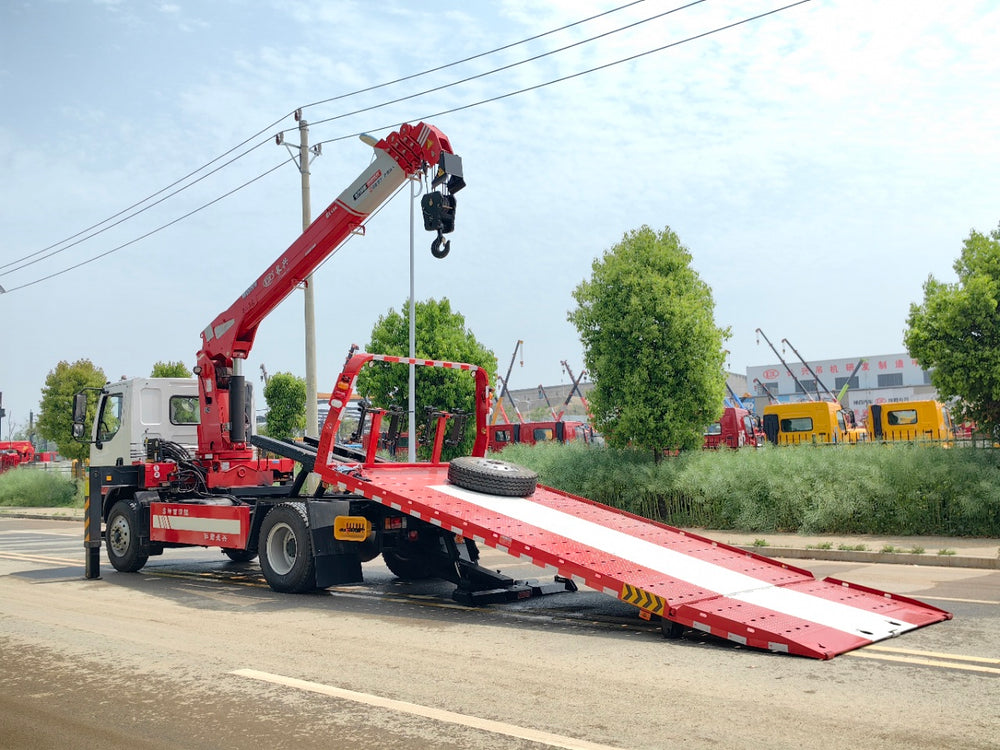

Flatbed Dimensions	Overall Length 6m (including hydraulic turnover), Width 2.55m
Manufacturing Process	Standard sunken process (lowers flatbed center of gravity)
Flatbed Floor	6mm Thick High-strength Wear-resistant Checkered Plate
Frame Border	16mm Solid Steel Plate Frame with cut holes
Slideway	10mm Thick Manganese Steel Reinforced Slideway (front binding steel plate reinforced)

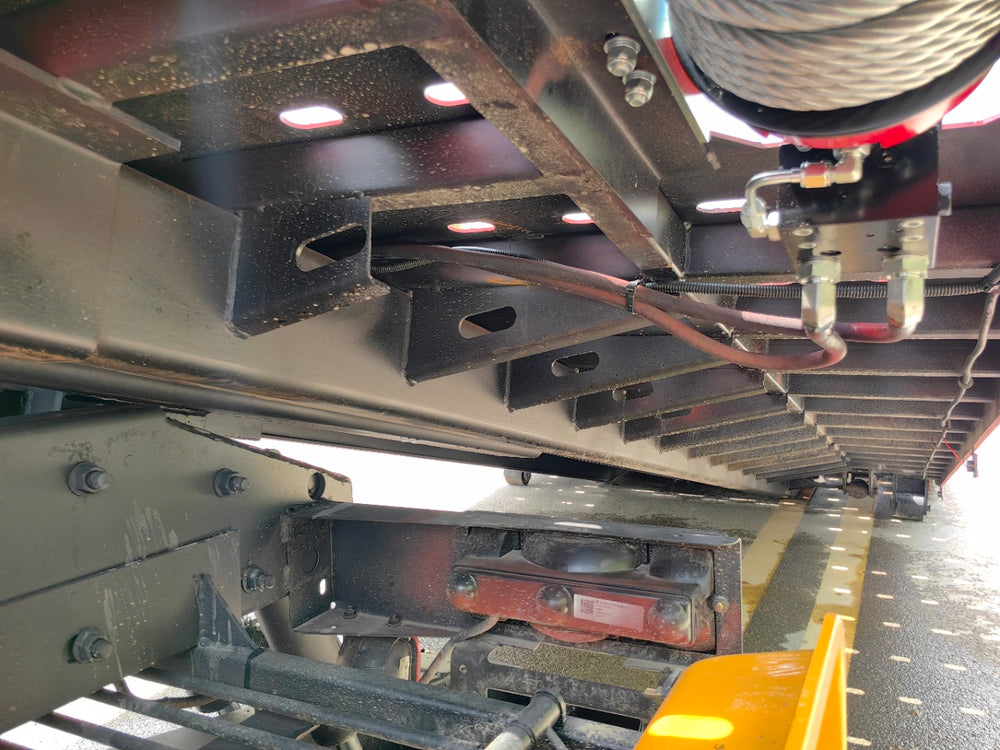

Body Structure	Densified cross beams under plate, densified triangular diagonal bracing
Winch	6-ton Winch
Rear Tow Arm	6-ton 2-section Rear Tow Arm
Crane Configuration
Crane Model	Changxing Supreme Edition 8-ton 4-section Arm Crane
Boom Length	13.5m
Maximum Lifting Height	15.5m
Optional Upgrade	Optional 10-ton Crane
On-board Accessories
Gantry Side Lights	1 Set
Triangle Wheel Chocks	1 Pair
Binding Belts	4 Pieces
Square Wheel Holding Tubes	1 Pair
L-shaped Forks	1 Pair
Auxiliary Trolleys	1 Pair
On-board Crowbar	1 Piece
