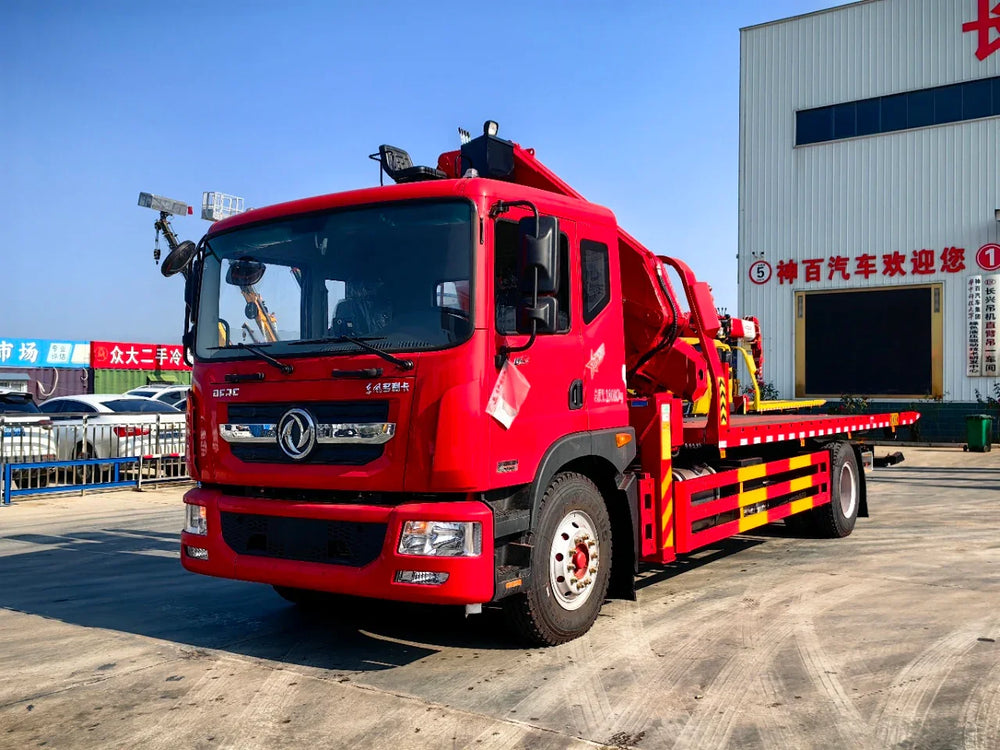

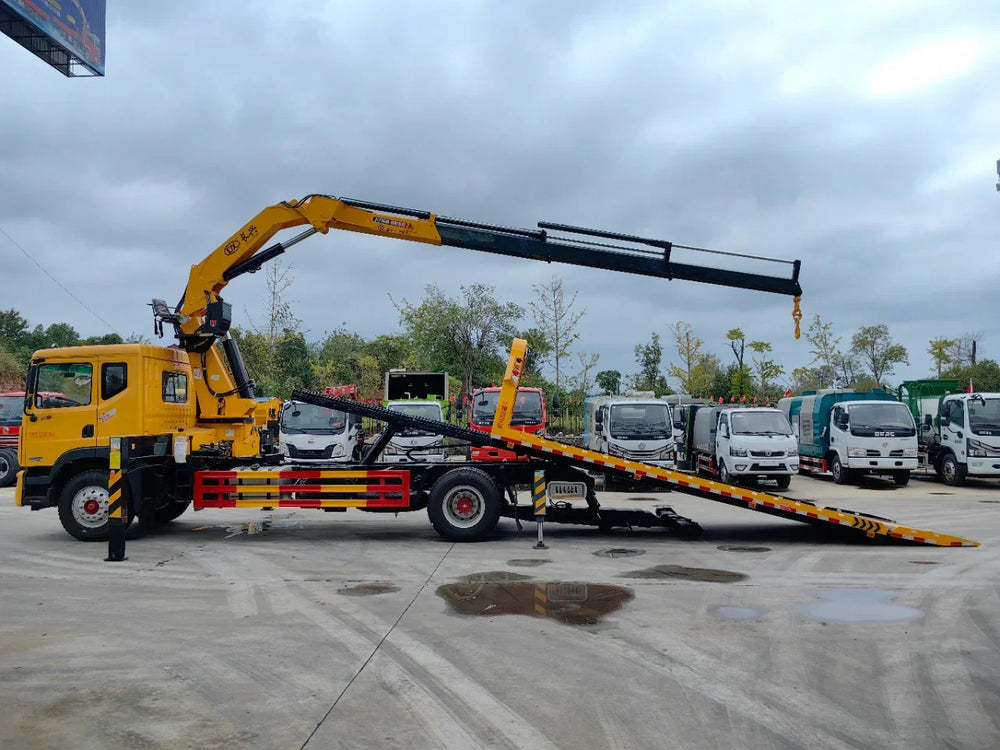

DongFeng 8T Wrecker Truck with Crane

1 / 2

Configuration Item	Specification
Chassis Configuration
Cab	Dongfeng D9 row-and-a-half cab with sleeper
Engine	Cummins 230 horsepower engine or Yuchai 200 horsepower engine
Gearbox	Fast 8-speed gearbox with high and low gears
Wheelbase	5300/5600 wheelbase optional
Rear Axle	Dongfeng Dana 10-ton rear axle
Frame	Original factory three-layer girder (special chassis for wreckers)
Tires	1000 steel radial tires with spare tire
Compliance	Meets Beijing emission standards, eligible for Beijing license plate registration
Upper Mounting Configuration
Flatbed Specification	Total flatbed length 6.8-7.2 meters, rear hydraulic flip 1.2 meters
Flatbed Material & Structure	Made of 6mm high-strength wear-resistant checkered plate, double auxiliary beam design, manufactured with sunken plate process
Chute	Double-layer thickened manganese steel chute
Side Frame	16 thick solid steel plate side frames with cut holes
Hydraulic Valve	Italian imported Haide valve
Winch	8-ton winch
Rear Support Arm	8-ton rear support arm (suspended on the main girder)
On-board Accessories	2 rear working lights, 1 pair of side lights, 1 pair of auxiliary trolleys, 6 high-quality binding straps, 1 pair of triangular tire blocks, 1 pair of fork brackets (with 1 pair each of high, medium and low forks)
Optional Crane	Compatible with Changxing 8-ton 4-section boom, 5-section boom straight arm crane, or 8-ton 4-section boom folding arm crane
