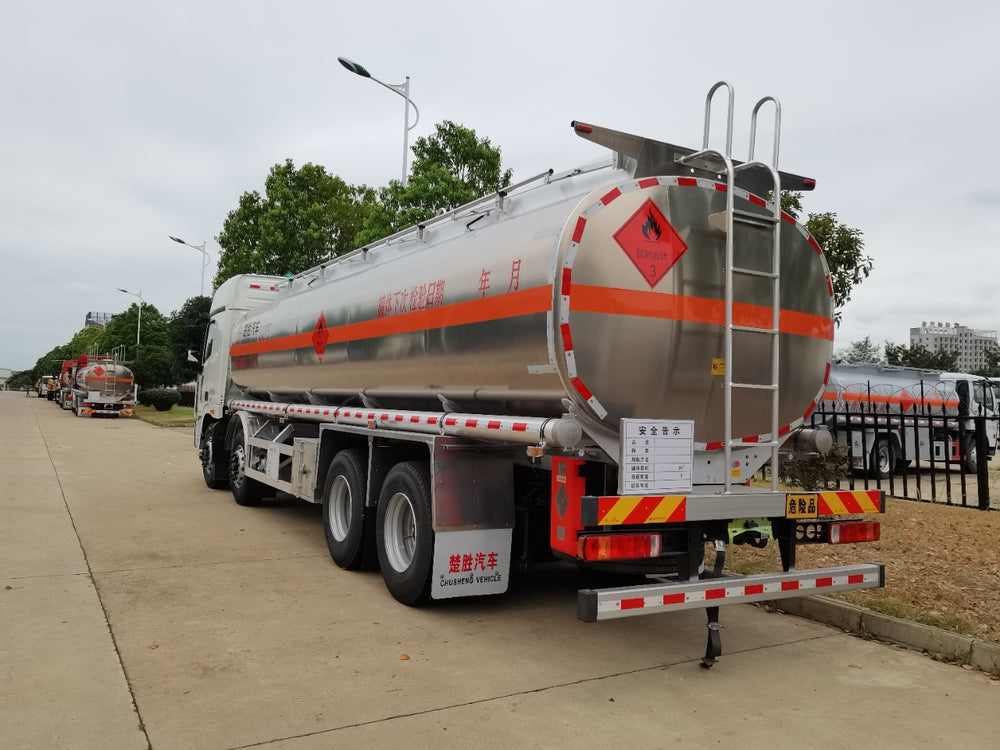

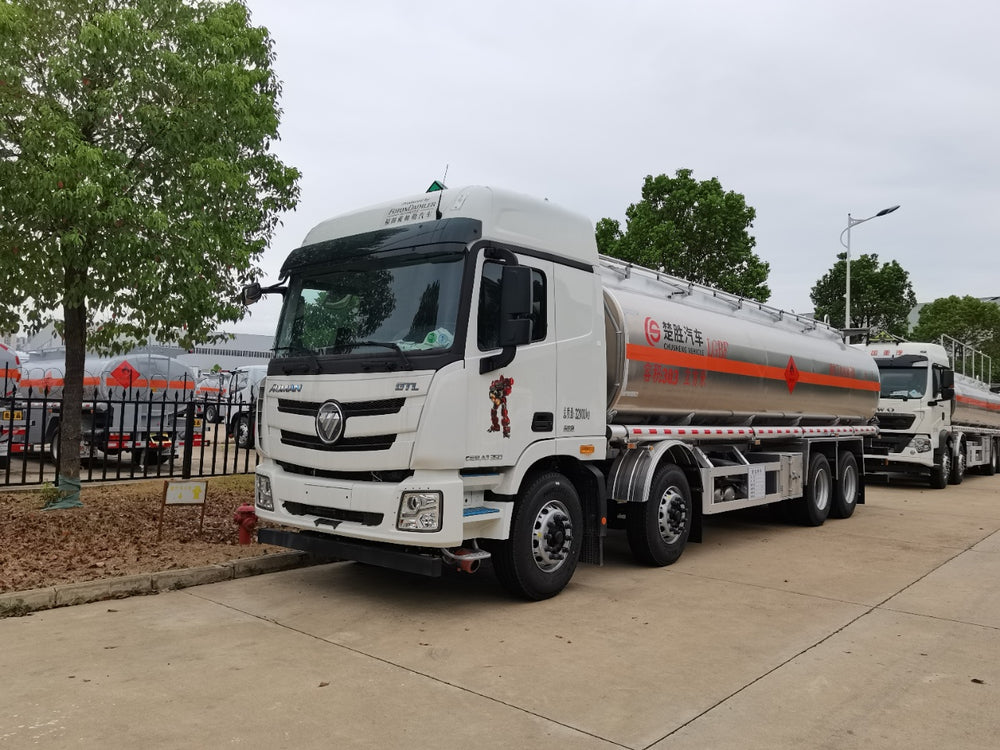

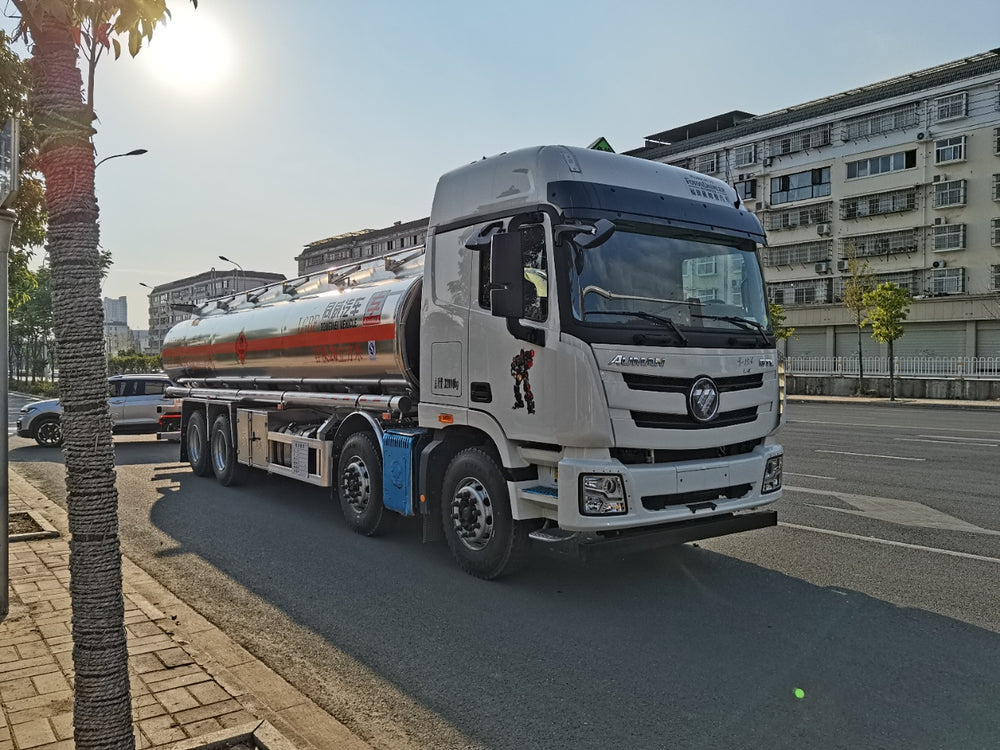

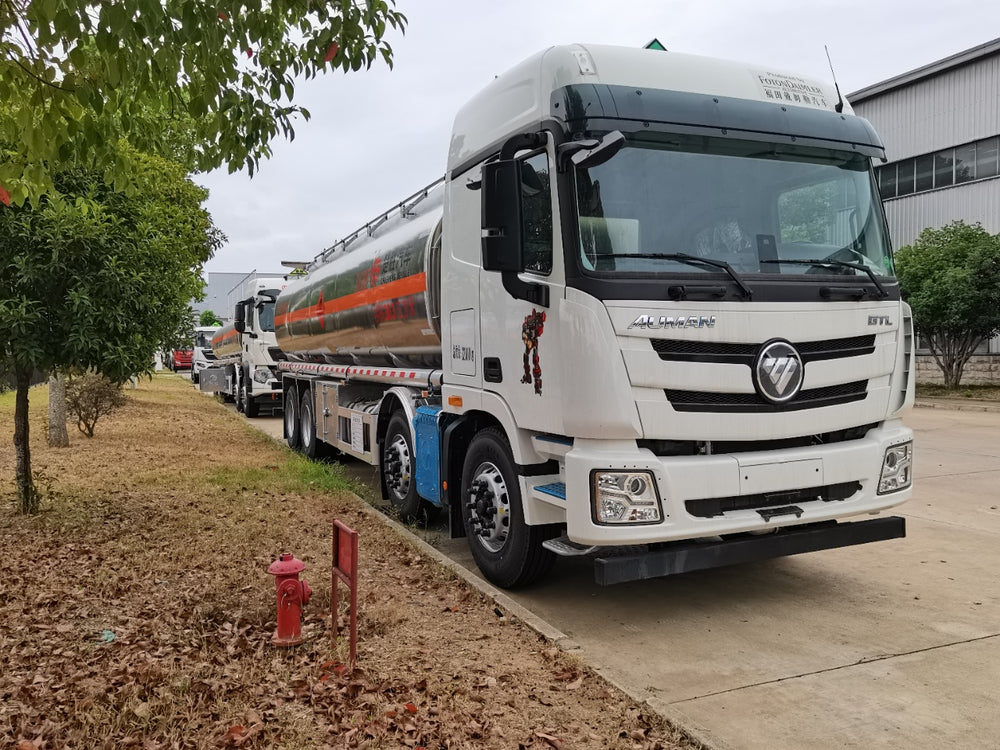

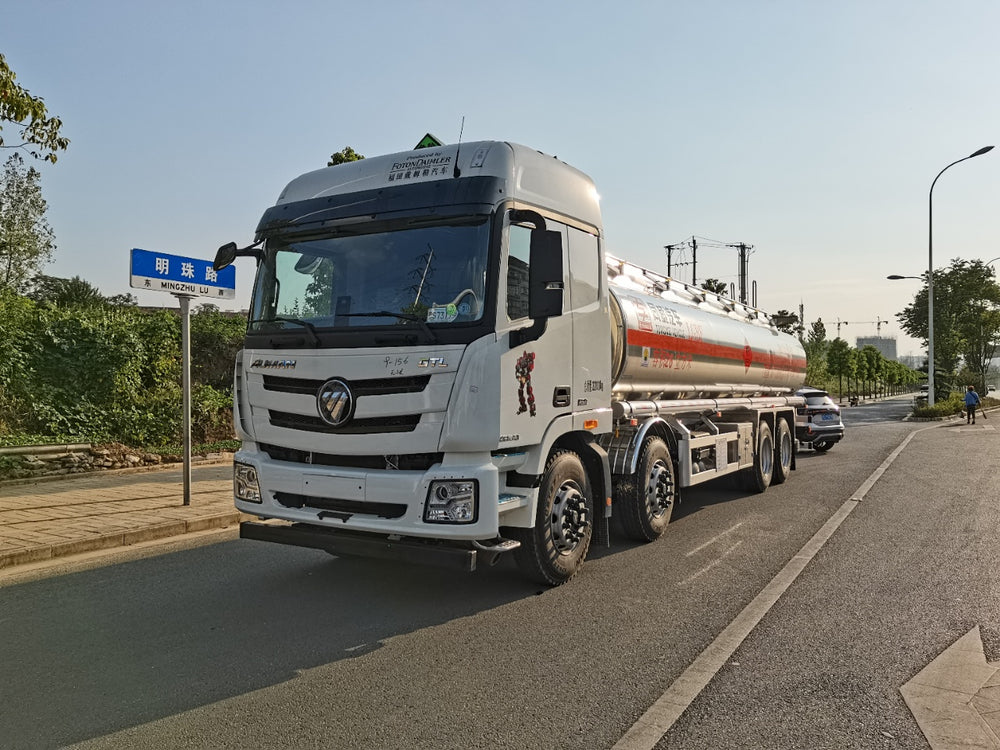

FOTON 8×4 30m³ Aluminum Alloy Fuel Tank Truck

1 / 5

1. Chassis Configuration

Parameter	Value
Rated Load Capacity	20.50 Tons
Transport Medium Capacity	Gasoline 30m³ / Diesel 26m³
Engine Model	Cummins 360G / X11
Transmission	12JSD180TA Aluminum Gearbox
Cab Type	GTL-E Long Body, High Roof Standard Floor
Rear Axle Ratio	4.111
Tire Specification	12R22.5
Leaf Spring Configuration	2 / –
Fuel Tank	350L Aluminum Alloy Fuel Tank
Cab Interior	Electric Windows, Central Door Locking, Airbag Seat, Manual Rearview Mirror, MP3 + Radio
Exhaust System	Front-Mounted Exhaust Pipe
Speed Limiter	Equipped
Brake System	ABS, EBS (Electronic Braking System)
Wheelbase	2100 + 4400 + 1350 mm

Parameter	Value
Vehicle Type	Aluminum Alloy Oil Tanker
Official Announcement Volume	26 m³
Transport Medium	Diesel, Gasoline
Tank Shape	Square-Round Tank with Bulging (Dished) Heads
Tank Material	Aluminum Alloy
Tank Wall Thickness	Per design specification
Compartment Layout	Single Compartment
Pump System	80-60 Pump with Overflow Valve
European Standard Manholes	2 units
Bottom Valve	1 unit with intelligent control system
Vapor Recovery System	1 unit
Bottom Loading System	1 unit
Anti-Overflow System	Anti-overflow probe and socket
Drip Valve	Drip hole at front end of barrel pipe
Folding Guardrail	Manual folding guardrail
Fire Cap	1 unit
Static Grounding	Static belt + Static reel
Oil Delivery Pipes	2 equal-length pipes with male & female couplings
Fire Extinguishers	2 units × 8 kg
Fire Extinguisher Bracket	Equipped
Pipe Plugs	2 units
Safety Sign	Safety notice board
Climbing Ladder	Rear climbing ladder
Tank Top Safety	Aluminum alloy anti-slip net
Other Accessories	Remaining per aluminum tank standard configuration
Compliance Guarantee	Vehicle exterior dimensions, tank dimensions and shape fully consistent with official announcement
