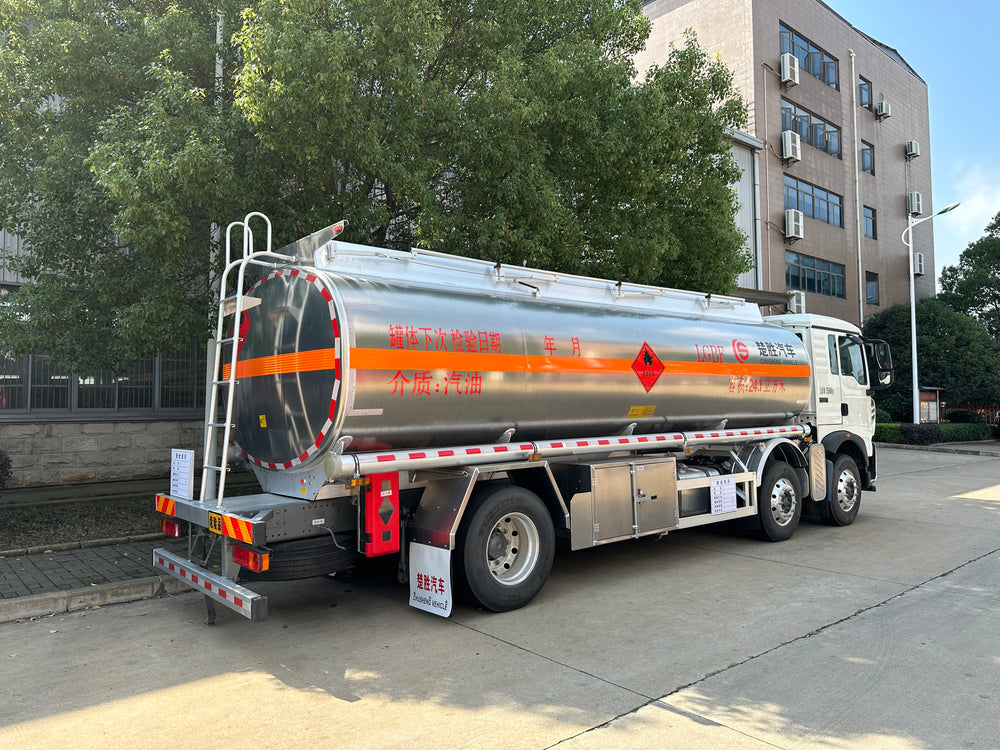

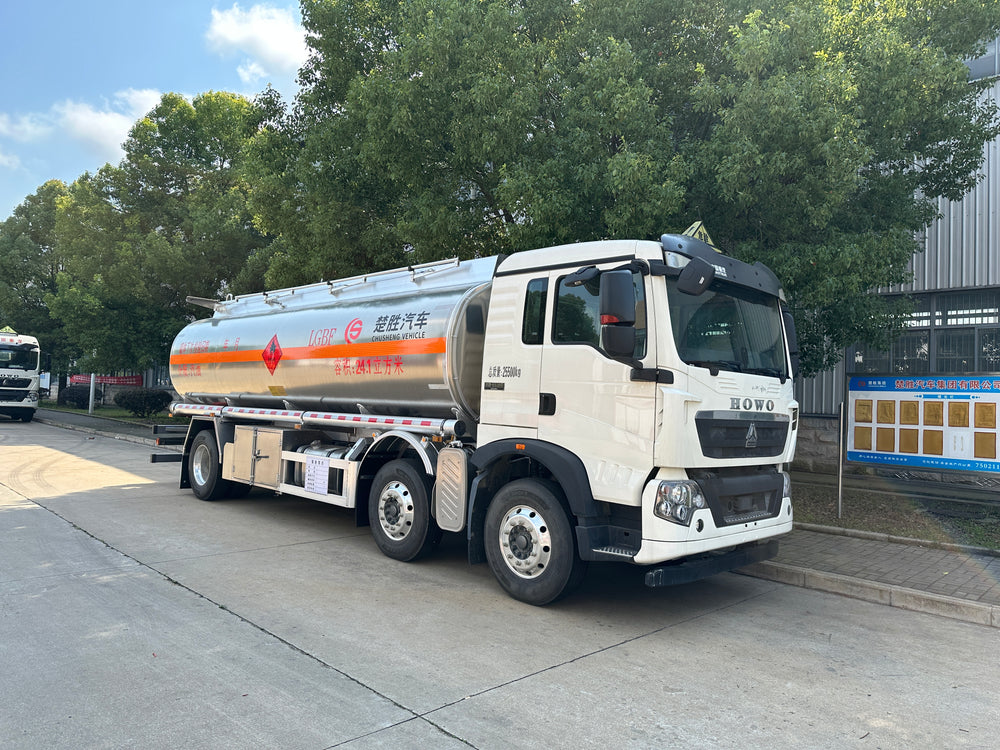

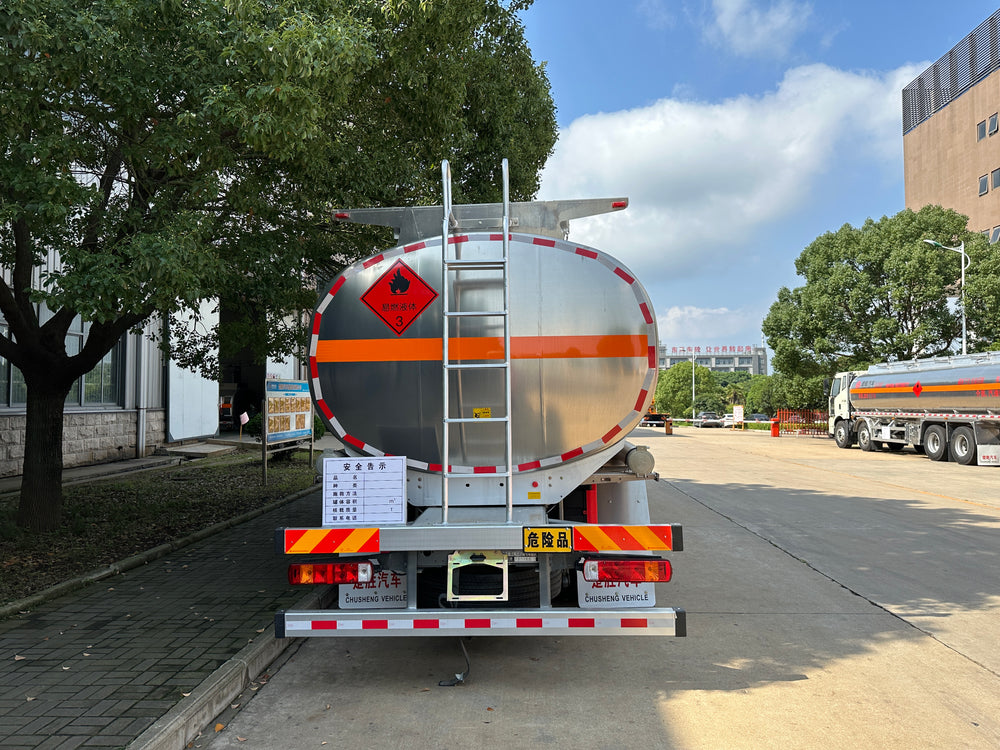

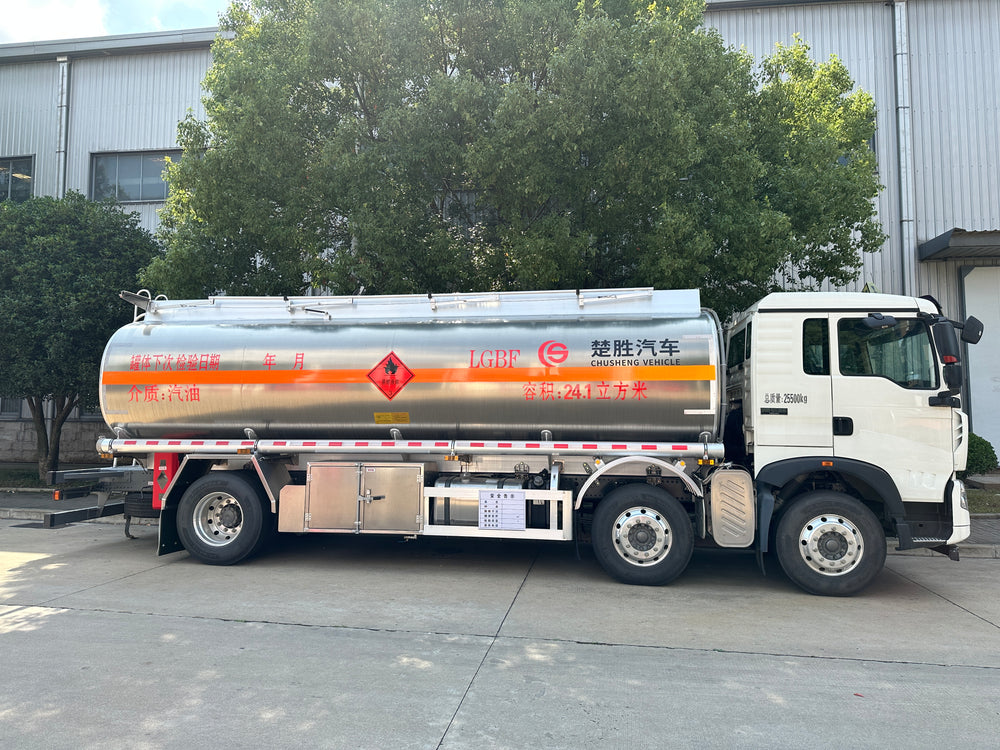

HOWO 6×2 Aluminum Alloy Oil Tank Truck

1 / 4

1. Chassis Configuration (Howo TX5)

Parameter	Value
Vehicle Category	Special Purpose Vehicle
Cab Type	TX-K Cab
Seat Configuration	Main Airbag Seat + Auxiliary Simple Seat
Engine Model	MC07.25-60
Transmission	HW95508STC Gearbox + HW45ZC French PTO
Front Axle	VPD75D Disc Brake Front Axle
Rear Axle	MCY11BES Single Rear Axle (Disc Brake)
Final Drive Ratio	4.63
Frame Specification	Double-Layer Frame (8+4 / 280mm)
Suspension System	Front & Rear Air Suspension (3/3 / –)
Steering Gear	8198 Steering Gear
Exhaust System	Front-Mounted Exhaust System
Brake & Stability System	EBS (Electronic Braking System) + ESC (Electronic Stability Control)
Bumper	Mid-Position Non-Metal Bumper
Wheel Type	Domestic Aluminum Alloy Wheels
Tire Specification	295/80R22.5
Cab Lift	Electro-Hydraulic Integrated Electric Lift
Fuel Tank	300L Fuel Tank
Advanced Safety Systems	LDWS (Lane Departure Warning System) + FCWS (Forward Collision Warning System) with Radar
Power Take-Off	Rotary PTO
Emergency Safety Device	Steering Wheel Tire Burst Emergency Device

Parameter	Value
Manufacturing Standard	Strictly per official announcement dimensions
Effective Tank Volume	Approx. 24.1 m³
Tank Material	5182 Aluminum Alloy
Transport Medium	Gasoline
Compartment Layout	Single Compartment
Tank Body Thickness	6 mm (≥ 5.5 mm)
Tank Head Thickness	6 mm
Baffle Thickness	5.5 mm
Pump System	Equipped with pump
European Standard Manholes	2 units
Bottom Valve	1 unit with automatic closing system
Bottom Loading System	Equipped
Vapor Recovery System	Equipped
Anti-Overflow System	Anti-overflow probe and socket
Toolbox	1 unit
Static Grounding Reel	Equipped
Folding Guardrail	Equipped
Fire Cap	1 unit
Fire Extinguisher	2 units × 8 kg
Tank Body Color	Aluminum Alloy Natural Color
Safety Markings	Reflective strips, reflective tape, "Flammable Liquid 3" hazard label and safety warning signs
