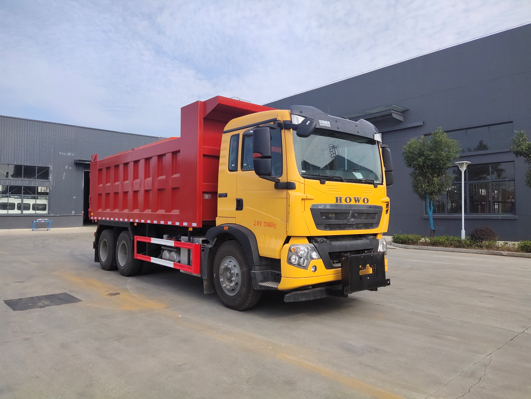

HOWO 12m³ 290HP Snow Removal Truck

1 / 6

1. Basic Vehicle & Chassis Specifications

Parameter	Value
Vehicle Type	Snow Removal Truck
Complete Vehicle Model	CL5250TCX6HL
Gross Vehicle Weight	25000 kg
Rated Load Capacity	10370 kg / 10305 kg
Curb Weight	14500 kg
Number of Axles	3
Leaf Spring Configuration	11 / 10 leaves
Cab Seating Capacity	2 / 3 persons
Approach / Departure Angle	17°/19°, 17°/18°
Axle Load (Tandem Rear Axle)	7000 kg / 18000 kg
Chassis Model	ZZ1257N464GF1
Engine Model	MC07.25-61
Engine Power	MAN 290 HP
Fuel Type	Diesel
Overall Dimension	8750mm / 9530mm × 2550mm × 3360mm / 3650mm
Tire Specification	11.00R20
Number of Tires	10
Wheelbase	4600+1350 mm
Front Overhang / Rear Overhang	1430/1420mm, 1500/1350mm, 1430/1900mm
Maximum Speed	89 km/h / 110 km/h
Front Track Width	2035 mm
Rear Track Width	1850 mm / 1850 mm
Hopper Body Material	Q235 Carbon Steel
Spreader Body Material	4mm Carbon Steel

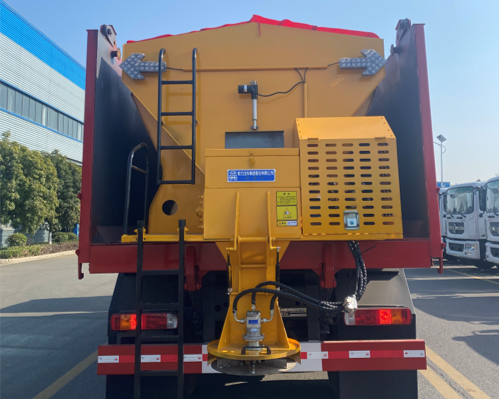

Parameter	Value
Spreader Hopper Volume	12 m³
Power Take-off Mode	Chassis PTO-driven
Material Conveying Type	Scraper chain conveyor
Spreader Disc Material	Stainless Steel
Spreader Disc Diameter	550 mm
Hydraulic Working Pressure	≥ 16 MPa
Spreading Width	2 – 15 m (adjustable)
Deicing Agent Application Rate	20 – 300 g/m² (adjustable)
Working Speed	5 – 30 km/h
Control Mode	Wired remote control
Dump Body Dimension	Length 6000mm, body height 1700mm, top height 2100mm, width 2550mm, with self-dumping function
Standard Accessories	Arrow warning light, tarpaulin, filter screen, rear access ladder

Item	Description
Uniform Feeding	Filter screen installed on the spreader prevents large particles and debris from entering the system, ensuring safety of equipment, pedestrians and vehicles
Easy Loading & Storage	Detachable dedicated lifting support system for the spreader, convenient for storage in non-operating state
Reliable Discharging	V-shaped hopper with simple and reliable structure, ensures automatic falling and complete discharging of deicing agent with no residue

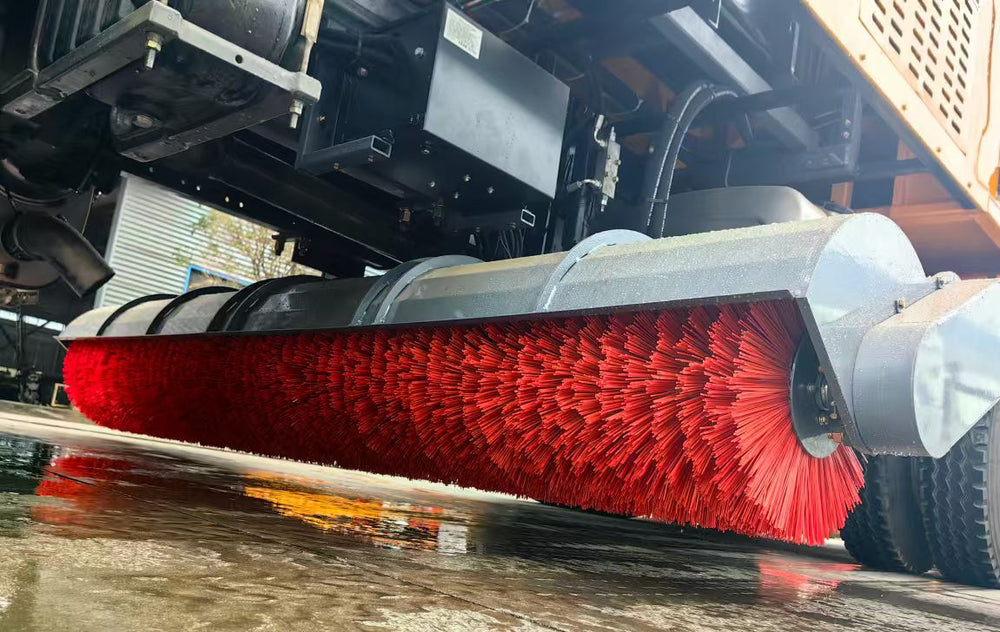

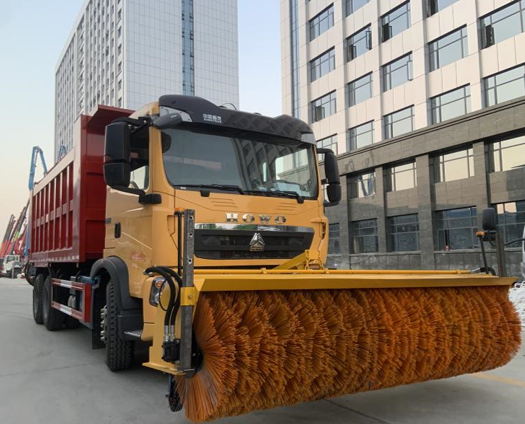

Parameter	Value
Sweeping Width	3.5 m
Brush Diameter	800 mm
Left-right Adjustment Angle	± 30°
Working Speed	5 – 30 km/h
Obstacle Clearance Height	250 mm
Vertical Deflection Angle	6.5°
Control Mode	Remote control
Drive System	Independent hydraulic unit
Brush Material	Polypropylene mixed with elastic steel wire
Support Wheels	2 universal load-bearing wear-resistant support wheels
Additional Protection	Support rods on both ends to protect brush blades from crushing damage; warning light for brush head position monitoring during operation
