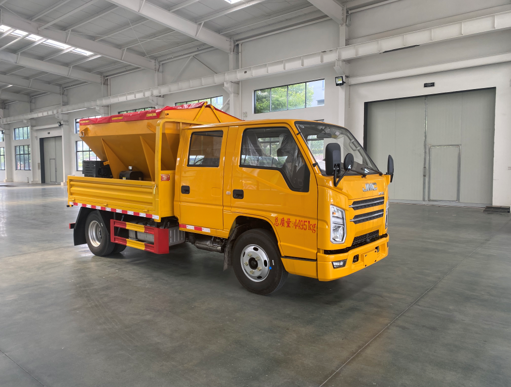

JMC Double-row Snow Removal Truck
1. Complete Vehicle Basic Parameters
| Parameter | Value |
|---|---|
| Vehicle Type | Snow Removal Truck |
| Complete Vehicle Model | CL5040TCX6HL |
| Gross Vehicle Weight | 4495 kg |
| Rated Load Capacity | 830 kg / 520 kg |
| Curb Weight | 3340 kg / 3650 kg |
| Number of Axles | 2 |
| Axle Load Distribution | 1725 kg / 2770 kg |
| Cab Seating Capacity | 2 + 3 Persons (Double Cab) |
| Fuel Type | Diesel |
| Maximum Speed | 100 km/h |
| Chassis Model | JX1041TSG26 |
2. Dimension & Wheel Parameters
| Parameter | Value |
|---|---|
| Overall Dimension (L×W×H) | 5870 / 5775 / 5950 × 2060 × 2230 / 2500 mm |
| Wheelbase | 3360 mm |
| Front Overhang / Rear Overhang | 1075 mm / 955 mm |
| Approach Angle / Departure Angle | 13° / 22° |
| Front Track Width | 1385 mm |
| Rear Track Width | 1425 mm |
| Tire Specification | 7.00R16LT 10PR |
| Number of Tires | 6 |
| Leaf Spring Configuration | 7 / 4+6, 7 / 5+6 |
3. Powertrain System
| Parameter | Value |
|---|---|
| Engine Model | JX4D30B6H |
| Engine Power | JMC 115 HP |

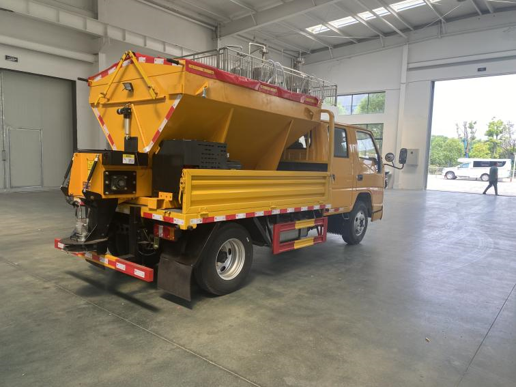

4. Hopper & Deicing Agent Spreader
| Parameter | Value |
|---|---|
| Hopper Material | Q235 Carbon Steel |
| Hopper Dimension (L×W×H) | 2600 × 2060 × 400 mm |
| Spreader Hopper Volume | 3 m³ |
| Spreader Material | 4mm Carbon Steel |
| Power Source | Chassis PTO / Single Cylinder Auxiliary Engine |
| Fuel Type for Auxiliary Engine | Diesel |
| Material Conveying Type | Scraper Conveyor |
| Spreading Width | 2 – 14 m (adjustable) |
| Spreader Disc Material | Stainless Steel |
| Spreader Disc Diameter | 350 mm |
| Deicing Agent Application Rate | 20 – 200 g/m² (adjustable) |
| Working Speed | 5 – 20 km/h |
| Control Mode | Wired In-Cab Operation |
| Uniform Feeding Feature | Filter screen prevents large particles/debris from entering, ensures equipment and traffic safety |
| Loading/Unloading Feature | Detachable dedicated lifting support system for easy storage in non-operating state |
| Structural Feature | V-shaped hopper with simple reliable structure, ensures automatic complete discharging with no residue |

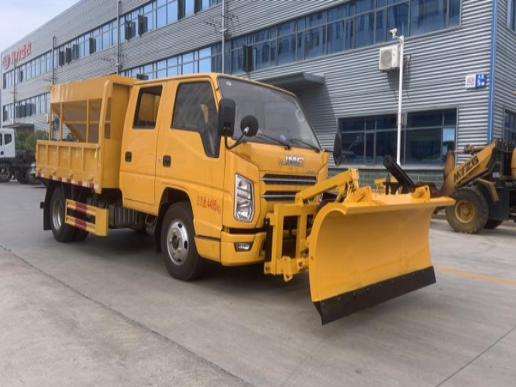

5. Optional 2m Snow Plow
| Parameter | Value |
|---|---|
| Product Model | CHL-XC-2000 |
| Weight | 260 kg |
| Overall Dimension (L×W×H) | 2000 × 1080 × 1000 mm |
| Working Voltage | 12V / 24V (selected per chassis) |
| Lifting Height | 200 – 400 mm |
| Operation Mode | Electro-Hydraulic Linkage Control |
| Control Voltage | 12/24V matched power unit |
| Left-Right Deflection Angle | ≥ 30° |
| Snow Removal Efficiency | 90 % |
| Maximum Obstacle Clearance Height | 100 mm |
| Working Speed | 5 – 30 km/h |
| Blade Thickness | 4 mm |
| Cutting Edge Thickness | 14 mm |
| Cutting Edge Material | High Wear-Resistant Steel |

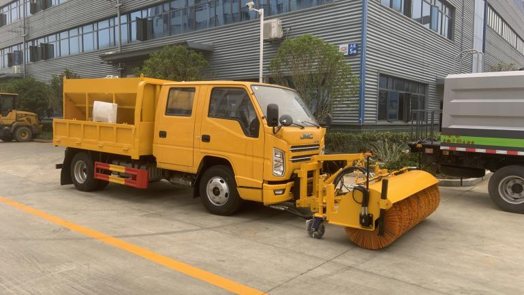

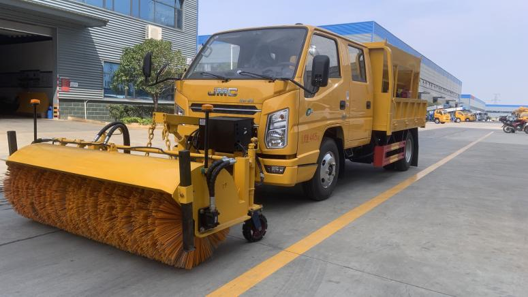

6. Optional 2m Snow Roller Brush
| Parameter | Value |
|---|---|
| Sweeping Width | 2 m |
| Left-Right Adjustment Angle | ± 30° |
| Brush Diameter | 660 mm |
| Working Speed | 5 – 20 km/h |
| Obstacle Clearance Height | 250 mm |
| Total Weight | 300 – 350 kg |
| Control Mode | Remote Control |
| Drive System | Independent Hydraulic Unit |
| Brush Material | Polypropylene mixed with elastic steel wire |
| Support Wheels | 2 load-bearing wear-resistant universal wheels |
| Brush Protection | Support rods on both ends to prevent brush crushing damage |
| Position Indicator | Warning lights for brush head position monitoring during operation |
7. Chassis Standard Configuration
| Parameter | Value |
|---|---|
| Cab Color | Engineering Yellow |
| Cab Interior | Original Factory Air Conditioner, Electric Windows, Central Door Locking |
| Brake System | ABS Hydraulic Brake, Exhaust Brake |
| Safety Feature | Seatbelt Voice Alarm Reminder |
