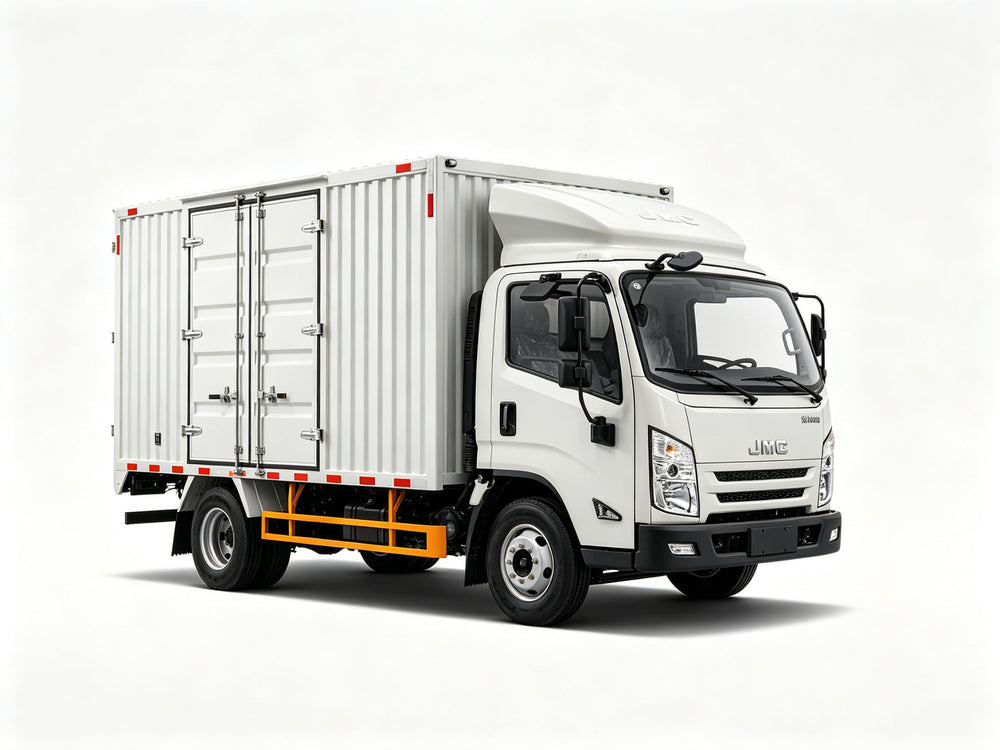

JMC 115HP Cargo Van Truck
Request a Quote Now
1. Complete Vehicle Basic Parameters
| Parameter | Value |
|---|---|
| Vehicle Type | Cargo Van Truck |
| Complete Vehicle Model | CL5040XXY6HL |
| Gross Vehicle Weight | 4495 kg |
| Rated Load Capacity | 1495 kg |
| Curb Weight | 2800 kg |
| Number of Axles | 2 |
| Axle Load Distribution | 1720 kg / 2775 kg |
| Cab Seating Capacity | 3 persons |
| Fuel Type | Diesel |
| Maximum Speed | 105 km/h |
| Emission Standard | Euro VI / National VI |
2. Dimension & Wheel Parameters
| Parameter | Value |
|---|---|
| Overall Dimension (L×W×H) | 5995 × 2050 × 2850 mm |
| Cargo Box Dimension (L×W×H) | 4200 × 2000 × 2000 mm |
| Cargo Box Volume | 16.8 m³ |
| Wheelbase | 3360 mm |
| Front Overhang / Rear Overhang | 1080 mm / 1555 mm |
| Approach Angle / Departure Angle | 20° / 18° |
| Front Track Width | 1385 mm |
| Rear Track Width | 1425 mm |
| Tire Specification | 7.00R16LT 10PR |
| Number of Tires | 6 |
| Leaf Spring Configuration | 7 / 5+6 |
3. Powertrain System
| Parameter | Value |
|---|---|
| Engine Model | JX4D30B6H |
| Engine Brand | JMC |
| Engine Power | 115 HP (85 kW) |
| Engine Displacement | 2.8 L |
| Transmission | 5-Speed Manual Gearbox |
| Final Drive Ratio | 5.286 |
| Fuel Tank Capacity | 80 L |
4. Cargo Box Configuration
| Parameter | Value |
|---|---|
| Cargo Box Type | Closed Van Box |
| Box Material | Corrugated Steel Panel / Optional Composite Panel |
| Box Floor Thickness | 30mm Plywood with Anti-Slip Surface |
| Rear Door | Double Swing Doors (270° opening) |
| Side Door | Optional single sliding side door (900mm width) |
| Interior Lighting | LED dome light (2 units) |
| Cargo Tie-Down Points | 6 floor-mounted tie-down rings |
| Anti-Theft Lock | Central locking on all doors |
| Roof Reinforcement | Reinforced roof ribs (6 pcs) |
| Waterproof Rating | IP65 (sealed against rain and dust) |
5. Chassis Configuration
| Parameter | Value |
|---|---|
| Chassis Model | JX1041TSG26 |
| Cab Type | Single-Row Flat-Top Cab |
| Front Axle | 2.0 Ton |
| Rear Axle | 3.5 Ton |
| Frame Specification | 180mm Single-Layer Frame |
| Steering System | Hydraulic Power Steering |
| Brake System | Hydraulic Brake with ABS |
| Parking Brake | Cable-Operated |
| Suspension | Leaf Spring with Shock Absorbers |
6. Interior & Comfort Features
| Feature | Description |
|---|---|
| Air Conditioner | Manual Air Conditioning |
| Windows | Electric Front Windows |
| Door Lock | Central Door Locking |
| Audio System | AM/FM Radio with USB & Bluetooth |
| Instrument Panel | Analog + Digital Multi-Function Display |
| Steering Wheel | 3-Spoke Polyurethane Steering Wheel |
| Seats | Fabric Seats with Adjustable Driver Seat |
| Storage | Door Pockets, Glove Box, Overhead Storage |
| Power Outlet | 12V / 24V Power Outlet |
7. Safety & Standard Features
| Feature | Description |
|---|---|
| ABS Anti-Lock Braking | Equipped |
| Seatbelt | 3-Point Seatbelts for All Seats |
| Reverse Alarm | Audible reverse warning buzzer |
| Reflective Strips | Full perimeter reflective marking |
| Side Marker Lights | Front & rear side marker lights |
| Rearview Mirror | Manual adjustable dual-arm mirrors |
| Daytime Running Lights | Equipped |
| Spare Tire | Full-size spare tire with carrier |
| Fire Extinguisher | 2kg dry powder fire extinguisher (mounted) |
| Tool Kit | Standard vehicle tool kit with jack |
8. Optional Upgrades
| Option | Description |
|---|---|
| Side Sliding Door | 900mm wide single sliding side door |
| Rear Tailgate Lift | Hydraulic tailgate lift (500kg capacity) |
| Partition Wall | Steel bulkhead between cab and cargo area |
| Roof Vent | 2 units of roof ventilation fans |
| Side Curtain | Curtain-side body for side loading |
| Refrigeration Unit | Refrigerated insulation box (-18°C to +12°C) |
| Reverse Camera | 7-inch display with rearview camera |
| Cruise Control | Electronic cruise control system |
| Alloy Wheels | Aluminum alloy wheel upgrade |
| GPS Tracking | Built-in GPS fleet tracking system |
