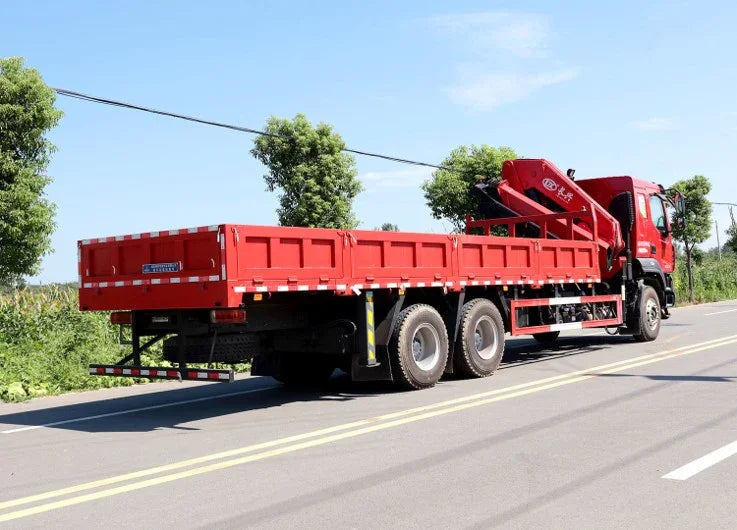

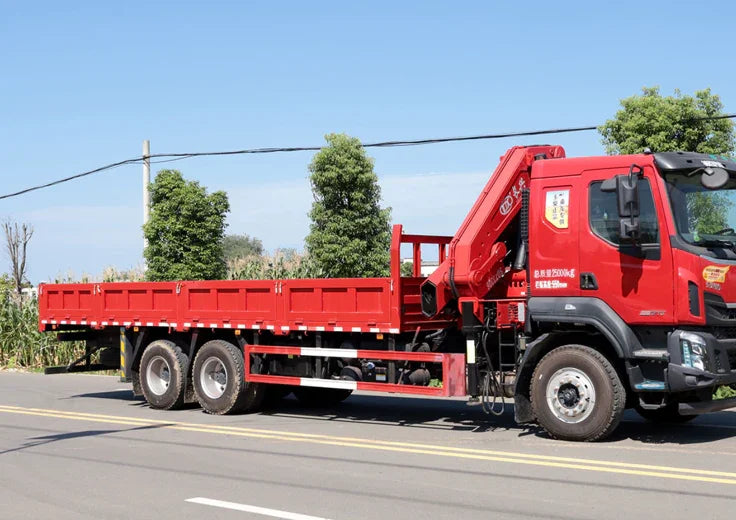

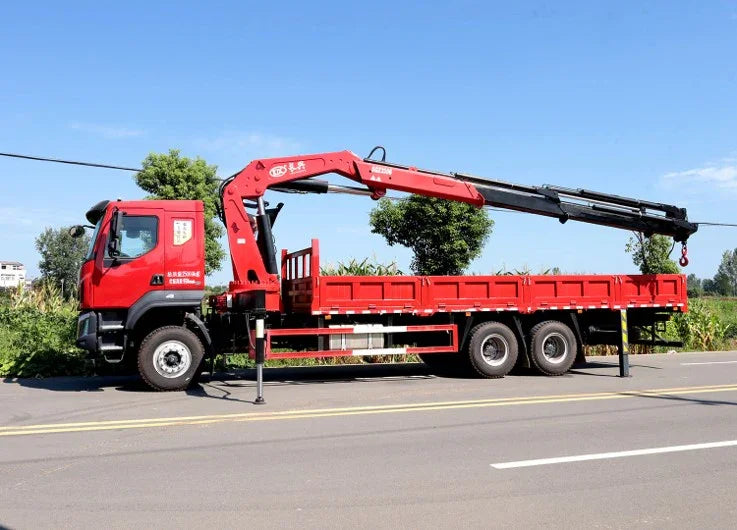

Dongfeng 6×4 10T Knuckle Boom Crane

2.Basic parameters of vehicle

Truck Brand

Dongfeng

Chassis Model

DFV1253GSZ6D

Drive Type

Left Hand Drive 6*4

Vehicle Size(mm)

12000*2500*3750

G.V.W(kg)

25000

Net Weight(kg)

16500

Engine Model

YCS06270-60

Engine capacity

6.234L

Engine power

270HP/199KW

Emission Standard

Euro 6

Wheelbase

5900+1350mm

Cab Capacity

2

Transmission

9JS119TA

Front/Rear Axle

5.5T/11.5T

Tyre Size

11.00R20

Frame

8+5+6/300

Fuel tank

280L

Container Size

8500 × 2450 × 550mm

Crane Brand

CX/SQZ200-4

Maximum lifting weight

10T

Quantity of telescopic arm

4-section

Working angle

Full hydraulic, 360 ° Full rotation

Maximum lifting height

13M

Working radius

9.98M

Rear outriggers

Double-cavity telescopic square support legs

3.Crane parameters
