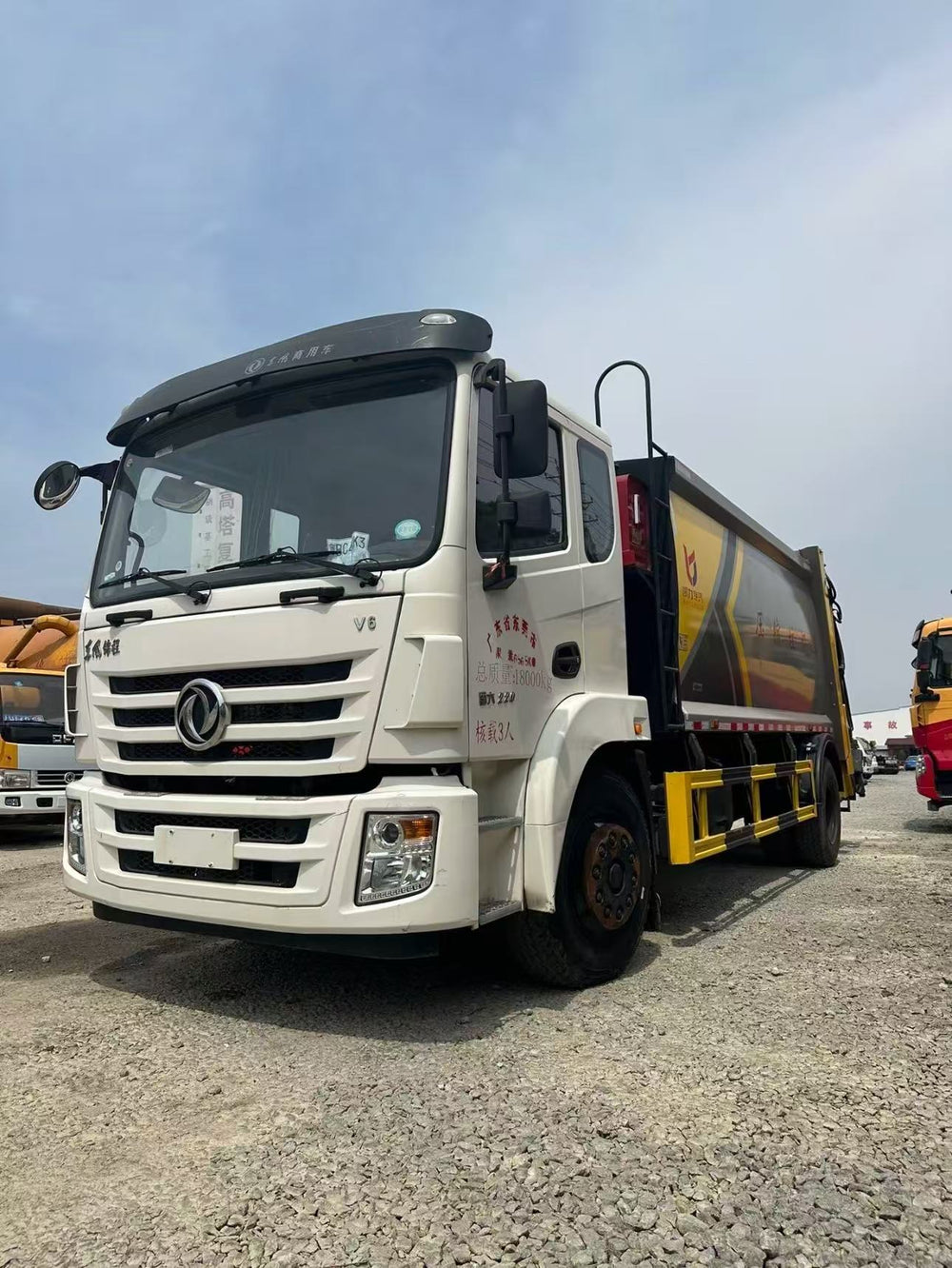

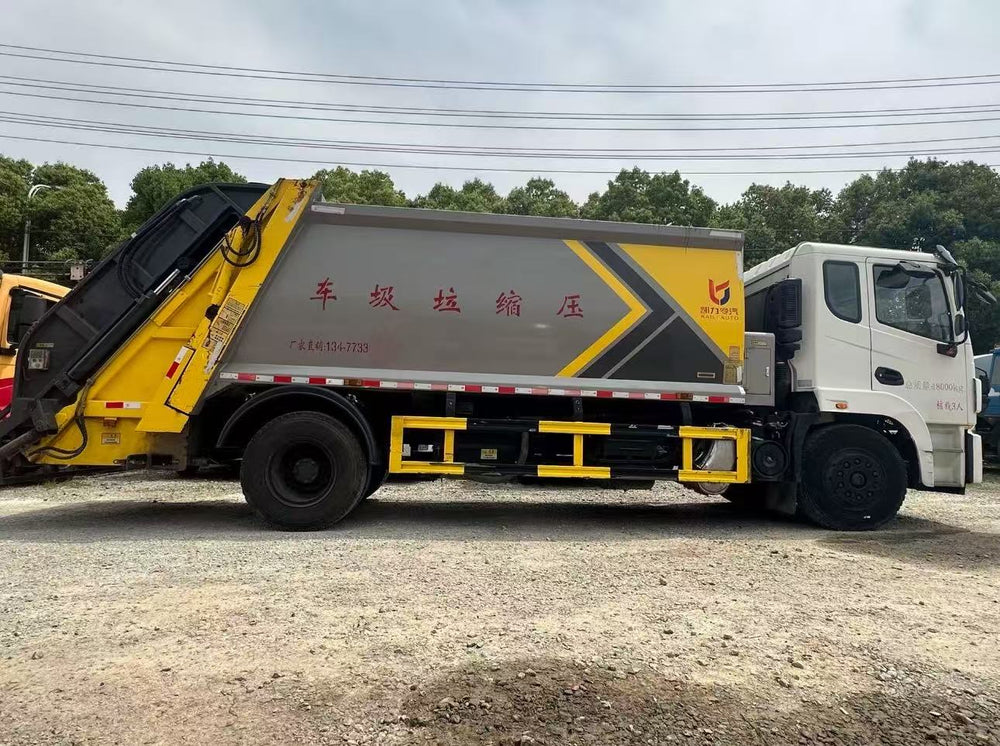

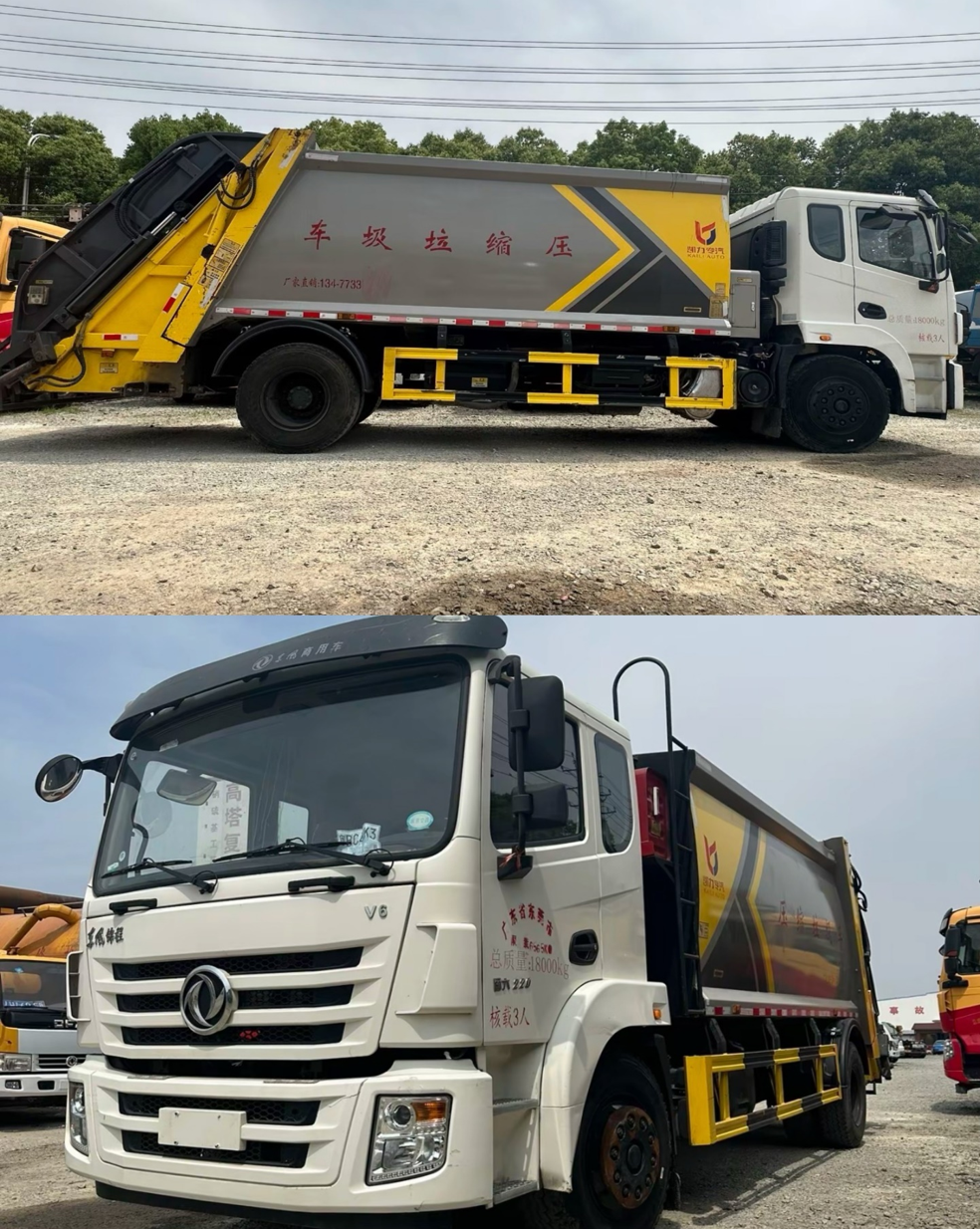

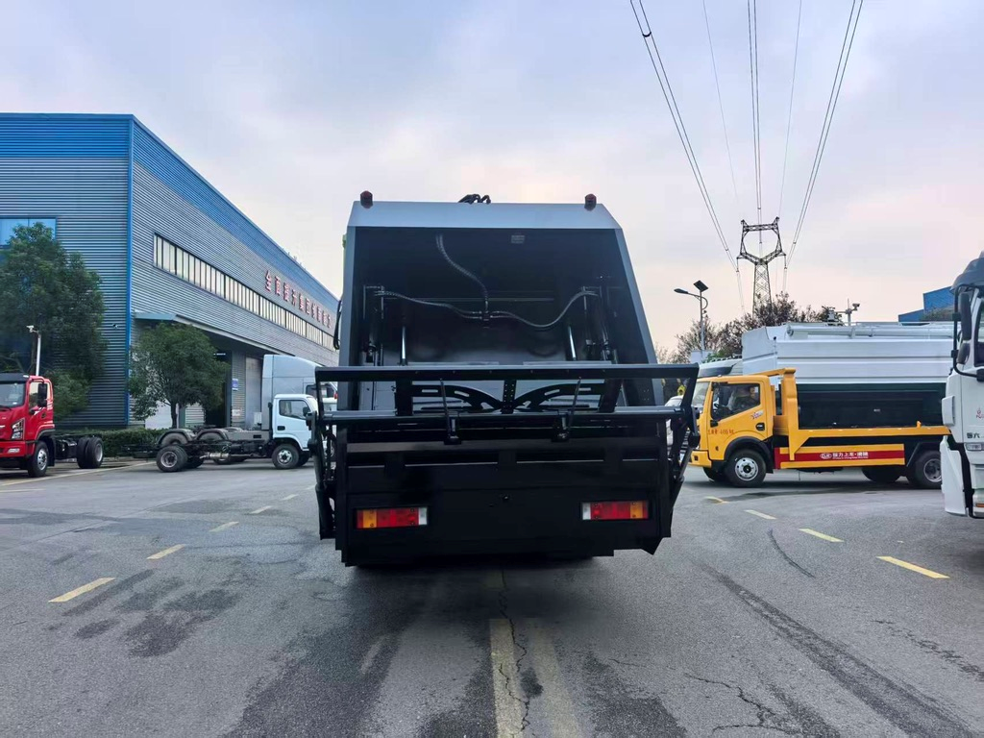

DongFeng 6×4 22m³ Compactor Garbage Truck

Model,Specification,Value

Chassis Brand

DONGFENG

Vehicle Size(L*W*H)

9500X2550×3500

Total mass(kg)

25000

Curb weight(kg)

12870

Front/Rear Axle Load

5.5t/23t(Double rear axle,per11.5t)

Cab Capacity

2

Drive Type

LHD

Fuel Type

Diesel

Fuel tank

280L

Engine Model

YCS06300-61

Engine Power

300HP

Engine displacement

7.7L

Emission Standard

Euro 5（converted from Euro 6 base engine）

Wheelbase(mm)

4350+1350

Tire size

11.00R20

Transmission

Fast 9-speed transmission with synchronizer

Standard features

Color LCD combination instrument, black wire-drawing aluminum panel.

Driver seat belt reminder, door ajar reminder.Electric windows, central control door lock.Huatai six-way adjustable shock-absorbing ergonomic seat (softness and hardness adjustable).

Dual USB fast & slow charging ports.

New standard visible driving recorder.

Original Pane air conditioner, LED daytime running lights, sun visor.

All-steel front mask and bumper, equipped with ABS system.

Effective volume of box (m3)

20m³

Compression Ratio

0.65~0.75

Operation mode

Automatic, Manual、Wireless remote control

Hydraulic system pressure

18Mpa

Hydraulic Oil Pump

Equipped with, WANY (Hefei Wanye)

Hydraulic Cylinder

All hydraulic cylinders are quenched and tempered, with built-in cushioning.

Multi-way Valve

WEISENBL Multi-way Valve

Balance valve

Equipped with

Compression valve

Equipped with

Loading mechanism type

Rear loading

Rear board opening mechanism

Hydraulic

Waste loading hopper

12000

Body material

5mm steel plate for sides and 5mm for the floor.

Unloading method

Rear discharge
