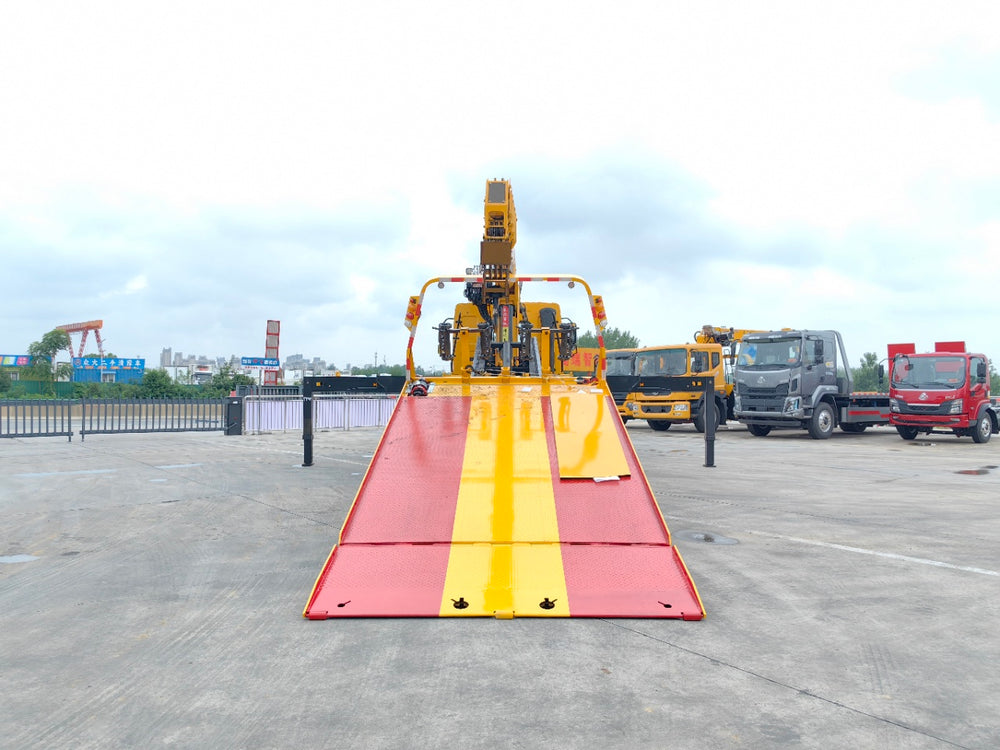

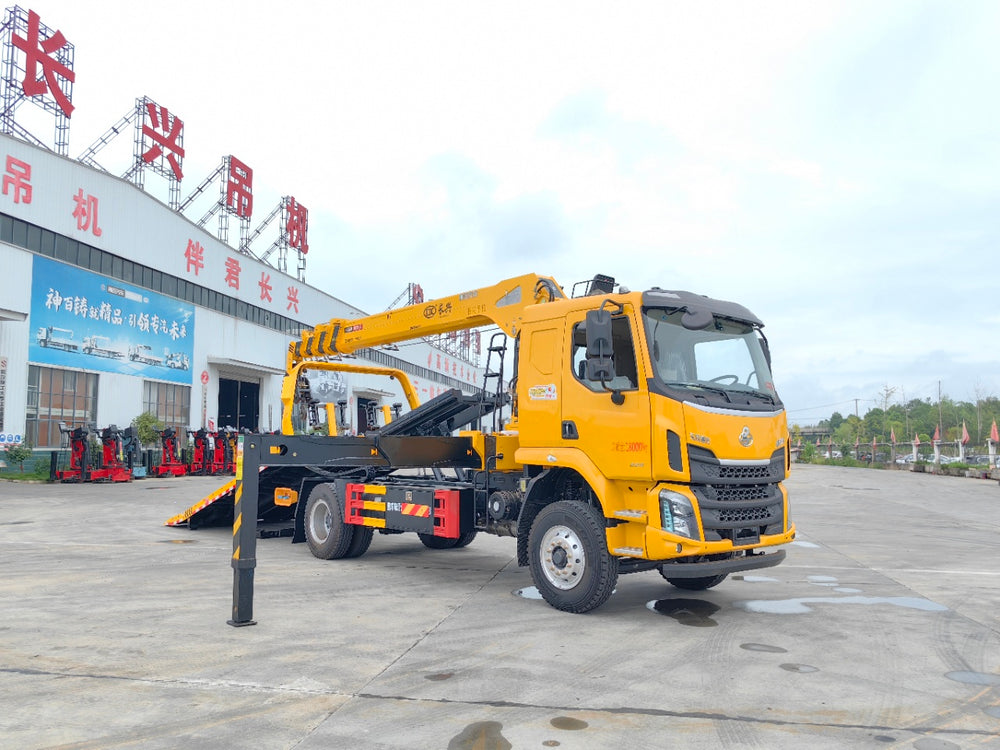

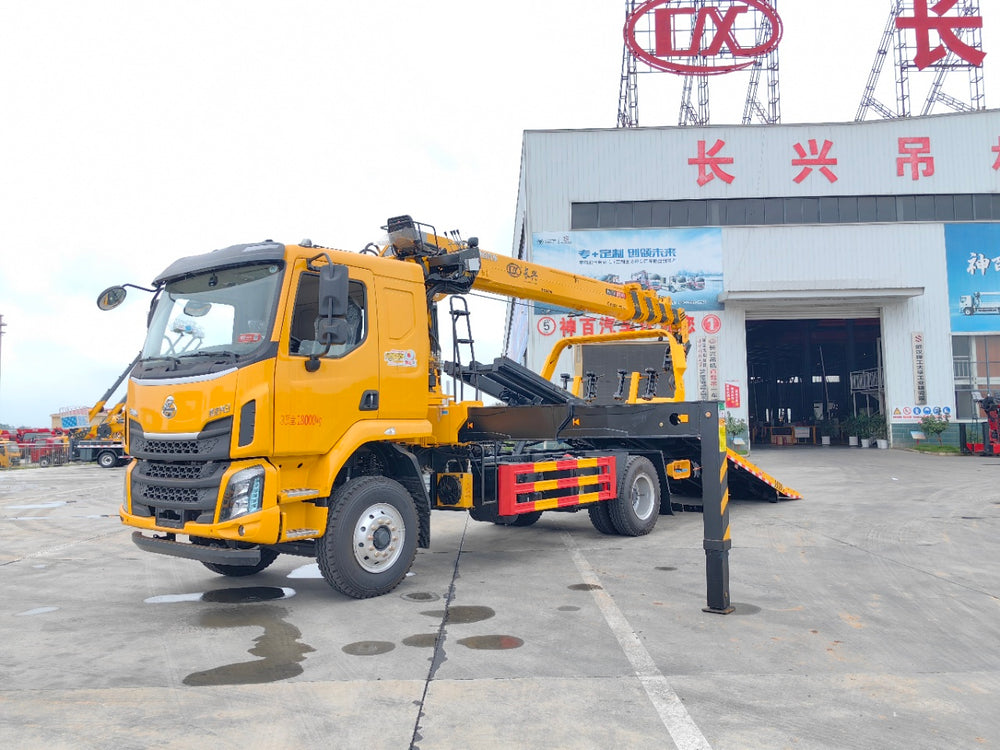

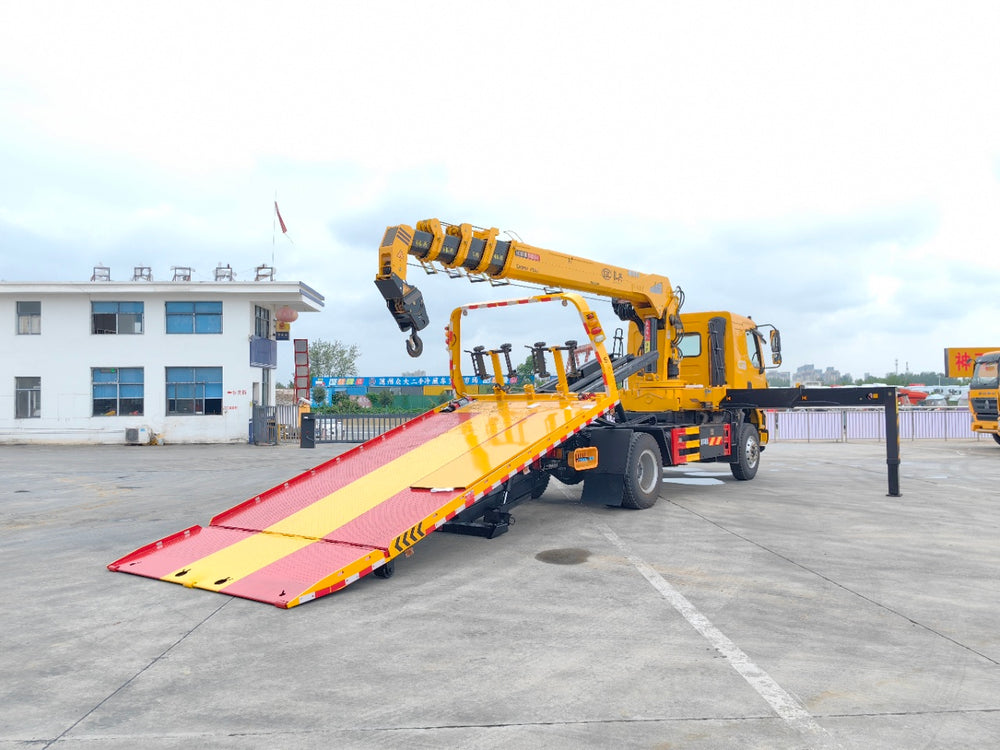

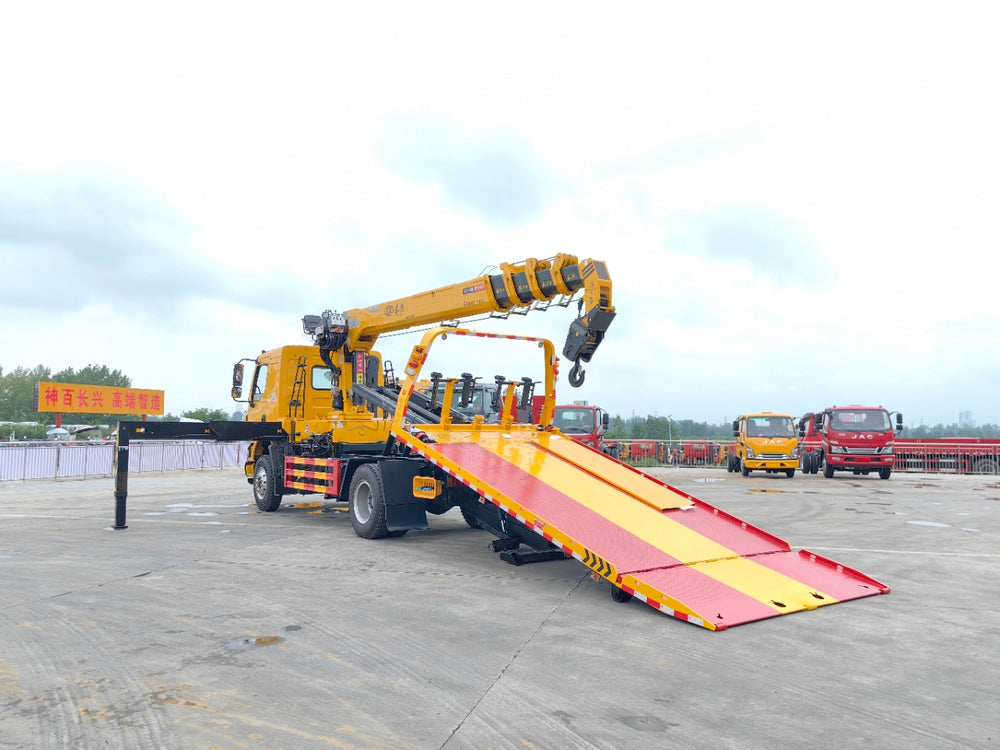

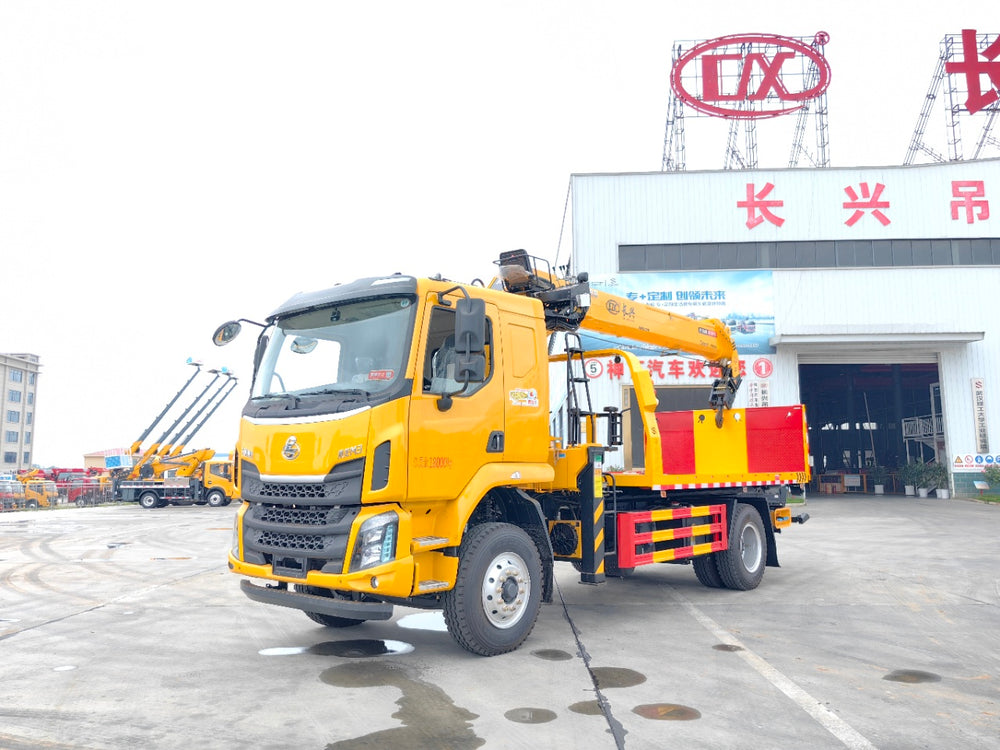

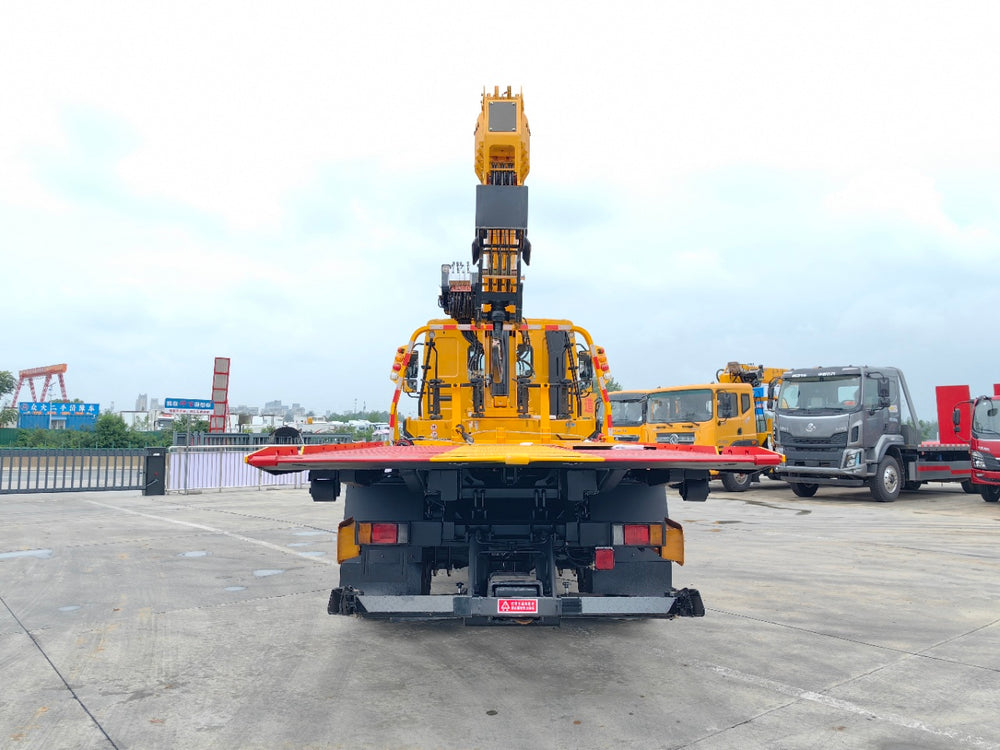

DongFeng 8T Wrecker Truck

1 / 7

Configuration Item	Detailed Parameters
Vehicle Model	ABC5182TQZLZ6
▌Chassis Configuration
Cab	Dongfeng Liuzhou Chenglong M3 half-forward cab
Engine	Yuchai 240HP diesel engine
Transmission	Fast 8JS95E-C gearbox with spline PTO
Wheelbase	4500 mm
Front Axle	5.5T front axle
Rear Axle	153 type rear axle, 4.875 final drive ratio
Chassis Frame	282(8+4) frame with local 3-layer composite reinforcement
Fuel Tank	168L aluminum alloy fuel tank
Tires	1000R20 steel wire tires
Standard Features	Original heating & cooling AC, remote throttle
▌Body Configuration
Body Type	8-ton 1+2 wrecker body, drop-down low-center-of-gravity design
Flatbed Dimensions	5.4m (Length) × 2.55m (Width)
Deck Material	6mm high-strength wear-resistant checkered steel plate
Border	16mm solid steel plate border with cutouts
Slide Rails	10mm thick manganese steel slide rails
Reinforcement	Dense under-bed "tian"-shaped lattice + dense triangular diagonal bracing
Hydraulic Cylinders	Main cylinder: 120mm; Lifting cylinder: 110mm
Winch	6-ton capacity winch
Rear Underlift	6-ton rear underlift arm
▌Crane Configuration
Crane Type	Changxing 8-ton 5-section boom crane
Boom Length	16.9 m
Lifting Height	18.5 m
Optional	Changxing 10-ton crane available
▌Included Accessories
	1 pair of auxiliary dollies
	1 pair of triangular wheel chocks
	4 tie-down straps
	1 vehicle crowbar
