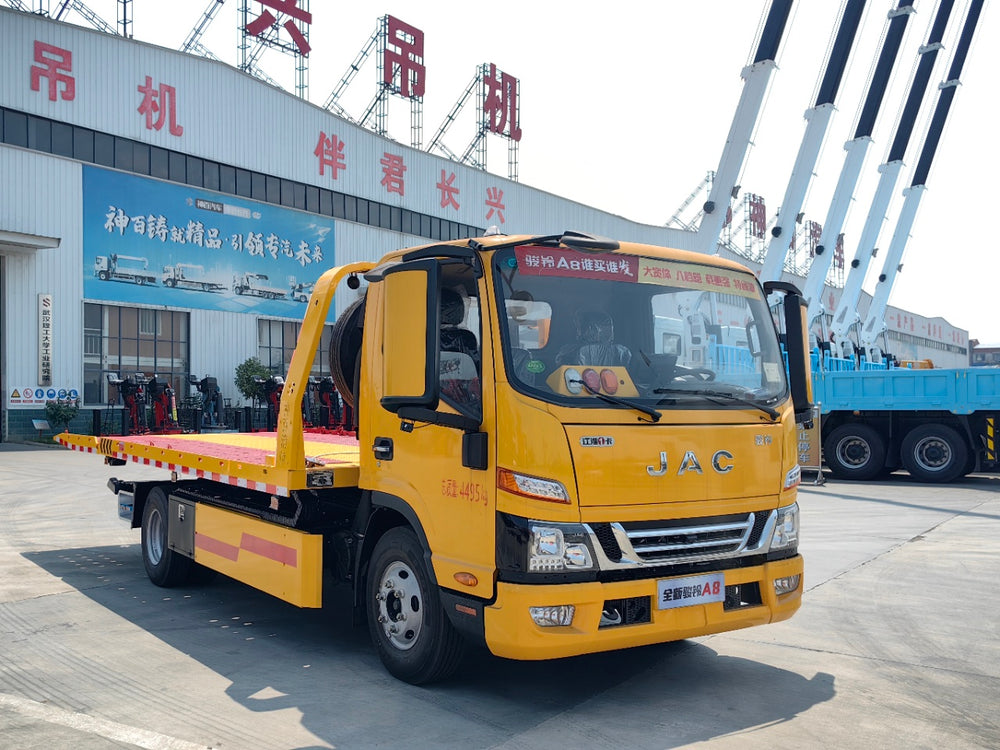

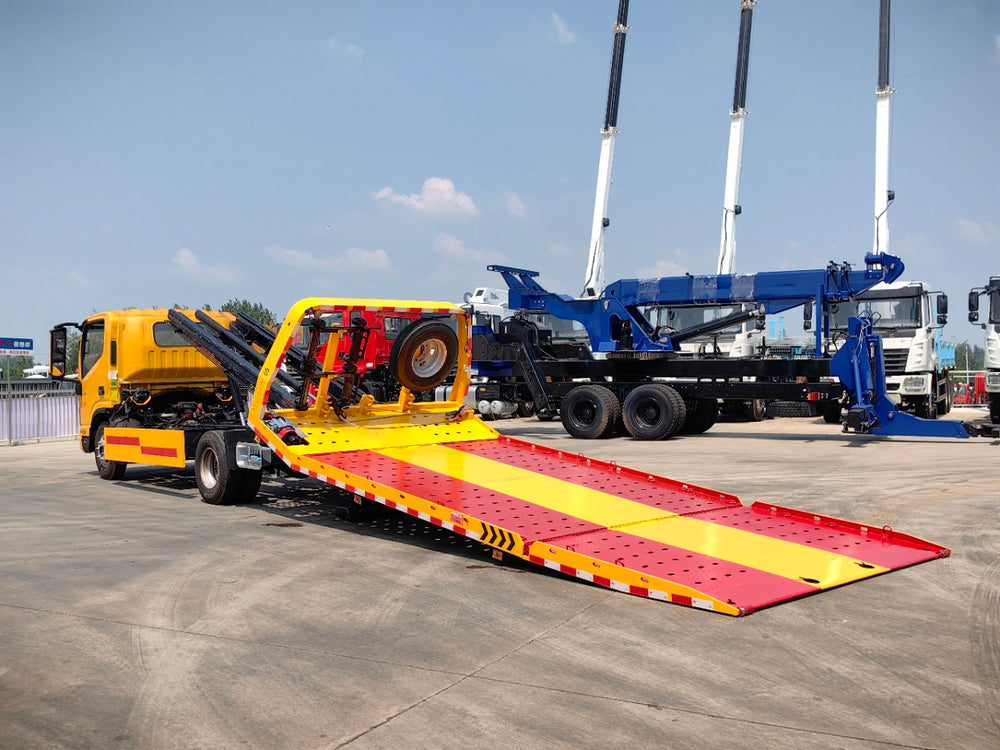

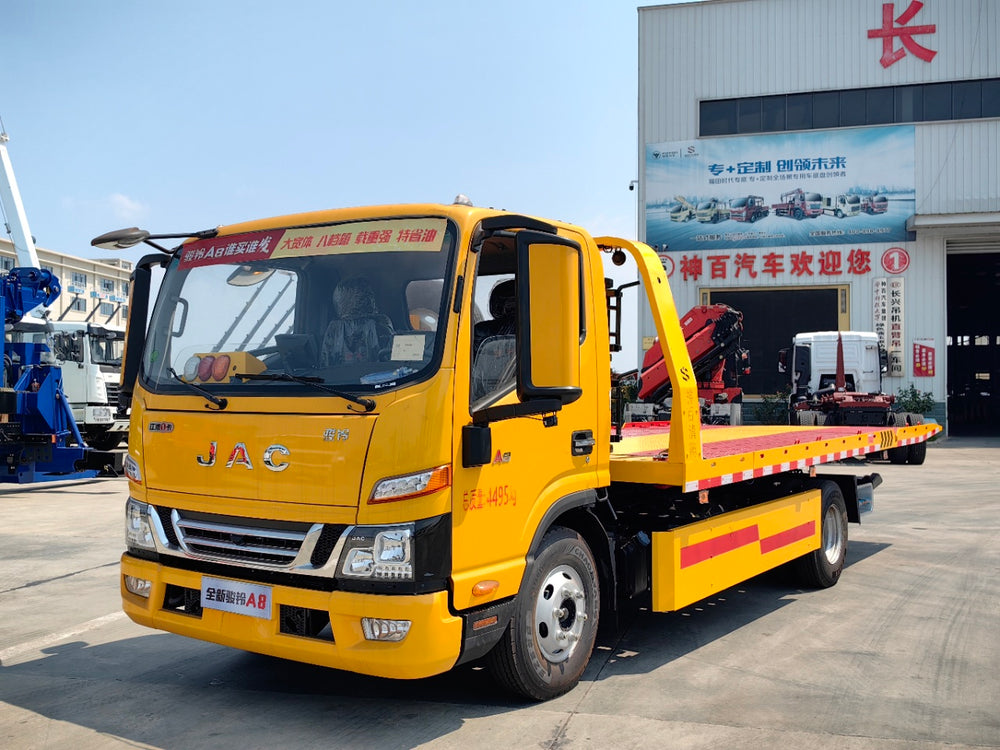

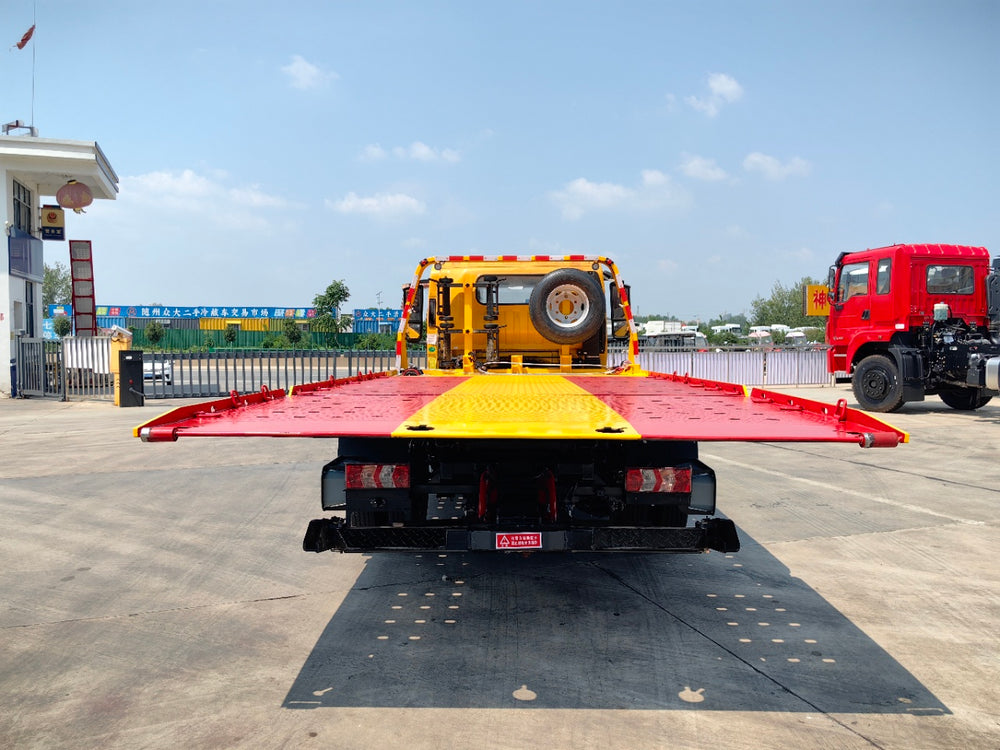

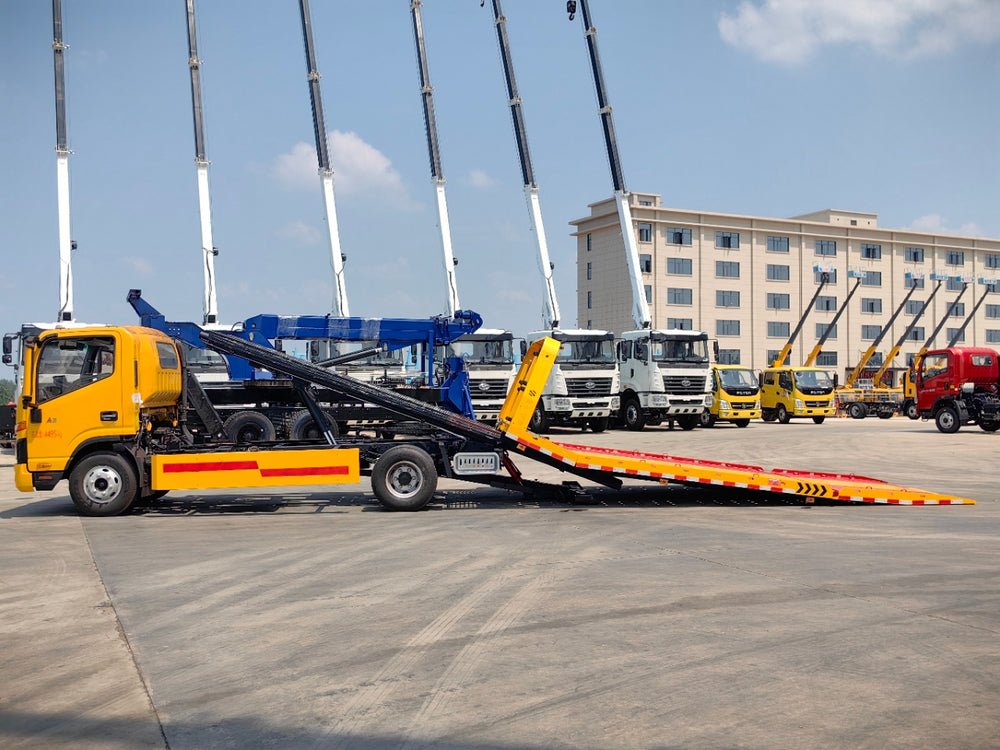

JAC 6T Wrecker Truck

1 / 15

Configuration Item	Detailed Parameters
Vehicle Model	ABC5049TQZHFC6
▌Chassis Configuration

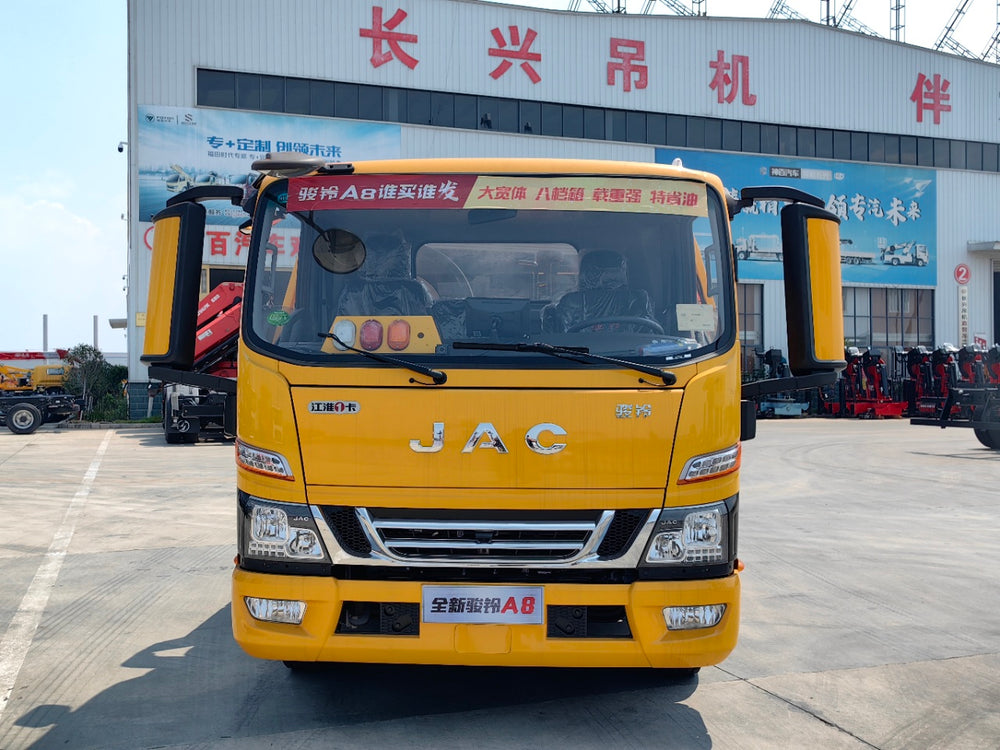

Cab	JAC Junling A8 Deluxe 2100mm wide-body cab
Engine	Quanchai Q25 162HP diesel engine
Transmission	Wanliyang 8-speed gearbox with high-low range
Wheelbase	3600 mm
Chassis Frame	Original double-layer frame (lifetime warranty)
Tires	700R16 steel wire tires, 750R16 optional
Rear Axle	7.2-ton capacity, 4.33 final drive ratio
Standard Features	Power windows, remote key, leather seats, original heating & cooling AC, multi-function steering wheel, heated side mirrors, exhaust brake, coffee-colored interior
▌Body Configuration

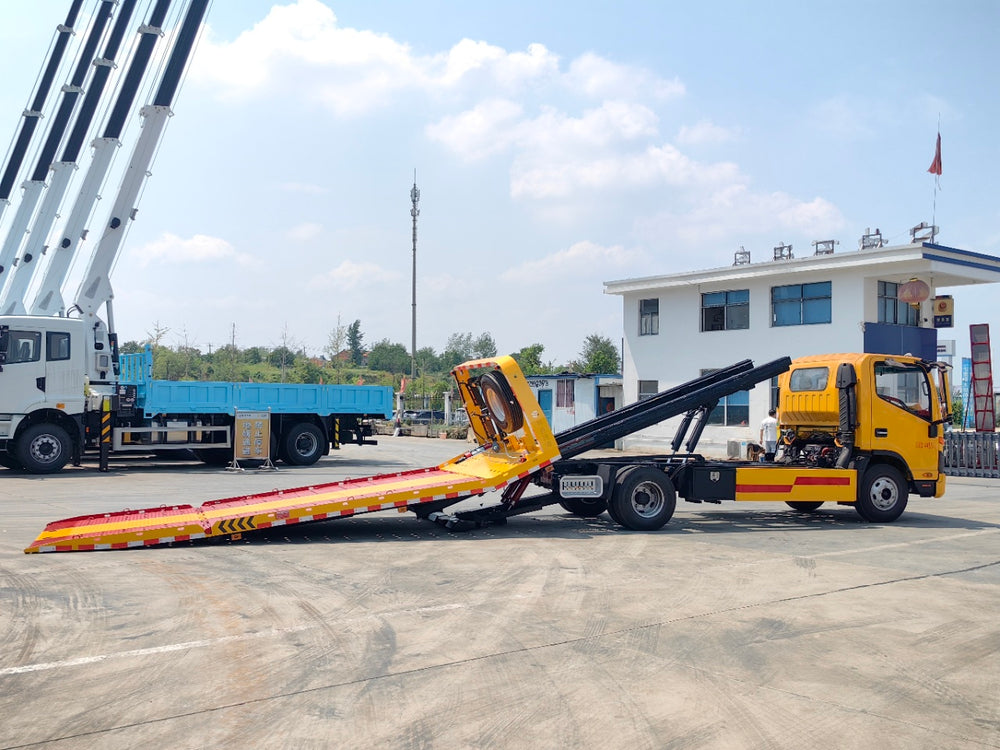

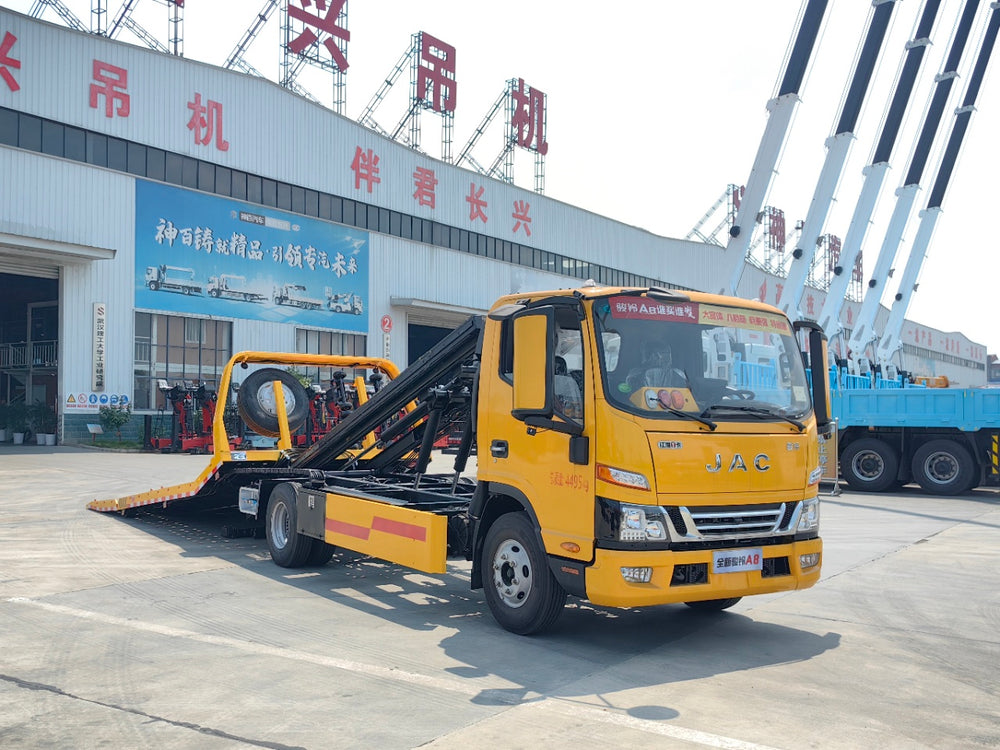

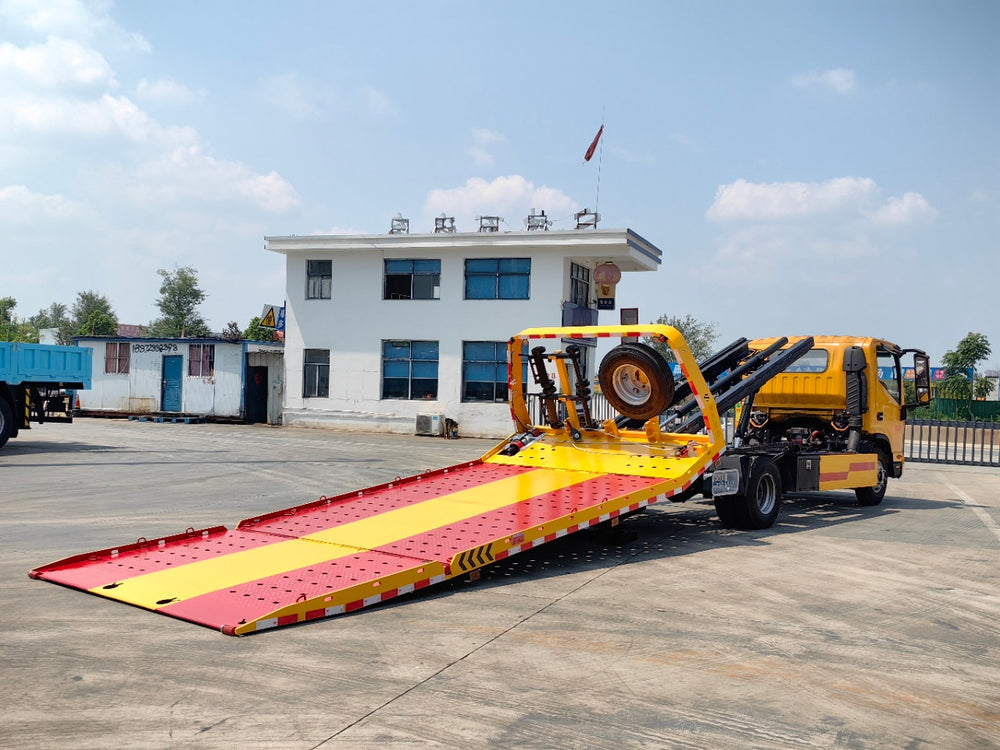

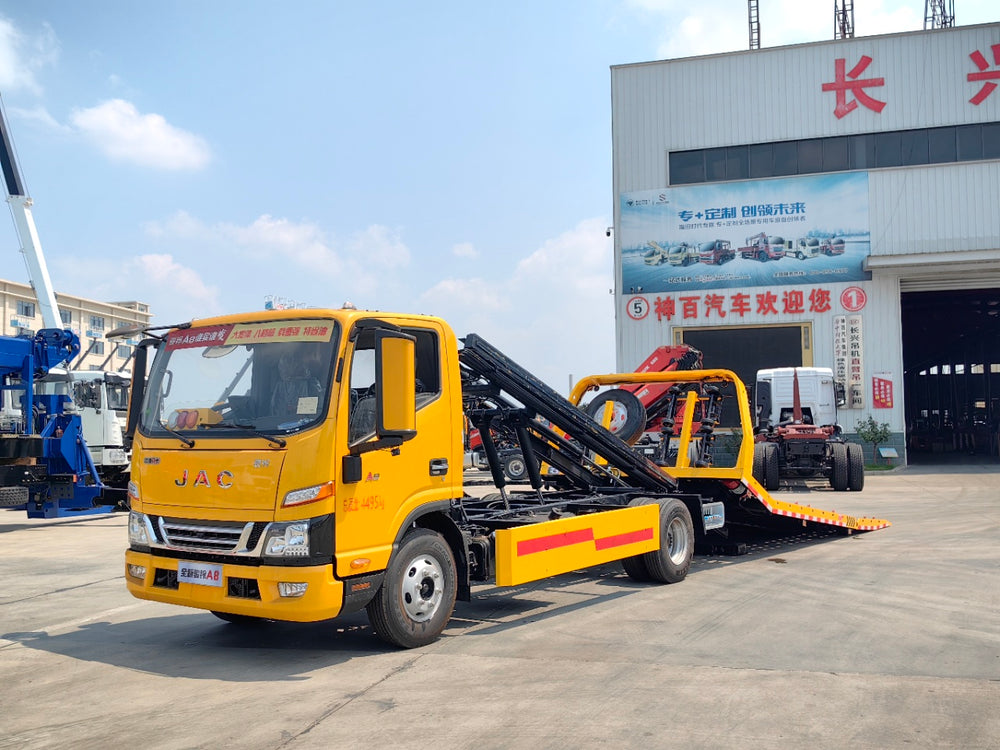

Body Type	Heavy-duty 6-ton integrated tilt-drop wrecker body
Flatbed Dimensions	Length: 5.6-5.8m optional; Width: 2.3-2.55m customizable
Sub-frame	Dual sub-frame assembly

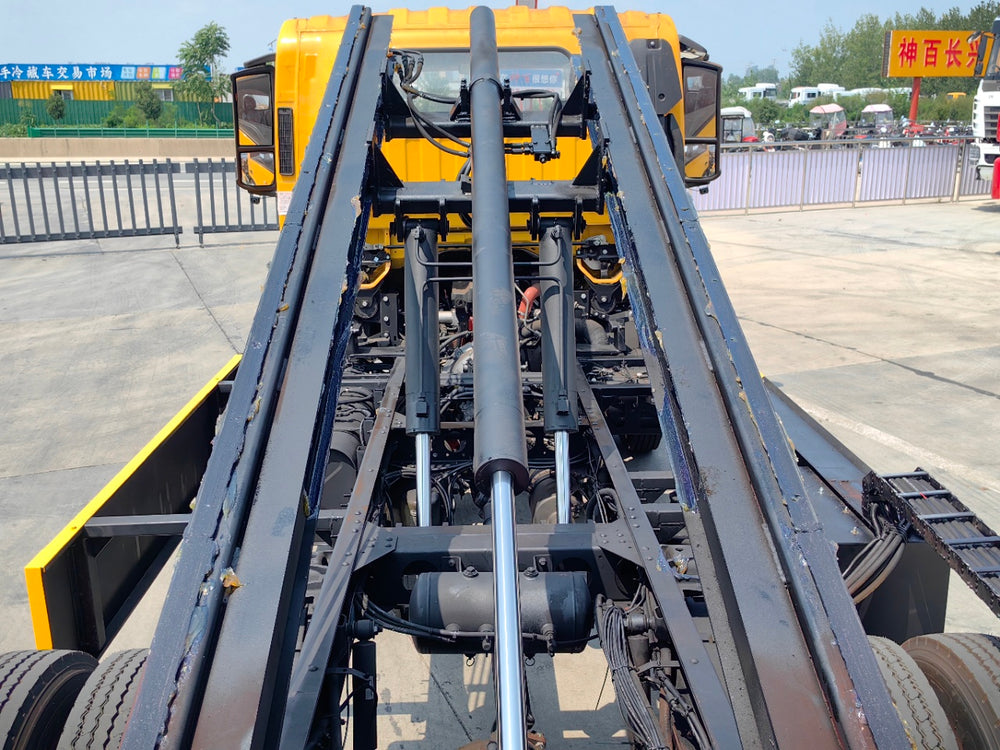

Hydraulic Cylinders	Flatbed extension cylinder: 110mm; Lifting cylinder: 95mm
Slide Rails	10mm manganese steel

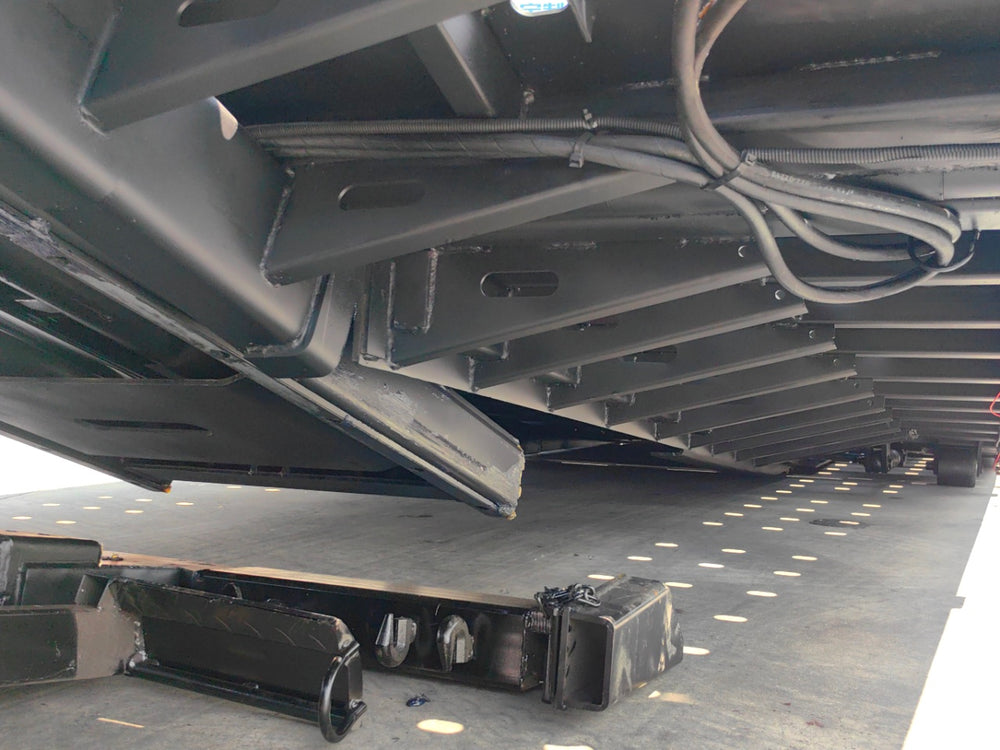

Reinforcement	Dense under-bed "tian"-shaped lattice + dense triangular diagonal bracing
Border	14mm solid steel plate border with cutouts

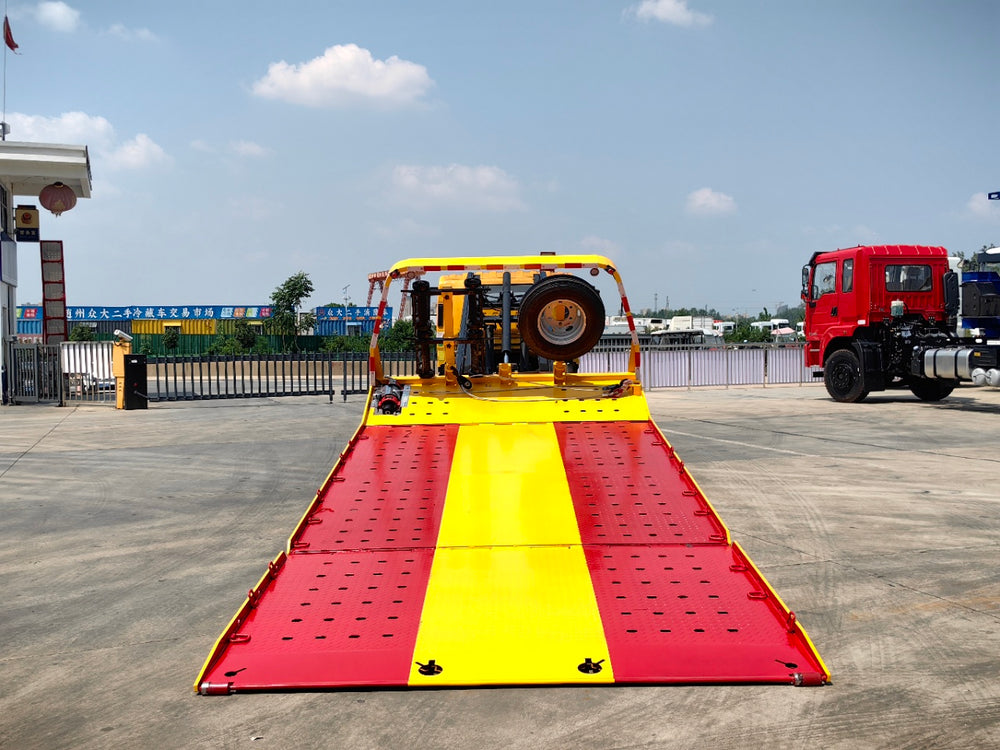

Deck Material	5mm anti-skid checkered steel plate
Tail Hinge	Hydraulic flip tail hinge

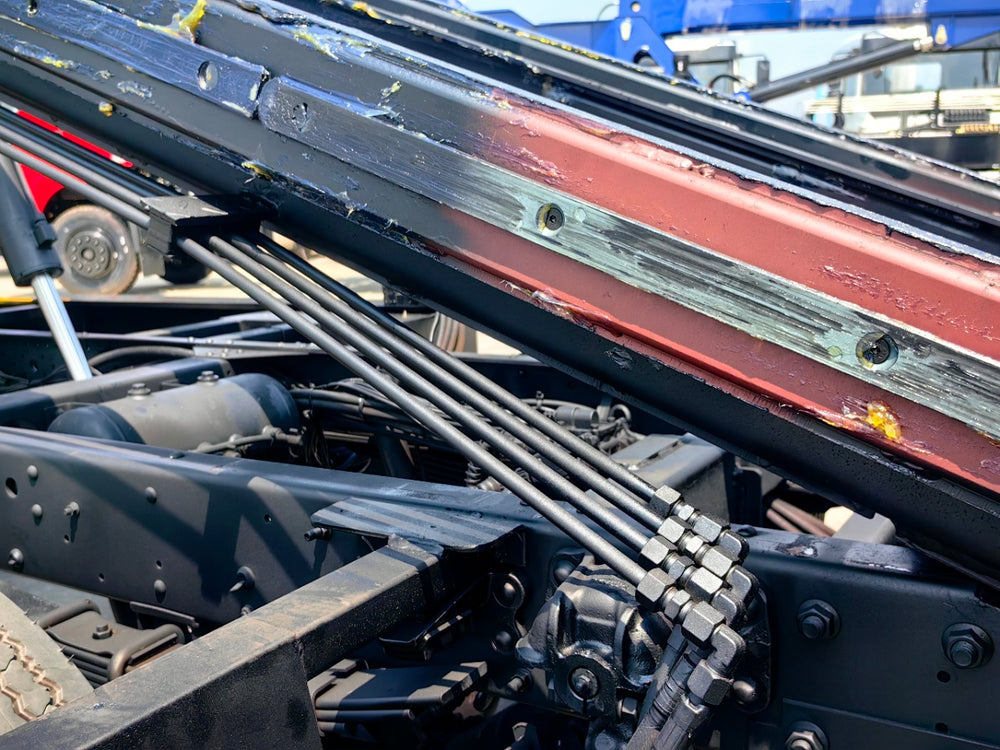

Hydraulic Valve	Domestic brand multi-way hydraulic valve
Winch	4-ton capacity winch
Rear Underlift	4-ton rear underlift arm (mounted on main beam)
▌Included Accessories
	1 set of headboard side lights
	2 rear LED work lights
	1 toolbox
	1 pair of triangular wheel chocks
	4 tie-down straps
	1 vehicle crowbar
	1 pair of square spare tire brackets
	1 pair of J-hooks
