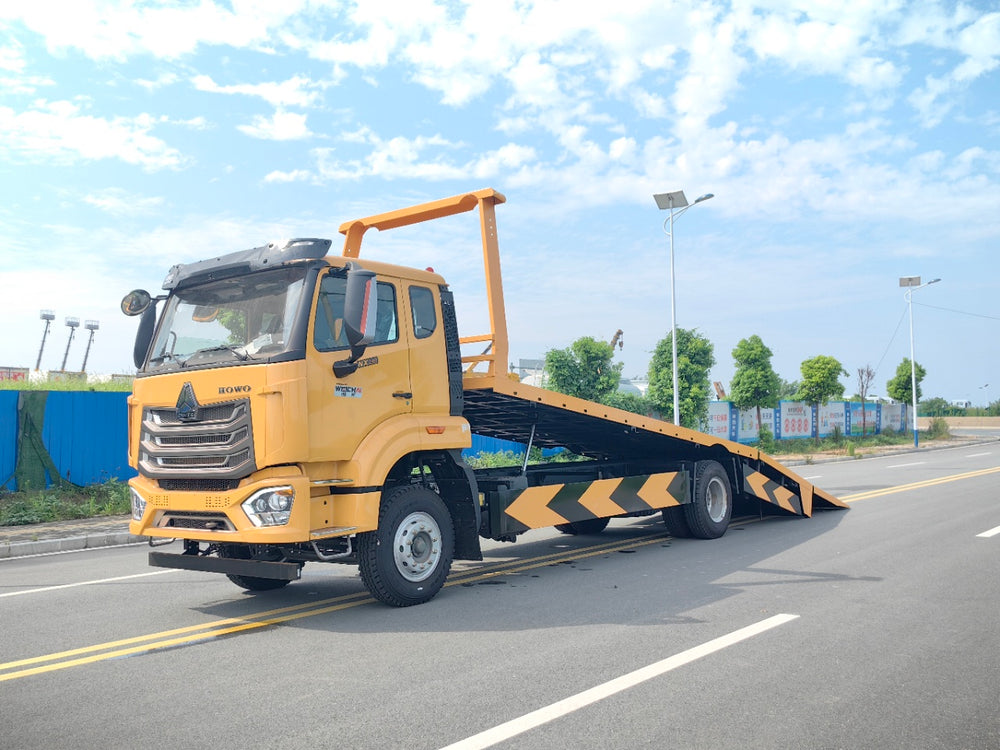

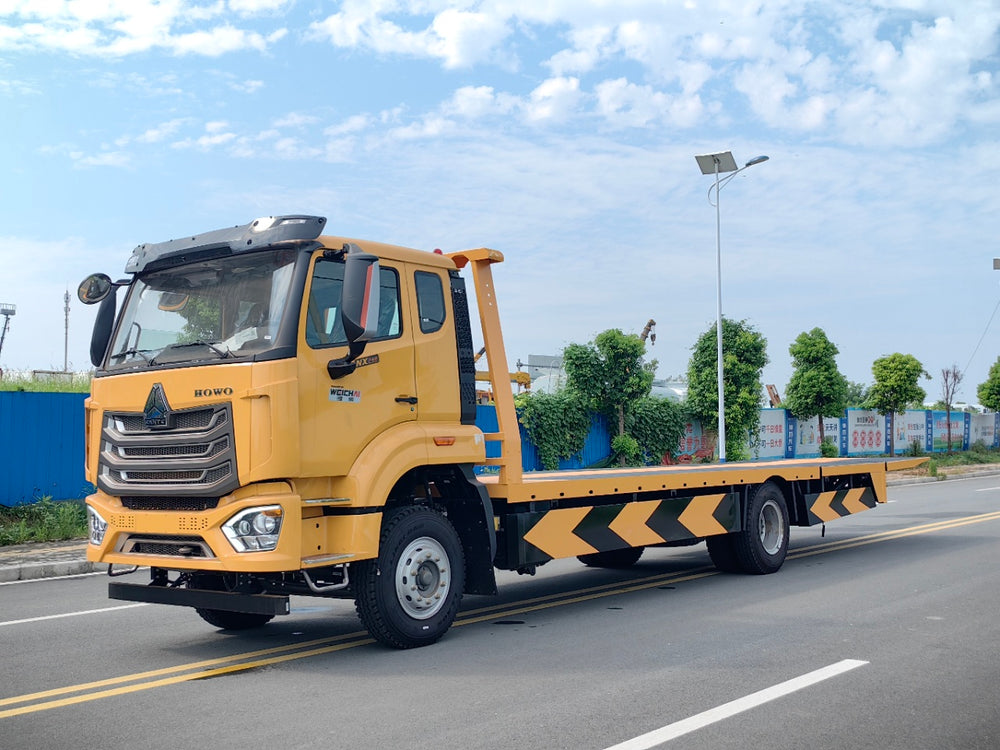

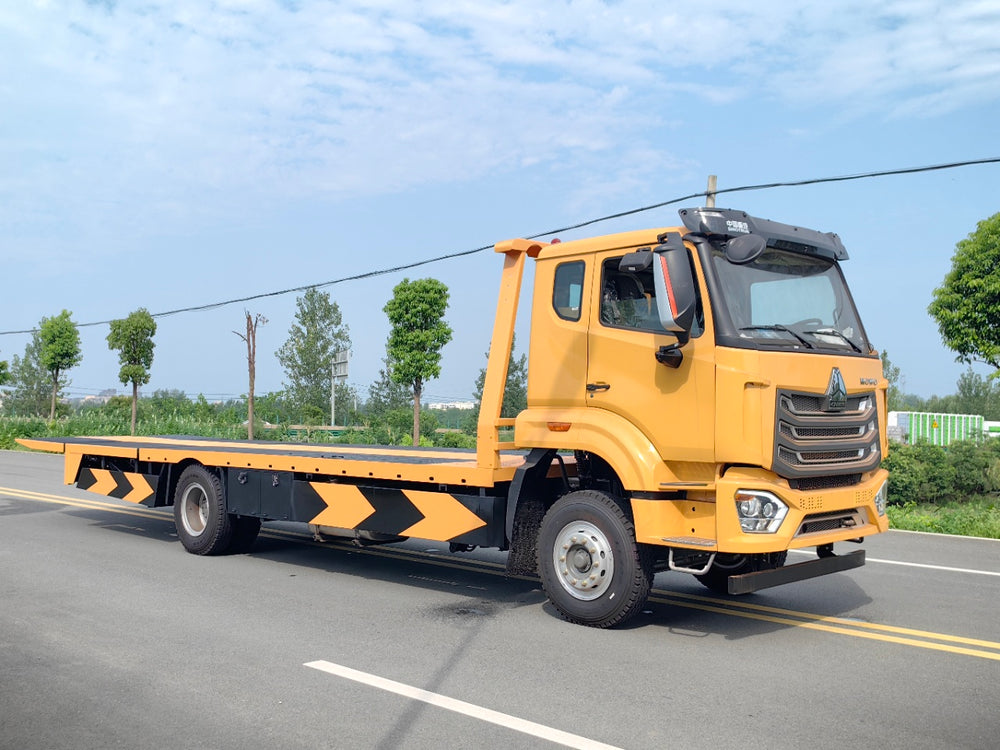

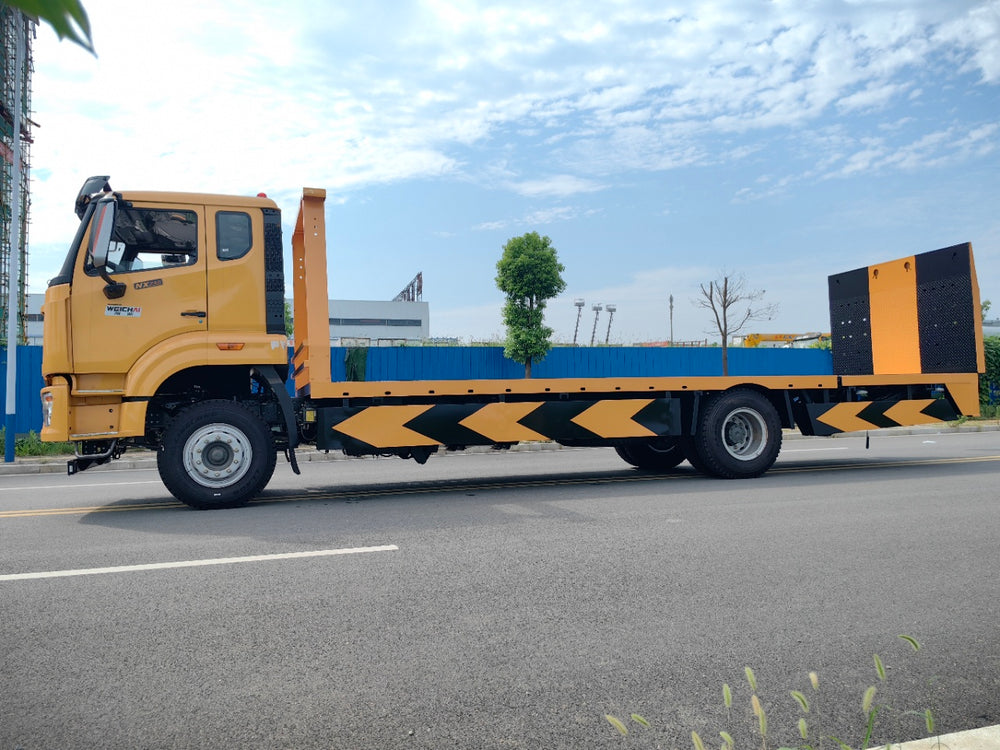

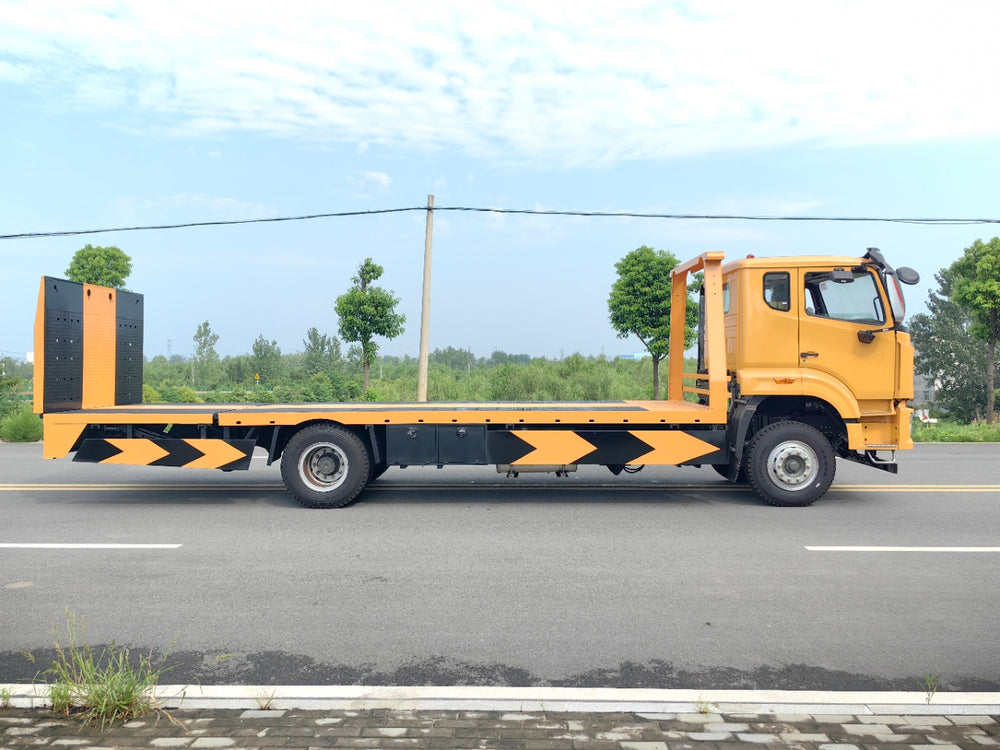

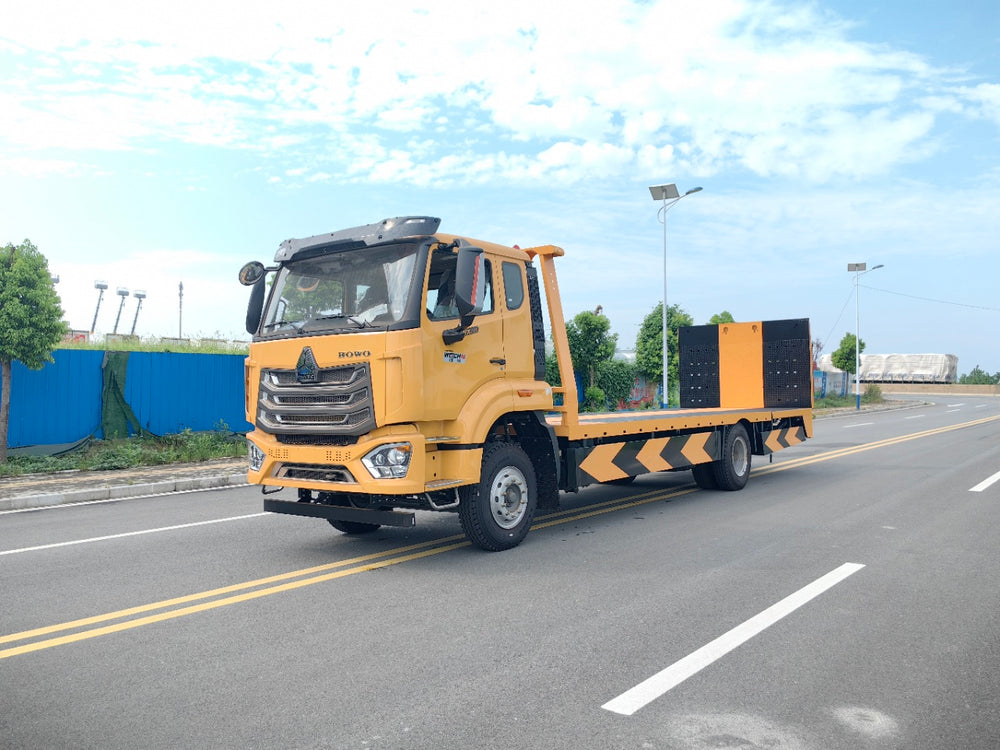

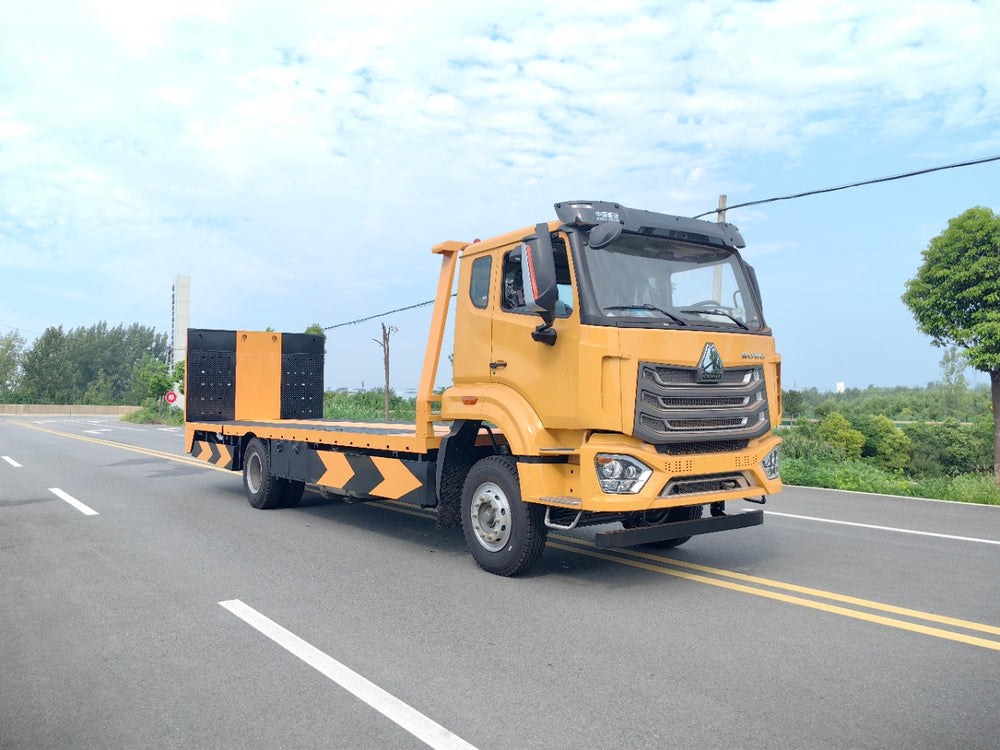

HOWO 20T Wrecker Truck

1 / 18

Parameter	Value
Chassis Configuration

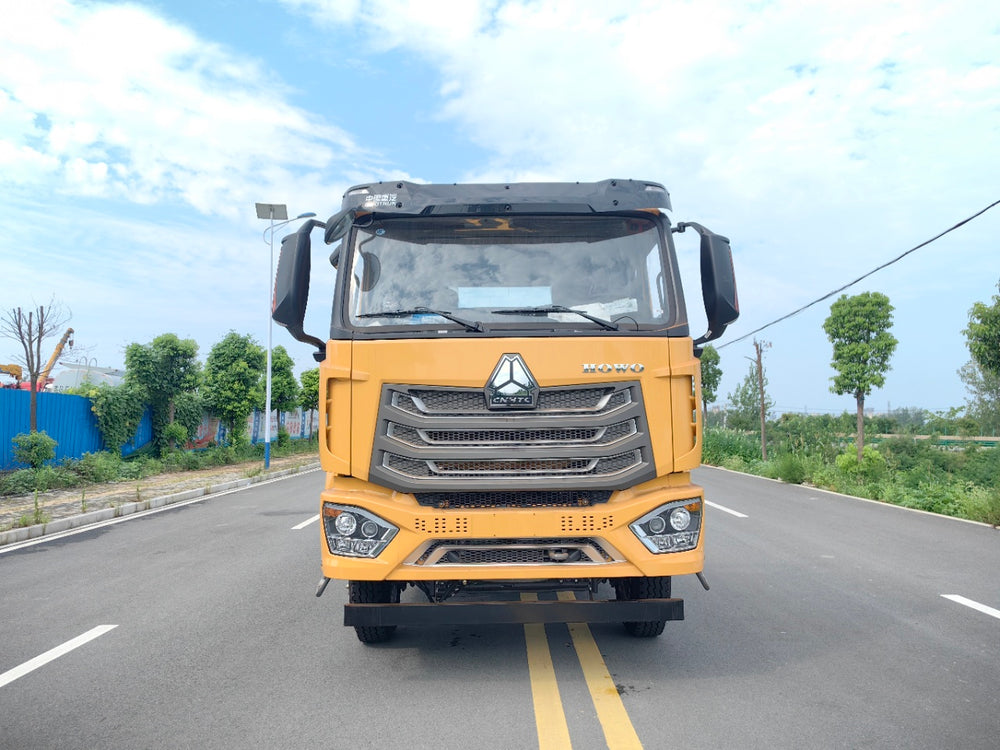

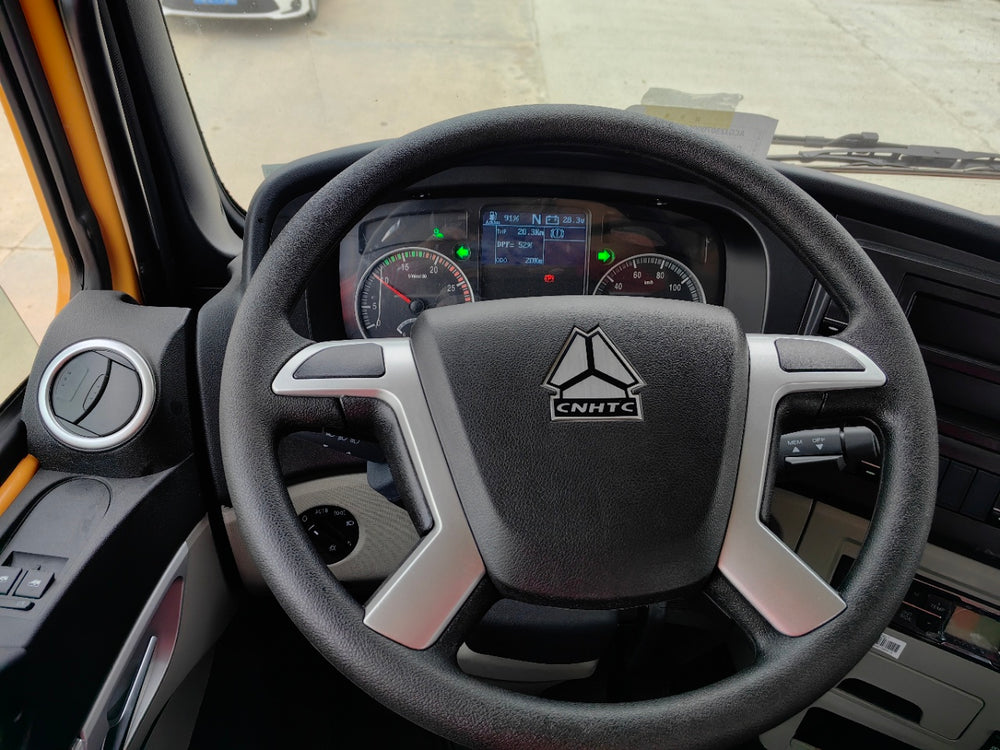

Cab Model	Howo NX Row-and-a-half Cab with Sleeper
Engine	WP4.6-240HP Engine
Gearbox	Howo 8-speed Gearbox with High/Low Range
Wheelbase	5600mm
Frame	Original Factory Double-layer Girder
Tire Specification	1000R20 Steel Wire Tires (Tubeless Tires Optional)
Rear Axle	MAN 11-ton Class Rear Axle

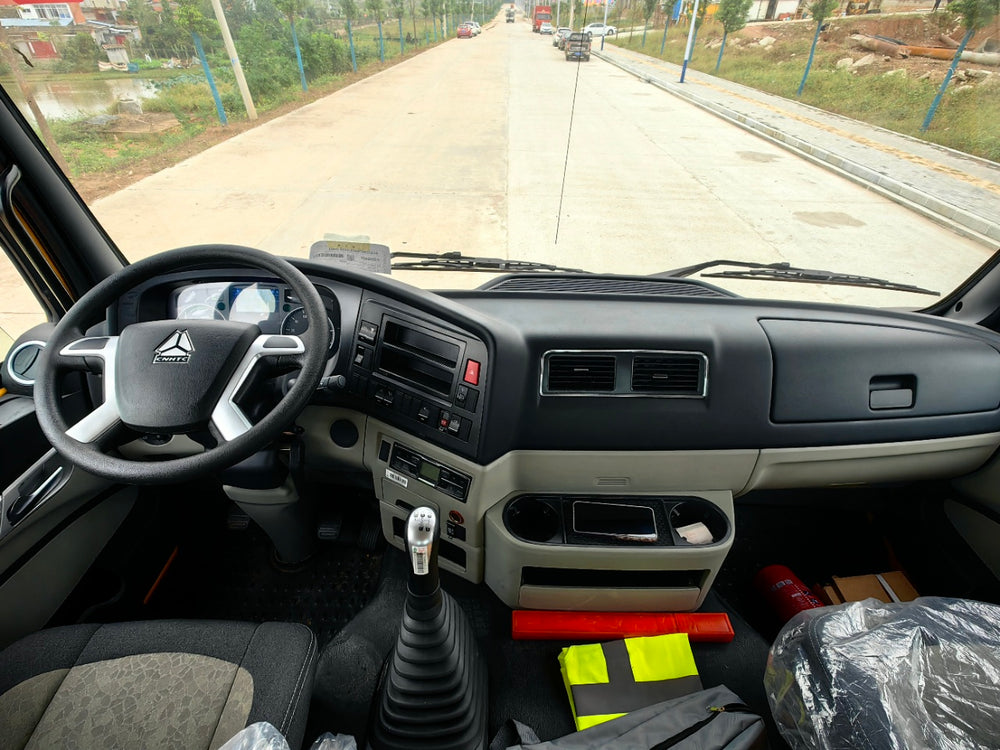

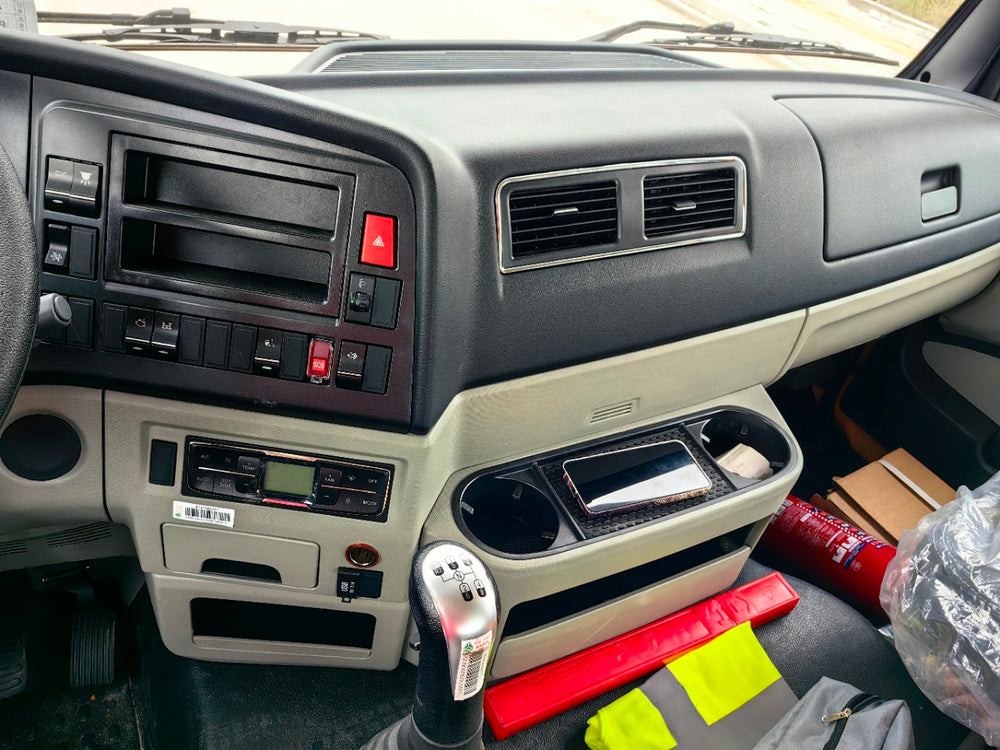

Standard Cab Equipment	Remote Key, Power Windows, Original Factory Automatic Air Conditioner, Automatic Headlights, Cruise Control, Air Horn, Airbag Seat, Other Standard Configurations
Upper Body Configuration

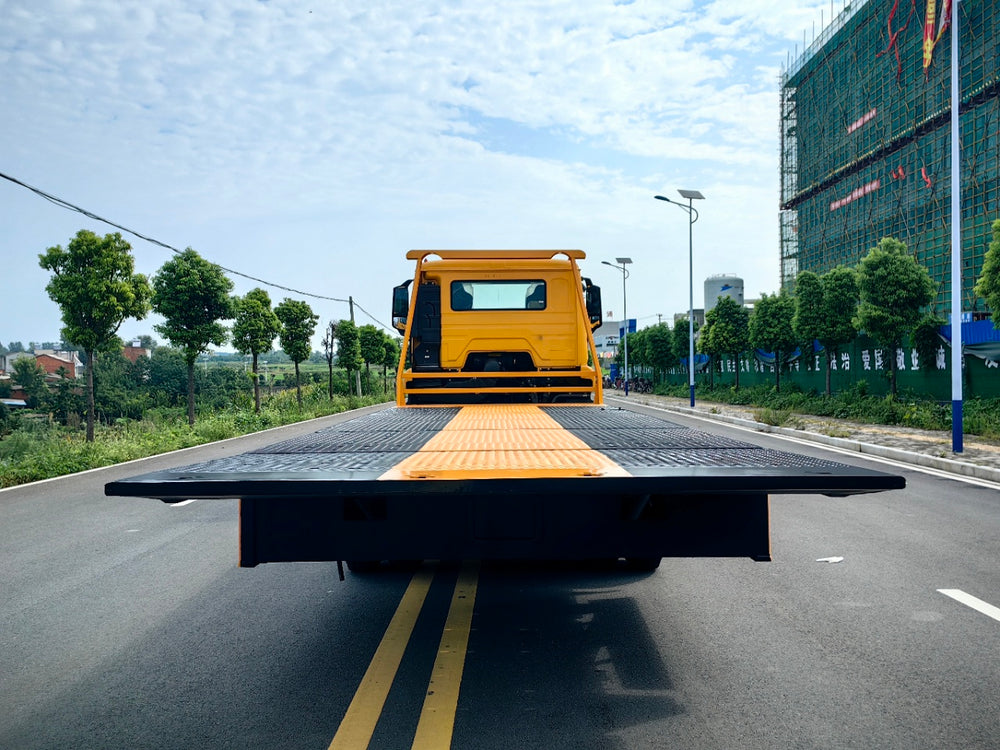

Flatbed Overall Length	9.63m

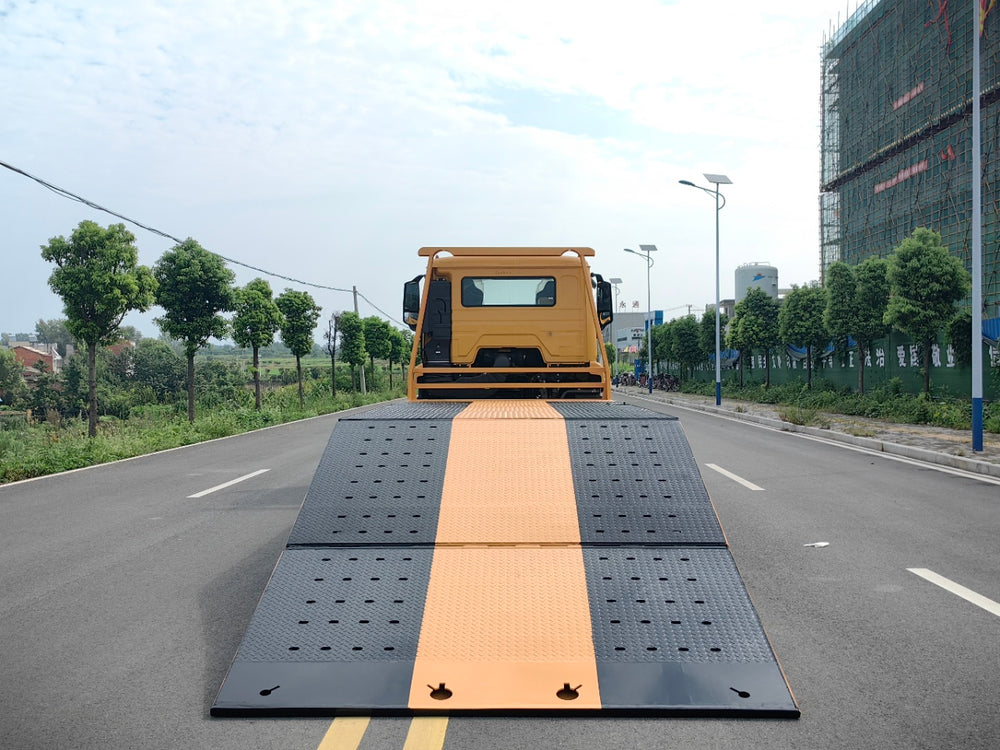

Flatbed Floor Material	6mm High-strength Wear-resistant Checkered Plate (Perforated on Both Side Tracks)

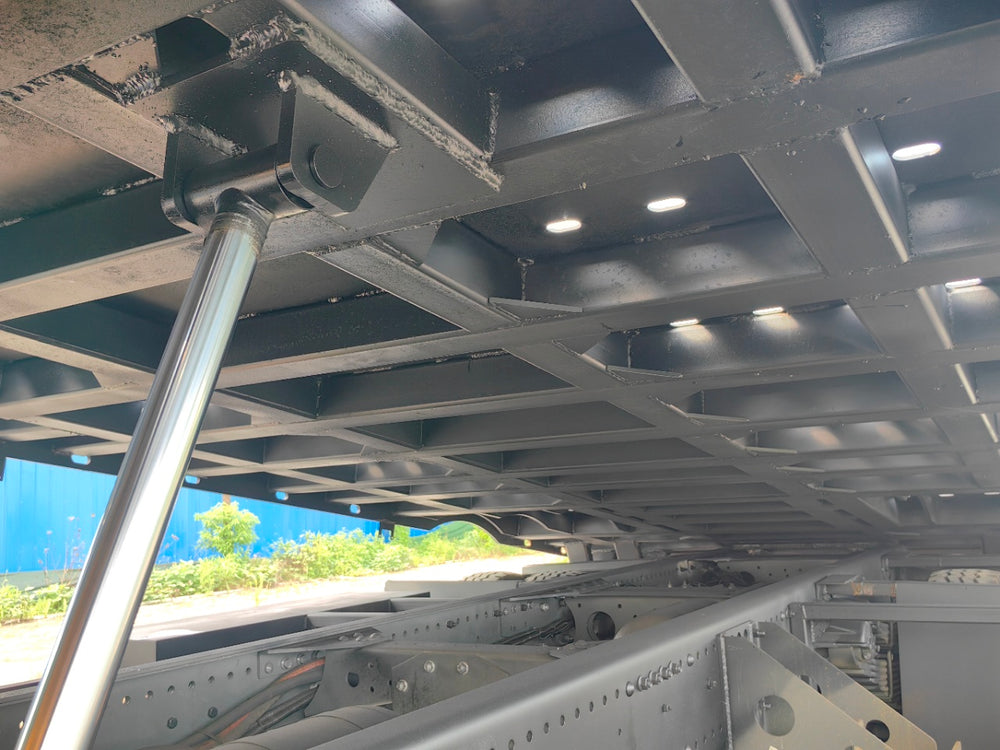

Under-bed Structure	100mm100mm Square Tube Flat Laying (280mm Spacing), 60120mm Square Tube Side Beams

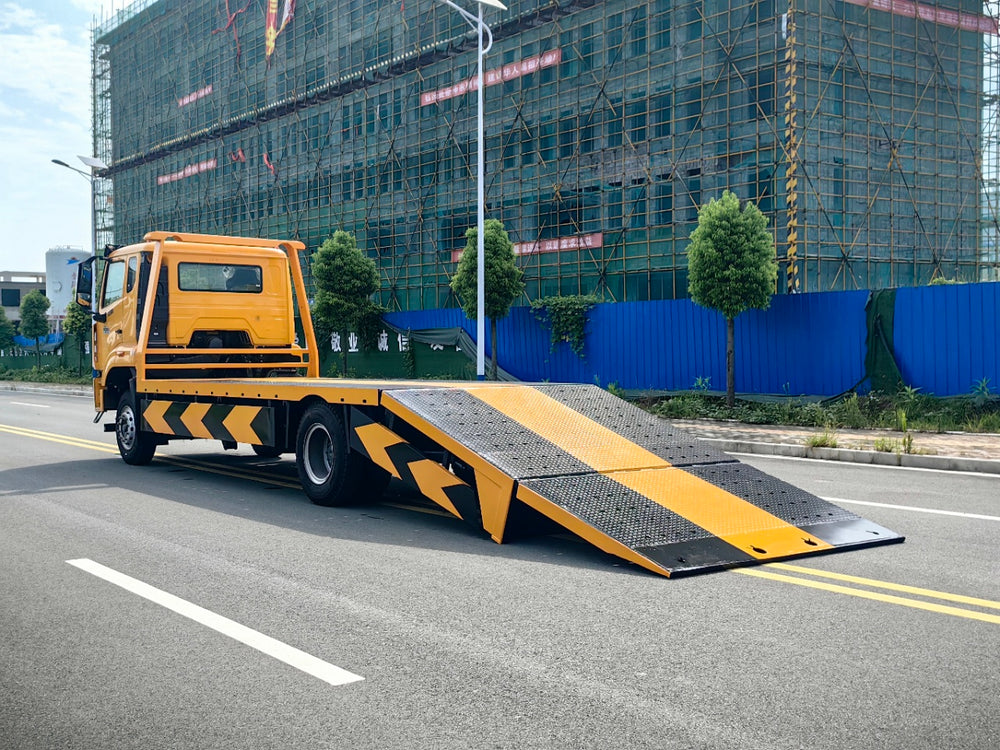

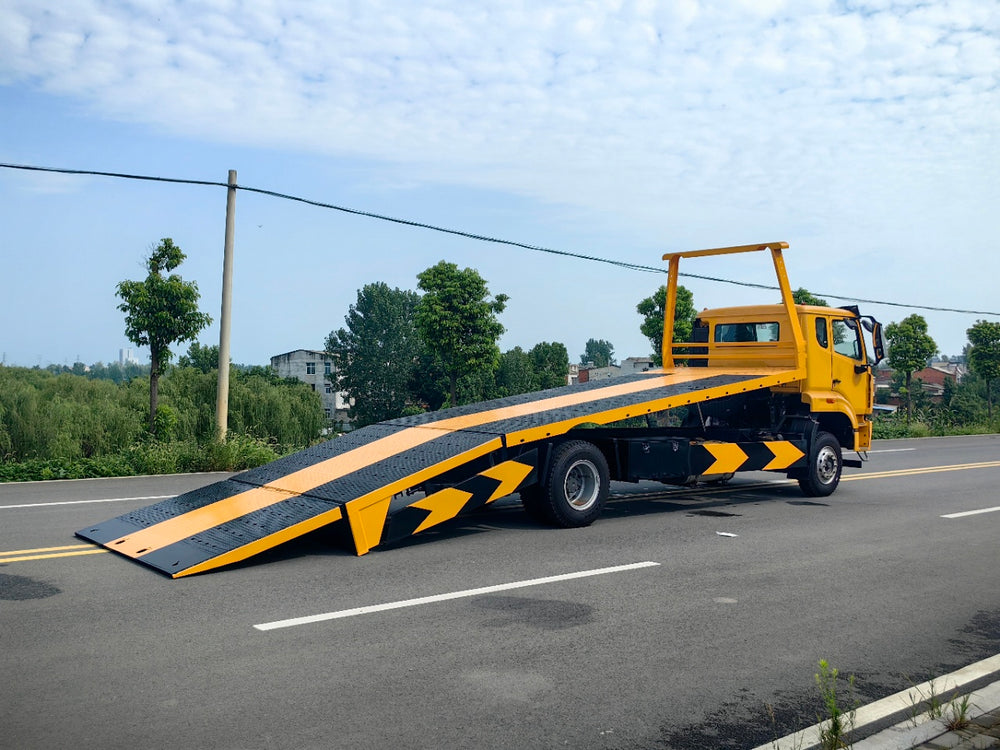

Main Plate	6m Length, 20-ton Maximum Load Capacity, 16mm Solid Steel Plate Frame with Cut Holes
Auxiliary Plate	2m Length, 4-ton Maximum Load Capacity

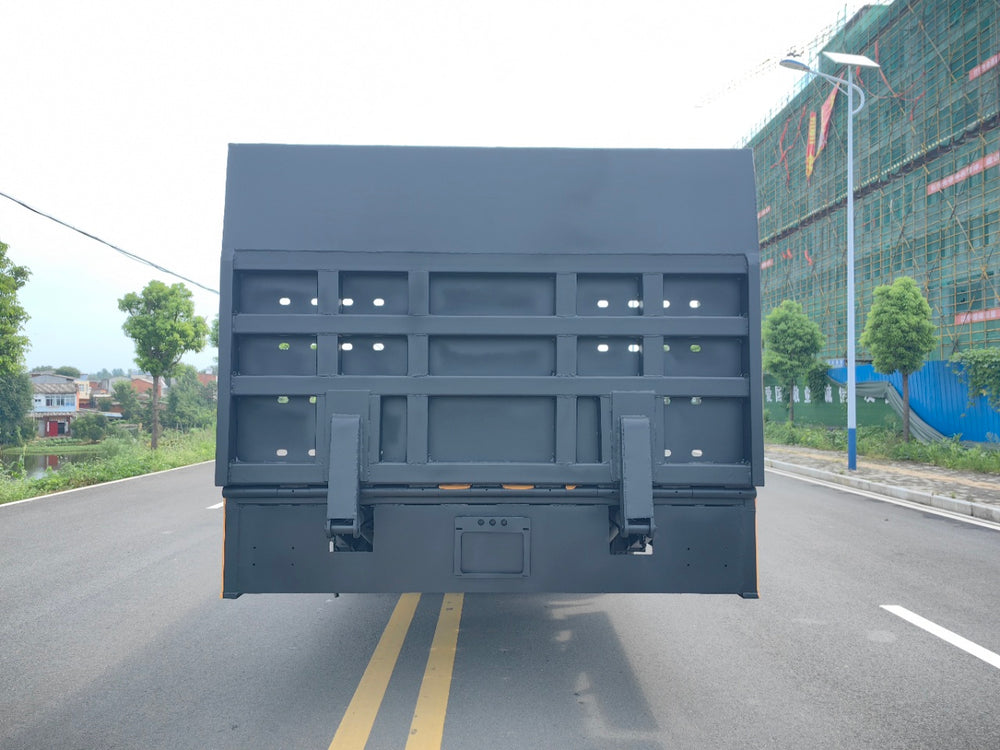

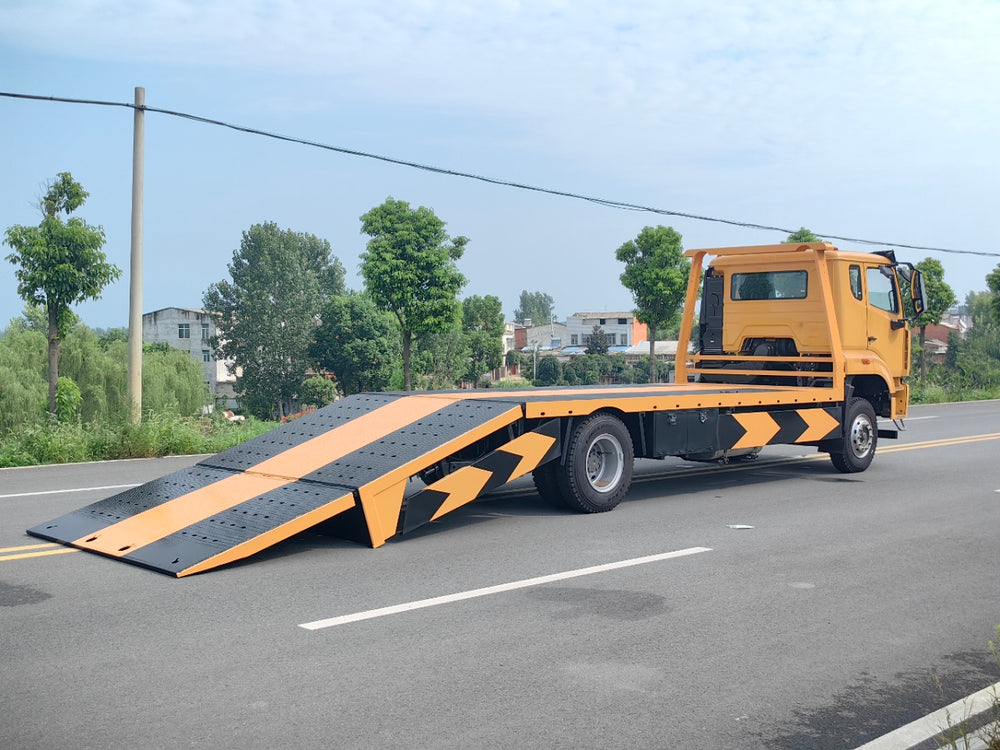

Rear Hydraulic Tailboard	1.63m Through-shaft Turnover Type, 1.5-ton Maximum Load Capacity, 70° Loading/Unloading Angle
Hydraulic System	8-ton 110mm Lifting Oil Cylinder (Main Plate), 8-ton 110mm Oil Cylinder (Auxiliary Plate), 95mm Turnover Oil Cylinder (Tailboard)
Overall Curb Weight	9970kg
Flatbed Ground Clearance	1160mm
Application Scenarios
Primary Usage	Excavator transportation on various road conditions, urban road construction machinery transfer
Compliance & Permission	Wrecker truck formalities, no operation license required, allowed to enter urban areas
