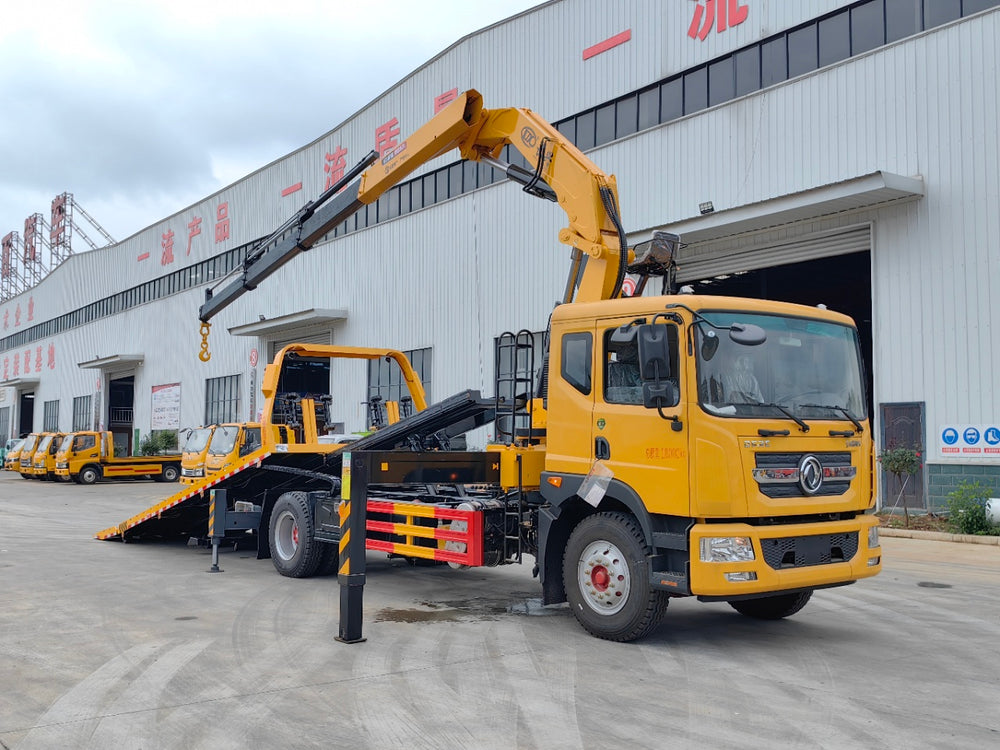

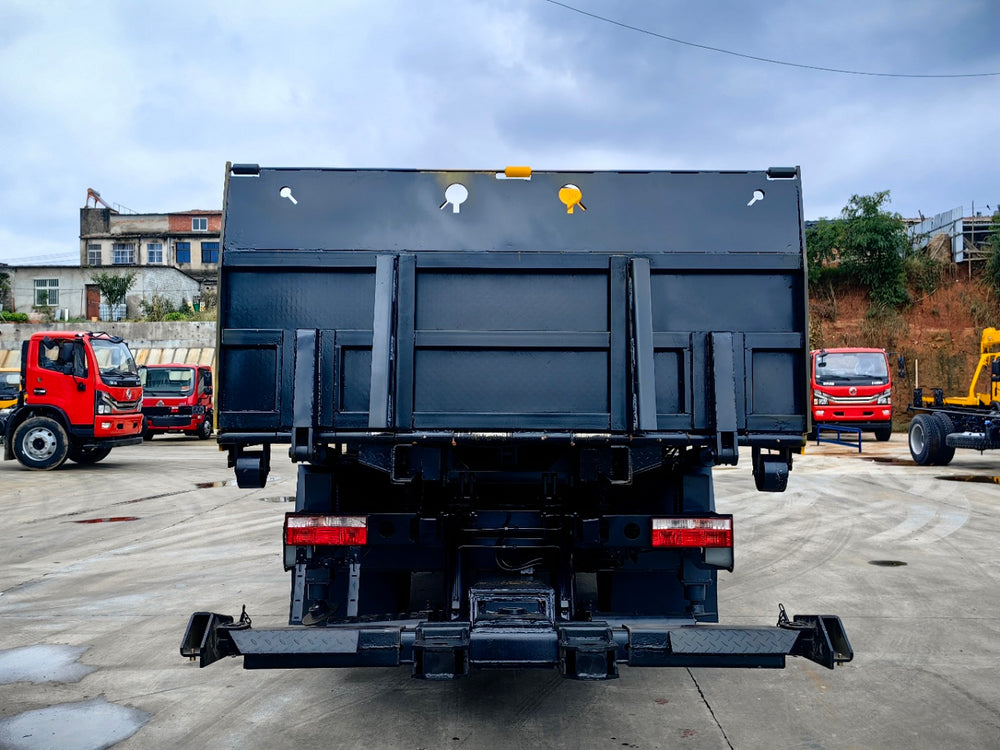

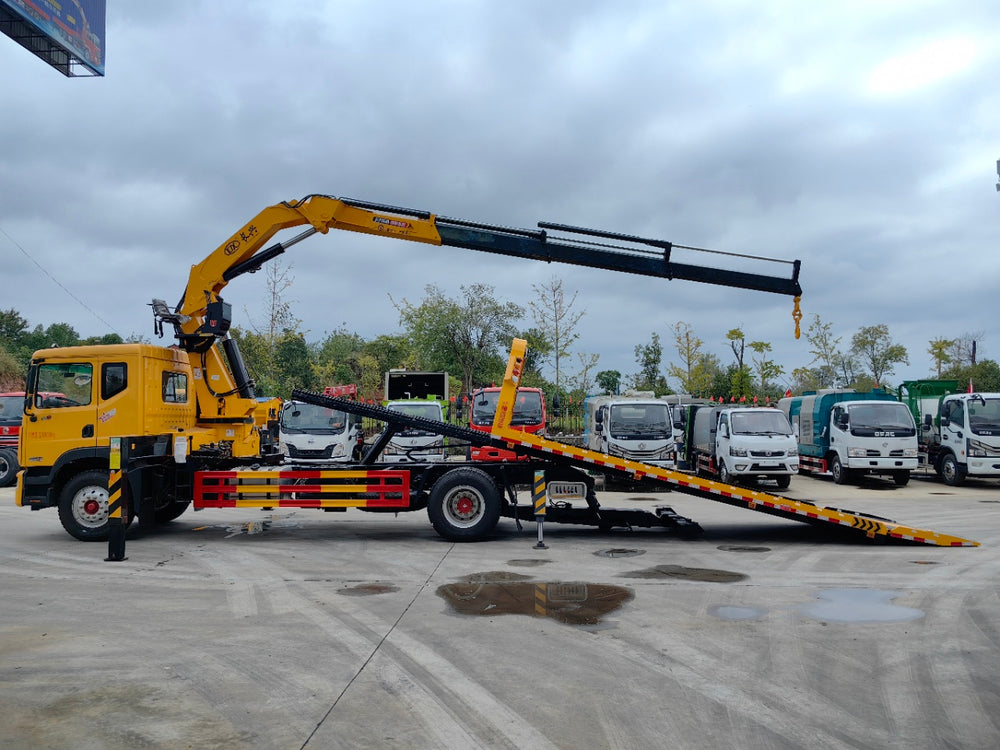

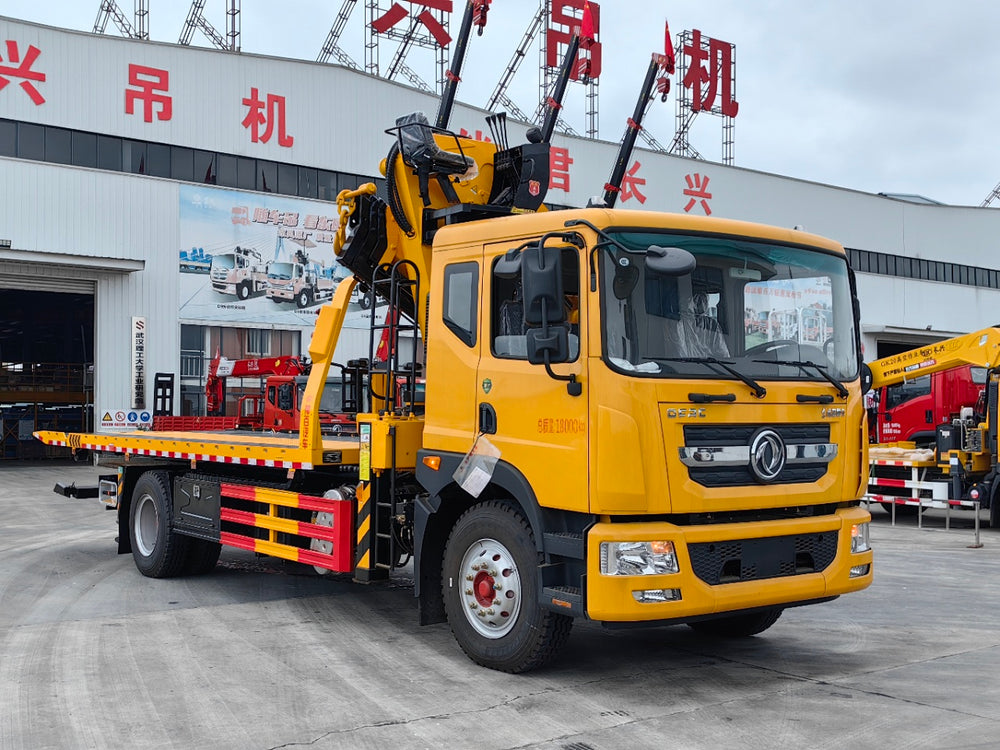

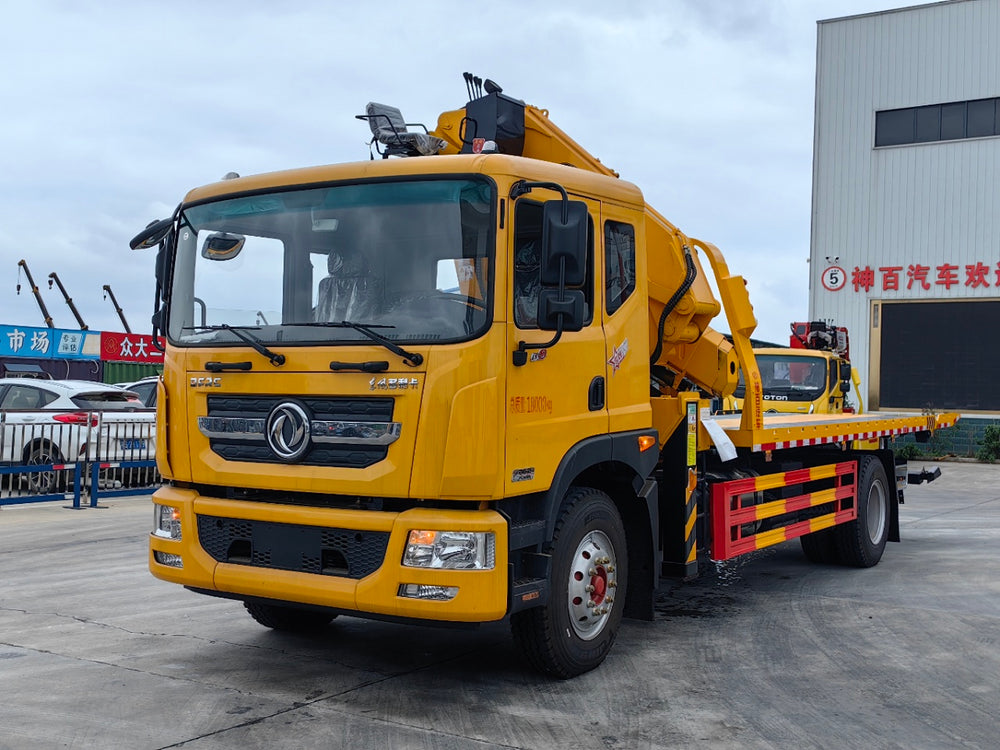

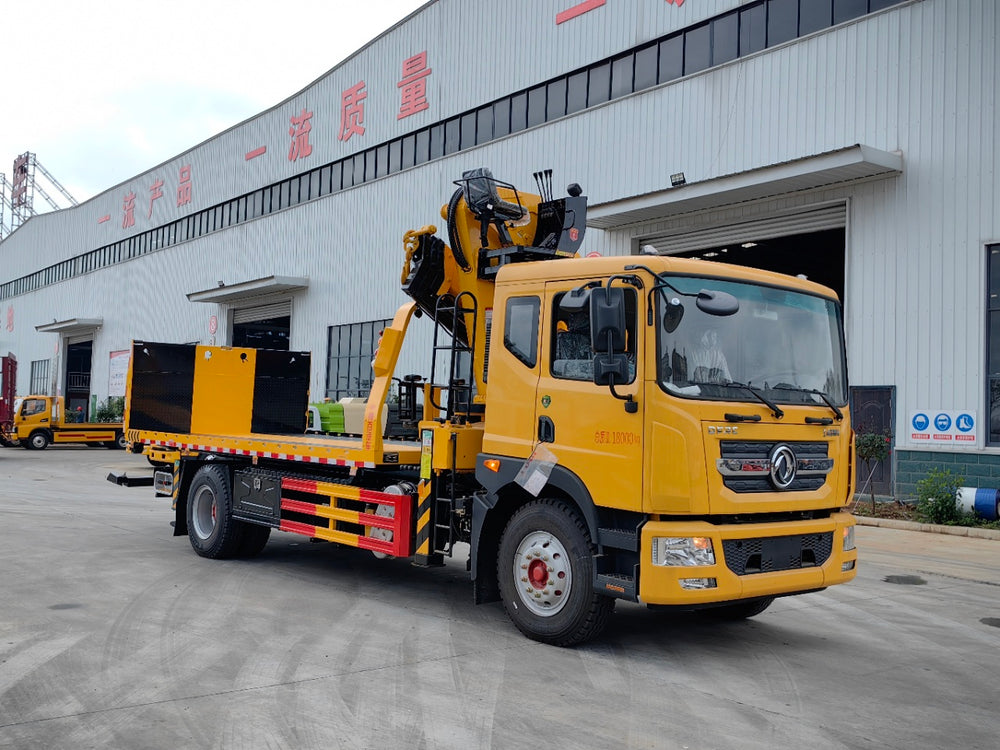

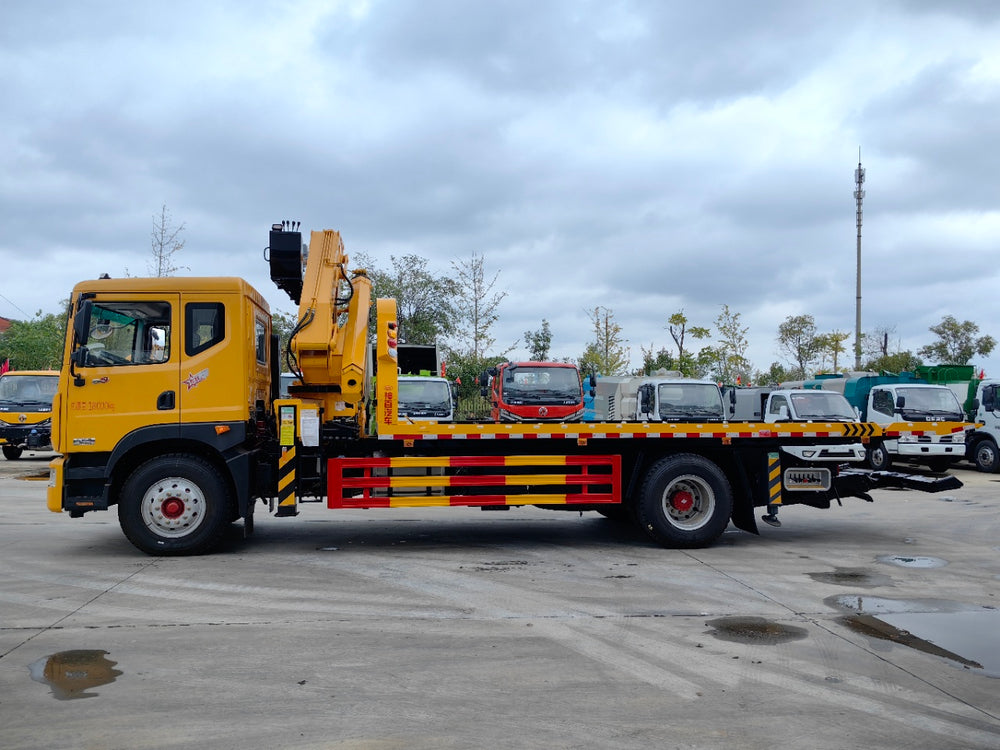

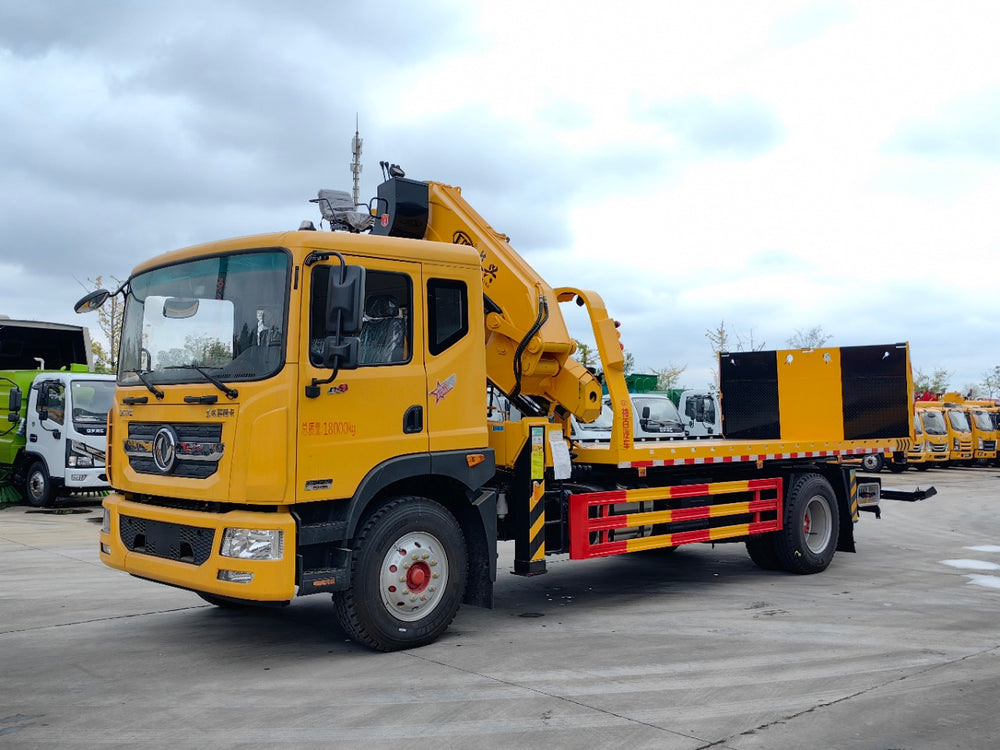

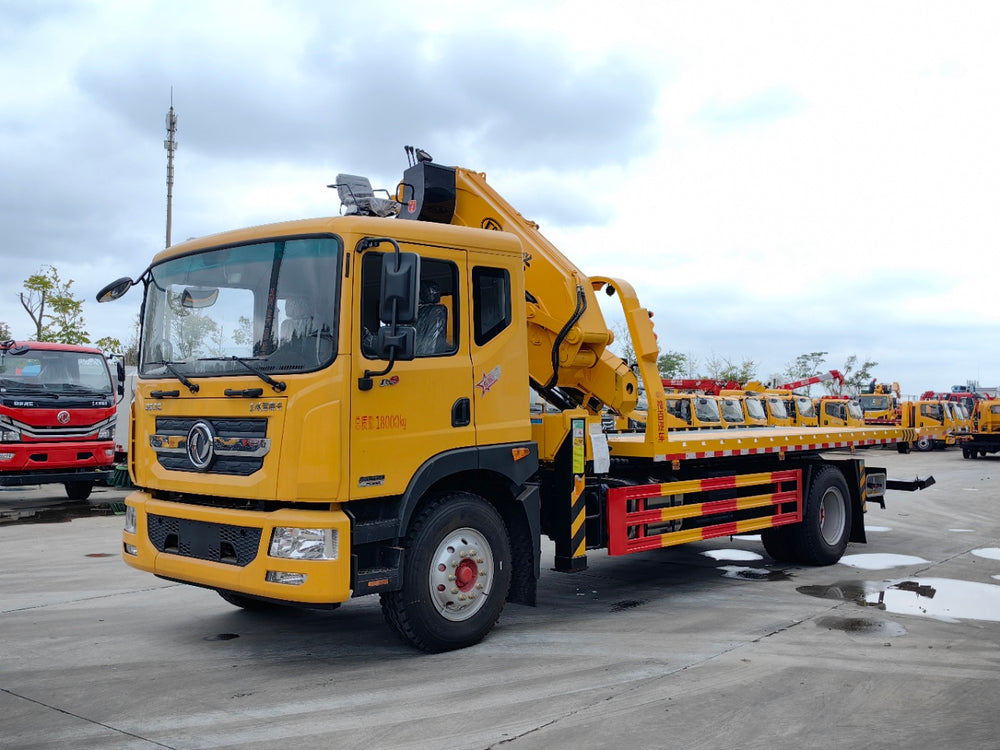

DongFeng 8T Wrecker Truck with Crane

1 / 15

Parameter	Value
Basic Vehicle Information
Vehicle Model	ABC5183TQZ EQ6
Chassis Configuration

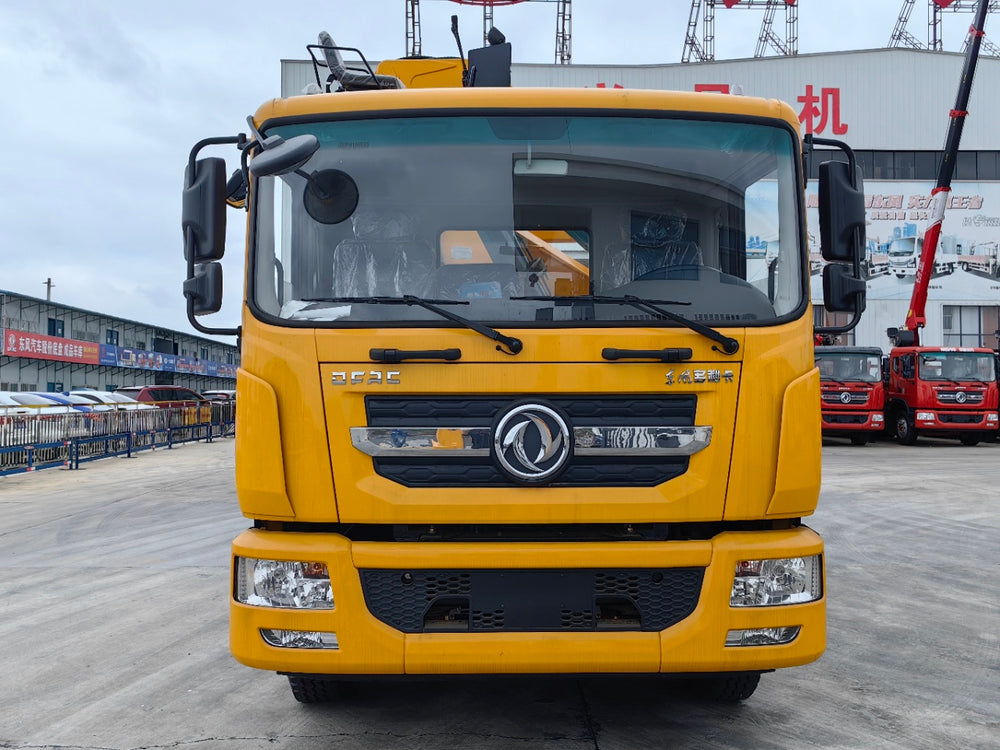

Cab Model	Dongfeng D9 Row-and-a-half Cab with Sleeper
Engine Option	Cummins 230HP Engine / Yuchai 200HP Engine
Gearbox	Fast 8-speed Gearbox with High/Low Range
Wheelbase Option	5300mm / 5600mm
Rear Axle	Dongfeng Dana 10-ton Rear Axle
Frame	Original Factory 3-layer Girder (Special Chassis for Wrecker Truck)
Tires	1000 Steel Wire Tires with Spare Tire
Emission & License Compliance	Meets Beijing Emission Standard, Eligible for Beijing License Plate
Upper Body Configuration

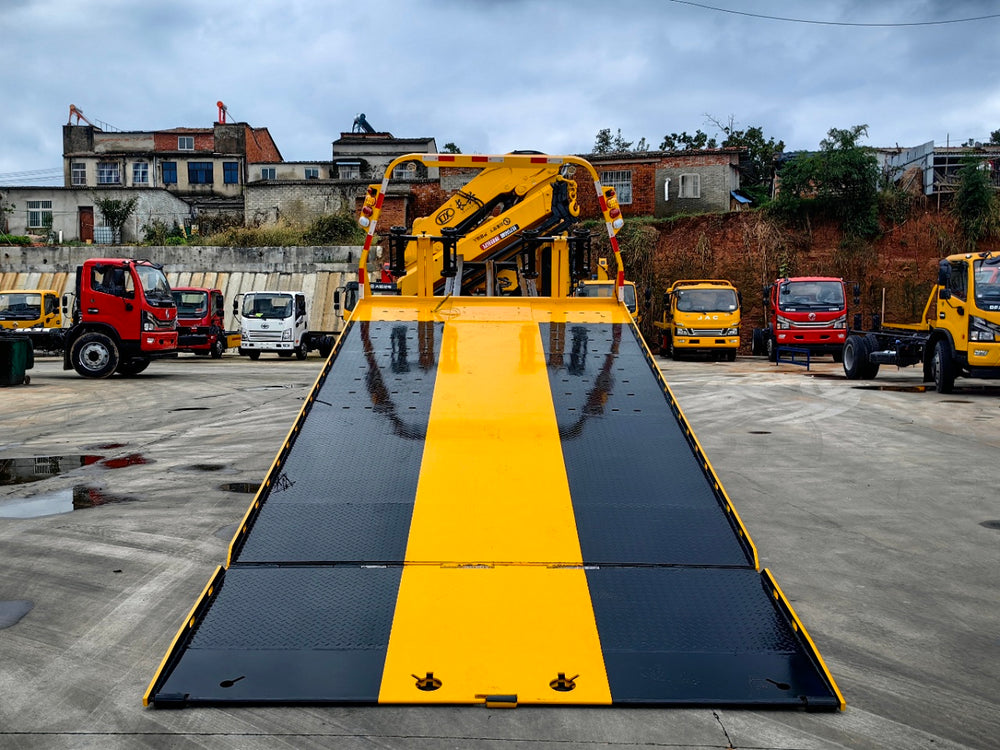

Flatbed Overall Length	6.8-7.2m

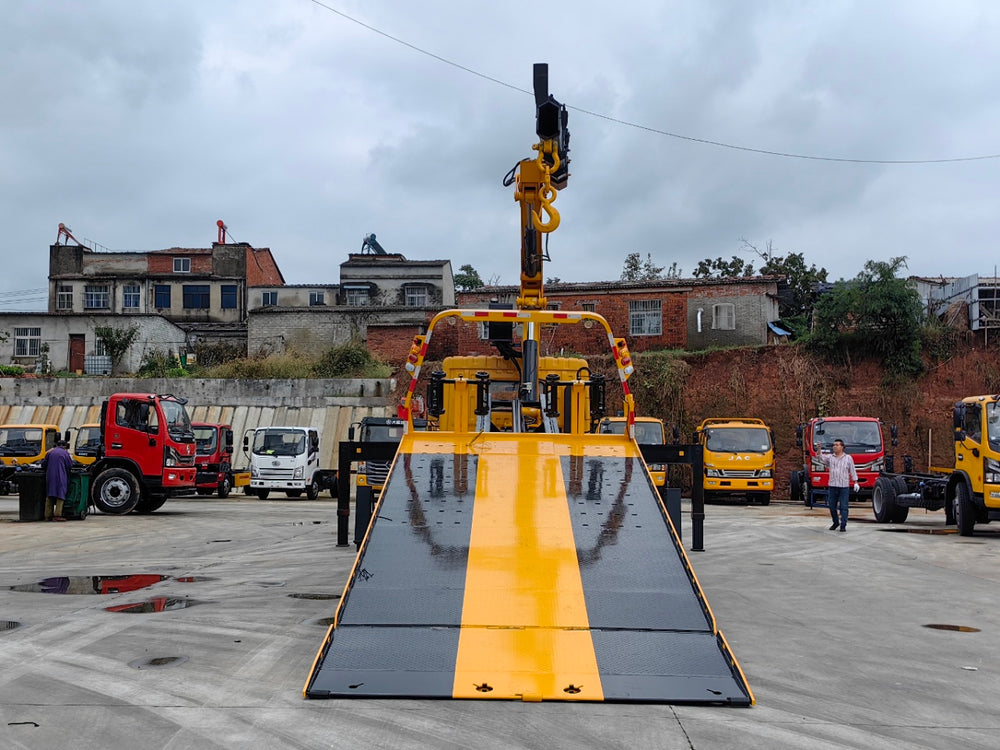

Rear Hydraulic Turnover Length	1.2m
Flatbed Material	6mm Thick High-strength Wear-resistant Checkered Plate

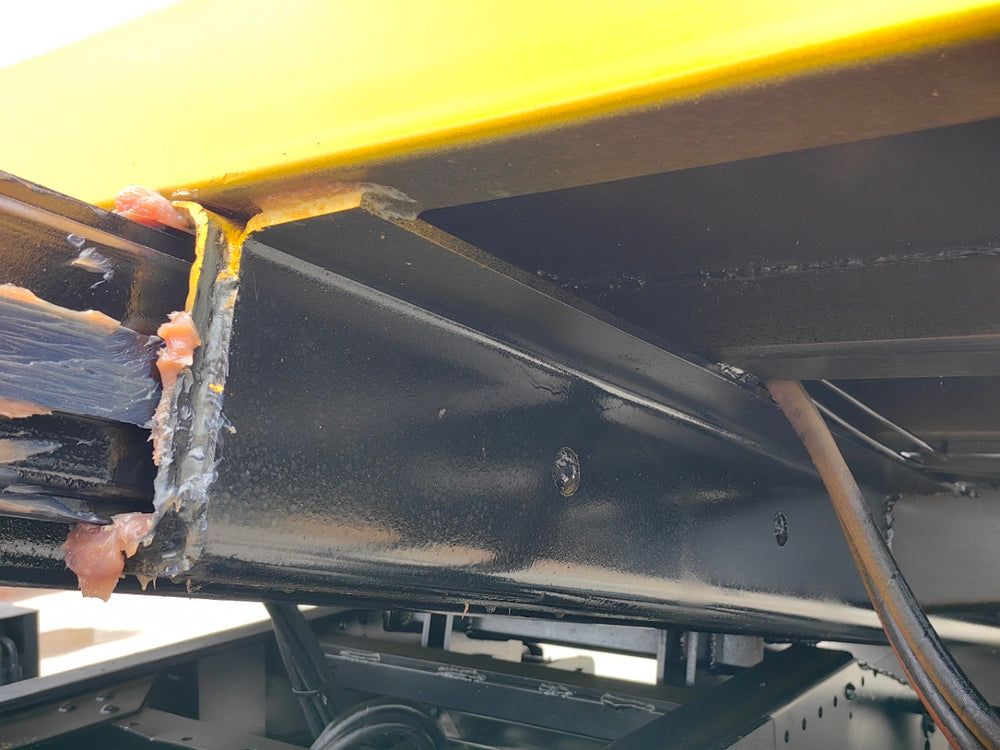

Body Structure	Double Auxiliary Beam Design, Sunken Plate Process
Slideway	Double-layer Thickened Manganese Steel Chute
Frame Border	16mm Thick Solid Steel Plate Frame with Cut Holes
Hydraulic Valve	Italy Imported Haide Hydraulic Valve
Winch	8-ton Winch
Rear Tow Arm	8-ton Rear Tow Arm (Mounted on Main Girder)
On-board Accessories
Lighting Accessories	2 Rear Working Lights, 1 Pair of Side Lights
Auxiliary Tools	1 Pair of Auxiliary Trolleys
Fixing Accessories	6 High-quality Binding Belts, 1 Pair of Triangle Wheel Chocks
Tow Accessories	1 Pair of Tow Fork Bases, 3 Pairs of Tow Forks (1 Pair each for High/Medium/Low)
Optional Crane Configuration

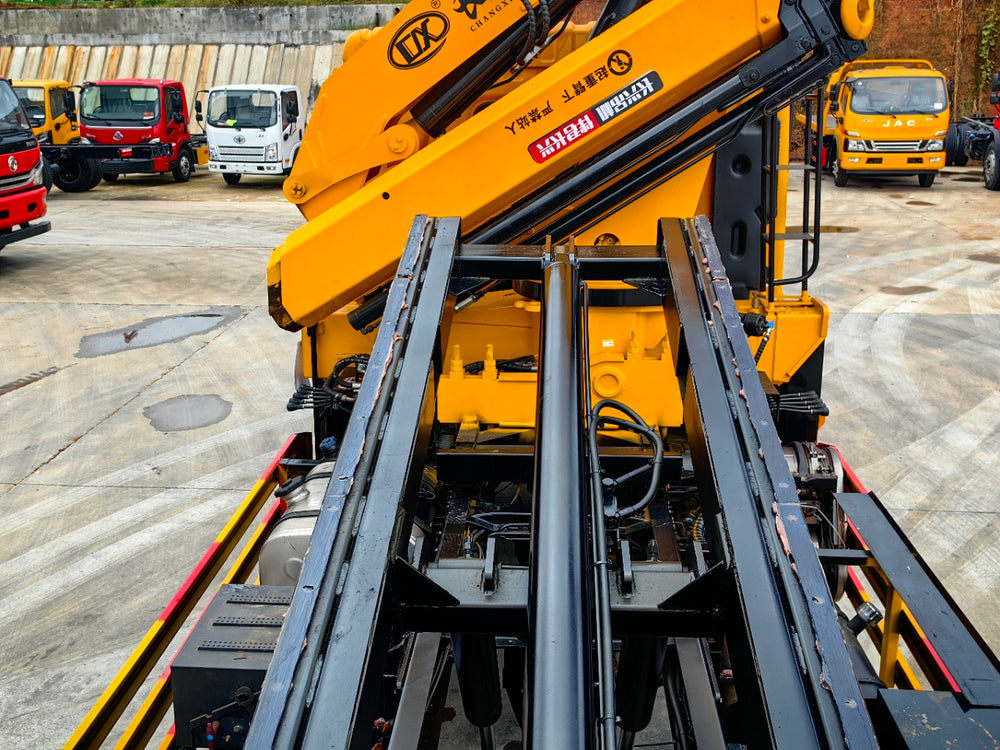

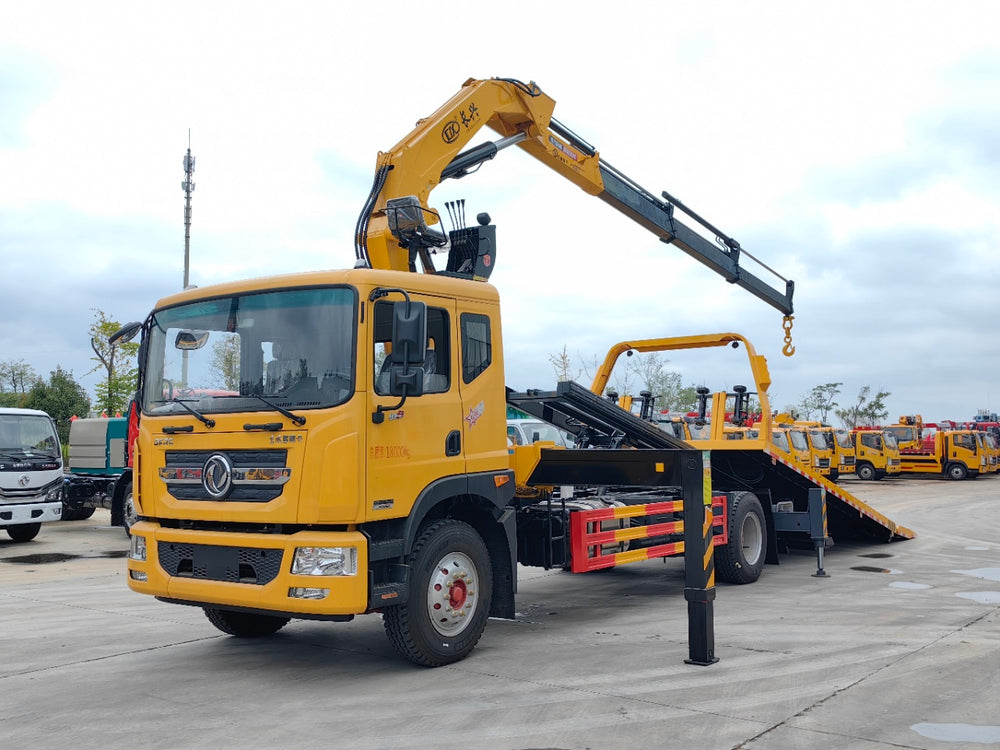

Optional Crane Model	Changxing 8-ton 4-section Arm Crane / 5-section Arm Straight Boom Crane / 8-ton 4-section Arm Folding Boom Crane
