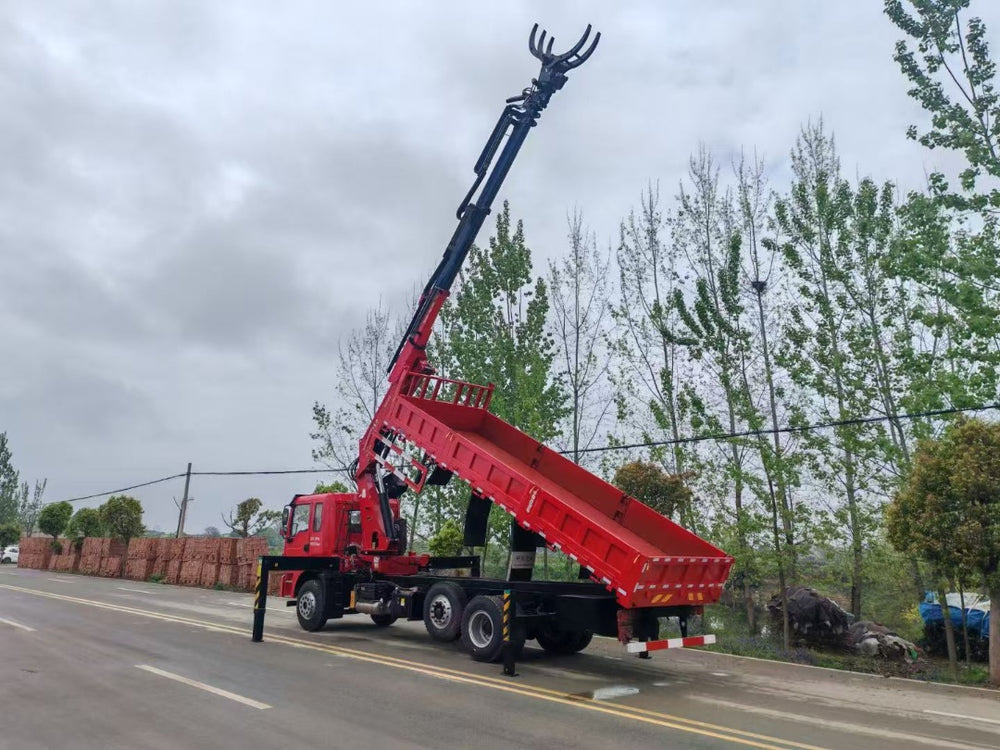

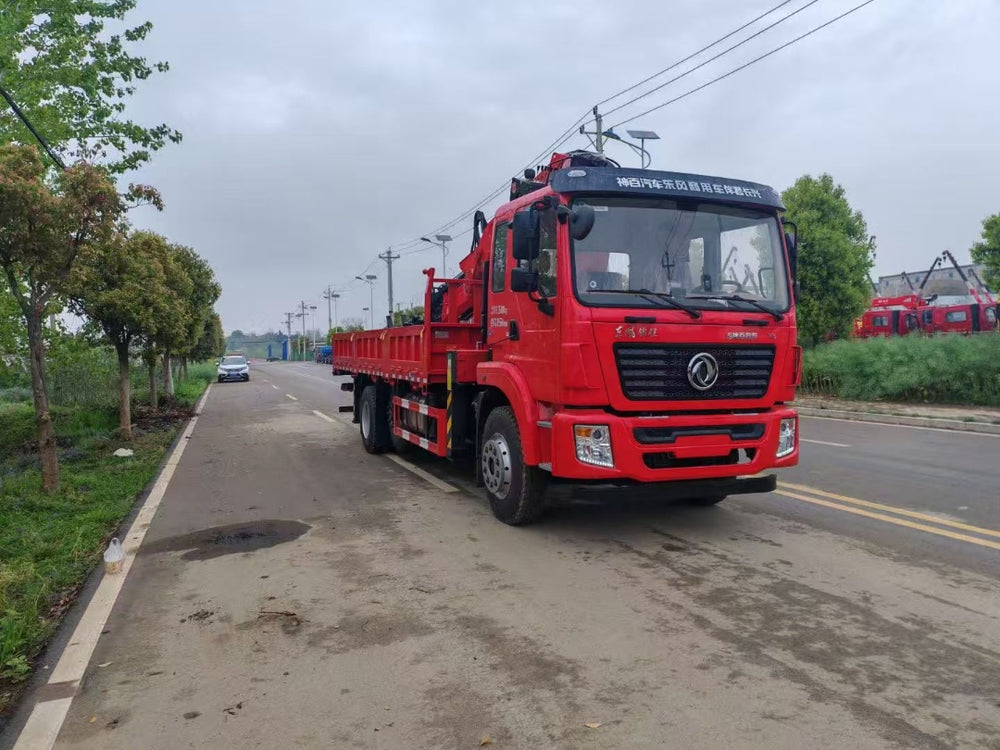

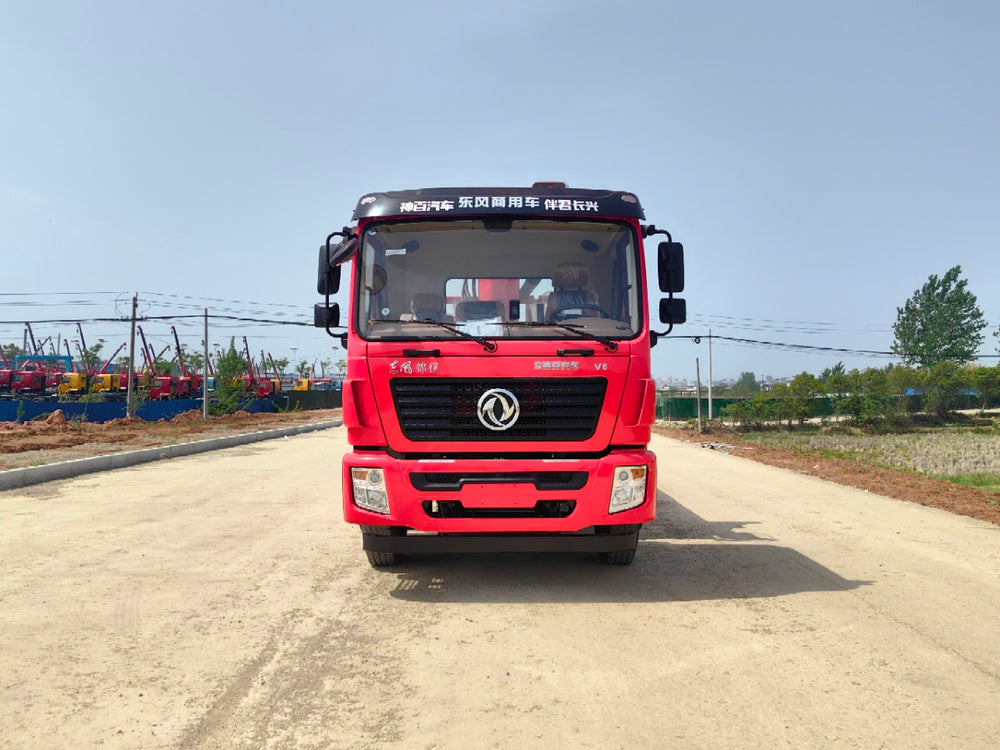

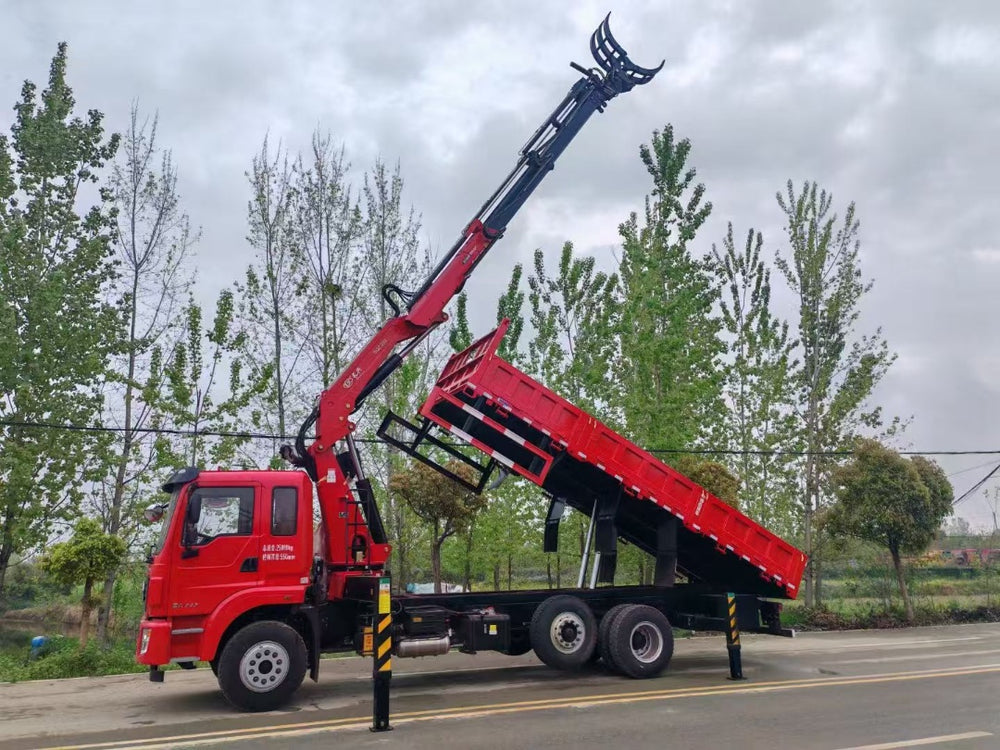

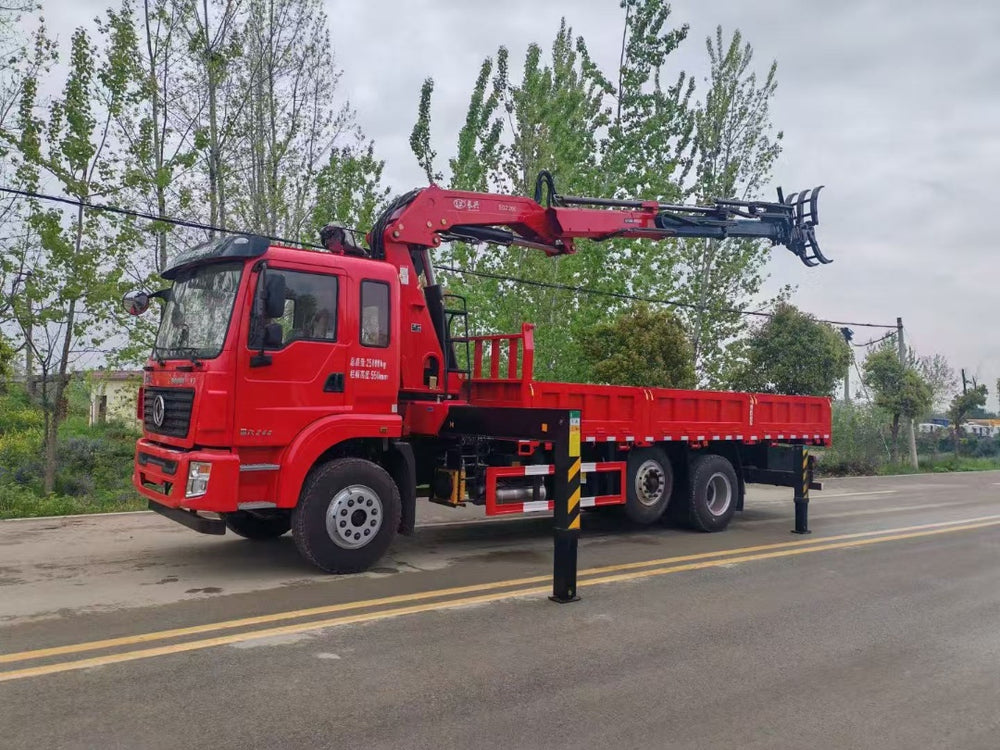

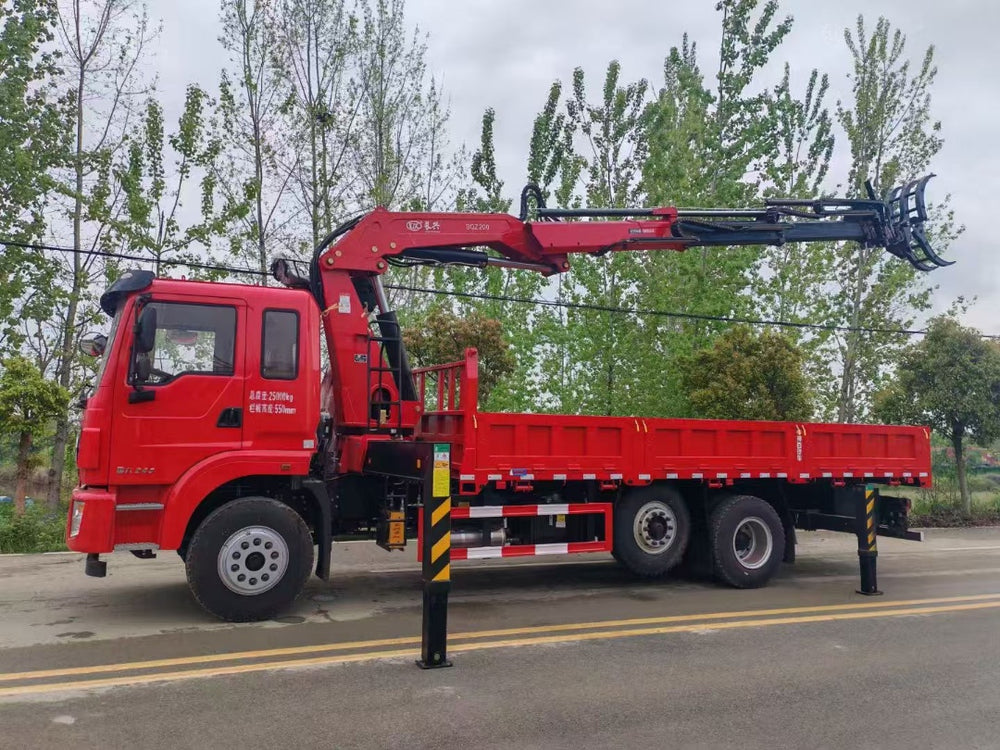

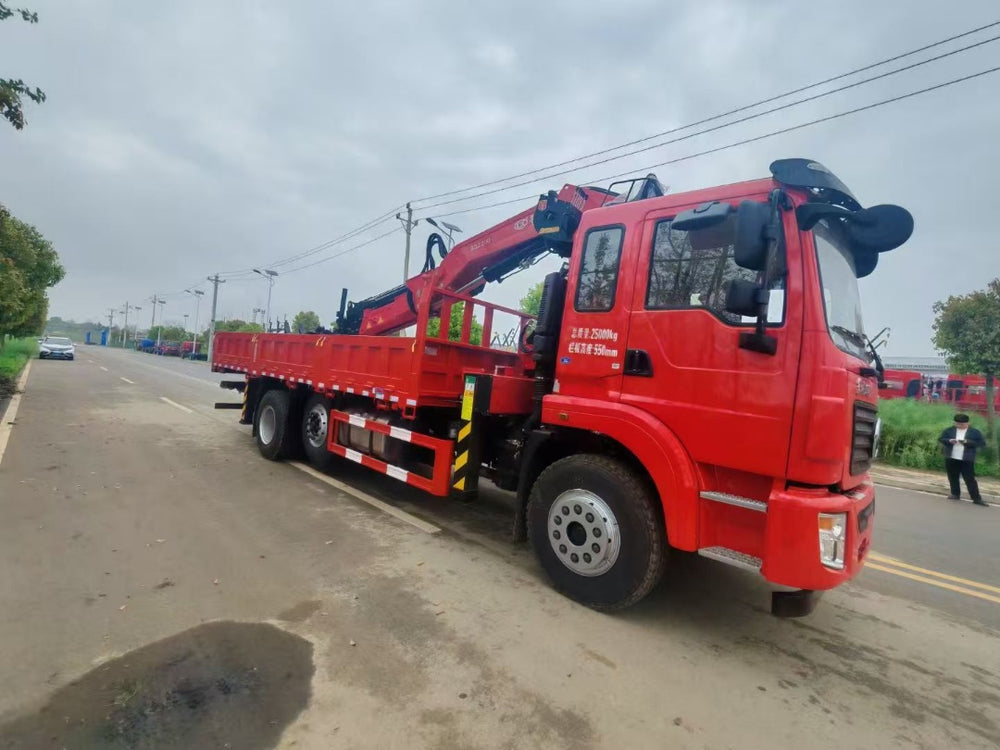

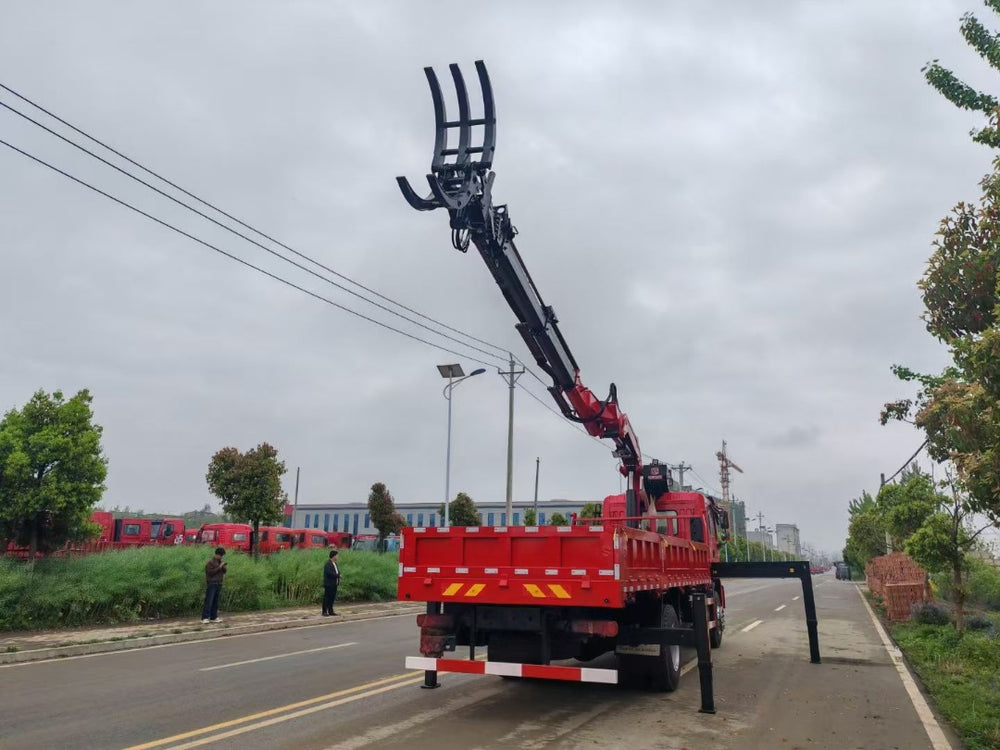

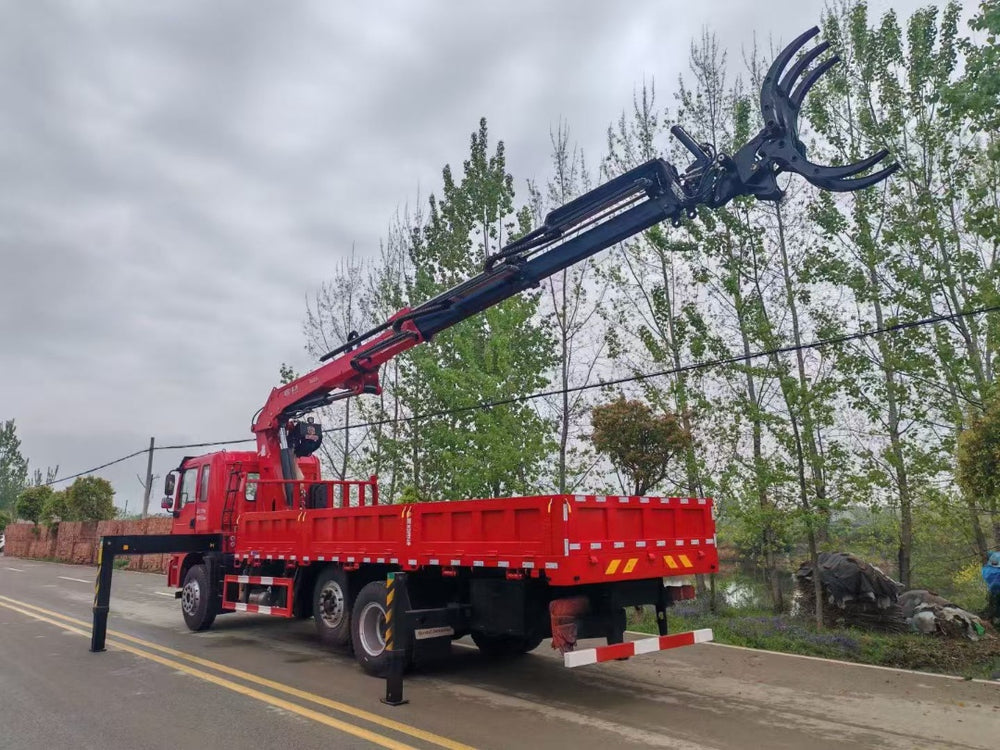

DongFeng Truck-mounted Grapple Crane with Tipper

1 / 9

Request a Quote Now

Item	Specification
Basic Information
Cab	Jincheng V6 Half-row Cab
Seating Capacity	2/3 Persons
Powertrain System
Engine	Yuchai YCS06245-60, 6-Cylinder
Transmission	Fast 8JS95E-C 8-speed Gearbox, High/Low Range, with Flange PTO
Chassis & Running Gear
Wheelbase	4700+1300mm, 4300+1300mm
Front & Rear Axle	Dongfeng Original Dana Axle, 5.5T Front / 10T Rear
Lift Axle	2nd Axle 5T Convertible Lift
Chassis Frame	300 3-layer Through Frame, Partial with Wing Plate
Leaf Spring	8/7/10+8; Front 4 leaves full vehicle length, Rear main 3 leaves equal length
Tyre Spec	11.00R20 18PR, with Spare Tyre
Dimension & Weight
Overall Dimension	10650/10150 × 2500/2550 × 3750/3850/3920mm
Cargo Box Dimension	7200/7100(6100)/6700/6600(5600) × 2400/2450 × 550/600/800mm
Kerb Weight	14565kg / 13565kg
Rated Payload	10350kg / 10240kg / 11350kg / 11240kg
Auxiliary Configuration
Fuel Tank	280L Aluminum Alloy Fuel Tank
Comfort & Control	Original Air Conditioner, Integrated Door Lock, Remote Central Lock, Air Suspension Seat, Multi-function Steering Wheel
Safety & Functional	Driving Recorder, Sun Visor, LED Daytime Running Light
