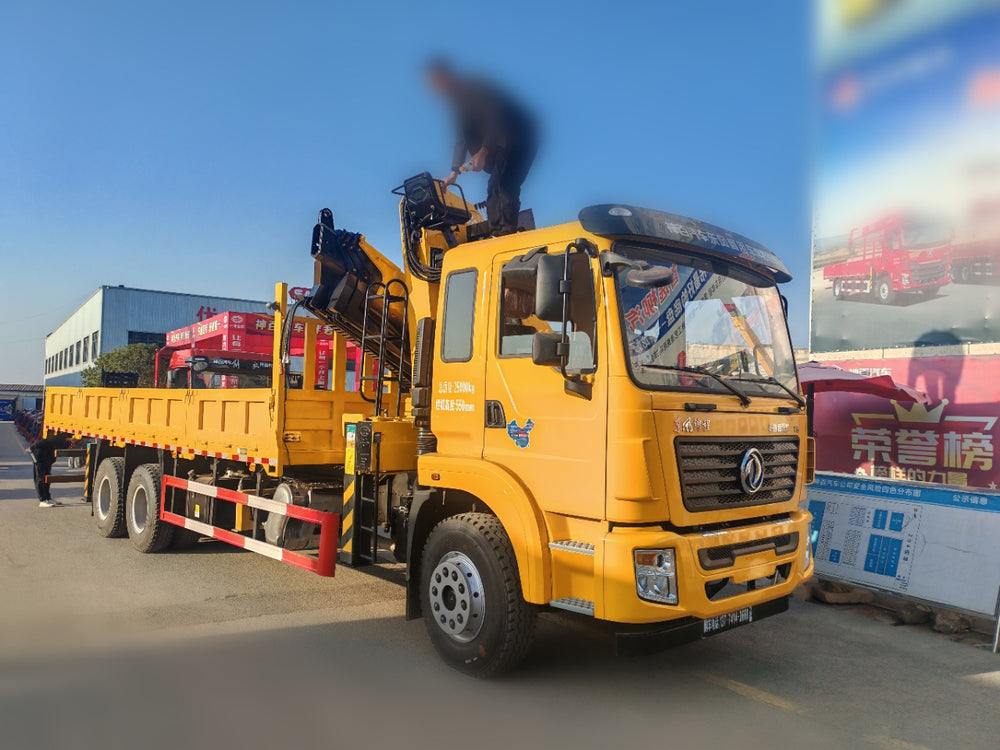

DongFeng V6 6×4 14T Knuckle Boom Crane

1 / 1

Item	Specification
Basic Vehicle Information
Cab	Jincheng V6 Luxury Cab
Wheelbase	5900+1350/4750+1350/4350+1350mm
Kerb Weight	17600KG/17000KG/16500KG
Overall Dimension	12000/10925/10800/10300 × 2550/2500 × 3750/3850/3950mm
Cargo Box Dimension	8500/8400/8200/7800/7500/7200/7100/7000/6800/6500 × 2450/2400 × 550/600mm
Optional Crane	Up to 14T crane available; compatible with Changxing, Sany, Shimei, XCMG cranes
Powertrain & Chassis Configuration
Engine	Yuchai YCS06270-60, 270HP
Transmission	Fast 9JS119TA 9-speed Gearbox with Synchronizer
Chassis Frame	300mm(8+5+6) Reinforced Frame, Crane Mounting Area Strengthened
Tyre Spec	11.00R20 Steel Wire Heavy-duty Tyre
Fuel Tank	280L Aluminum Alloy Fuel Tank
Front & Rear Axle	Dana 5.5T Front Axle / 11.5T Dual Rear Axles; Final Drive Ratio: 5.571
Special Crane Configuration	Special PTO for Truck-mounted Crane & Remote Throttle; Compliant with New Domestic Regulations
Cab & Safety Configuration
Cab Body	Qixing Military-grade V6 2-point Suspended Cab; with 4 top lifting rings, walk-through flat floor, 3-person seats, thickened durable base plate, ~50kg heavier than standard cab
Instrument & Panel	Color LCD Combination Instrument, Black Brushed Aluminum Panel
Safety Alarms	Driver Seat Belt Unfastened Alarm, Door Open Alarm
Door & Window Control	Electric Power Windows, Central Door Lock
Driver Seat	Huatai 6-way Adjustable Health Shock-absorbing Seat, with Adjustable Firmness
Charging Port	Dual USB Fast & Slow Charging Ports
Driving Recorder	New Regulation Compliant Visual Driving Recorder
Air Conditioner	Original Payne Air Conditioner
Lighting	LED Daytime Running Lights
Exterior Fittings	Sun Visor, All-steel Front Mask & Bumper
Safety System	Anti-lock Braking System (ABS)
