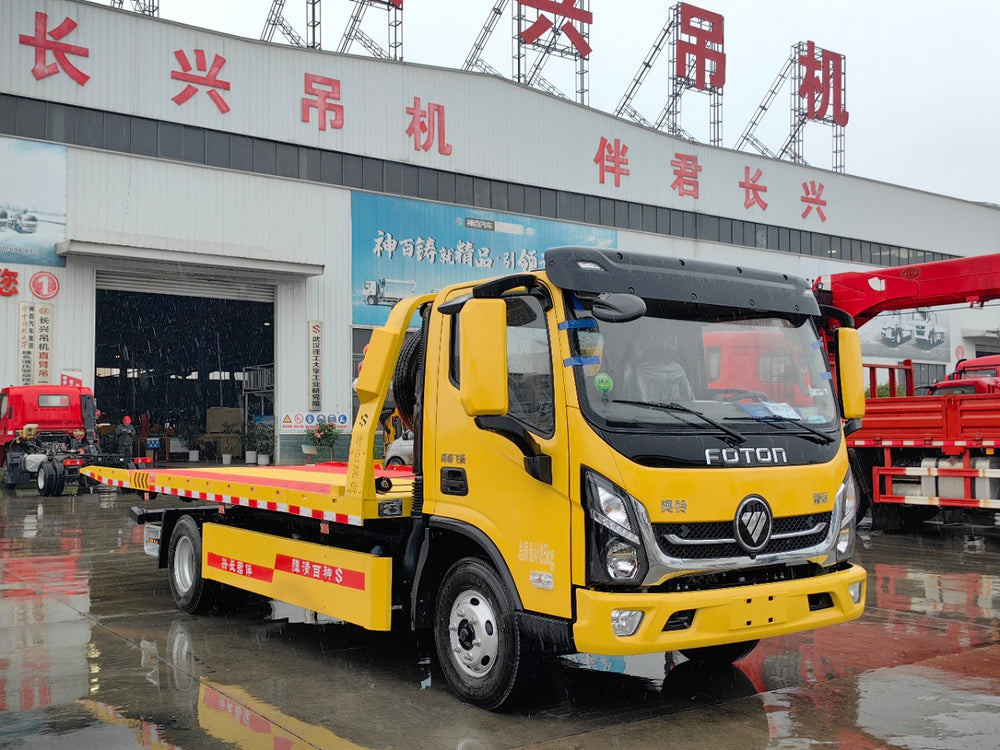

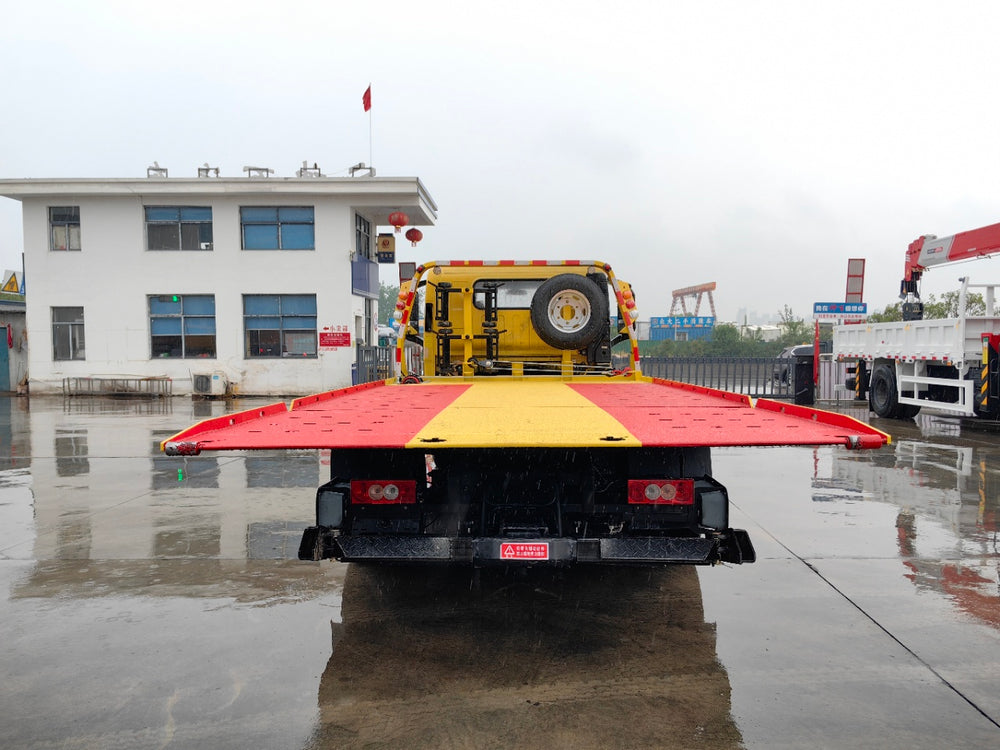

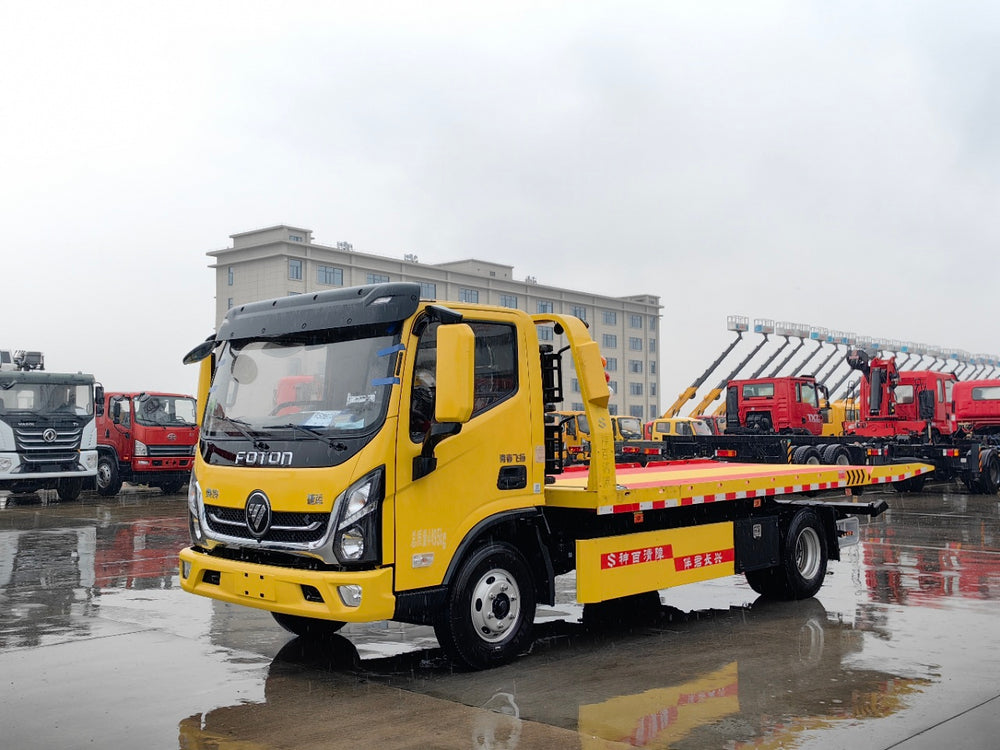

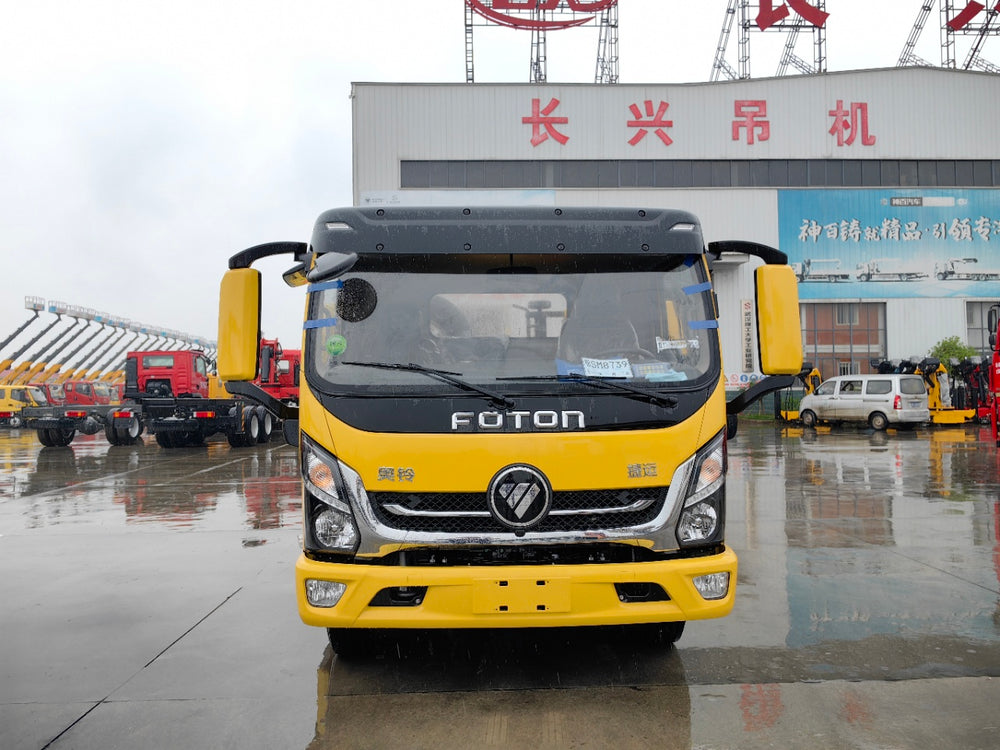

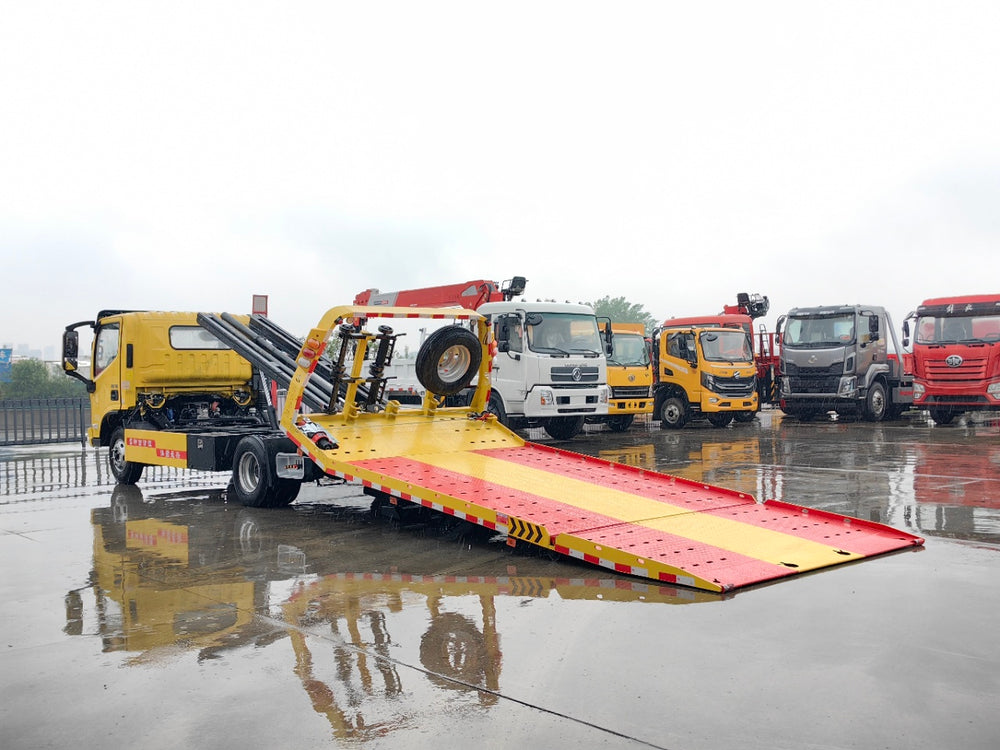

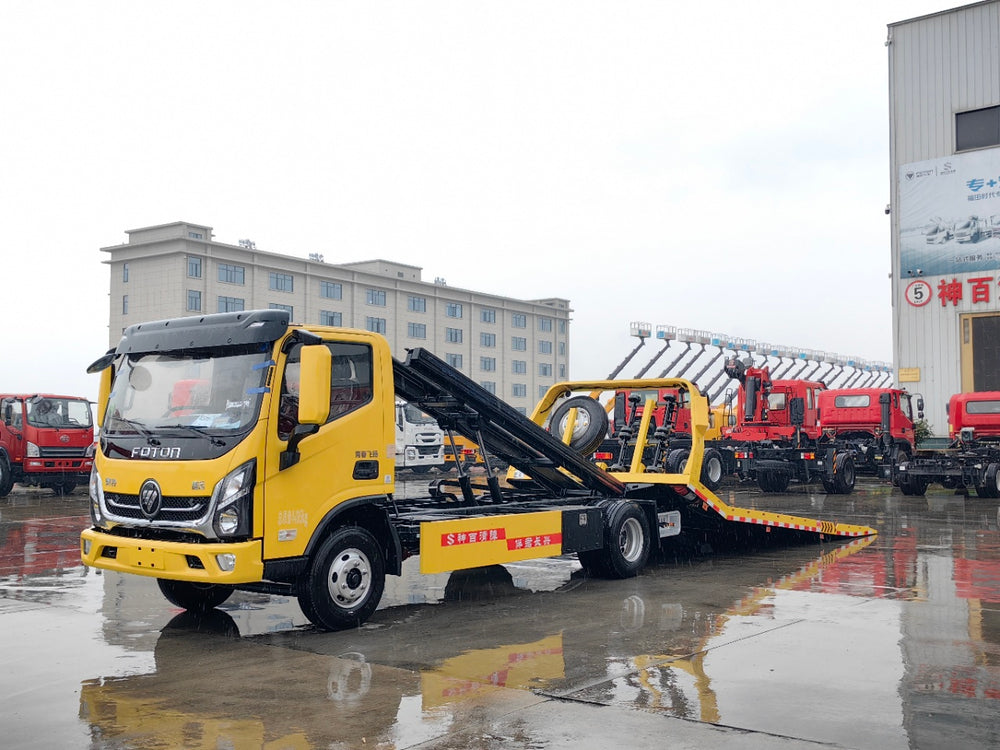

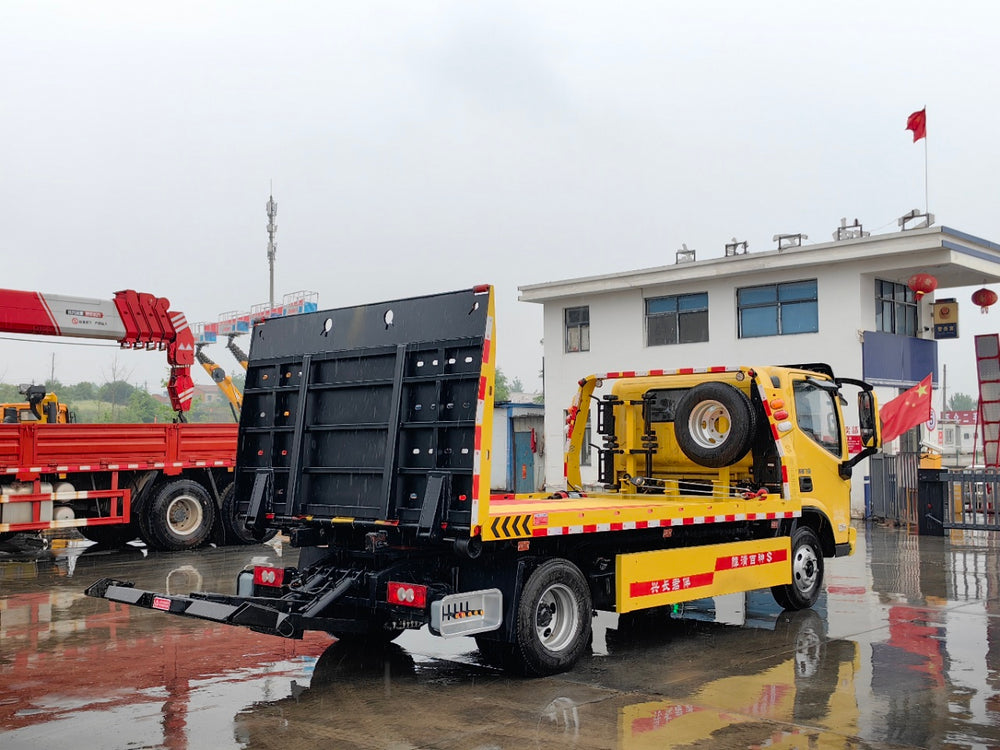

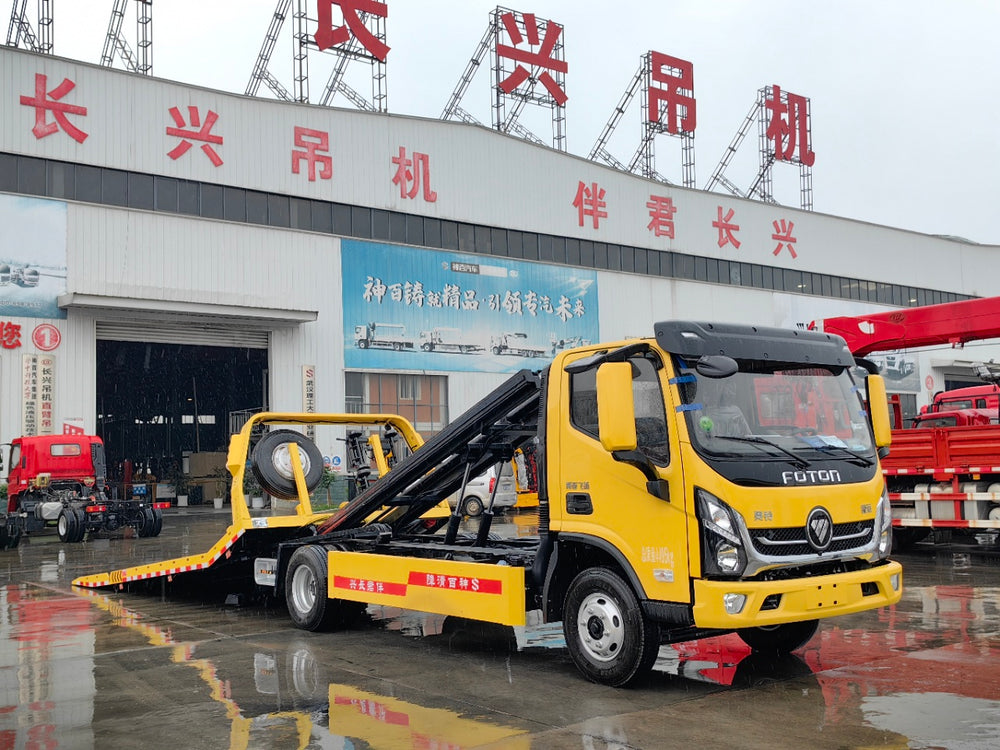

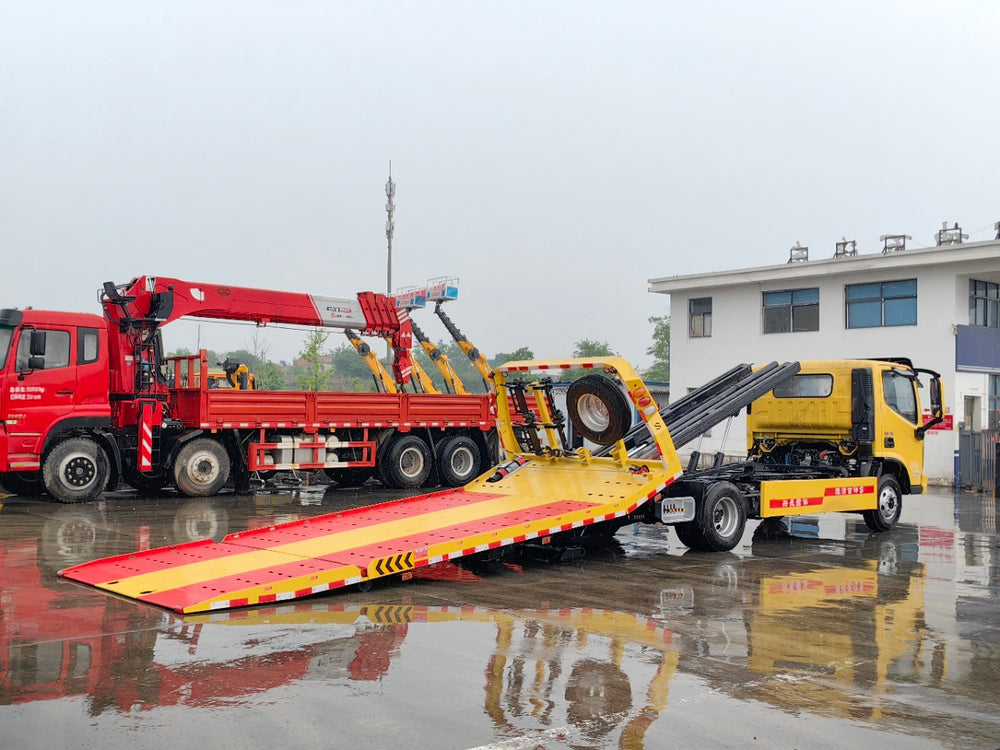

FOTON 4T Wrecker Truck

1 / 14

Parameter	Value
Basic Vehicle Information
Vehicle Model	ABC5047TQZBJ6
Chassis Configuration
Cab Model	Aoling Feiyang Edition Wide-body Cab
Engine	Yunnei 160HP Engine
Gearbox	Fast 8-speed Gearbox
Wheelbase	3800mm Long Wheelbase
Frame	Original Factory 3-layer Girder
Tires	750 Steel Wire Tires

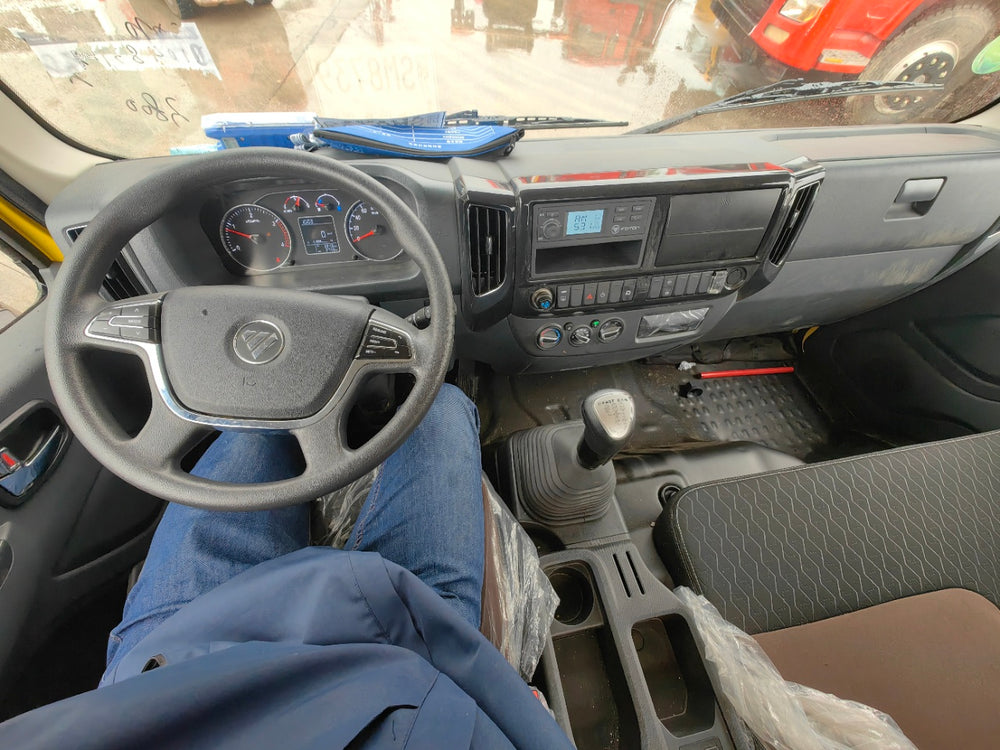

Cab Standard Equipment	Sun Visor, Heated Rearview Mirrors, Multi-function Steering Wheel, Cruise Control, Original Factory Power Take-off (PTO)
Configuration Note	Specific configuration is subject to the actual delivered chassis
Upper Body Configuration
Body Type	Inclined Integrated Upper Body, Standard Sunken Manufacturing Process
Flatbed Length	5.6-5.8m (customizable on demand)
Flatbed Width	2.3-2.55m (customizable on demand)

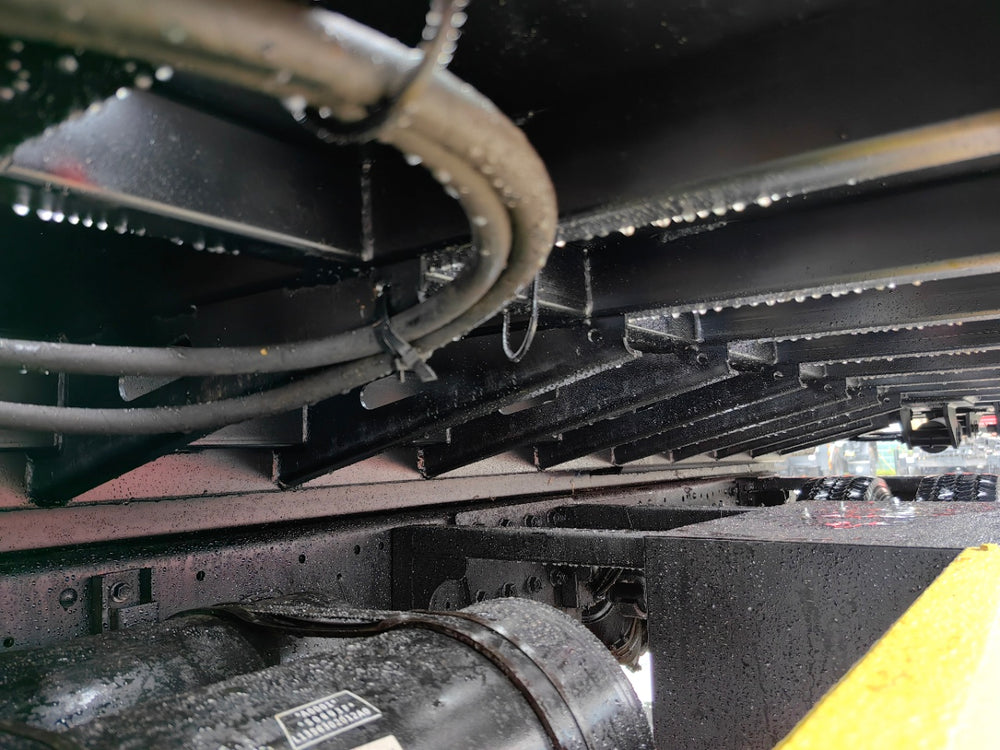

Body Structure	Double Auxiliary Frame Assembly, Densified Grid Welding & Triangular Diagonal Bracing under the Flatbed
Hydraulic System	Model 110 Main Flatbed Telescopic Oil Cylinder, Model 95 Lifting Oil Cylinder, Domestic Brand Multi-way Hydraulic Valve
Slideway	10mm Thick Manganese Steel Flatbed Chute
Frame Border	14mm Thick Solid Steel Plate Frame with Cut Holes

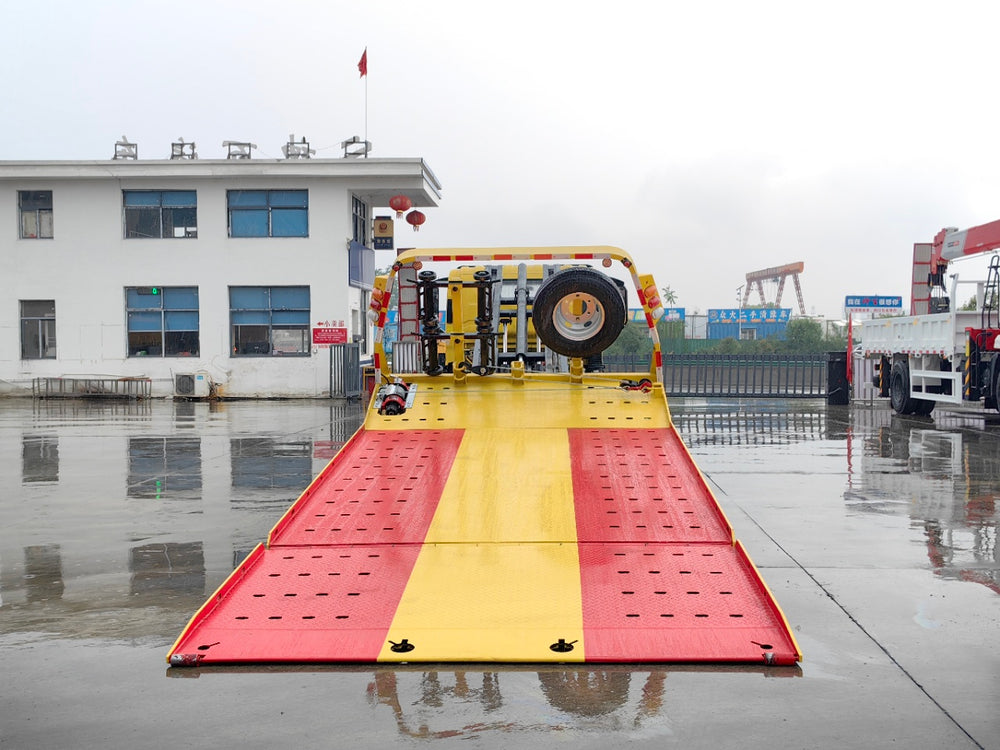

Flatbed Floor	5mm Thick Wear-resistant Checkered Plate

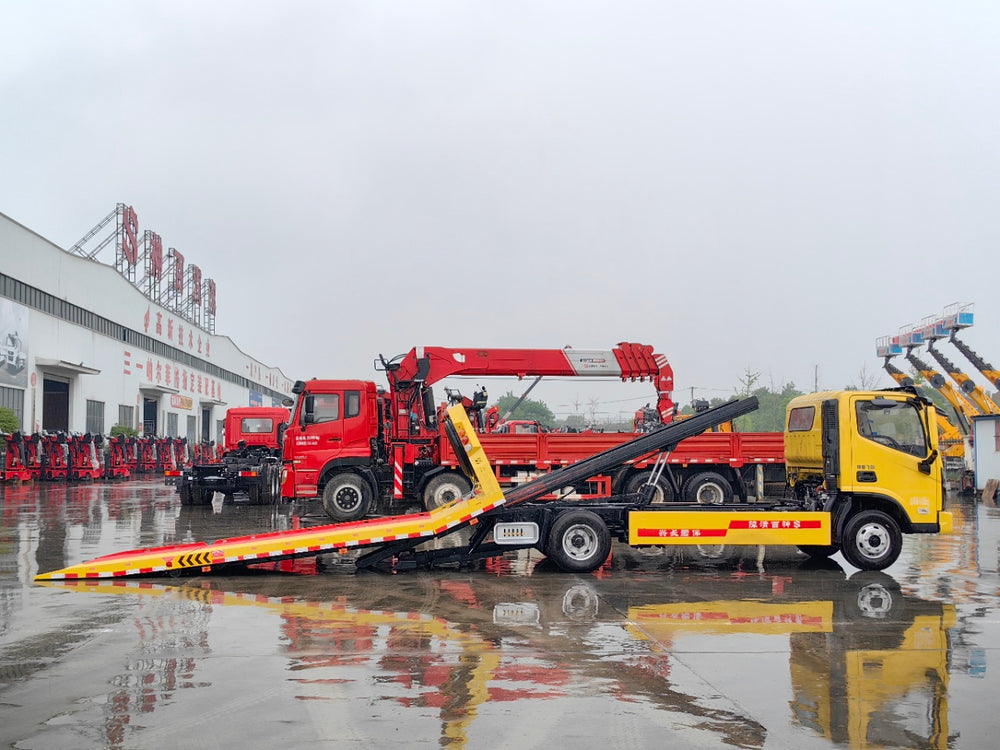

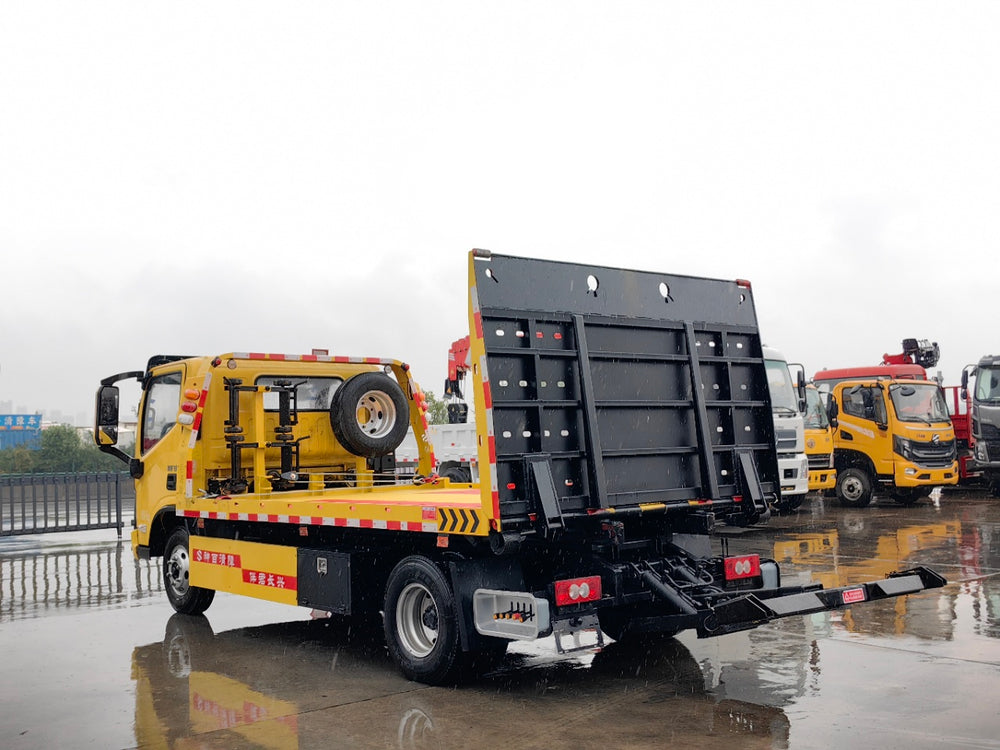

Rear Mechanism	Rear Hydraulic Turnover Hinge
Winch	Standard 4-ton Winch
Rear Tow Arm	4-ton Rear Tow Arm (Mounted on the Main Girder)
On-board Accessories
Triangle Wheel Chocks	1 Pair
Auxiliary Trolleys	1 Pair
Trolley Crowbar	1 Piece
High-quality Binding Belts	4 Pieces
