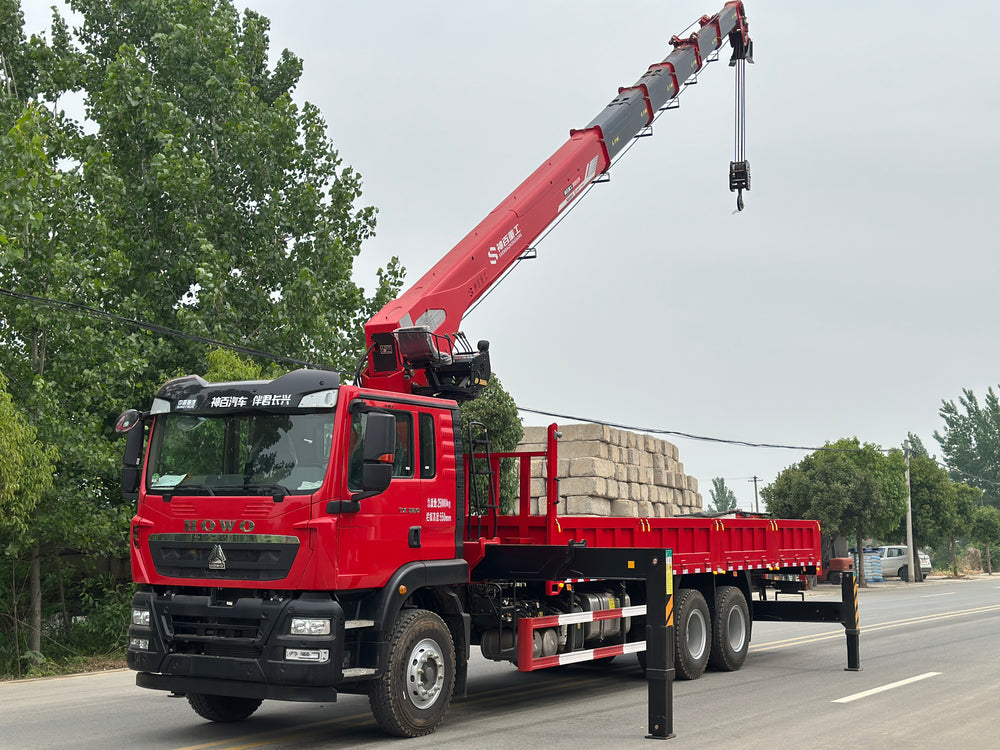

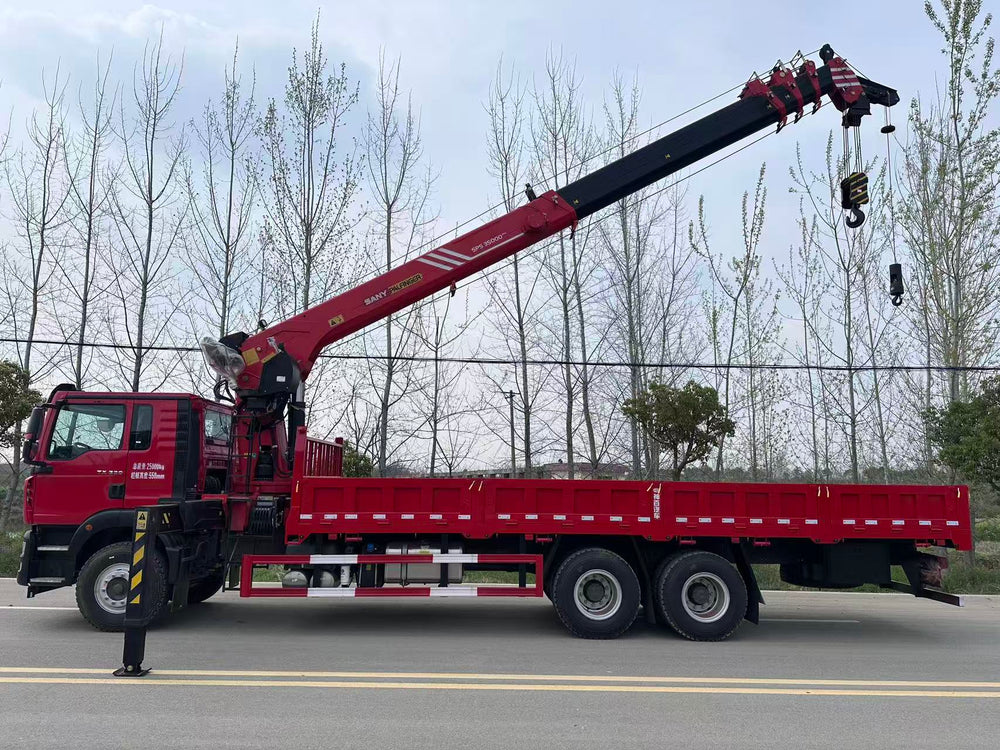

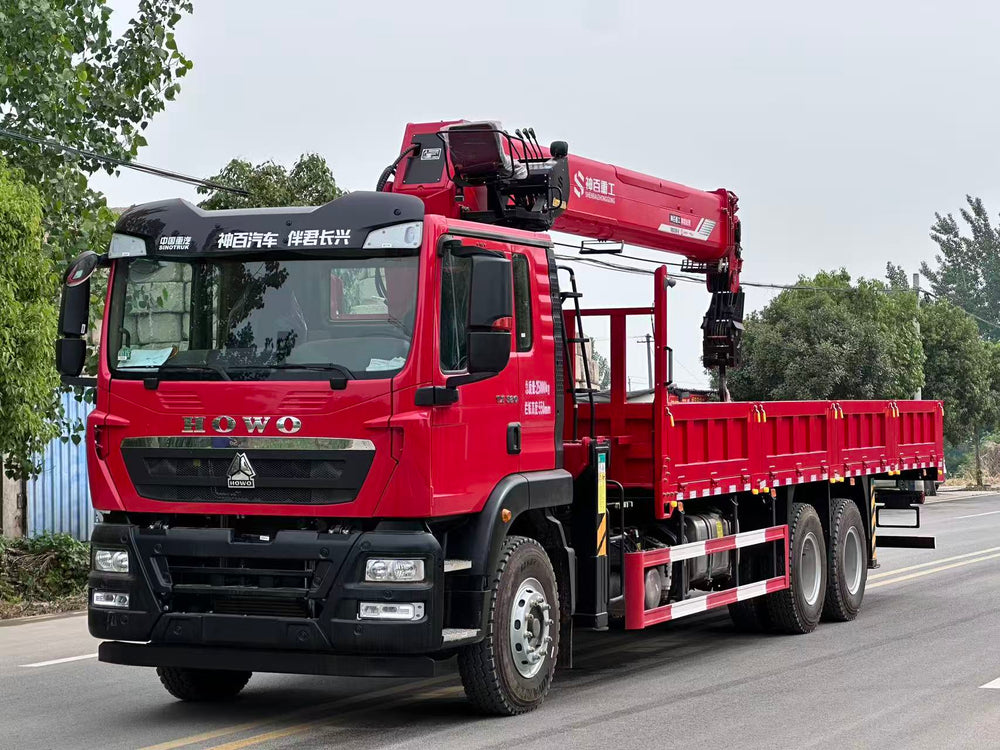

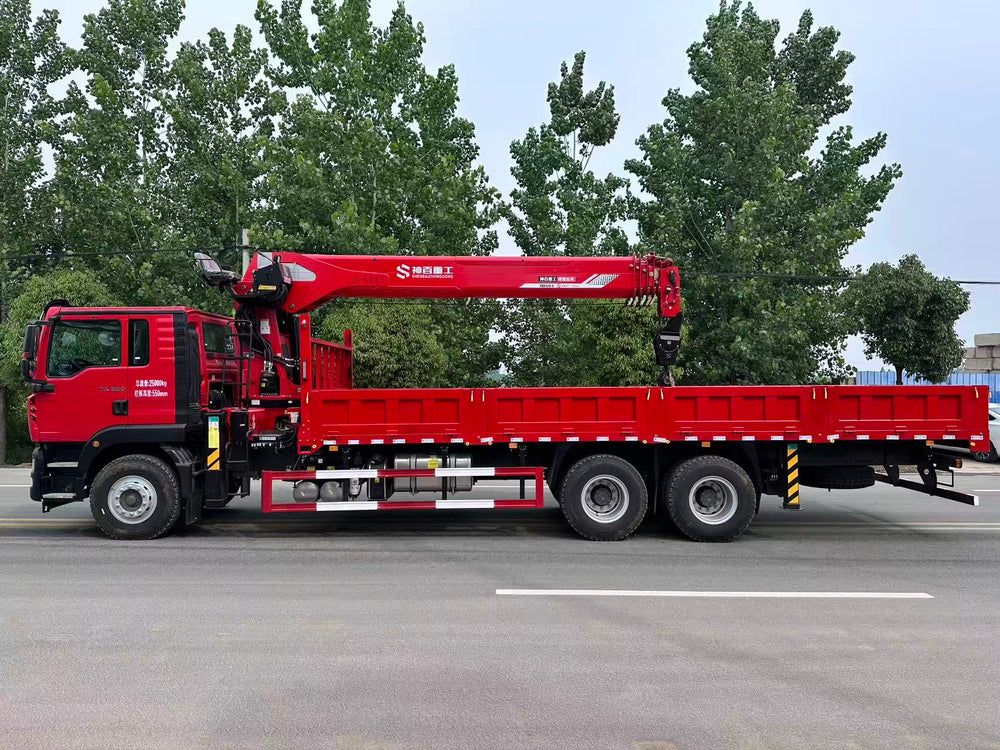

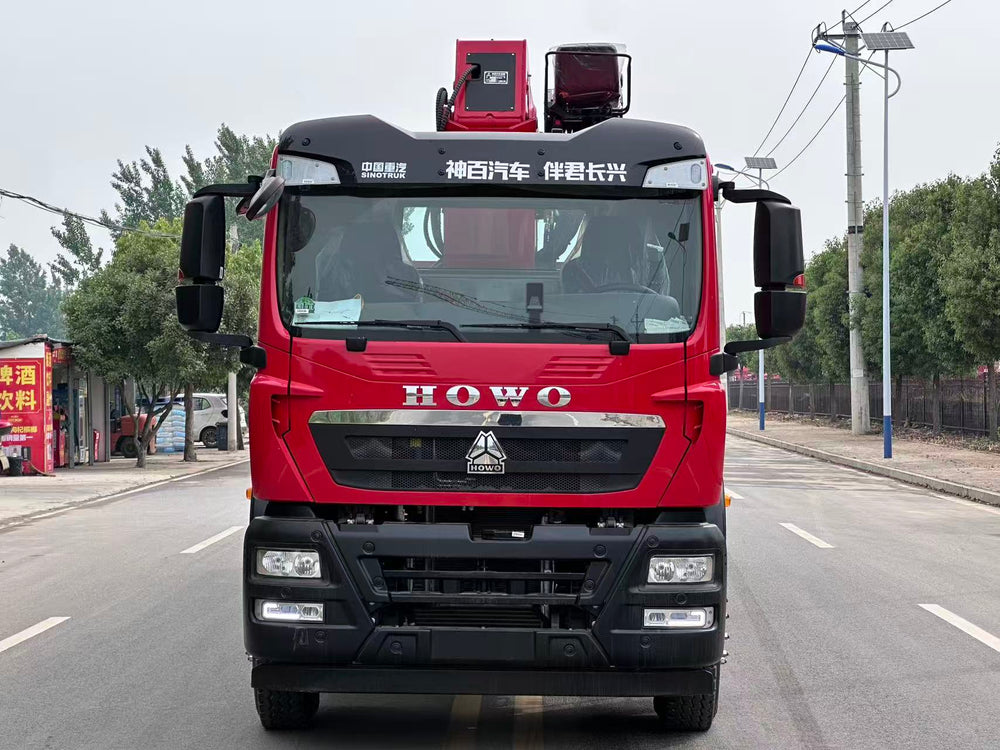

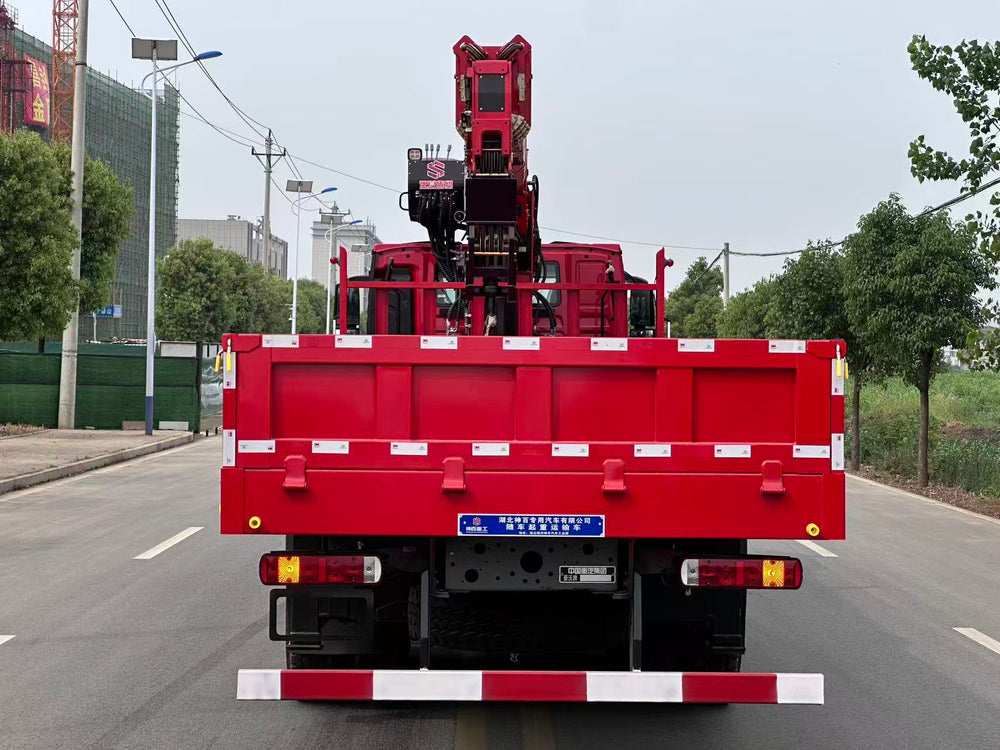

HOWO 320HP CX14T-6Section Telescopic Boom Crane
Request a Quote Now
1. Chassis Power & Transmission
| Item | Parameter |
|---|---|
| Engine | Weichai 320 HP, 6.8L displacement |
| Wheelbase | 5800 + 1350 mm |
| Axle Gear Ratio | 5.29 (Optional: 4.63 / 4.11) |
| Gearbox & PTO | HW13709XSTC2 gearbox + HW70 French-style power take-off |
| Front & Rear Axles | Reinforced Howo axles (7.5 tons front / 13 tons rear) |
2. Chassis Structure & Tires
| Item | Parameter |
|---|---|
| Frame | 3-layer reinforced frame (8+5+5/300) |
| Leaf Spring Layout | 10 pieces front / 12 pieces rear |
| Tire Spec | 11.00R20 mixed pattern tires, 18PR |
| Fuel Tank | 300L aluminum alloy fuel tank |
| Speed Limitation | Max speed 89 km/h |
3. Cab & Standard Chassis Equipment
| Item | Parameter |
|---|---|

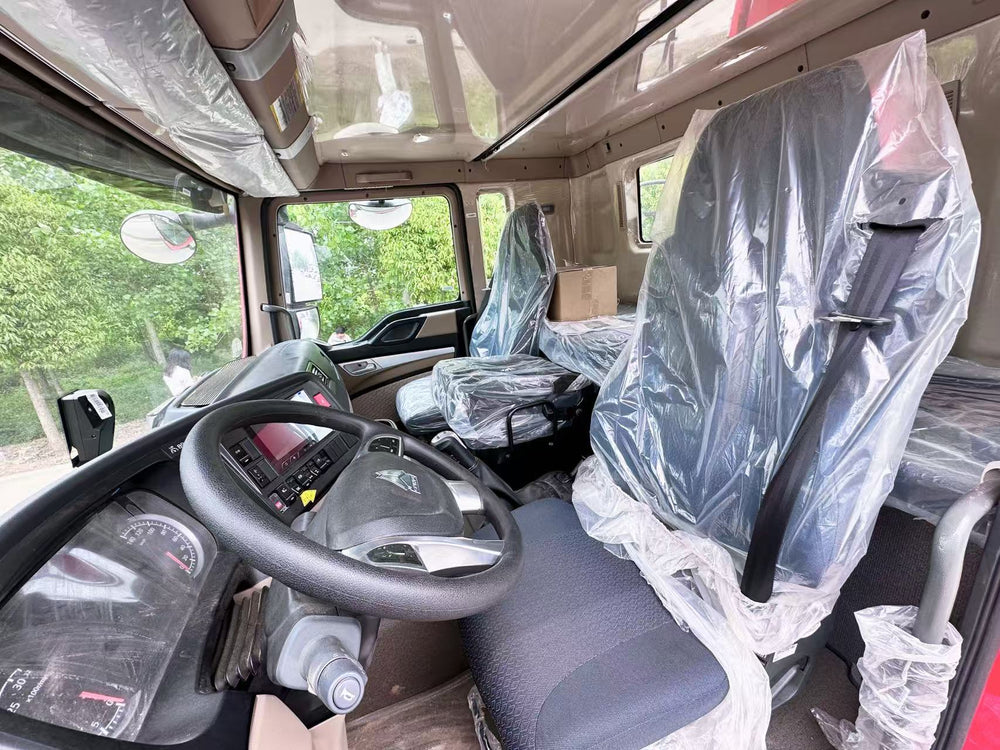

| Cab Type | Howo TX-J crew cab |
| Steering & Seats | Multi-function steering wheel; air suspension main seat + auxiliary simple seat; central cab seat |
| Mirrors & Lifting | Electric adjustable heated rearview mirrors; integrated manual-electric cab tilting |
| Safety & Electrical | ABS (4S/4M); full metal high front bumper; U-type exhaust system; 165AH storage battery; Sinotruk Intelligent Connect B version |
4. Core Chassis Advantages
| Item | Feature |
|---|---|
| Matching Design | Integrated matching of engine, gearbox and axles for superior vehicle compatibility |
| Cab Safety | Original MAN cab with 4-point suspension & advanced crash energy absorption technology to protect occupants |
| Driving Comfort | Popular air suspension driver seat with multi-position adjustment & lumbar support, ergonomic safety belt |
| Load Stability | Reinforced engineering leaf springs with 2 U-bolts; V-type thrust rod for outstanding torsion resistance under harsh conditions |
| Rear Axle Performance | 13-ton rear axle with 3 differential locks, strong torque boost for complex road conditions |
5. Crane & Cargo Body Superstructure
| Item | Parameter |
|---|---|

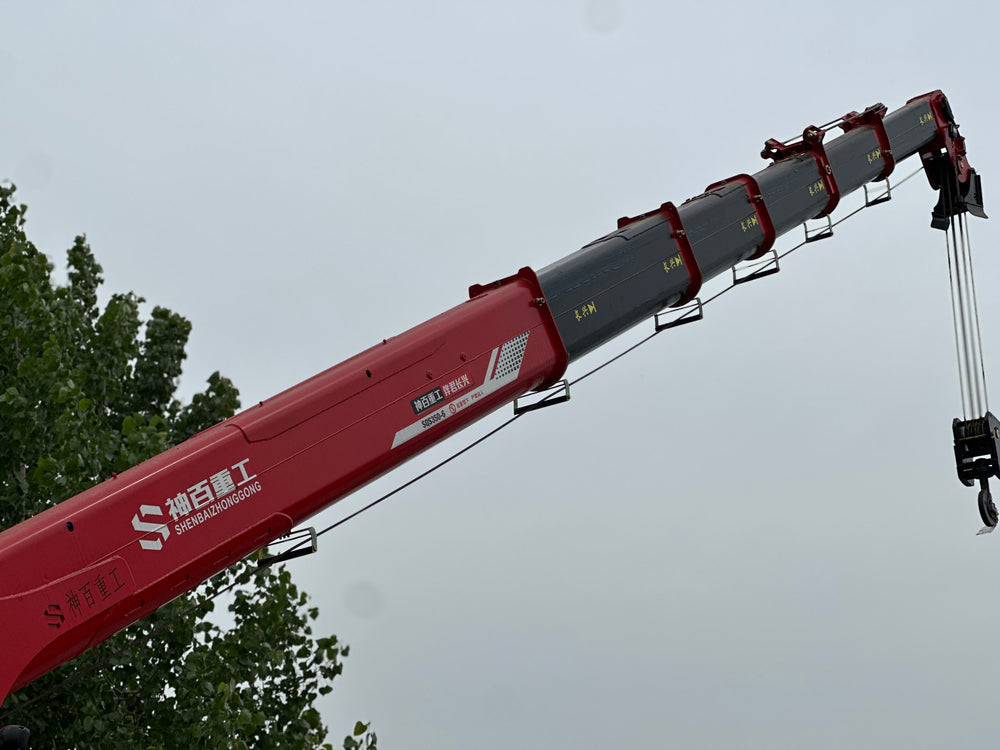

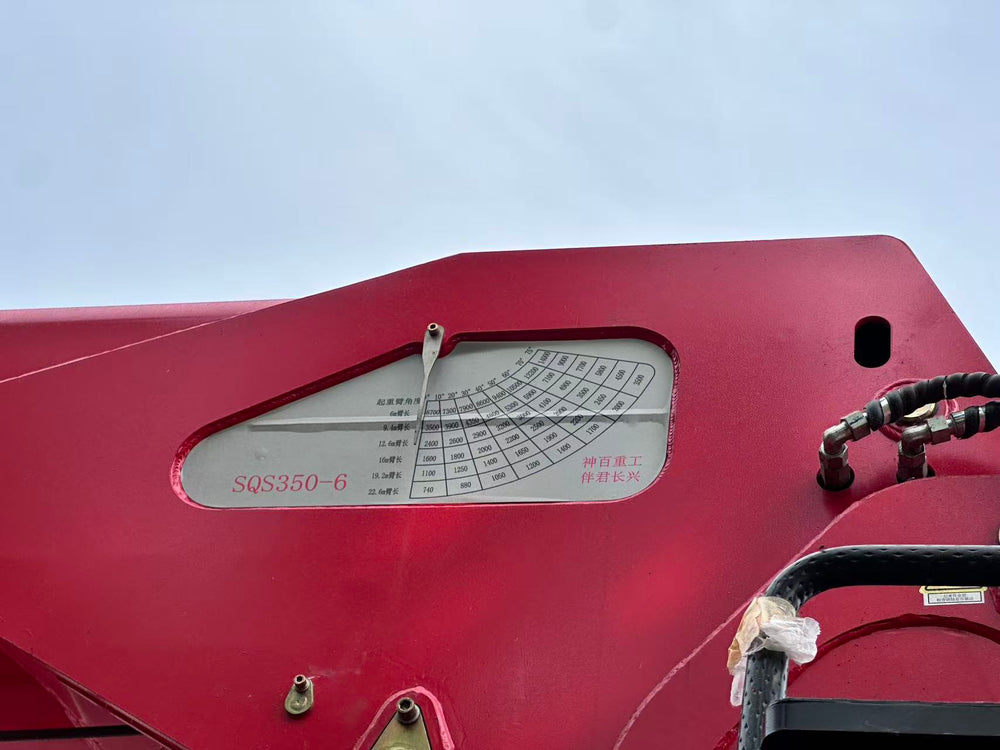

| Crane Model | Changxing 14-ton 6-section crane boom |
| Max Boom Length | 22.6 m |
| Crane Functions | Upper cab operation, independent control of 2nd boom, full 360° slewing, double-stage outriggers, radiator, automatic boom retraction |

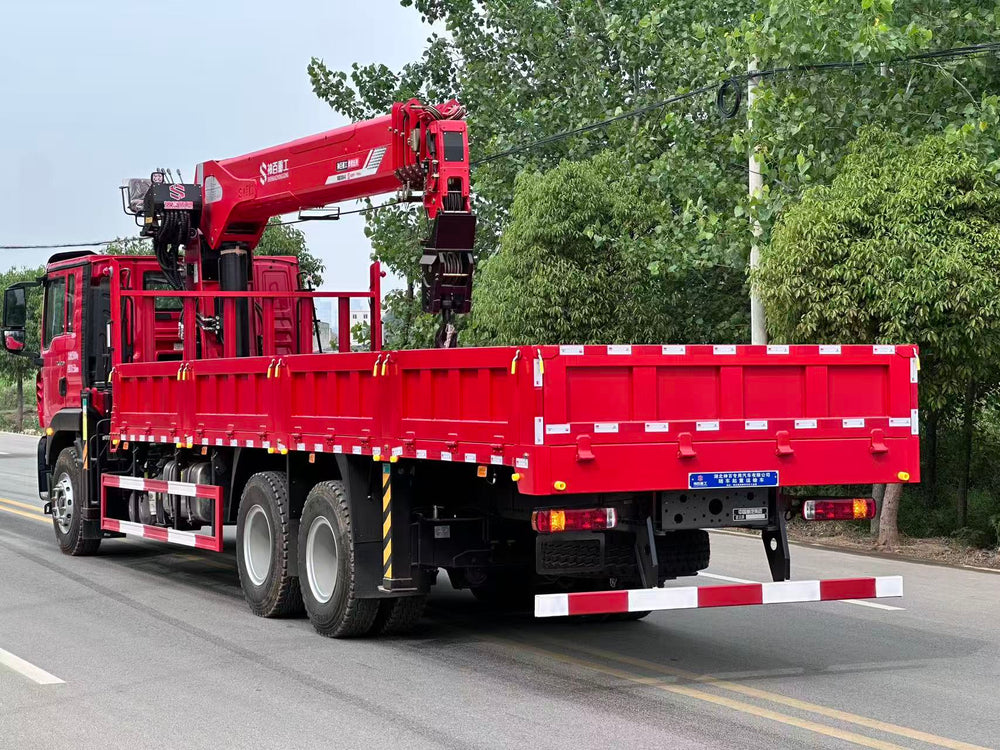

| Cargo Box | 8.4m three-bottom five-way engineering cargo box with auxiliary sub-frame |
