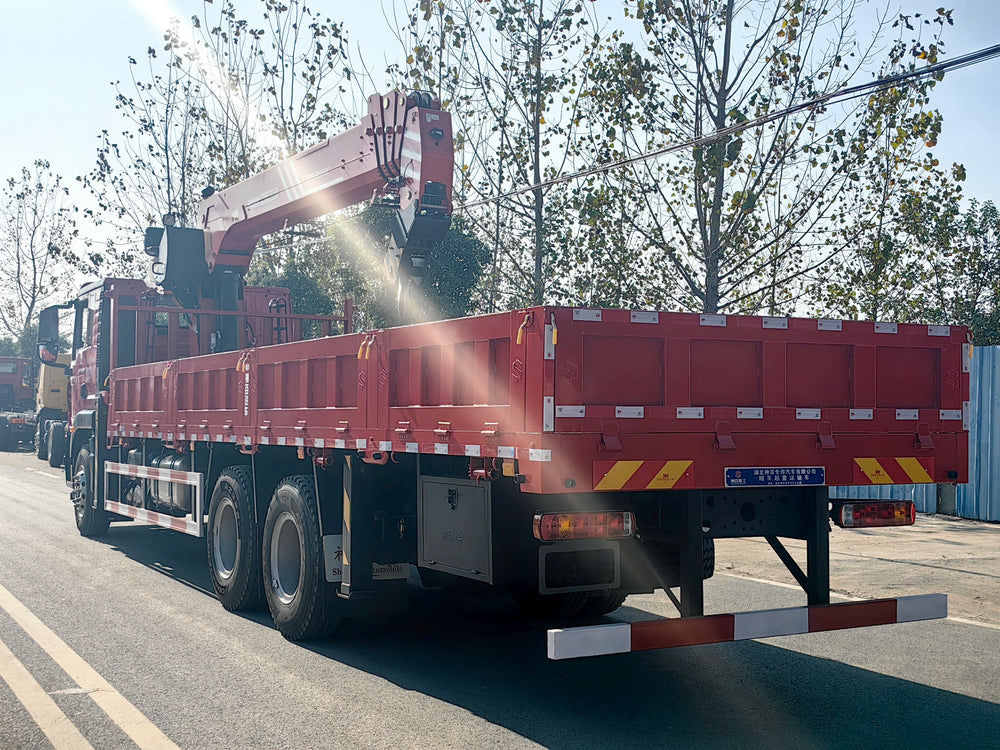

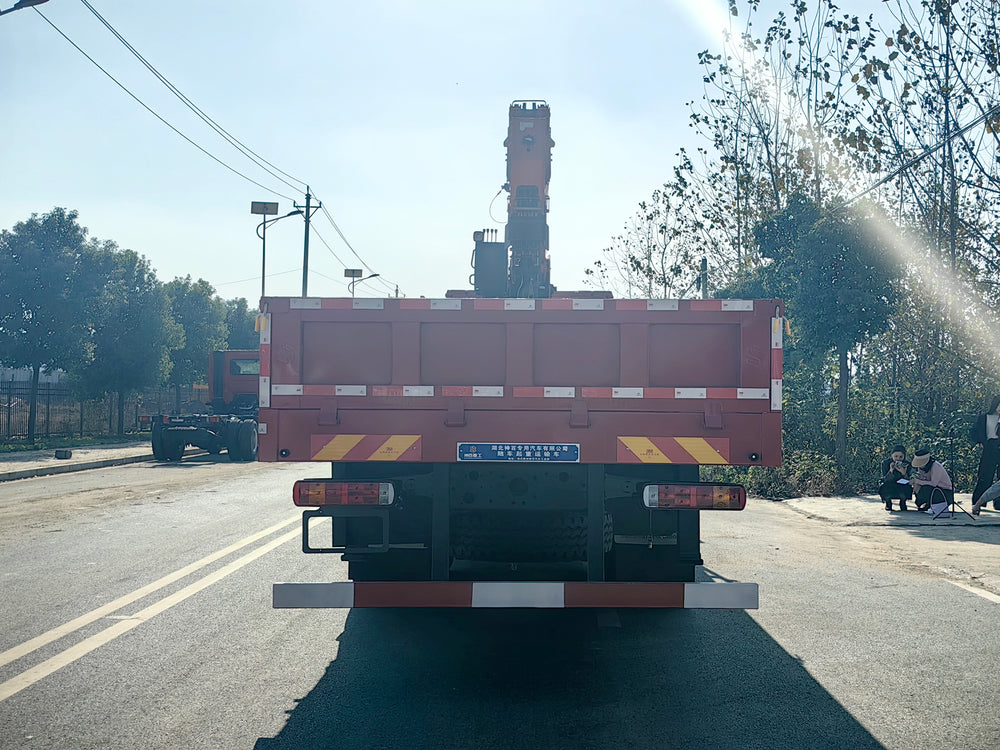

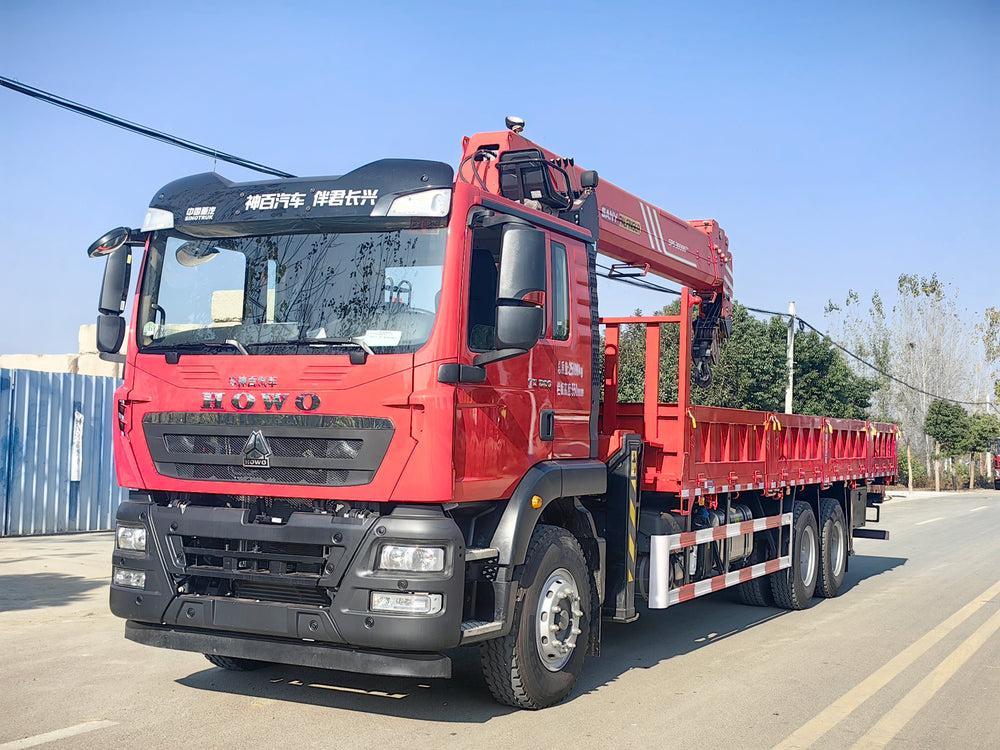

HOWO 6*4 Palfinger 14T Telescopic Boom Crane
Request a Quote Now
| Item | Specification |
|---|---|
| Powertrain | |
| Engine | Weichai 320HP, 7.0L Displacement |
| Transmission + PTO | HW13709XSTC2 9-speed Synchronized Gearbox + HW70 Flange-type Power Take-off |
| Final Drive Ratio | 5.29 (4.63 / 4.11 optional) |
| Axles & Chassis Frame | |
| Front Axle | VGD75 Self-adjusting Front Axle (Drum Brake) |
| Rear Axles | MCJ12BGY Self-adjusting Double Rear Axles (Drum Brake), 13-ton load capacity, with 3 differential locks |
| Frame Structure | Triple-layer Heavy-duty Frame (8+5+5/300) |
| Leaf Springs | 10-piece (front) / 12-piece (rear) heavy-duty |
| Wheelbase | 5800 + 1350 mm |
| Tires | 11.00R20 Mixed-tread Heavy-duty Tires (18PR) |
| Chassis Standard Configuration | |
| Top Speed Limit | 89 km/h |
| Exhaust Layout | U-type Exhaust System |
| Braking System | ABS (4S/4M) |
| Bumper | Full-metal High-position Bumper |
| Fuel Tank | 300L Capacity |
| PTO Control | Cable-operated PTO |
| On-board Telematics | Sinotruk Intelligent Connect System (Version B) |
| Battery | 165Ah |
| Cab & Comfort Features | |
| Cab Type | TX5 Luxury Flat-floor Cab (German MAN original design) |
| Cab Suspension | Four-point floating suspension with industry-leading collapsible crash structure |
| Seating | Aviation-style air suspension driver seat (multi-adjustable with lumbar support) + standard passenger seat + middle jump seat |
| Steering | Multi-function Steering Wheel |
| Cab Lift | Electro-hydraulic Power Lift |
| Mirrors | Manual Adjustable Rearview Mirrors |
| Core Competitive Advantages | |
| System Integration | Fully optimized engine-gearbox-axle-chassis matching for superior vehicle adaptability |
| Crash Safety | German MAN crashworthy cab structure with energy-absorbing design for maximum driver protection |
| Ride Ergonomics | Multi-adjustable air suspension seats with humanized seatbelt design for all-day comfort |
| Load & Torsion Performance | Engineering-grade leaf springs, four U-bolt fixation and V-type thrust rod for industry-leading torsion resistance and heavy-load stability |
| Off-road Capability | 13-ton rear axles with triple differential locks for enhanced torque on harsh and complex terrain |
| Upper Crane Equipment (SANY) | |
| Crane Rating | 14-ton lifting capacity, 5-section boom |
| Total Boom Length | 19.8m |
| Maximum Lifting Height | 21.8m |
| Boom Feature | 2nd boom extends independently |
| Outriggers | Double-section front outriggers + 4.8m single-cavity rear outrigger; 7.25m maximum working span |
| Hydraulic System | Piston pump; piston motors for both slewing and hoisting mechanisms |
| Cargo Box | 8.4m heavy-duty engineering cargo box (3mm side plates, 5mm reinforced base plate) |
| Auxiliary Beam | Full-length through-type auxiliary beam |
