HOWO 8×4 25T Knuckle Boom Crane

1 / 9

Item	Specification
Chassis & Powertrain
Engine	Weichai 350HP, 8.0L Displacement
Wheelbase	2100+4300+1350mm
Transmission & PTO	HW25712XSTL Transmission + HW70 Flange PTO

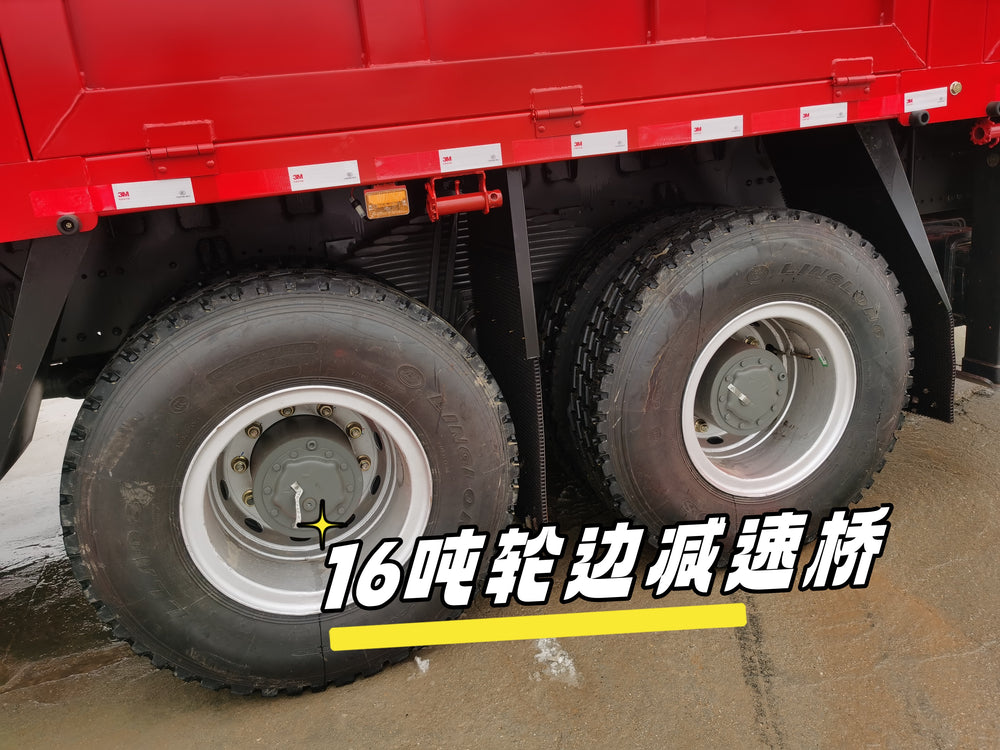

Front & Rear Axle	VGD75 Self-adjusting Arm Front Axle (Drum Brake); MAT16ZG Self-adjusting Arm Dual Rear Axles (Drum Brake), SINOTRUK Self-developed 16T Wheel Reduction Axle
Final Drive Ratio	4.42
Chassis Frame	3-layer Through Frame (8+5+8/300)

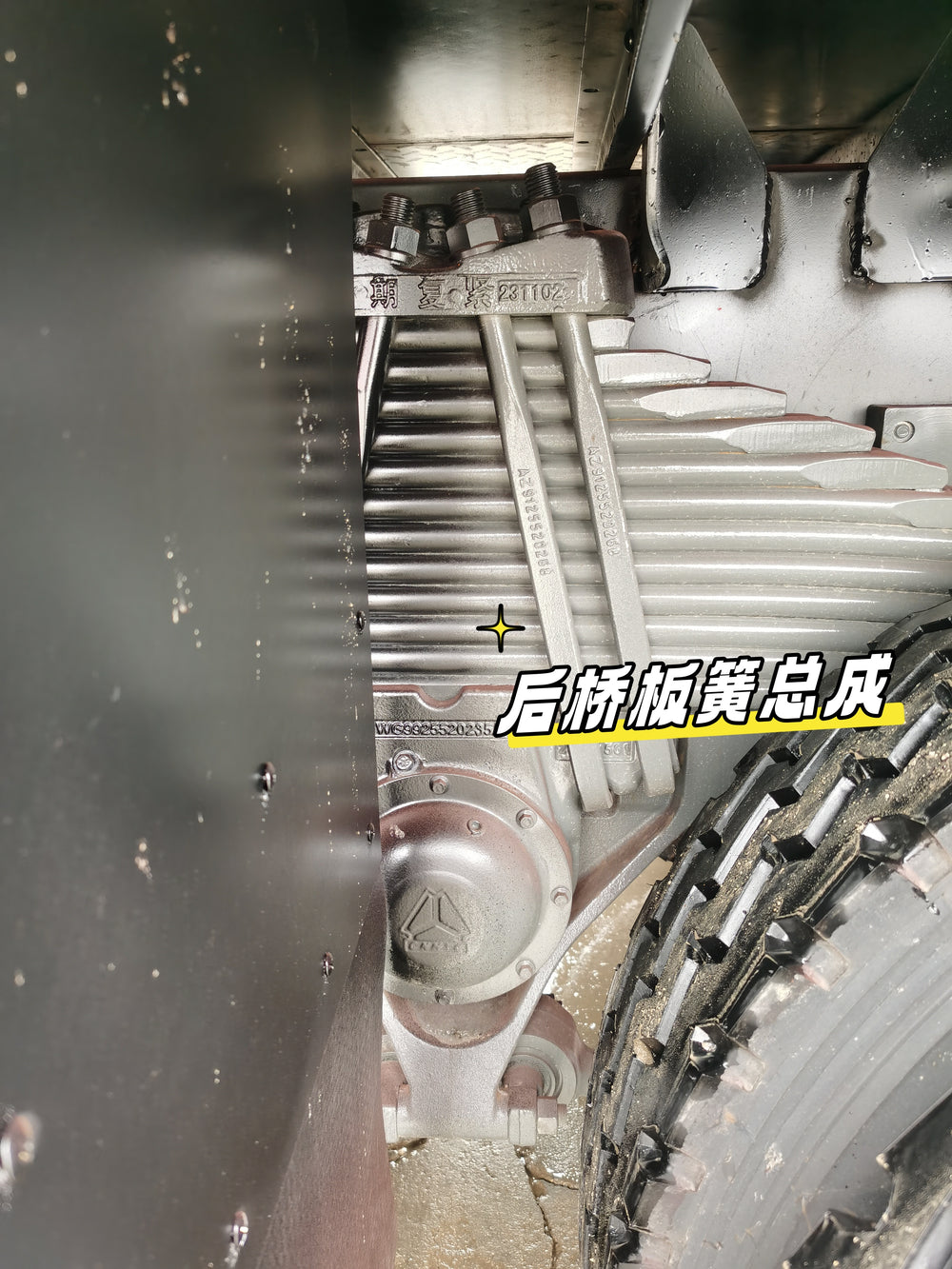

Leaf Spring Quantity	11/11/12
Tyre Spec	11.00R20, Mixed Pattern, 18PR
Cab & On-board Configuration
Cab & Core Fittings	TX-K Cab (Genuine MAN Germany Body), Electric Heated Rearview Mirrors, Main Air Suspension Seat + Auxiliary Simple Seat

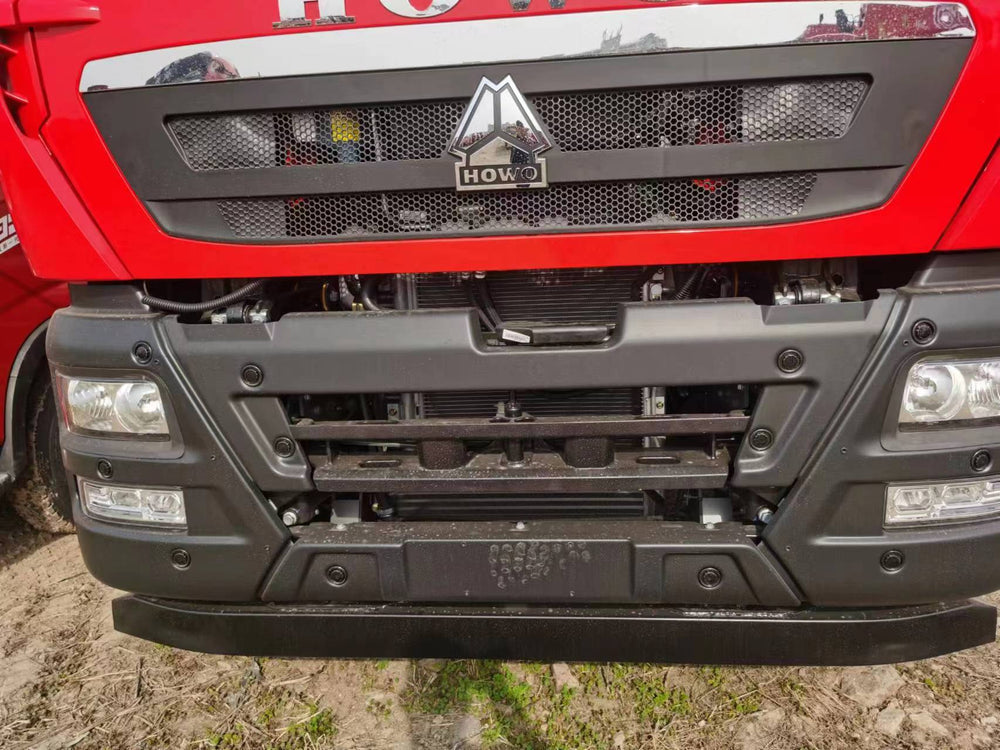

Auxiliary Configuration	Standard Exhaust System, High-position Full-metal Bumper, 400L Fuel Tank, Cable PTO, SINOTRUK Intelligent Connect D Version, Mechanical Power Switch
Core Performance Advantages
Powertrain Adaptability	Integrated matching of Weichai 350HP engine, Howo 12-speed transmission, and axle for optimal whole-vehicle adaptability

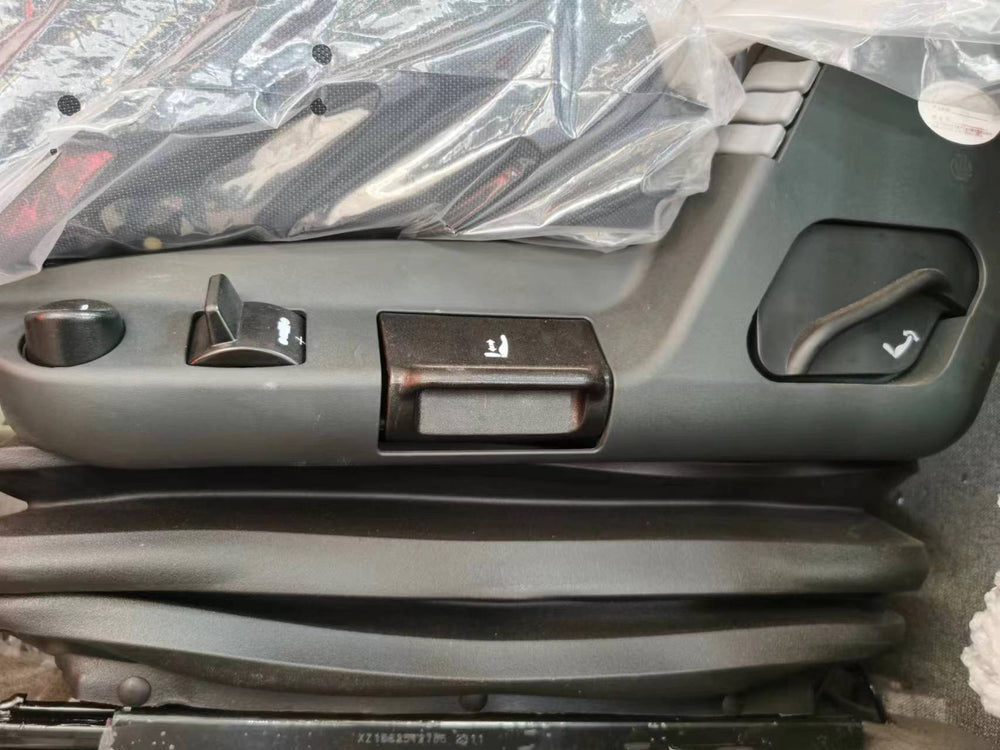

Cab Safety & Comfort	4-point suspended cab with leading anti-collapse technology for occupant safety; multi-adjustable main driver air seat with lumbar support, ergonomic safety belt for premium driving comfort
Frame & Load Stability	3-layer through frame reinforced by engineering leaf springs and 4-horsepower bolts, best-in-class torsion resistance on complex roads; V-type thrust rod for maximum body stability under heavy load
Off-road & Towing Capacity	SINOTRUK self-developed dual 16T wheel reduction rear axles with 3 differential locks, delivering enhanced torque to handle all complex road conditions
Superstructure Equipment

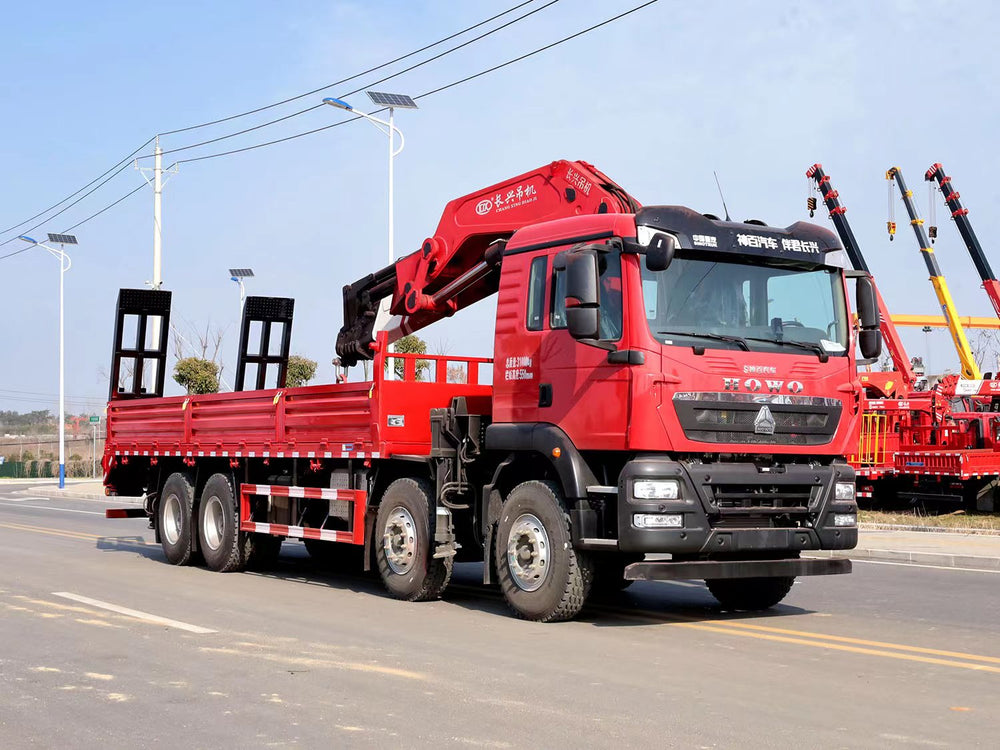

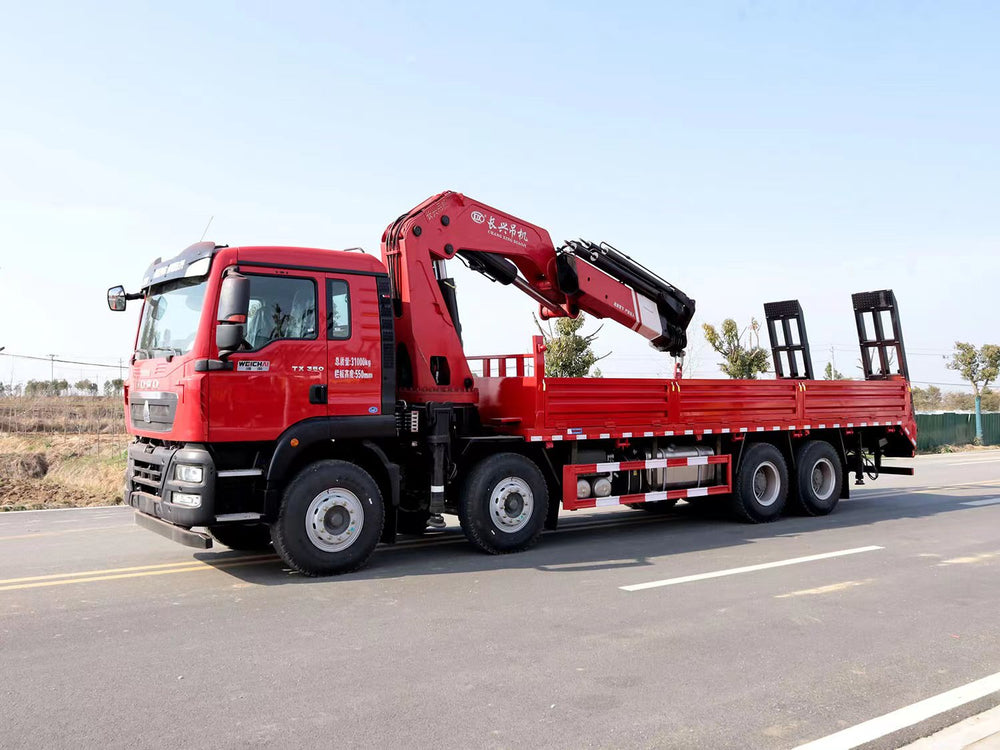

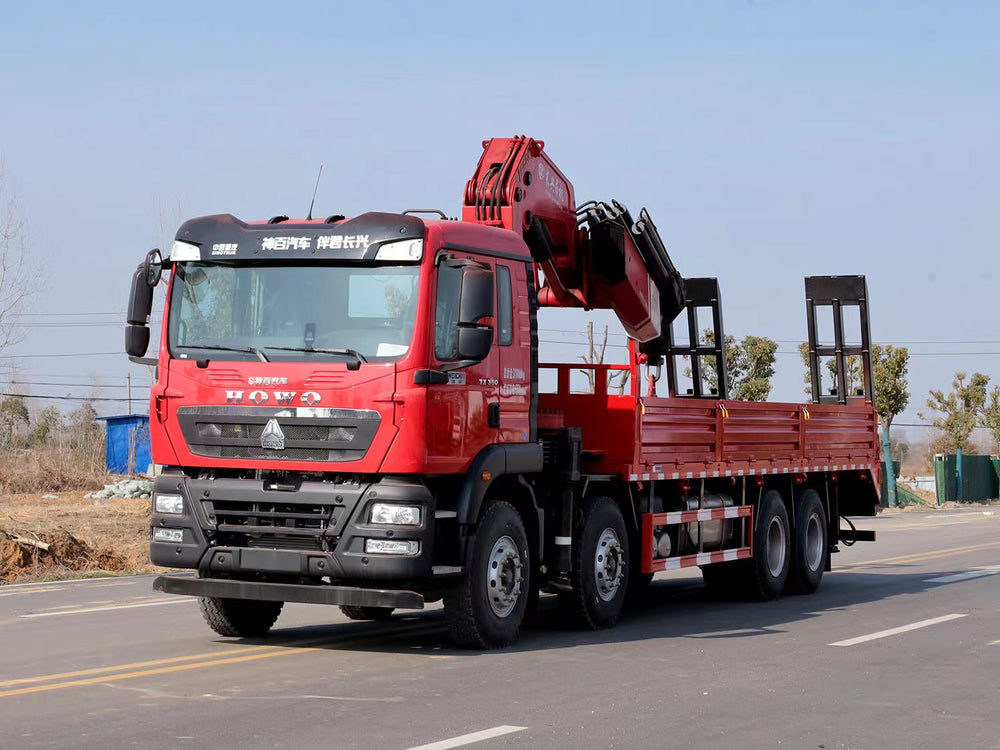

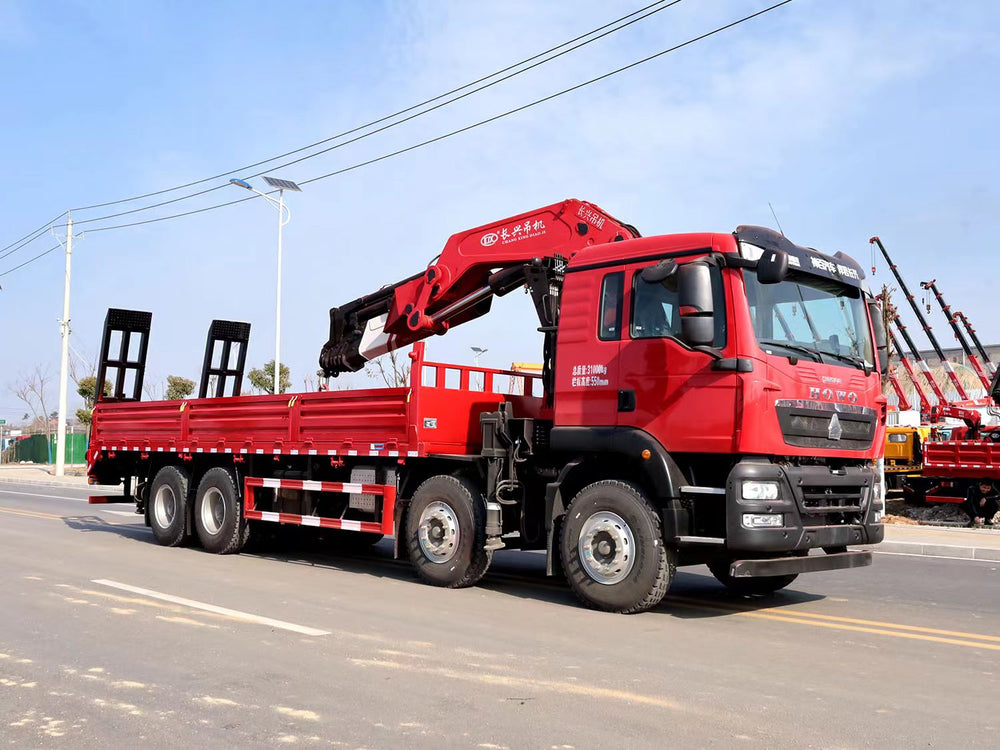

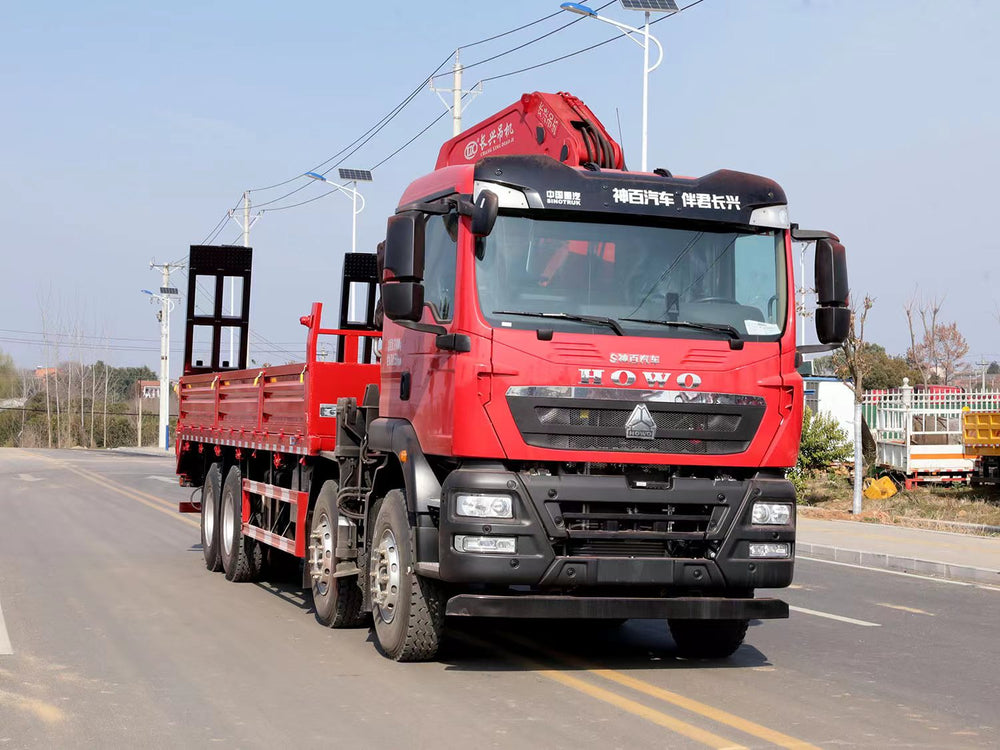

Crane Spec	Changxing 25T 7-section Knuckle Boom Crane, 18m Lifting Height, 15.8m Working Radius
Cargo Box Spec	7.6m Flatbed Cargo Box with 3-side & 8-bottom Plate, Ladder, and Through Subframe; suitable for transporting excavators and other heavy machinery
