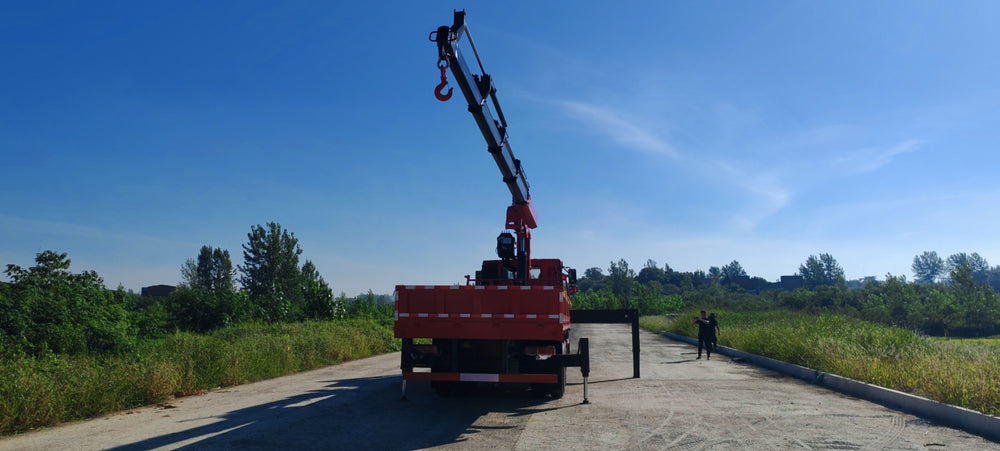

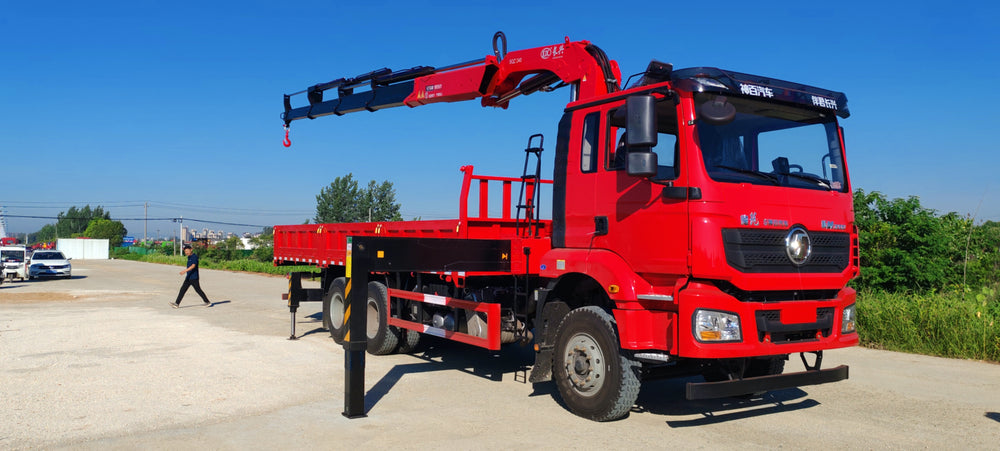

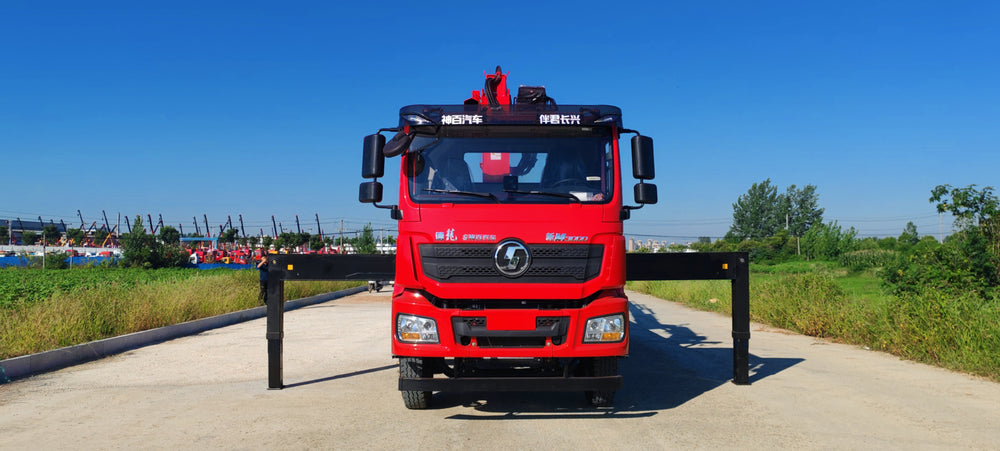

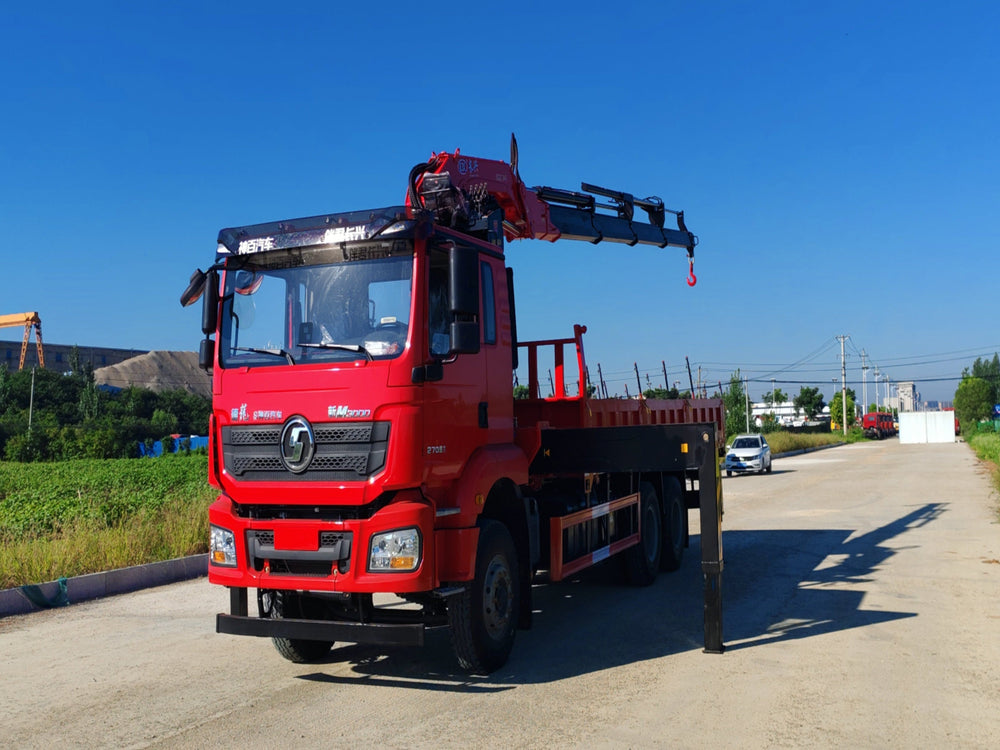

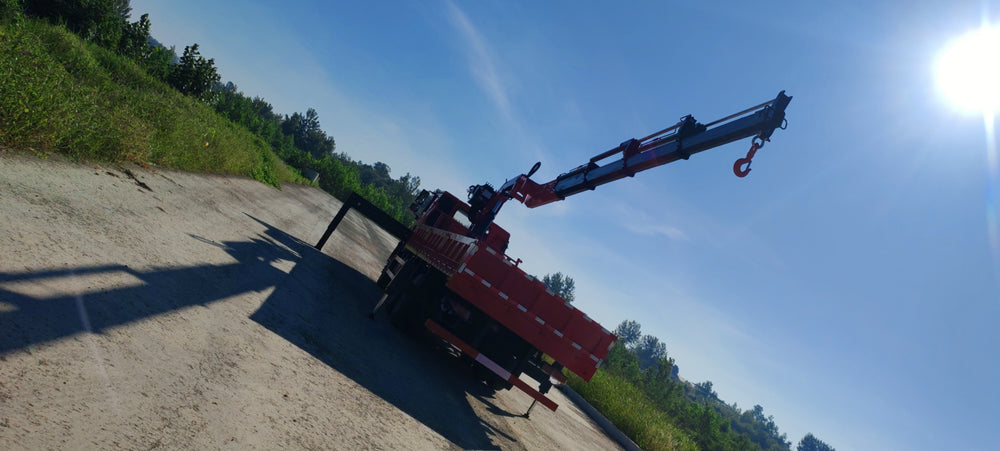

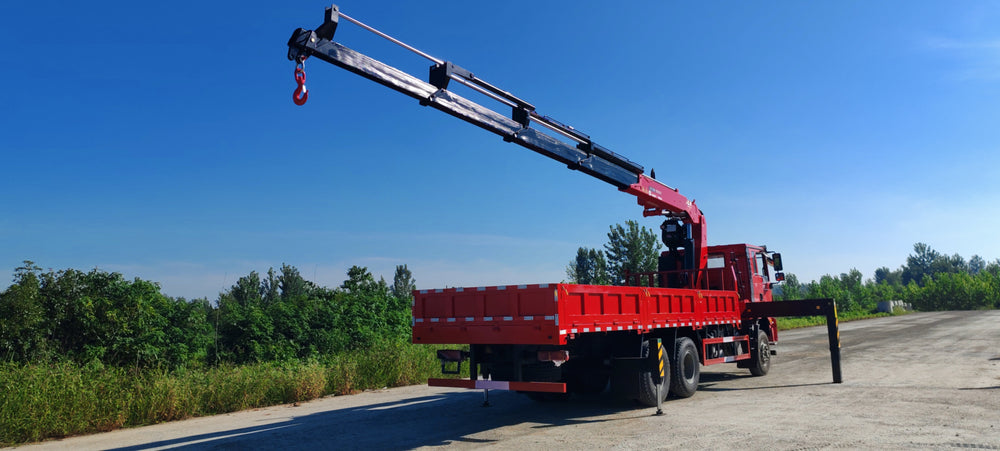

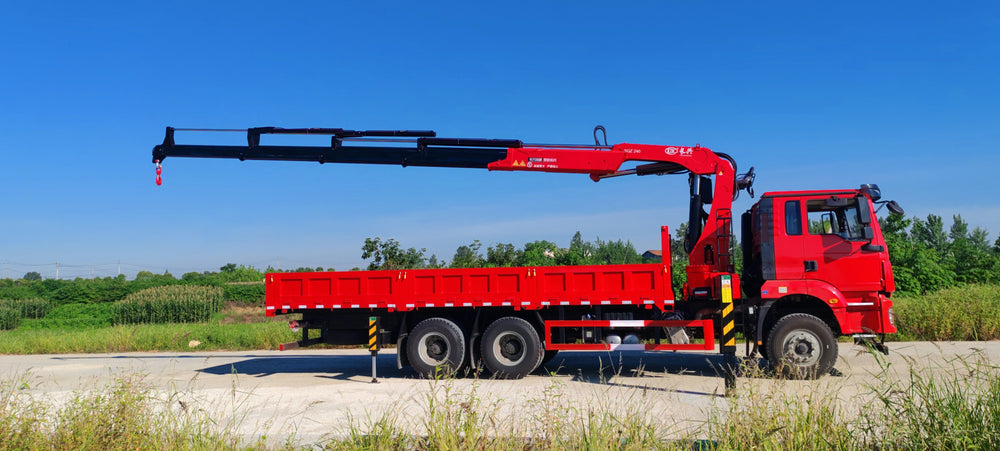

SHACMAN 6×4 12T Knuckle Boom Crane

1 / 7

Item	Specification
Basic Vehicle Information
Chassis Model	SX1259MB4F1
Gross Vehicle Weight (GVW)	25000kg
Kerb Weight	16500kg / 17000kg / 17600kg / 18000kg / 18800kg / 19500kg
Max Travel Speed	89km/h (Economy Version, Speed Limited to 89km/h)
Powertrain System
Engine	Weichai WP7H270E68, 270HP, National VI Emission Standard
Transmission	Fast 9JS119T B 9-speed Gearbox, with Synchronizer, High/Low Range, Iron Housing, QHG50
Clutch	Domestic Heavy-duty Clutch
Front & Rear Axle	5.5T Front Axle / 11.5T Rear Axle, Hande Maintenance-free, Drum Brake for Both Steer & Drive Axles
Final Drive Ratio	4.111
Chassis & Running Gear
Wheelbase	5775+1400mm
Tyre Specification	11.00R20 Radial Heavy-duty Tyre
Chassis Frame	866×308(8+5+8) Reinforced Frame
Front Suspension	Multi-leaf Spring Suspension
Rear Suspension	Multi-leaf Spring Suspension with 2 U-bolts
Fuel Tank	300L Iron Fuel Tank
Steering System	Domestic Steering Gear, Standard Steering Wheel
Cooling & Intake	Aluminum Radiator, DC Air Filter
Exhaust System	Standard Heavy-duty Exhaust System
Cab & Comfort Configuration
Cab Body	New M3000 Standard Cab (without Wind Deflector), Manual Hydraulic Tilt
Driver Seat	Air Suspension Main Driver Seat
Sleeping Berth	Single Sleeper Berth
Climate Control	Electric Air Conditioner
Convenience Features	Electric Window Lifter, Central Door Lock with Remote Control, 2-step Entry Pedal
Vision & Lighting	Rod-type Rearview Mirrors, Halogen Main Headlights
Exterior Fittings	Engineering Vehicle Front Bumper
Safety & Auxiliary Equipment
Braking Safety	Anti-lock Braking System (ABS)
Electrical System	Maintenance-free Battery, Tianxingjian Smart Elegant On-board Terminal
Traction Fittings	Left Front Traction Pin + Rear Traction Seat
