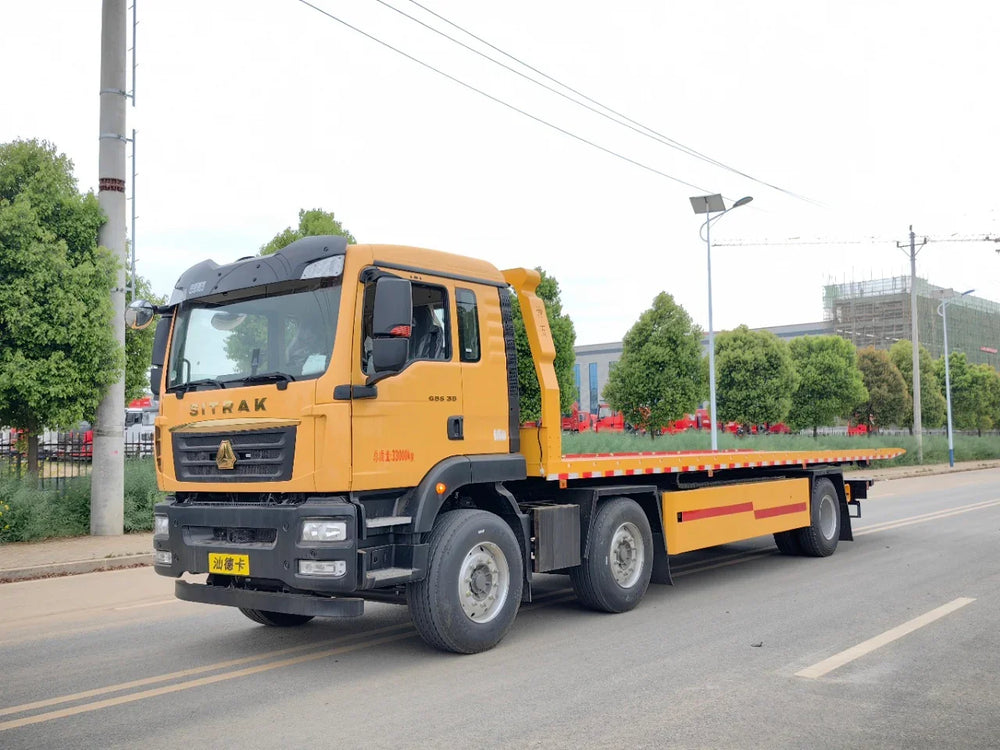

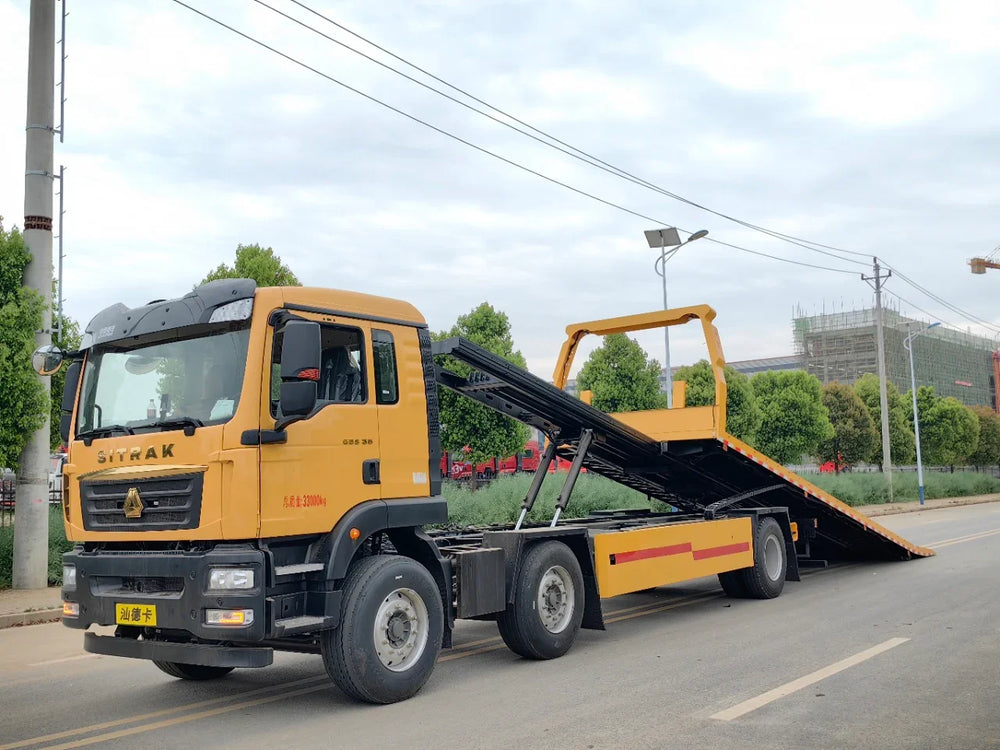

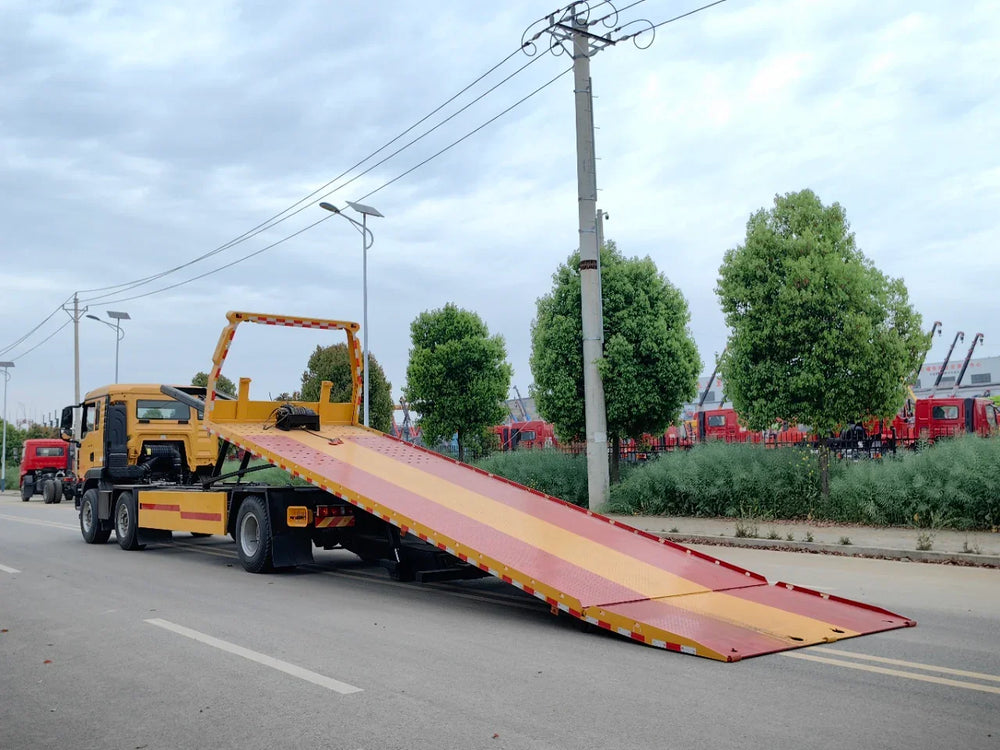

SITRAK 15T Wrecker Truck

1 / 3

Configuration Category	Core Technical Specifications
Chassis Configuration	• Chassis Platform: Sinotruk SITRAK Gold Label Heavy-Duty Wrecker Chassis • Powertrain: 350HP 3rd-Generation MAN Diesel Engine • Transmission: Sinotruk 12-Speed Manual Transmission with Overdrive Gear • Axle & Tire: 9.5T Front Axle / 12T Rear Axle (German MAN Technology); 385 Vacuum Front Tires, 1100 Steel Wire Rear Tires • Frame: Factory Integrated 3-Layer Main Frame (8+8+6mm Thickness) • Cab Features: Multi-Adjustable Air Suspension Driver’s Aviation Seat; Heated & Electrically Adjustable Rearview Mirrors; Automatic Headlights; Central Control Touchscreen; Co-Driver Foldable Desk; Manual Sun Visors for Driver & Co-Driver
Wrecker Body Configuration	• Rated Capacity: 18-Ton One-Tow-Two Wrecker Body • Structural Design: Sunken Structure for Lower Flatbed Center of Gravity • Flatbed Size: 10.15m (Length) × 2.55m (Width) • Flatbed Structure: 8mm Thick High-Strength Wear-Resistant Checkered Steel Floor; Reinforced Dense Keel Frame with Grid Layout & Diagonal Bracing; Heavy-Duty Auxiliary Beam • Control & Lifting System: Bilateral Linkage Control; Double-Layer 12+12mm Thick Reinforced Slideway; 15-Ton Mid-Mounted Winch; 18-Ton 3-Stage Rear Lifting Arm • Hydraulic System: Imported Italian HCD Hydraulic Valve; Dual Flatbed Telescopic Hydraulic Cylinders • Curb Weight: 17.1 Tons (Excluding Auxiliary Accessories)
On-Board Accessories	• 1 Pair of Triangular Tire Chocks • 6 High-Strength Lashing Straps • 1 Pair of Towing Fork Brackets • 3 Pairs of Towing Forks (1 Pair for High/Medium/Low Height Respectively) • 1 Pair of Square Tire Holding Sleeves • 1 Pair of L-Shaped Towing Forks
