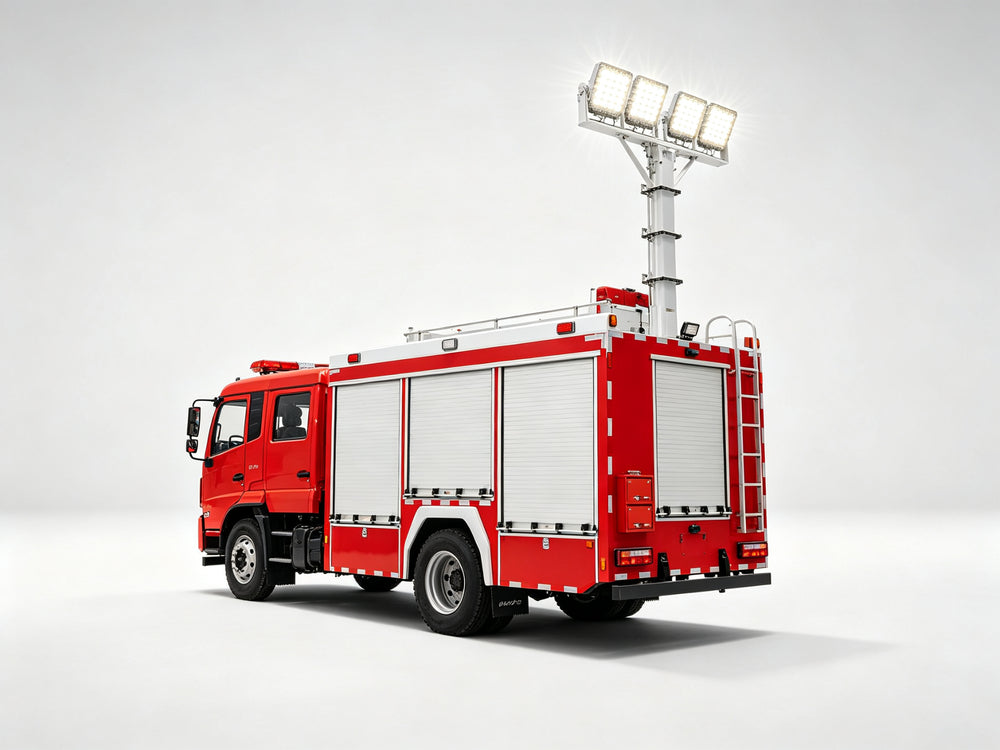

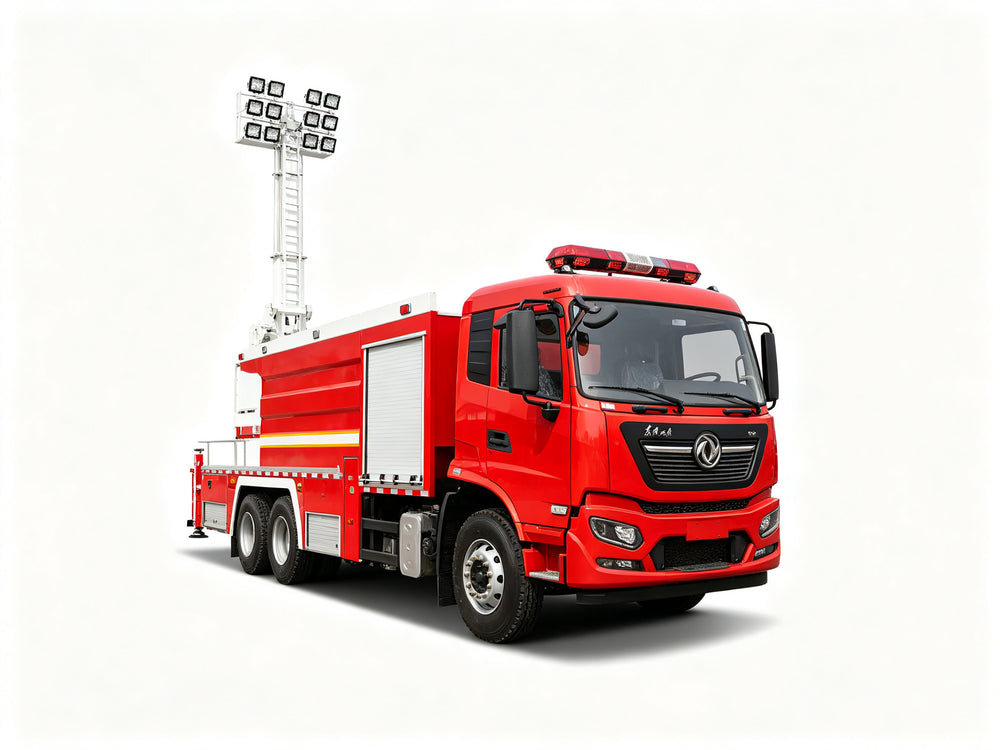

DongFeng 120000lm 6units Emergency Lighting Truck
Request a Quote Now
1. Complete Vehicle Basic Parameters
| Parameter | Value |
|---|---|
| Vehicle Model | CL5180XZM6HL |
| Vehicle Type | Medium Emergency Lighting Truck |
| Gross Vehicle Weight | 18000 kg |
| Curb Weight | 13500 kg |
| Rated Load | 4300 kg |
| Number of Axles | 2 |
| Cab Seating | 3 persons |
| Maximum Speed | 95 km/h |
| Emission Standard | Euro VI / National VI |
2. Dimension & Wheel Parameters
| Parameter | Value |
|---|---|
| Overall Dimension (L×W×H) | 8500 × 2500 × 3600 mm |
| Wheelbase | 4700 mm |
| Tire Specification | 10.00R20 18PR |
| Number of Tires | 6 + 1 spare |
3. Chassis & Powertrain
| Parameter | Value |
|---|---|
| Chassis Model | DFH1180EX8 |
| Chassis Brand | Dongfeng Tianjin |
| Engine Model | B6.2NS6B230 |
| Engine Power | 230 HP (169 kW) |
| Transmission | Fast 8-Speed Manual |
| Fuel Tank | 250 L |
4. Lighting System
| Parameter | Value |
|---|---|
| Light Mast Type | Hydraulic Telescopic Mast |
| Mast Height | 9 m (4-section) |
| Number of Light Fixtures | 6 units |
| Light Source | High-Power LED / Optional Metal Halide |
| Total Luminous Output | 120,000 lm |
| Illumination Distance | ≥ 150 m |
| Pan Angle | 360° continuous rotation |
| Tilt Angle | -45° ~ +90° |
| Control Mode | In-Cab Control + Wireless Remote |
| Lifting Time | ≤ 90 seconds |
| Rotation Speed | 0 – 3 rpm adjustable |
5. Power System
| Parameter | Value |
|---|---|
| Generator Output | 30 kW |
| Generator Type | Diesel Generator Set (Silent Type) |
| Engine Brand | Cummins / Yuchai |
| Fuel Tank Capacity | 150 L |
| Continuous Runtime | ≥ 12 hours |
| Starting Method | 24V Electric Start + Manual Backup |
| Output Voltage | 220V / 380V Three-Phase |
| Frequency | 50 Hz |
6. Standard Equipment
| Equipment | Description |
|---|---|
| Generator Compartment | Fully sound-insulated generator room |
| Tool Compartments | 4 side storage compartments |
| Warning Lights | Full roof warning light bar (red/blue) |
| Fire Extinguisher | 2 × 4kg dry powder fire extinguishers |
| Hydraulic Outriggers | 4 hydraulic stabilizing outriggers |
| Cable Reel | 50m power cable reel |
| Workbench | Rear work platform with railing |
| Ladder | Aluminum climbing ladder |
| Emergency Tool Kit | Full rescue tool set |
| Air Conditioner | Cab air conditioning |
