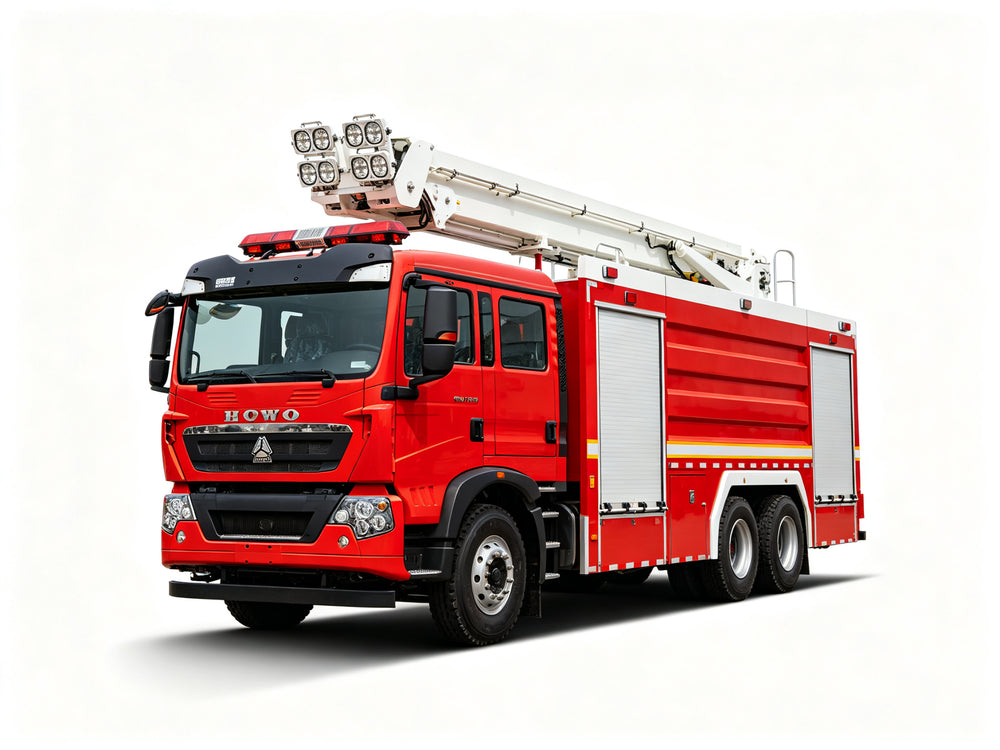

HOWO 8units-240000lm Emergency Lighting Truck
Request a Quote Now
1. Complete Vehicle Basic Parameters
| Parameter | Value |
|---|---|
| Vehicle Model | CL5250XZM6HL |
| Vehicle Type | Heavy-Duty Mobile Lighting Truck |
| Gross Vehicle Weight | 25000 kg |
| Curb Weight | 19000 kg |
| Rated Load | 5800 kg |
| Number of Axles | 3 (6×4) |
| Cab Seating | 3 persons |
| Maximum Speed | 85 km/h |
| Emission Standard | Euro VI / National VI |
2. Dimension & Wheel Parameters
| Parameter | Value |
|---|---|
| Overall Dimension (L×W×H) | 10500 × 2500 × 3900 mm |
| Wheelbase | 4300 + 1350 mm |
| Tire Specification | 11.00R20 18PR |
| Number of Tires | 10 + 1 spare |
3. Chassis & Powertrain
| Parameter | Value |
|---|---|
| Chassis Model | ZZ1257N404GE1 |
| Chassis Brand | Sinotruk Howo |
| Engine Model | WP7.270E61 |
| Engine Power | 270 HP (199 kW) |
| Transmission | Fast 8-Speed Manual |
| Fuel Tank | 300 L |

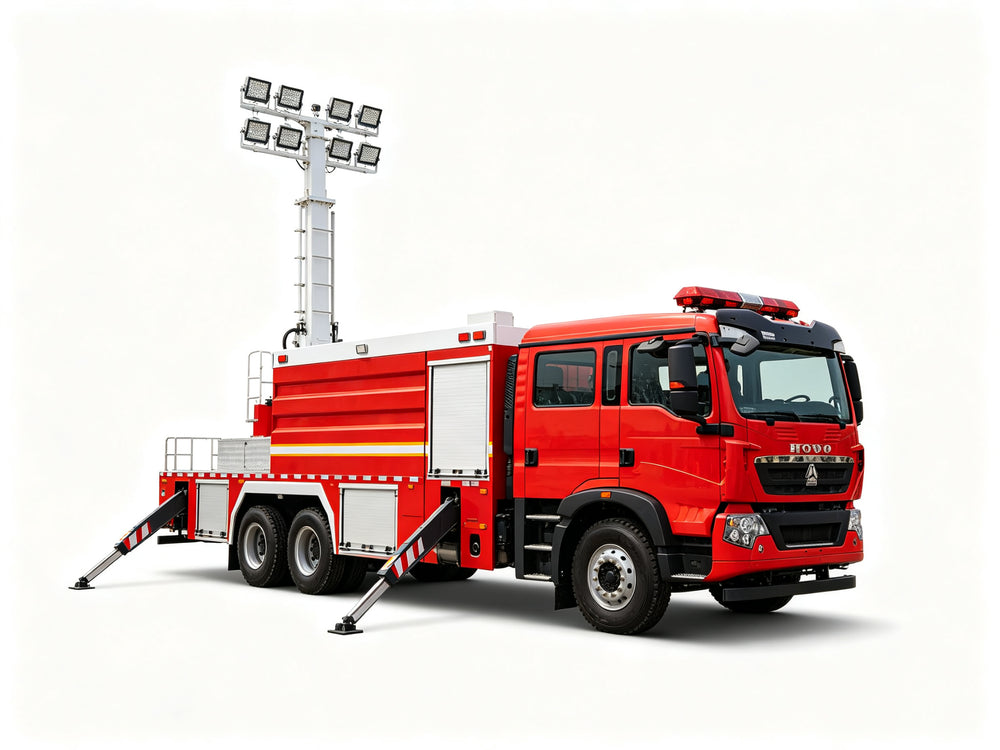

4. Lighting System
| Parameter | Value |
|---|---|
| Light Mast Type | Hydraulic Telescopic Mast |
| Mast Height | 12 m (5-section) |
| Number of Light Fixtures | 8 units |
| Light Source | High-Power LED Floodlights |
| Total Luminous Output | 240,000 lm |
| Illumination Distance | ≥ 200 m |
| Pan Angle | 360° continuous rotation |
| Tilt Angle | -60° ~ +90° |
| Control Mode | In-Cab Touchscreen + Wireless Remote |
| Lifting Time | ≤ 120 seconds |
| Rotation Speed | 0 – 5 rpm adjustable |
| Secondary Lights | 2 × 500W side work lights |
5. Power System
| Parameter | Value |
|---|---|
| Generator Output | 50 kW |
| Generator Type | Silent Diesel Generator Set |
| Engine Brand | Cummins |
| Fuel Tank Capacity | 250 L |
| Continuous Runtime | ≥ 16 hours |
| Starting Method | 24V Electric Start + Automatic Start |
| Output Voltage | 220V / 380V Three-Phase |
| Frequency | 50 Hz |
| ATS Switch | Automatic Transfer Switch |
| Parallel Operation | Optional parallel capability |
6. Standard Equipment
| Equipment | Description |
|---|---|
| Generator Compartment | Fully sound-insulated & ventilated |
| Tool Compartments | 6 side storage compartments |
| Warning Lights | Full roof warning light bar + side markers |
| Fire Extinguisher | 2 × 6kg dry powder fire extinguishers |
| Hydraulic Outriggers | 4 hydraulic stabilizing outriggers (H-type) |
| Cable Reel | 2 × 50m power cable reels |
| Work Platform | Rear hydraulic work platform |
| Ladder | Aluminum climbing ladder with safety cage |
| Emergency Tool Kit | Full professional rescue tool set |
| Air Conditioner | Cab + generator room ventilation |
| Monitoring System | Optional camera monitoring system |
| GPS Tracking | Built-in GPS fleet tracking |
| Water Tank | 200L on-board water tank |
