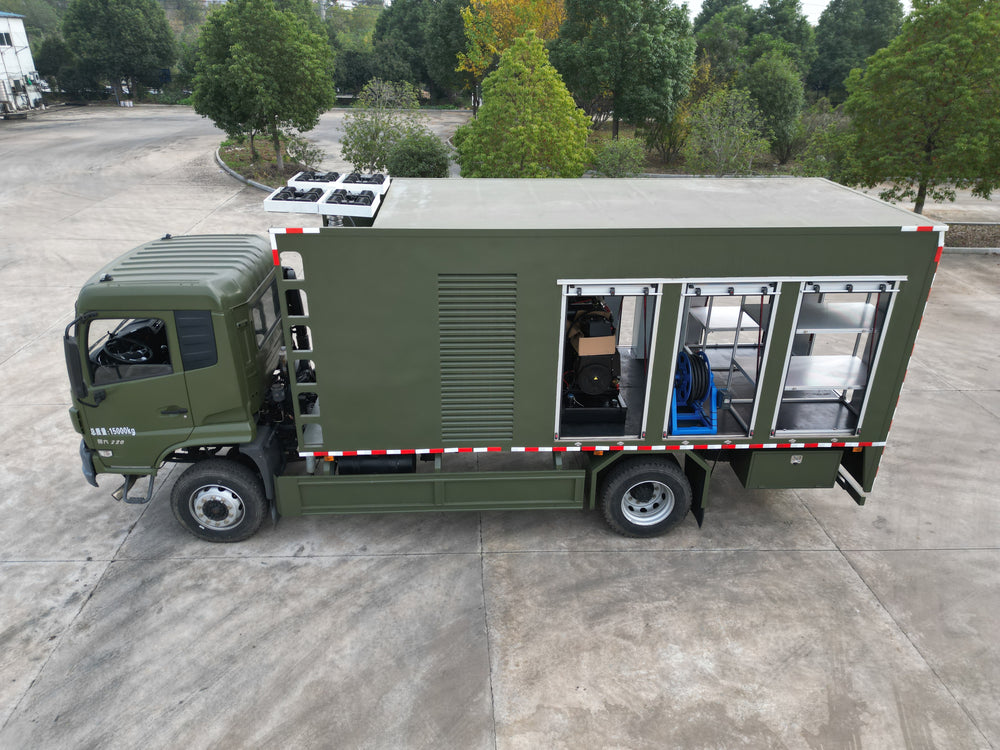

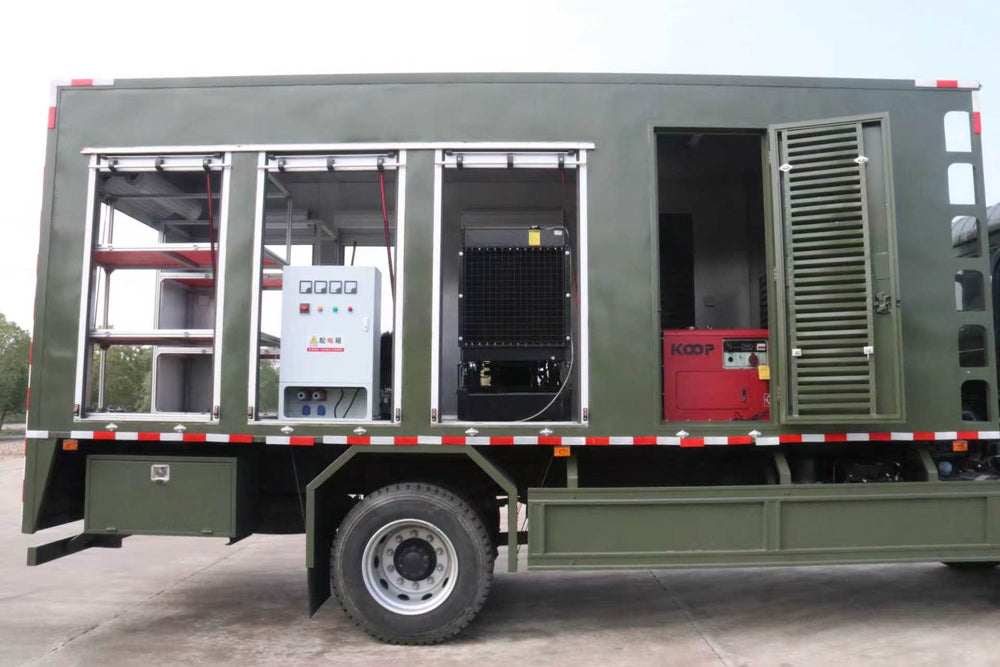

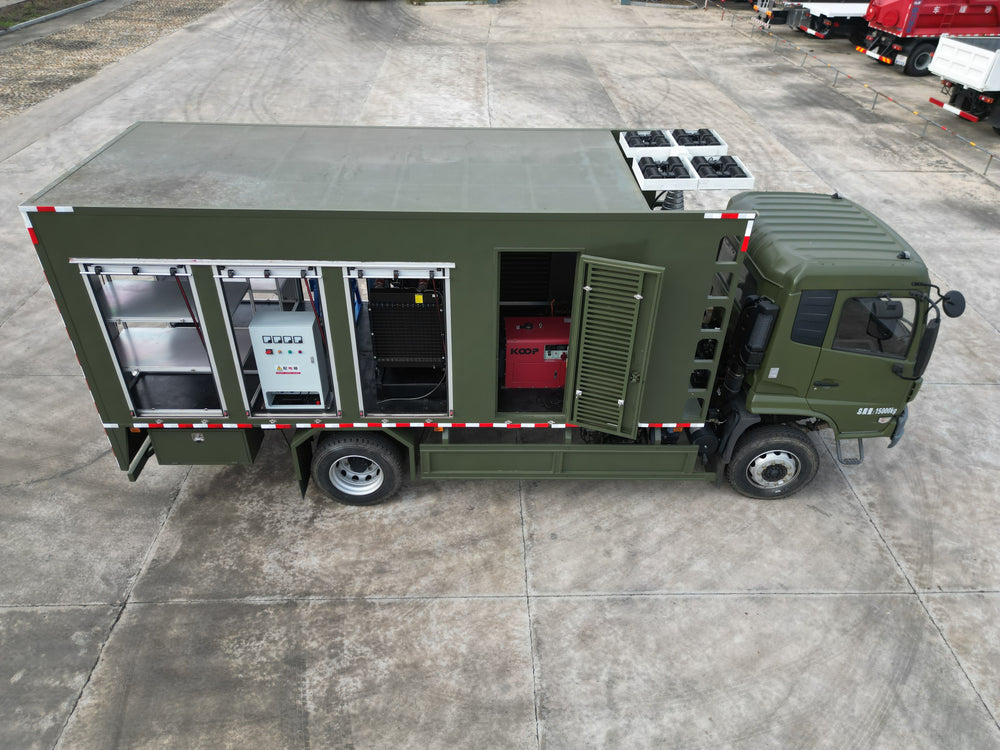

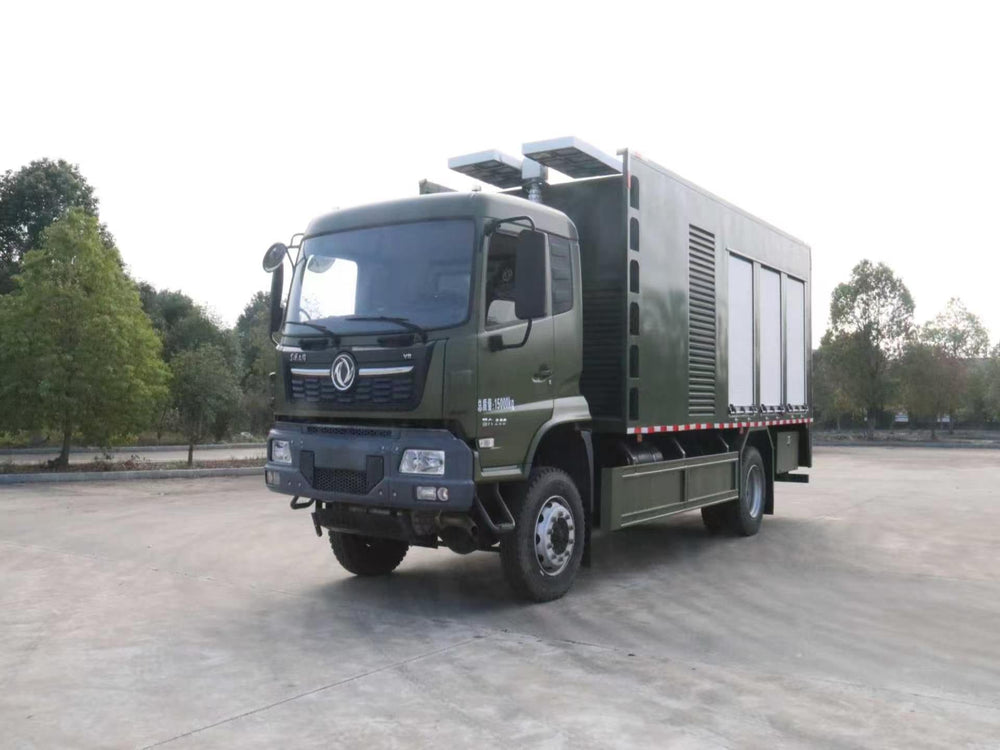

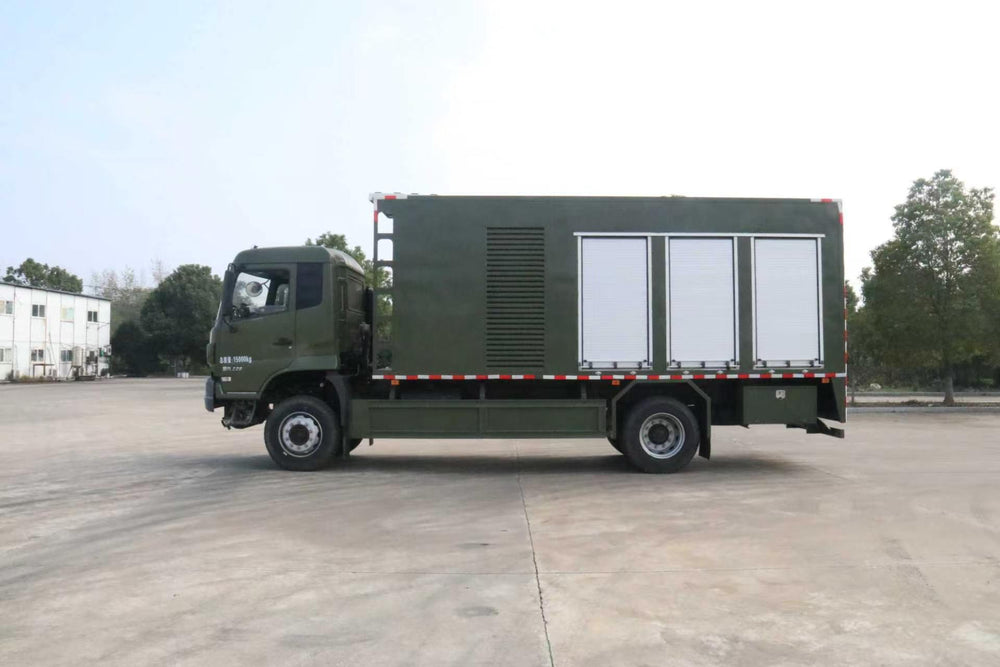

DongFeng 150KW Emergency Lighting Truck
Request a Quote Now
1. Complete Vehicle Basic Parameters
| Parameter | Value |
|---|---|
| Vehicle Brand | Chengli Brand |
| Vehicle Type | Emergency Lighting Truck |
| Vehicle Model | CL5150XZM6AZX |
| Gross Vehicle Weight | 15000 kg |
| Curb Weight | 14870 kg / 14805 kg |
| Number of Axles | 2 |
| Axle Load Distribution | 5000 kg / 10000 kg |
| Cab Seating Capacity | 2 persons / 3 persons |
| Fuel Type | Diesel |
| Maximum Speed | 89 km/h |
| Emission Standard | GB17691-2018 National VI |
| Application | Night rescue & emergency lighting operations |
2. Dimension & Wheel Parameters
| Parameter | Value |
|---|---|
| Overall Dimension (L×W×H) | 8600 × 2500 × 3750 mm |
| Wheelbase Options | 4200 mm / 4700 mm |
| Front Overhang / Rear Overhang | 1480 mm / 2420 mm |
| Approach Angle / Departure Angle | 26° / 10° |
| Front Track Width | 1934 mm |
| Rear Track Width | 1800 mm |
| Tire Specification | 10R22.5 16PR |
| Number of Tires | 6 |
| Leaf Spring Configuration | 10 / 10+8 |
3. Chassis Information
| Parameter | Value |
|---|---|
| Chassis Brand | Dongfeng Brand |
| Chassis Type | Off-Road Vehicle Chassis |
| Chassis Model | DFH2160BX |
| Announcement Batch | 392 |
| Drive Type | 4×4 Off-Road |
| Chassis Gross Weight | 16000 kg |
| Chassis Curb Weight | 5400 kg |
4. Powertrain System
| Parameter | Value |
|---|---|
| Engine Model | D4.5NS6B220 |
| Engine Manufacturer | China National Heavy Duty Truck Group Co., Ltd. |
| Engine Displacement | 4500 ml |
| Engine Rated Power | 162 kW |
| Engine Net Power | 157 kW |
| ABS System | ABS 8 / Dongke Knorr-Bremse Commercial Vehicle Brake Systems (Shiyan) Co., Ltd. |

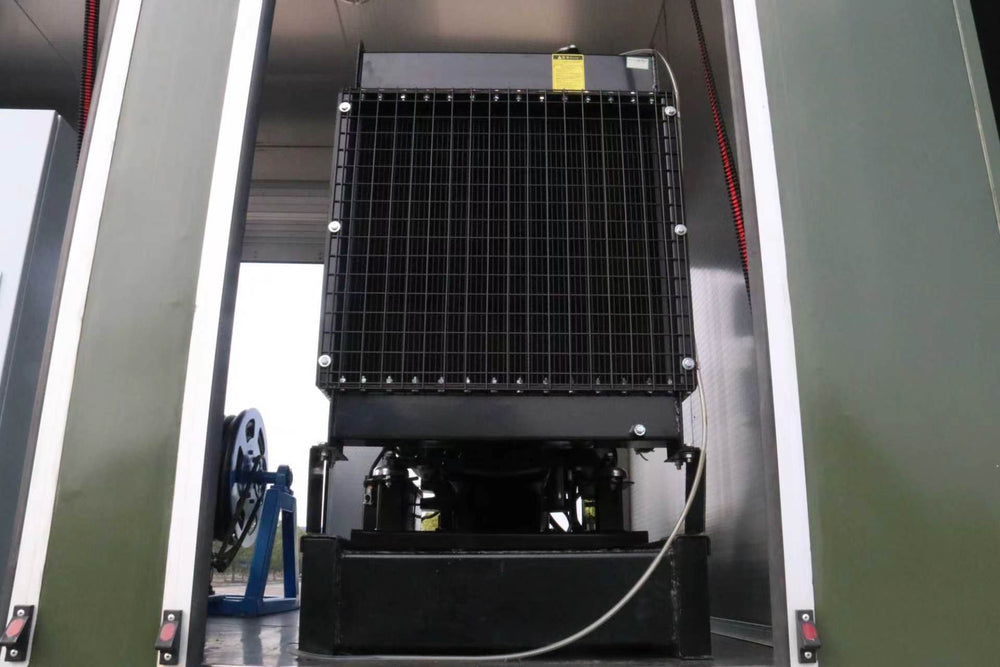

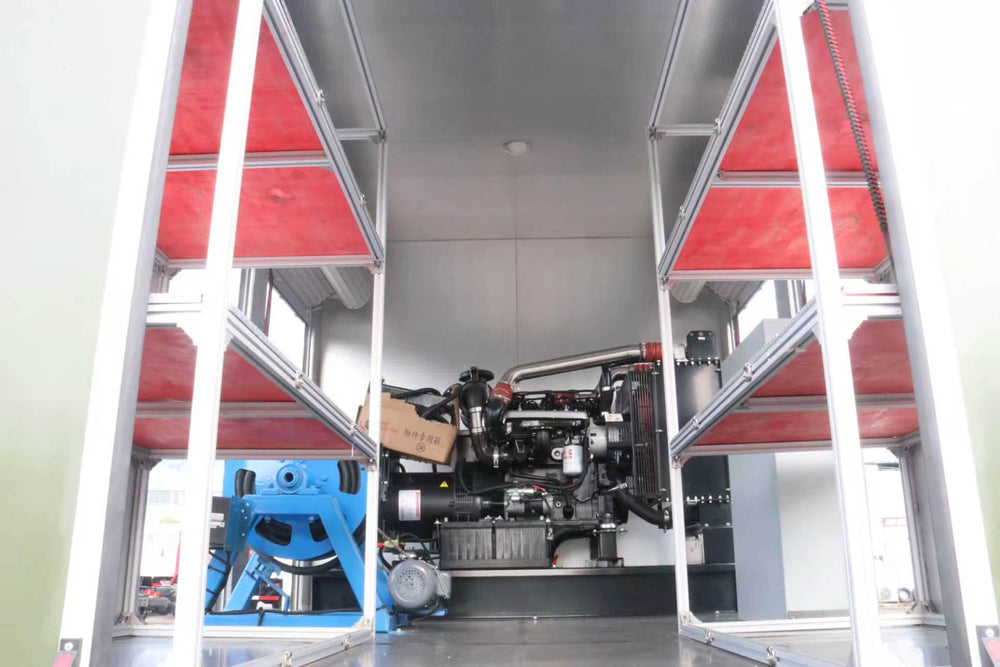

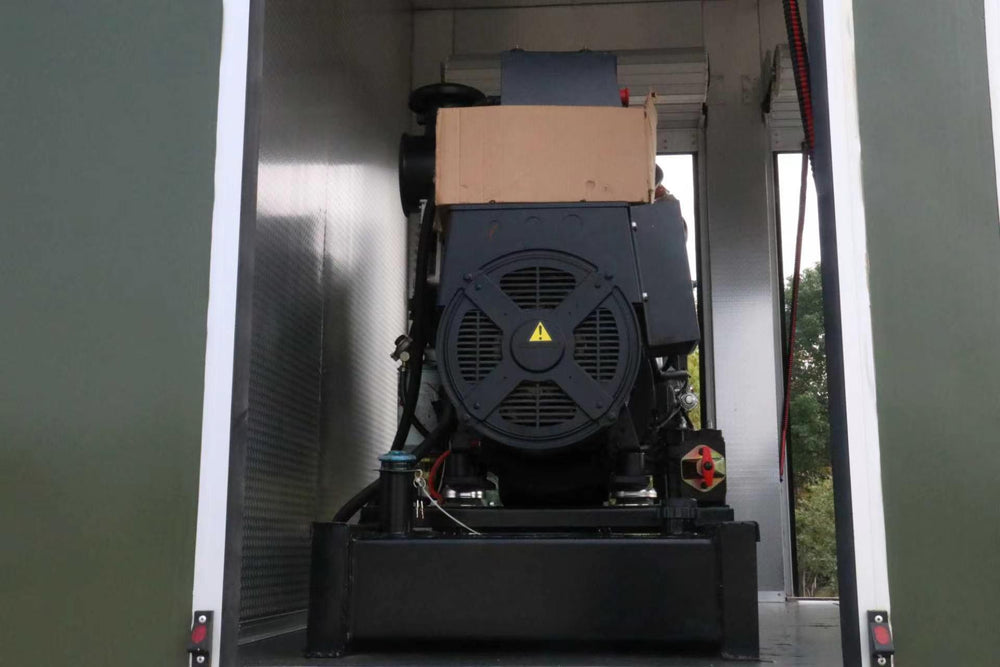

5. 150KW Diesel Generator Set Parameters
| Parameter | Value |
|---|---|
| Generator Set Series | Shangchai Series |
| Set Capacity | 180 kVA |
| Set Rated Power | 150 kW |
| Rated Power Factor | COSΦ = 0.8 (Lagging) |
| Rated Output Voltage | 400V / 230V |
| Rated Current | 540 A |
| Rated Frequency | 50 Hz |
| Rated Speed | 1500 rpm |
| Start Control Method | Fully Automatic |
| Fuel Type | 0# Light Diesel (Standard, Normal Temperature) |
| Set Weight | 2850 kg |
6. Generator Set Electrical Performance
| Parameter | Value |
|---|---|
| Steady-State Voltage Regulation | ≤ ±1% |
| Voltage Fluctuation | ≤ ±0.5% |
| Voltage Stabilization Time | ≤ 1 second |
| Steady-State Frequency Regulation | ≤ ±1% |
| Frequency Fluctuation | ≤ ±0.5% |
| Transient Frequency Regulation | +10% ~ -7% |
| Frequency Stabilization Time | ≤ 3 seconds |
| Fuel Consumption (100% Load) | ≤ 196 g/kW·h |

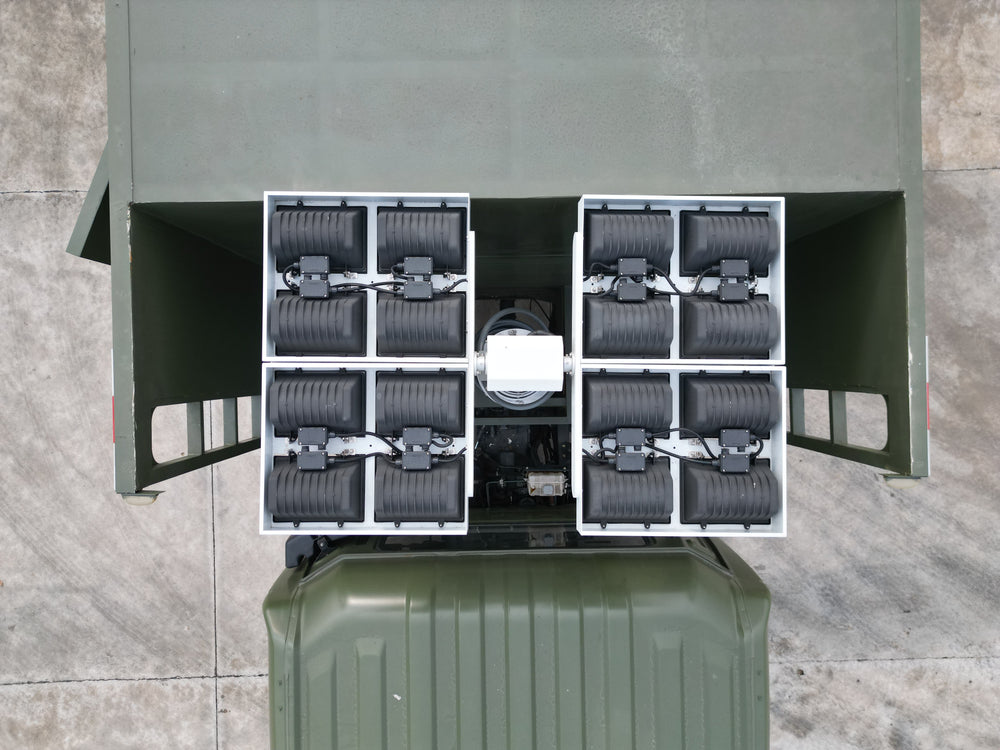

7. Lighting System
| Parameter | Value |
|---|---|
| Main Lighting Fixtures | High-Power Floodlights |
| Lighting Operation | Only in working state; not allowed while driving |
| Light Mast | Hydraulic Telescopic Mast |
| Pan Angle | 360° continuous rotation |
| Control Mode | In-cab + remote control |

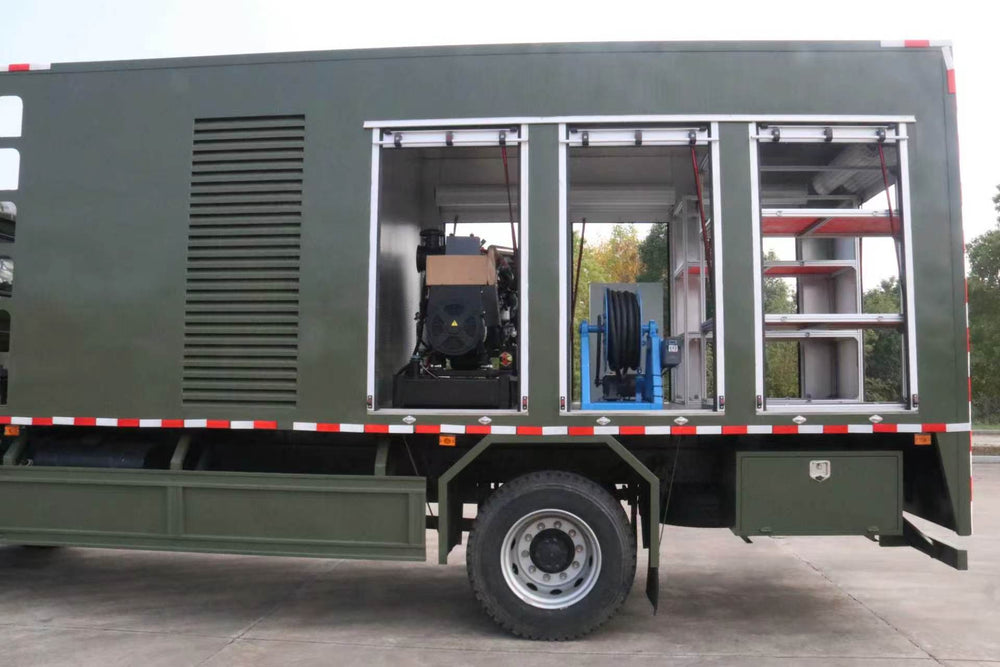

8. Body & Protection
| Parameter | Value |
|---|---|
| Compartment Roof | Fully enclosed, non-opening |
| Main Equipment | Lighting fixtures + generator set |
| Rear Protection Material | Q235A Carbon Steel |
| Rear Protection Connection | Welded |
| Rear Protection Cross-Section | 120 × 60 mm |
| Rear Protection Ground Clearance | 450 mm |
| Side Protection Material | Q235A Carbon Steel |
| Side Protection Connection | Welded |
9. Optional Equipment
| Option | Description |
|---|---|
| Rearview Mirror | Optional upgraded rearview mirror |
| Front Bumper | Optional front bumper upgrade |
| ETC On-Board Device | Optional direct power supply ETC on-board device |
