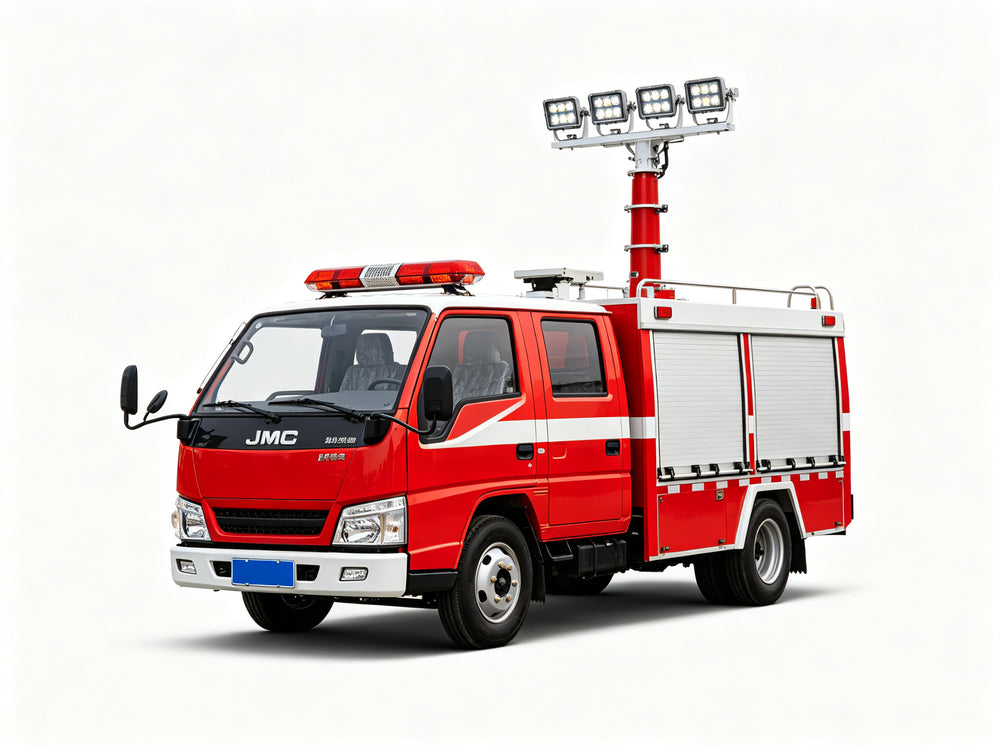

JMC 4000lm Emergency Lighting Truck
Request a Quote Now
1. Complete Vehicle Basic Parameters
| Parameter | Value |
|---|---|
| Vehicle Model | CL5040XZM6HL |
| Vehicle Type | Compact Emergency Lighting Truck |
| Gross Vehicle Weight | 4495 kg |
| Curb Weight | 3800 kg |
| Rated Load | 495 kg |
| Number of Axles | 2 |
| Cab Seating | 2+3 persons (Double Cab) |
| Maximum Speed | 105 km/h |
| Emission Standard | Euro VI / National VI |
2. Dimension & Wheel Parameters
| Parameter | Value |
|---|---|
| Overall Dimension (L×W×H) | 5995 × 1950 × 2700 mm |
| Wheelbase | 3360 mm |
| Tire Specification | 7.00R16LT 10PR |
| Number of Tires | 6 |
3. Chassis & Powertrain
| Parameter | Value |
|---|---|
| Chassis Model | JX1041TSG26 |
| Chassis Brand | JMC |
| Engine Model | JX4D30B6H |
| Engine Power | 115 HP (85 kW) |
| Transmission | 5-Speed Manual |
| Fuel Tank | 80 L |
4. Lighting System
| Parameter | Value |
|---|---|
| Light Mast Type | Hydraulic Telescopic Mast |
| Mast Height | 6 m (3-section) |
| Number of Light Fixtures | 4 units |
| Light Source | High-Power LED |
| Total Luminous Output | 40,000 lm |
| Illumination Distance | ≥ 100 m |
| Pan Angle | 360° continuous rotation |
| Tilt Angle | -30° ~ +90° |
| Control Mode | Wired + Wireless Remote Control |
| Lifting Time | ≤ 60 seconds |
5. Power System
| Parameter | Value |
|---|---|
| Generator Output | 10 kW |
| Generator Type | Diesel Generator Set |
| Fuel Tank Capacity | 50 L |
| Continuous Runtime | ≥ 8 hours |
| Starting Method | 24V Electric Start |
| Output Voltage | 220V / 380V |
6. Standard Equipment
| Equipment | Description |
|---|---|
| Generator Compartment | Sound-insulated generator room |
| Tool Compartments | 2 side tool storage compartments |
| Warning Lights | Roof-mounted red/blue warning light bar |
| Fire Extinguisher | 2kg dry powder fire extinguisher |
| Outriggers | 2 manual stabilizing outriggers |
| Cable Reel | 30m power cable reel |
| Emergency Tool Kit | Standard rescue tool set |
