Parameter Value
Chassis Model LZ1186M3ACT
Gross Vehicle Weight (GVW) 18000KG
Curb Weight 14000KG/13500KG/12900KG/12000KG/11500KG/11000KG
Announcement Coverage 8-12 ton announcement covers all domestic crane photos, no worries for vehicle registration
Wheelbase Options 5100mm, 4500mm
Cab Type M3 cab, single-row cab, half-row cab

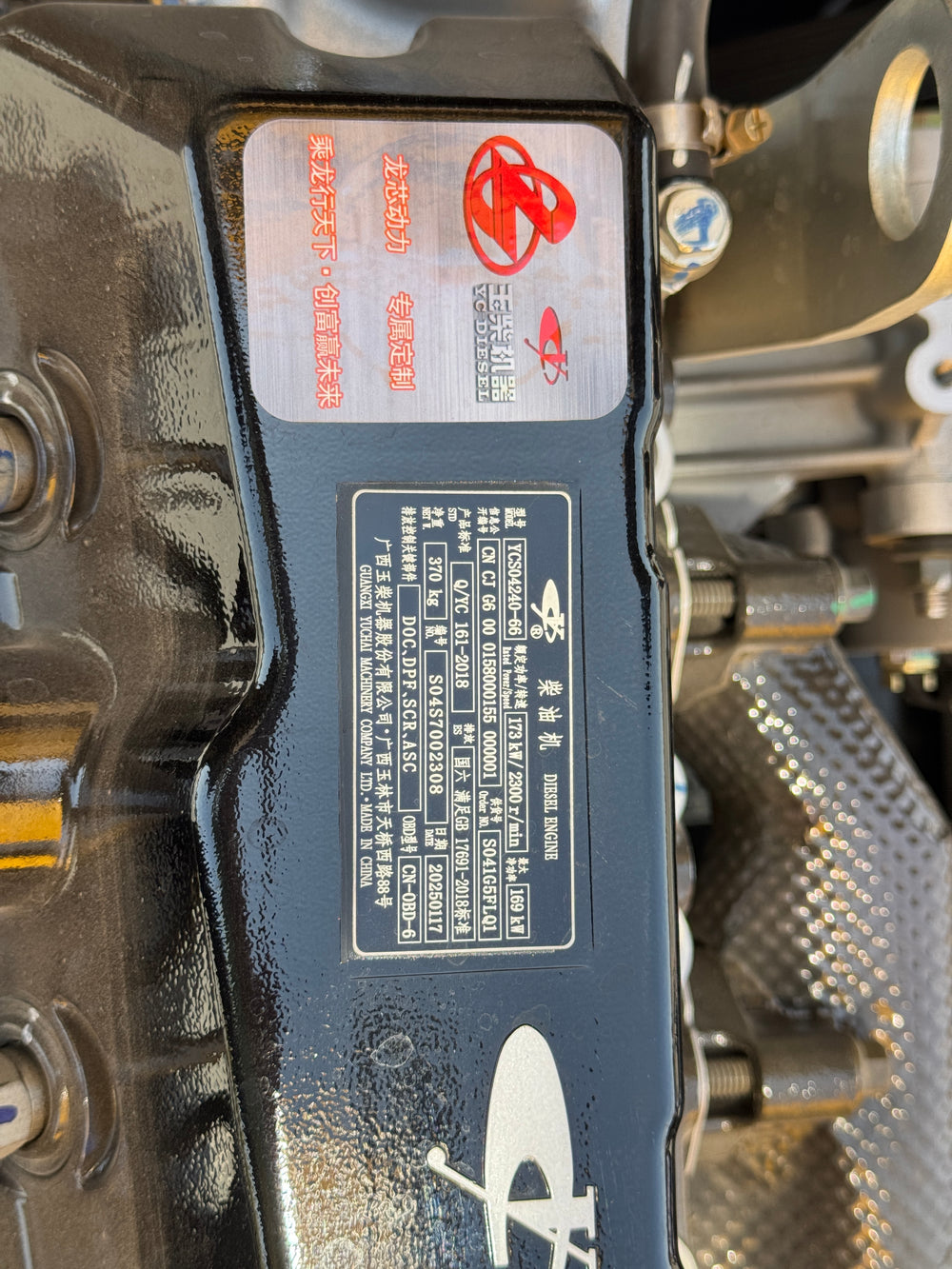

Engine Model YCS04240-66
Transmission Model 8JS85E-C (with spline power take-off)
Front Axle 5.5T narrow front axle
Rear Axle 153 rear axle
Axle Ratio 5.571
Fuel Tank 200L iron fuel tank
Tire Specification 10.00R20 18PR
Clutch Φ395 push-type clutch
Leaf Spring 11/12+9 leaf spring
Frame 282(8+4) local three-layer frame (with small connecting plate)
5100mm Wheelbase - Overall Vehicle Length 9000mm
5100mm Wheelbase - Single-row Cab Cargo Box Size 6100mm
5100mm Wheelbase - Half-row Cab Cargo Box Size 5600mm
4500mm Wheelbase - Overall Vehicle Length 8320mm
4500mm Wheelbase - Single-row Cab Cargo Box Size 5400mm
4500mm Wheelbase - Half-row Cab Cargo Box Size 5000mm
Cab Suspension Semi-floating cab suspension, manual hydraulic tilting

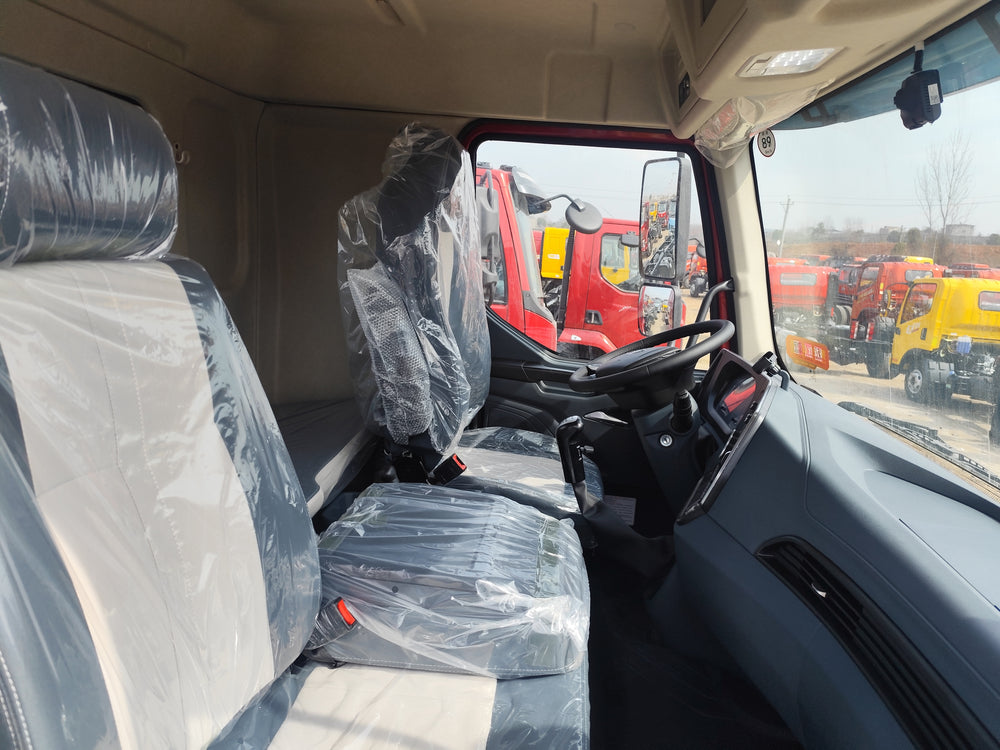

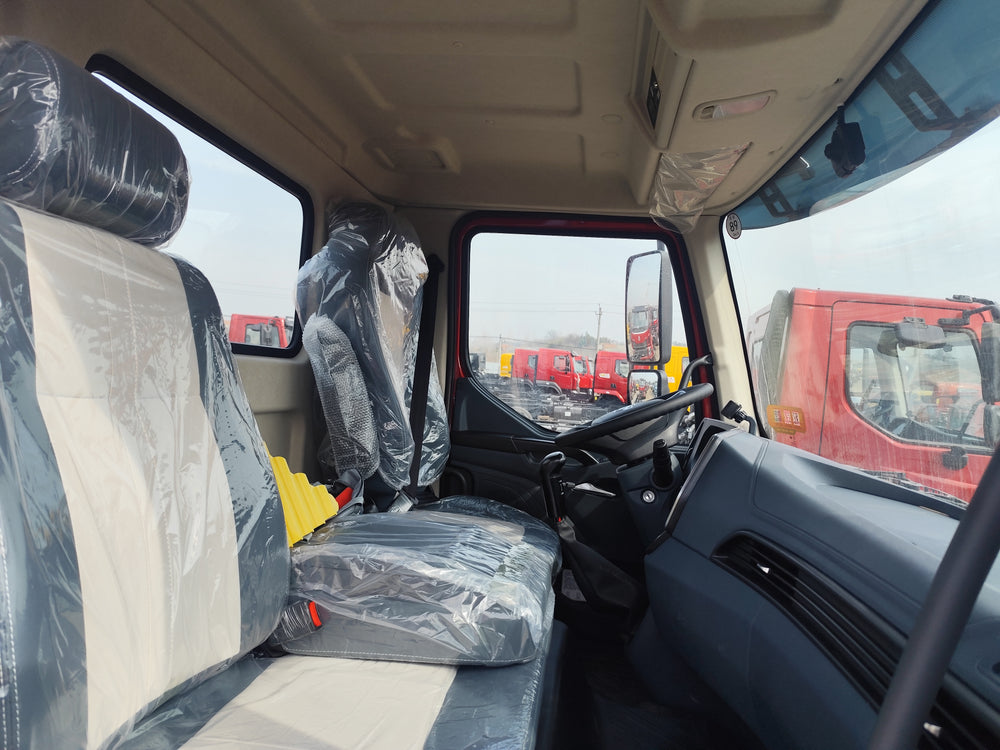

Driver's Seat Knitted airbag driver's seat
Steering Wheel Ordinary leather steering wheel
Window Lifter Electric window lifter
Door Lock Remote control central lock
Air Conditioning Air conditioner
On-board Terminal On-board terminal (driving recorder + compatible with Beidou GPS)
Telematics System Chenglong V+ Internet of Vehicles 3.0 system
Switch Multi-state switch
Safety Feature Right turn reminder function
Valve Domestic valve
Braking System ABS, self-adjusting arm
Battery Maintenance-free battery
Start/Stop Function Under-vehicle start and stop function
Exterior Parts Same color bumper + fender
Throttle Rocker type self-return remote throttle
Sun Visor Sun visor
