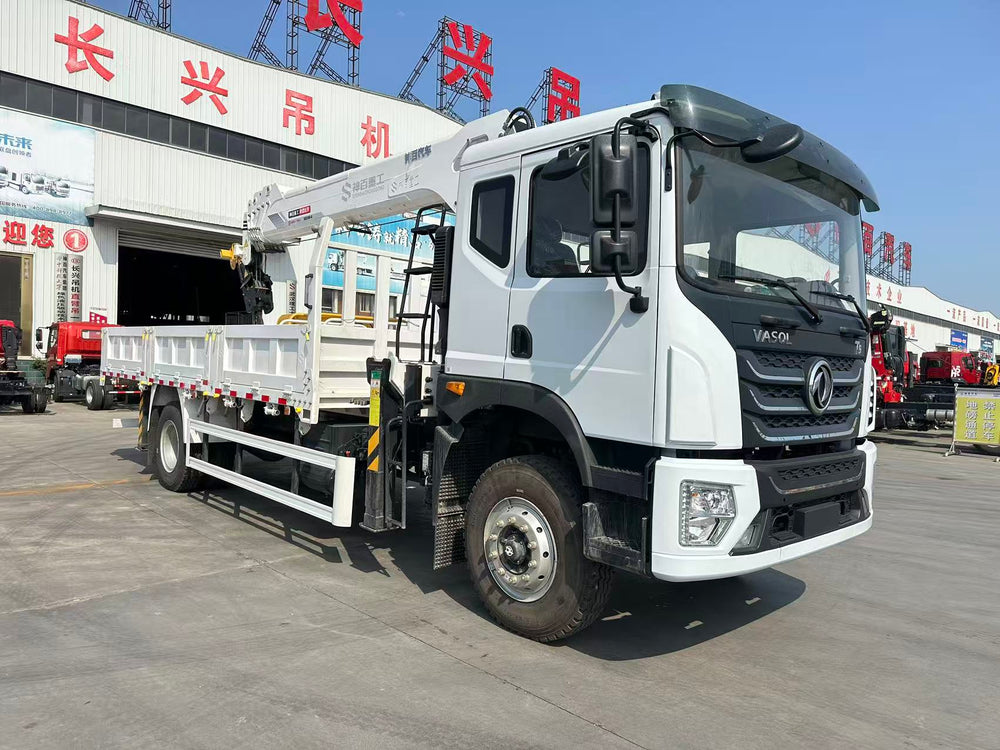

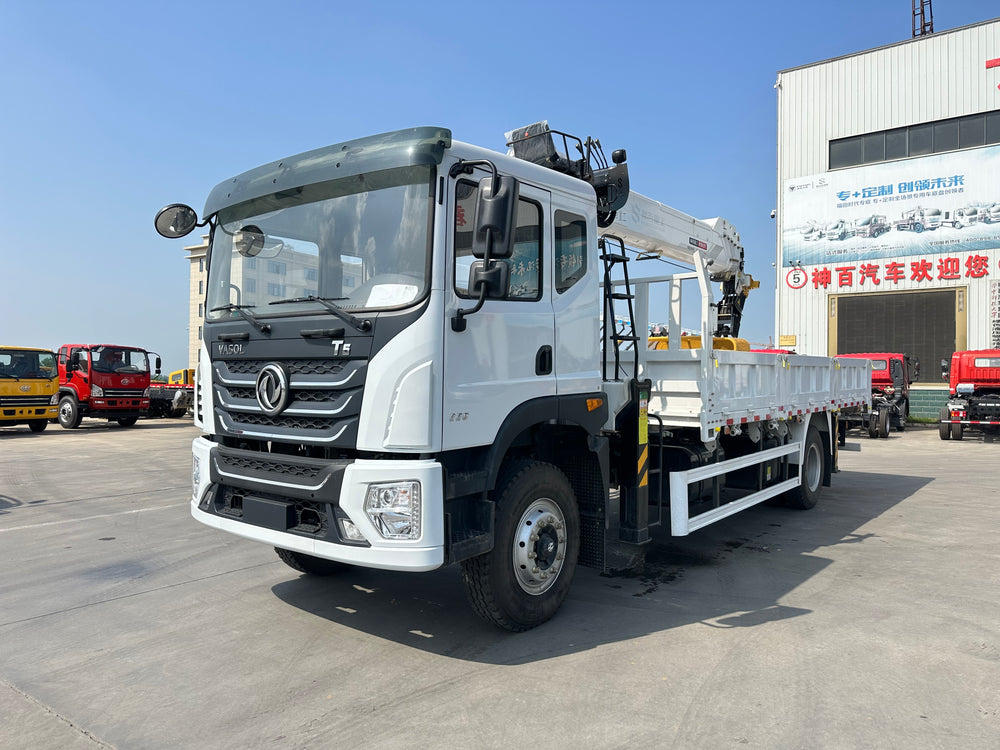

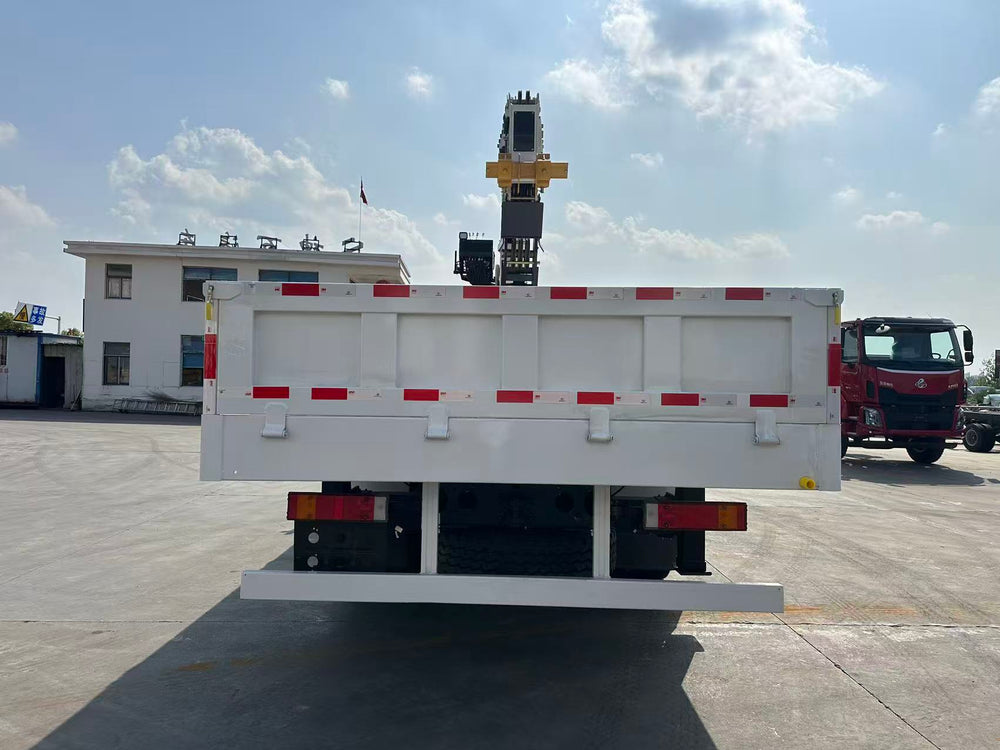

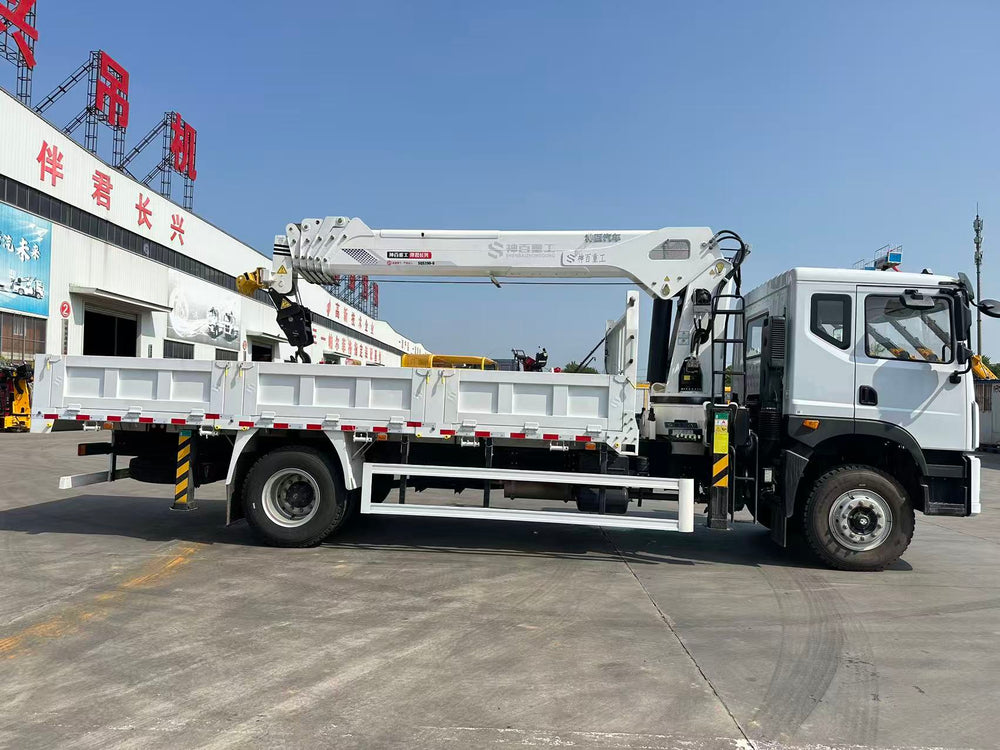

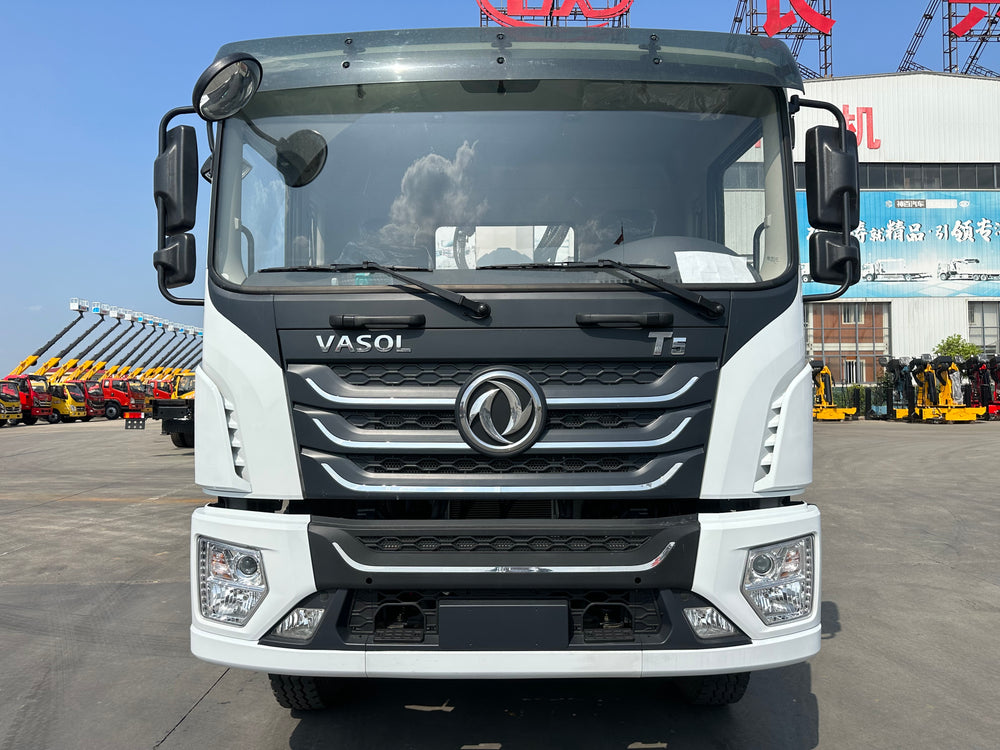

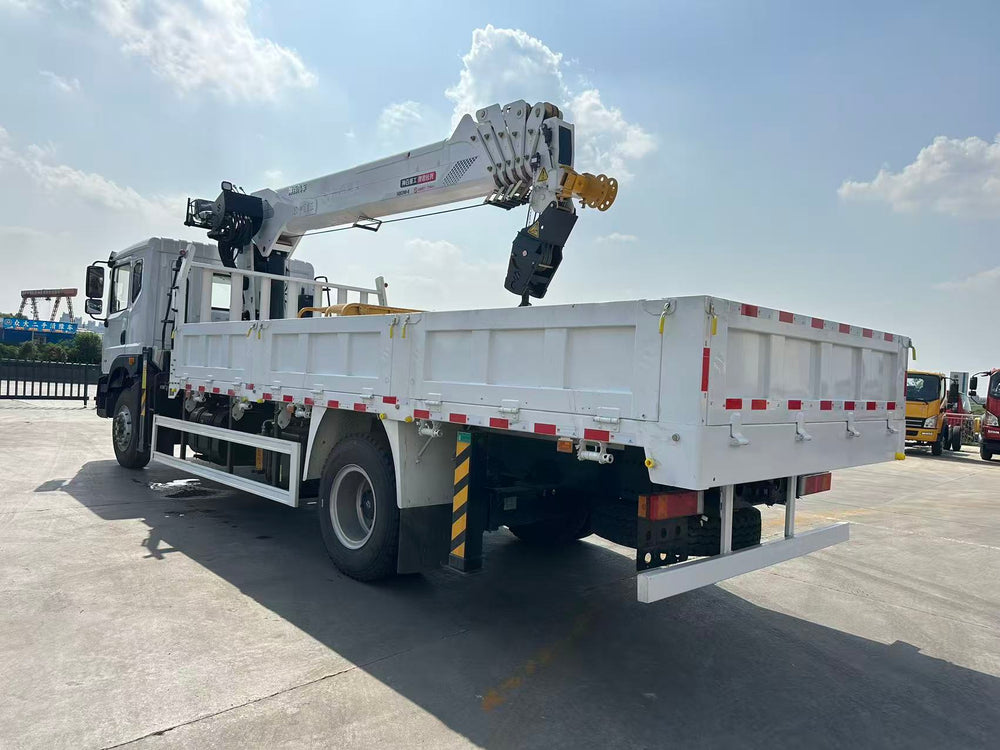

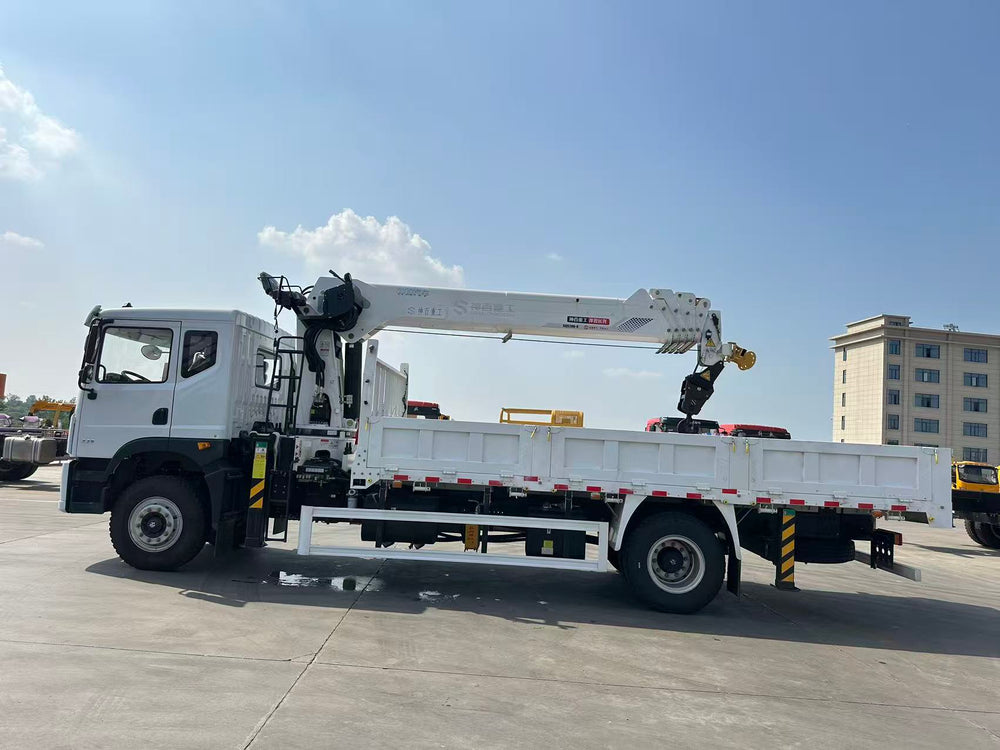

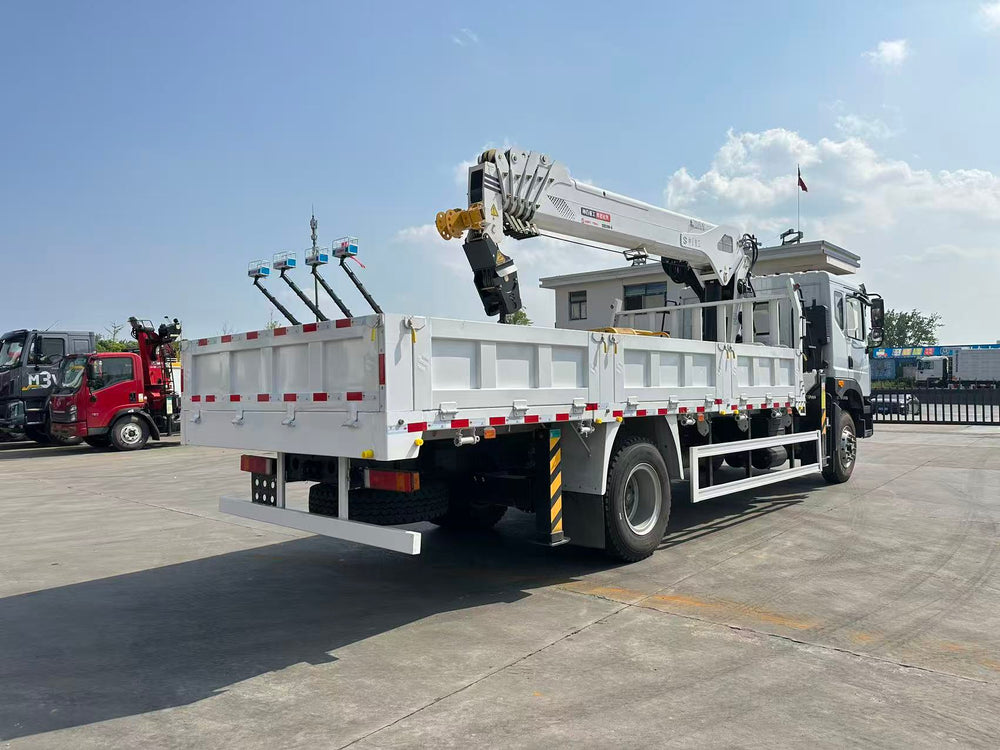

DongFeng 4×2 8T Telescopic Boom Crane
Request a Quote Now
Chassis
| Item | Specification |
|---|---|
| Chassis Dimension | 9300×2470×2970mm |
| Wheelbase | 5600mm |
| GVW | 22T |
| Kerb Weight | 6T |
| Cab | T5 Half-row Cab, Air Suspension Seat, Mechanical Instrument, Central Lock & Remote Control, Sun Visor |
| Engine | YC6J220-33, 6-Cylinder |
| Engine Displacement | 6.49L |
| Transmission | 8JS85TE-C with PTO |
| Front Axle | SAN HUAN 5T; Rear Axle: SAN HUAN 10T |
| Final Drive Ratio | 5.571 |
| Tyre Spec | 10.00R20 18PR |
| Fuel Tank Capacity | 240L |
| Suspension | 9/10 Leaf Spring |
| Chassis Frame | 280×90×8, 4+5 Layers |
| Brake System | Air Brake, Drum Brake, Exhaust Brake |
| Superstructure | |
| Cargo Box | 6100×2450×550mm, 3-bottom & 5-side Plate, Rivet-top & Weld-bottom |
| Crane Model | SQS200-6 |
| Lifting Height | 21.4m |
| Max Reach | 20m |
| Crane Self-weight | 5900KG |
| Crane Configuration | Double-pump Confluence, Single-out 2&3-section Boom, Dual Swing, SHENBAI High-pressure Dual-chamber Outrigger, Winch(Inclined Piston/Inner Motor), Full-through Chassis, Integrated Control Panel |
